Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

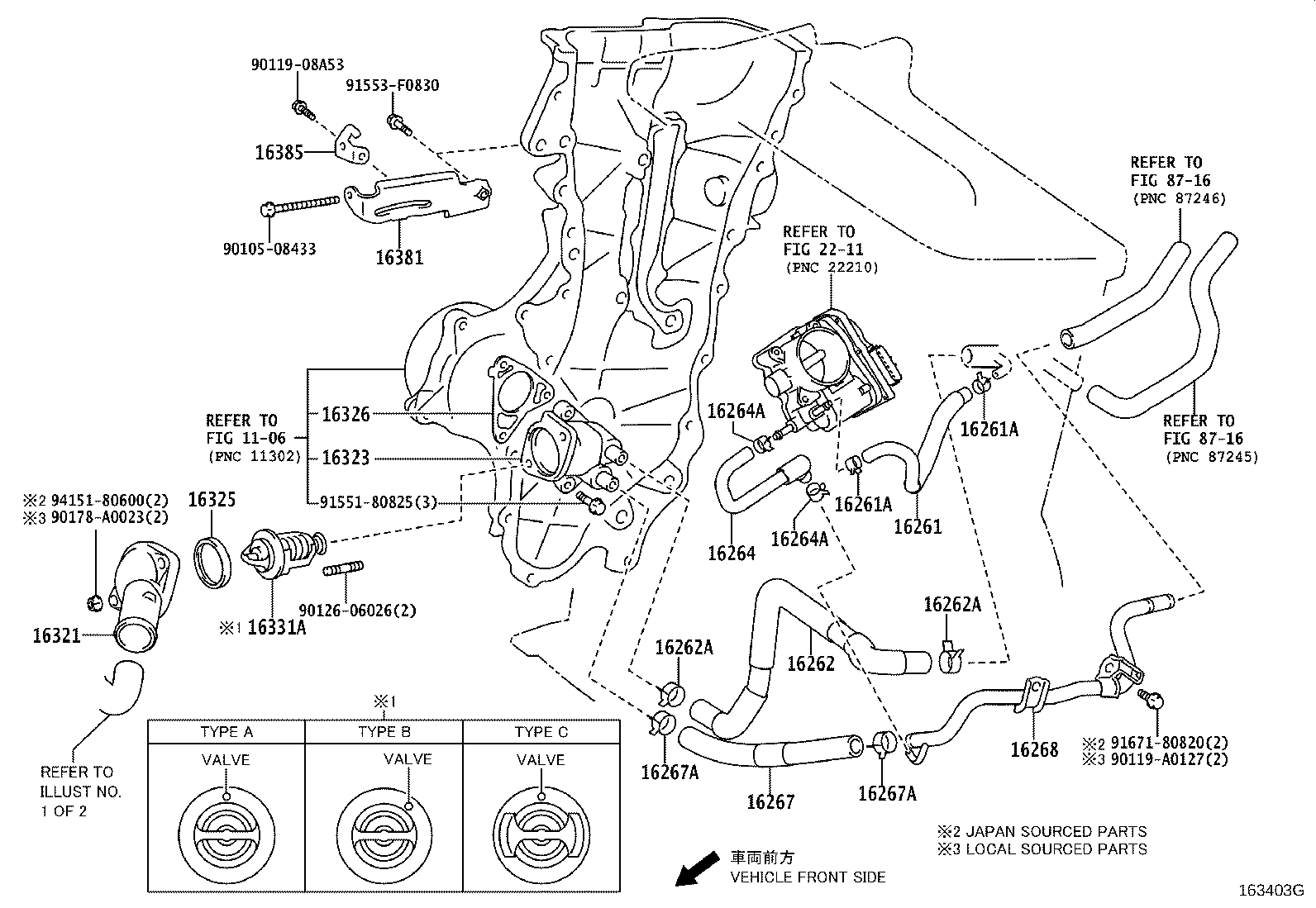

Exploded illustration 163403G 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (3 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (3 parts) 16261 — HOSE, WATER BY-PASS (5 parts) 16262 — HOSE, WATER INLET (2 parts) 16262A — CLIP(FOR WATER INLET HOSE) (4 parts) 16262A — CLIP(FOR WATER INLET HOSE) (4 parts) 16264 — HOSE, WATER BY-PASS, NO.2 (5 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (4 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (4 parts) 16267 — HOSE, WATER BY-PASS, NO.3 (2 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (4 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (4 parts) 16268 — PIPE, WATER BY-PASS, NO.1 (6 parts) 16321 — INLET, WATER (2 parts) 16325 — GASKET, WATER INLET HOUSING, NO.1 (6 parts) 16331A — THERMOSTAT (7 parts) 16381 — BAR, FAN BELT ADJUSTING (2 parts) 9415180600 — not listed in this catalogue 9011908A53 — not listed in this catalogue 9012606026 — not listed in this catalogue 91553F0830 — not listed in this catalogue 9167180820 — not listed in this catalogue 16323 — HOUSING, WATER INLET (5 parts) 9155180825 — not listed in this catalogue 16326 — GASKET, WATER INLET HOUSING, NO.2 (2 parts) 9010508433 — not listed in this catalogue 16385 — SLIDER, FAN BELT ADJUSTING (2 parts) 1106 — not listed in this catalogue 2211 — not listed in this catalogue 8716 — not listed in this catalogue 8716 — not listed in this catalogue 90178A0023 — not listed in this catalogue 90119A0127 — not listed in this catalogue
163403G · 20 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
61 parts on this figure
Part number Description Fitment Price
16261 — Hose, Water By-pass
16261-37021 note Hose, Water By-pass
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
16261-37021 note Hose, Water By-pass
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16261-37021 note Hose, Water By-pass
2010-12 → 2011-01 ended
2ZRFE ZRE142 JPP —
16261-37022 note Hose, Water By-pass
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16261-37022 note Hose, Water By-pass
2011-01 → 2013-08 ended
2ZRFE ZRE142 JPP —
16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
96137-41501 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90466-A0017 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
96137-41501 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16262 — Hose, Water Inlet
16262-37010 Hose, Water Inlet
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16262-37010 Hose, Water Inlet
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16262A — Clip(FOR WATER INLET HOSE)
96136-42501 Clip(FOR WATER INLET HOSE)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90466-A0023 note Clip(FOR WATER INLET HOSE)
2012-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
96136-42501 Clip(FOR WATER INLET HOSE)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
96136-42501 note Clip(FOR WATER INLET HOSE)
2012-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16264 — Hose, Water By-pass, NO.2
16264-37021 note Hose, Water By-pass, NO.2
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16264-37021 note Hose, Water By-pass, NO.2
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
16264-37021 note Hose, Water By-pass, NO.2
2010-12 → 2011-01 ended
2ZRFE ZRE142 JPP —
16264-37022 note Hose, Water By-pass, NO.2
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16264-37022 note Hose, Water By-pass, NO.2
2011-01 → 2013-08 ended
2ZRFE ZRE142 JPP —
16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90466-A0017 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2012-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
96137-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2012-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16267 — Hose, Water By-pass, NO.3
16267-37010 Hose, Water By-pass, NO.3
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16267-37010 Hose, Water By-pass, NO.3
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
96136-42501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90466-A0023 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
96136-42501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
96136-42501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16268 — Pipe, Water By-pass, NO.1
16268-37030 note Pipe, Water By-pass, NO.1
2007-12 → 2008-02 ended
2ZRFE ZRE142 JPP —
16268-37031 note Pipe, Water By-pass, NO.1
2008-02 → 2010-12 ended
2ZRFE ZRE142 JPP —
16268-37031 note Pipe, Water By-pass, NO.1
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
16268-0T090 note Pipe, Water By-pass, NO.1
2012-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16268-37031 Pipe, Water By-pass, NO.1
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16268-37031 note Pipe, Water By-pass, NO.1
2012-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16321 — Inlet, Water
16321-37010 Inlet, Water
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16321-37010 Inlet, Water
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16323 — Housing, Water Inlet
16323-0T020 note Housing, Water Inlet
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
16323-37020 note Housing, Water Inlet
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16323-0T020 note Housing, Water Inlet
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16323-37020 note Housing, Water Inlet
2010-12 → 2012-01 ended
2ZRFE ZRE142 JPP —
16323-37021 note Housing, Water Inlet
2012-01 → 2013-08 ended
2ZRFE ZRE142 JPP —
16325 — Gasket, Water Inlet Housing, NO.1
16325-0T030 note Gasket, Water Inlet Housing, NO.1
2010-03 → 2010-12 ended
2ZRFE ZRE142 JPP —
16325-28010 Gasket, Water Inlet Housing, NO.1
2008-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16325-28010 note Gasket, Water Inlet Housing, NO.1
2010-03 → 2010-12 ended
2ZRFE ZRE142 JPP —
16325-62010 Gasket, Water Inlet Housing, NO.1
2007-12 → 2008-12 ended
2ZRFE ZRE142 JPP —
16325-0T030 note Gasket, Water Inlet Housing, NO.1
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16325-28010 note Gasket, Water Inlet Housing, NO.1
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16326 — Gasket, Water Inlet Housing, NO.2
16326-37010 Gasket, Water Inlet Housing, NO.2
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16326-37010 Gasket, Water Inlet Housing, NO.2
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16331A — Thermostat
90916-03129 note Thermostat
2007-12 → 2008-08 ended
2ZRFE ZRE142 JPP —
90916-03144 note Thermostat
2008-08 → 2010-12 ended
2ZRFE ZRE142 JPP —
90916-03145 note Thermostat
2009-01 → 2010-12 ended
2ZRFE ZRE142 JPP —
90916-A3002 note Thermostat
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
90916-03144 note Thermostat
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
90916-03145 note Thermostat
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
90916-A3002 note Thermostat
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16381 — Bar, Fan Belt Adjusting
16381-37010 Bar, Fan Belt Adjusting
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16381-37030 Bar, Fan Belt Adjusting
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16385 — Slider, Fan Belt Adjusting
16385-37010 Slider, Fan Belt Adjusting
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16385-37010 Slider, Fan Belt Adjusting
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
