Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

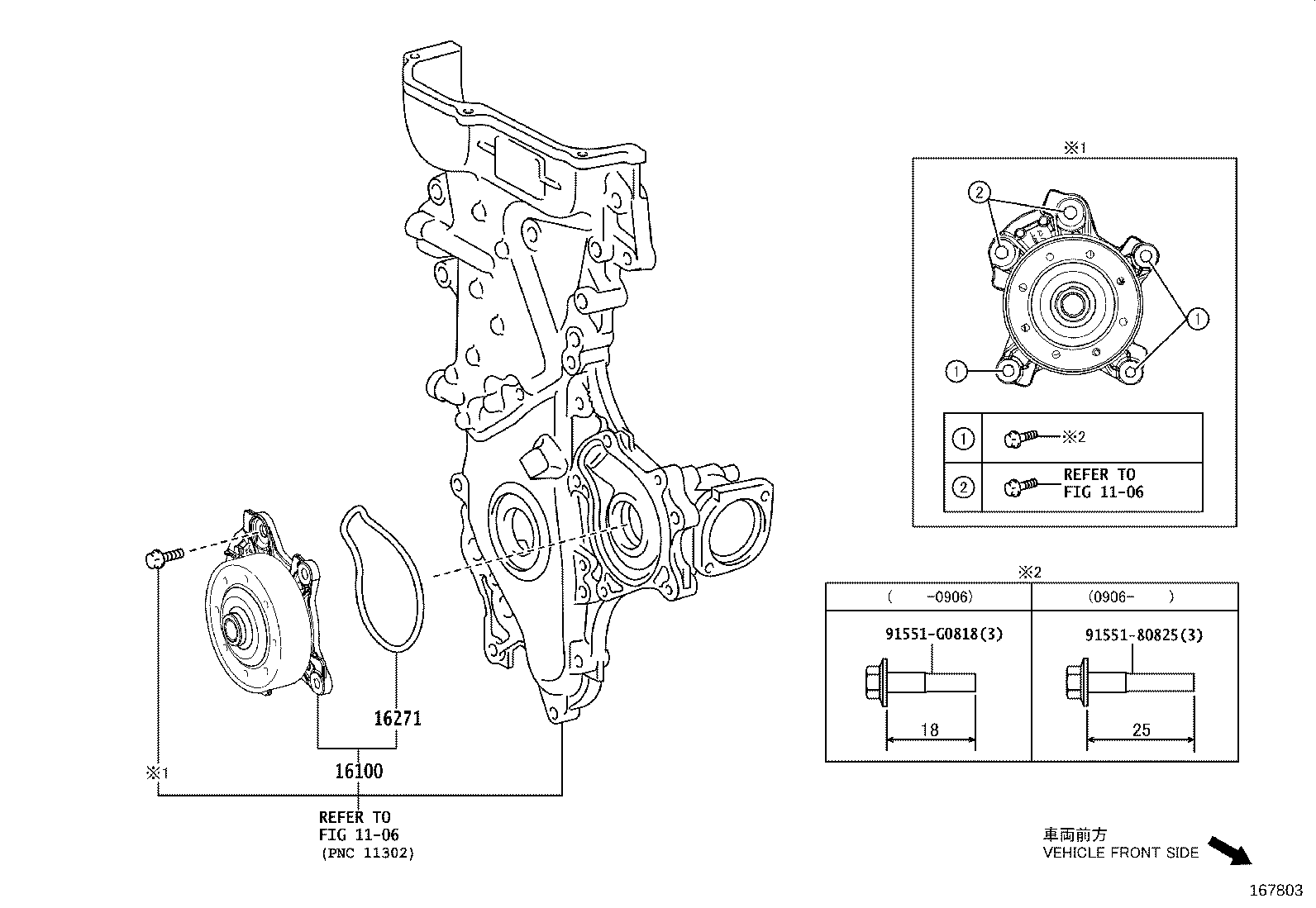

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-39465 |
Pump Assy, Engine Water
2007-12 → 2009-06
ended
|
2ZRFE ZRE142 JPP | — | |
| 16100-39466 |
Pump Assy, Engine Water
2009-06 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 16100-09560 note |
Pump Assy, Engine Water
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 16100-39466 note |
Pump Assy, Engine Water
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 16271 — Gasket, Water Pump | ||||
| 16271-37010 |
Gasket, Water Pump
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 16271-37010 |
Gasket, Water Pump
2010-12 → 2012-01
ended
|
2ZRFE ZRE142 JPP | — | |
| 16271-37010 |
Gasket, Water Pump
2012-01 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
