Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

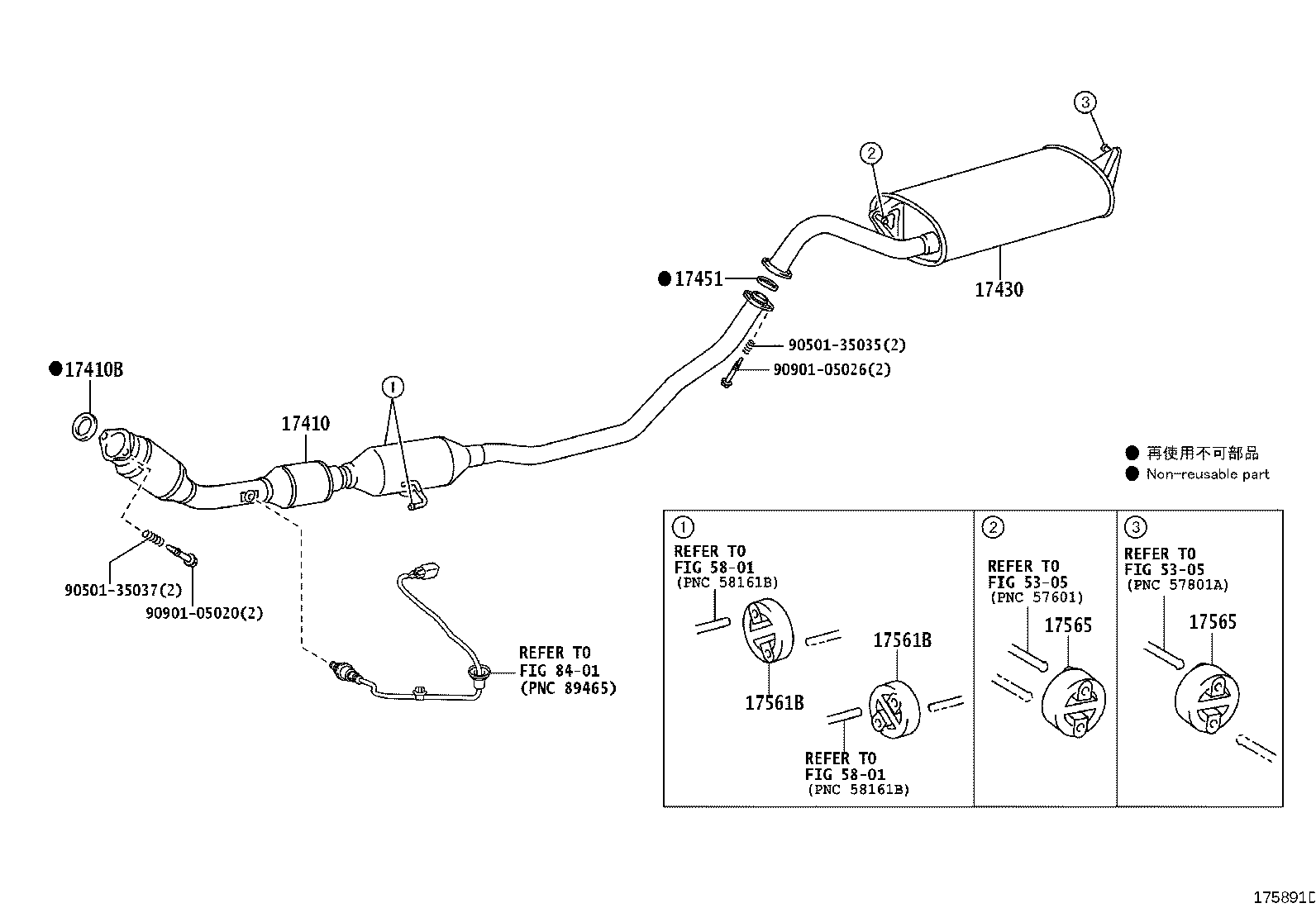

Exploded illustration 175891D 5801 — not listed in this catalogue 5305 — not listed in this catalogue 5305 — not listed in this catalogue 5801 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (2 parts) 17410B — GASKET, EXHAUST PIPE (2 parts) 17451 — GASKET, EXHAUST PIPE (4 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (2 parts) 9050135035 — not listed in this catalogue 9090105026 — not listed in this catalogue 9050135037 — not listed in this catalogue 9090105020 — not listed in this catalogue 17561B — SUPPORT, EXHAUST PIPE, NO.1 (2 parts) 17561B — SUPPORT, EXHAUST PIPE, NO.1 (2 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (2 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (2 parts) 8401 — not listed in this catalogue
175891D · 8 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
14 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-37260 Pipe Assy, Exhaust, Front
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
17410-37420 Pipe Assy, Exhaust, Front
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
17410B — Gasket, Exhaust Pipe
17451-28040 Gasket, Exhaust Pipe
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
17451-28040 Gasket, Exhaust Pipe
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
17430 — Pipe Assy, Exhaust, Tail
17430-37280 Pipe Assy, Exhaust, Tail
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
17430-37280 Pipe Assy, Exhaust, Tail
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
17451 — Gasket, Exhaust Pipe
17451-28030 Gasket, Exhaust Pipe
2007-12 → 2008-01 ended
2ZRFE ZRE142 JPP —
17451-28031 Gasket, Exhaust Pipe
2008-01 → 2010-12 ended
2ZRFE ZRE142 JPP —
17451-28031 Gasket, Exhaust Pipe
2010-12 → 2011-02 ended
2ZRFE ZRE142 JPP —
17451-28032 Gasket, Exhaust Pipe
2011-03 → 2013-08 ended
2ZRFE ZRE142 JPP —
17561B — Support, Exhaust Pipe, NO.1
17565-22030 Support, Exhaust Pipe, NO.1
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
17565-22030 Support, Exhaust Pipe, NO.1
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
17565 — Support, Exhaust Pipe, NO.5
17565-22040 Support, Exhaust Pipe, NO.5
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
17565-22040 Support, Exhaust Pipe, NO.5
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
