Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

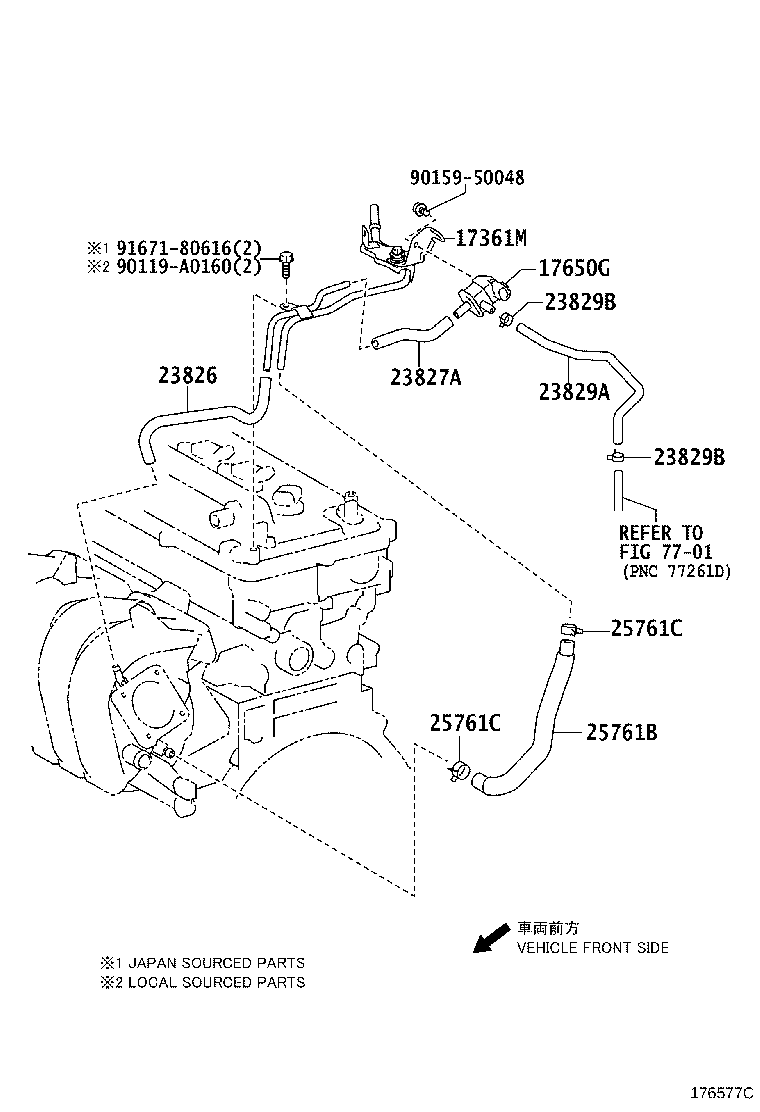

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17361M — Tube, Air | ||||
| 17361-37010 |
Tube, Air
2007-12 → 2009-06
ended
|
2ZRFE ZRE142 JPP | — | |
| 17361-37011 |
Tube, Air
2009-06 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17361-37011 |
Tube, Air
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17650G — Valve, Duty Vacuum Switching | ||||
| 90910-12276 note |
Valve, Duty Vacuum Switching
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90910-TC001 note |
Valve, Duty Vacuum Switching
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90910-12276 note |
Valve, Duty Vacuum Switching
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 90910-TC001 note |
Valve, Duty Vacuum Switching
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 23826 — Hose, Fuel Vapor Feed, NO.1 | ||||
| 23826-37020 |
Hose, Fuel Vapor Feed, NO.1
2007-12 → 2009-06
ended
|
2ZRFE ZRE142 JPP | — | |
| 23826-37021 |
Hose, Fuel Vapor Feed, NO.1
2009-06 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 23826-37021 |
Hose, Fuel Vapor Feed, NO.1
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 23827A — Hose, Fuel Vapor Feed, NO.2 | ||||
| 23827-37020 |
Hose, Fuel Vapor Feed, NO.2
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 23827-37020 |
Hose, Fuel Vapor Feed, NO.2
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 23829A — Hose, Fuel Vapor Feed | ||||
| 23826-37060 |
Hose, Fuel Vapor Feed
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 23826-37060 |
Hose, Fuel Vapor Feed
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 23829B — Clip(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-11003 |
Clip(FOR FUEL VAPOR FEED HOSE)
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90466-11003 |
Clip(FOR FUEL VAPOR FEED HOSE)
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 25761B — Hose, Vaccum Transmitting, NO.1 | ||||
| 25761-37010 note |
Hose, Vaccum Transmitting, NO.1
2007-12 → 2009-06
ended
|
2ZRFE ZRE142 JPP | — | |
| 25761-37010 note |
Hose, Vaccum Transmitting, NO.1
2008-07 → 2009-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 25761-37011 note |
Hose, Vaccum Transmitting, NO.1
2010-08 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 25761-37060 note |
Hose, Vaccum Transmitting, NO.1
2009-06 → 2010-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 25761-37060 note |
Hose, Vaccum Transmitting, NO.1
2009-09 → 2010-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 25761-37011 |
Hose, Vaccum Transmitting, NO.1
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 25761C — Clip(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
Clip(VACCUM TRANSMITTING HOSE NO.1)
2009-06 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 96136-41801 |
Clip(VACCUM TRANSMITTING HOSE NO.1)
2007-12 → 2009-06
ended
|
2ZRFE ZRE142 JPP | — | |
| 96133-41500 |
Clip(VACCUM TRANSMITTING HOSE NO.1)
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
