Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

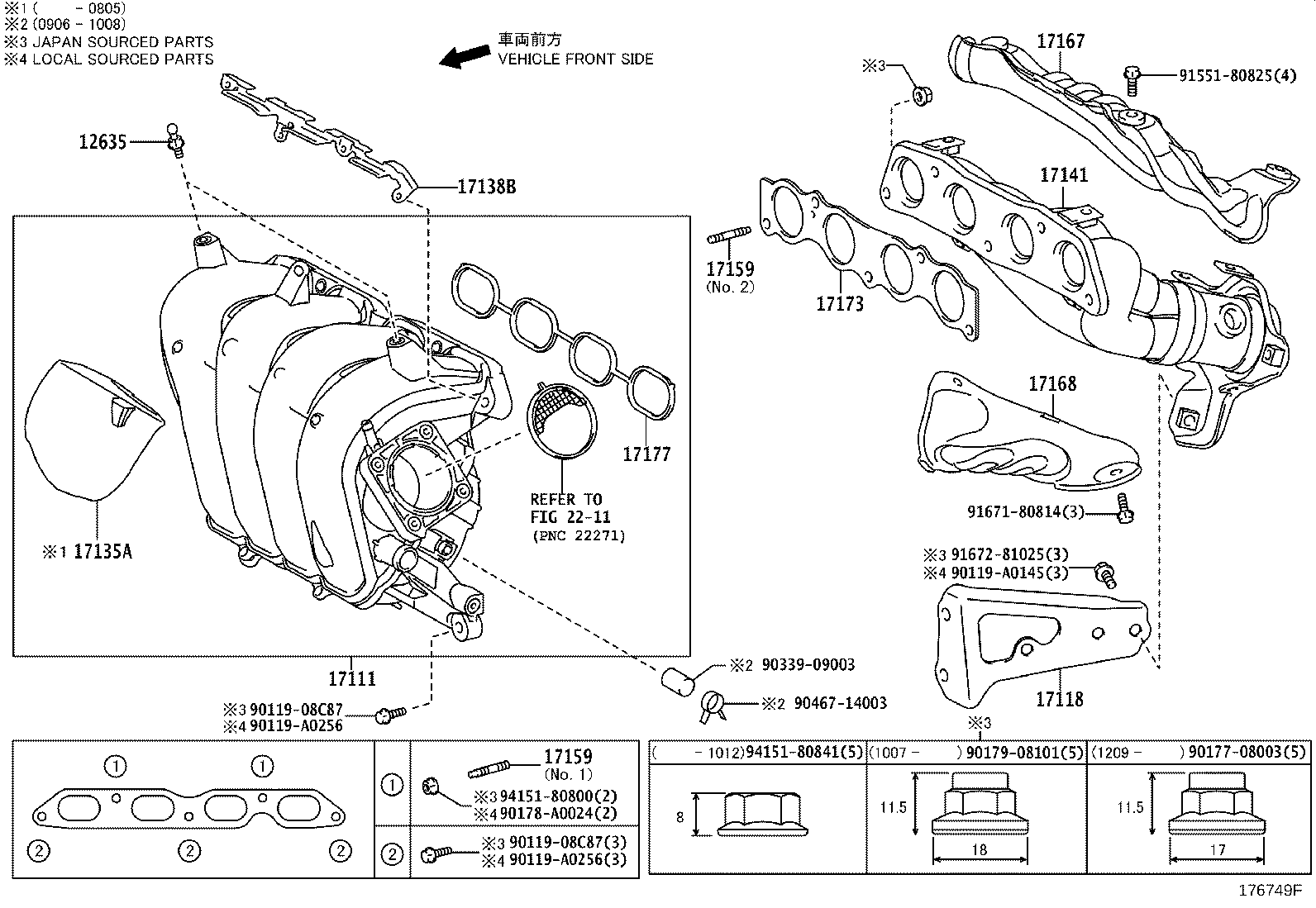

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12635 — Joint, Engine Cover | ||||
| 90109-06385 |
Joint, Engine Cover
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90109-06385 |
Joint, Engine Cover
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17111 — Manifold, Intake | ||||
| 17120-0T011 note |
Manifold, Intake
2009-06 → 2009-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 17120-0T011 note |
Manifold, Intake
2008-07 → 2010-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17120-0T012 note |
Manifold, Intake
2010-08 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17120-37020 note |
Manifold, Intake
2007-12 → 2008-05
ended
|
2ZRFE ZRE142 JPP | — | |
| 17120-37021 note |
Manifold, Intake
2008-05 → 2009-06
ended
|
2ZRFE ZRE142 JPP | — | |
| 17120-37021 note |
Manifold, Intake
2008-07 → 2009-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 17120-37021 note |
Manifold, Intake
2009-06 → 2009-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 17120-37022 note |
Manifold, Intake
2009-09 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17120-0T012 note |
Manifold, Intake
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17120-37022 note |
Manifold, Intake
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17118 — Stay, Manifold | ||||
| 17118-37010 |
Stay, Manifold
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17118-0T060 note |
Stay, Manifold
2012-04 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17118-37010 note |
Stay, Manifold
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17135A — Insulator, Intake Manifold, NO.1 | ||||
| 17135-37010 |
Insulator, Intake Manifold, NO.1
2007-12 → 2008-05
ended
|
2ZRFE ZRE142 JPP | — | |
| 17138B — Stay, Intake Manifold | ||||
| 17138-0T010 note |
Stay, Intake Manifold
2010-08 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17138-37010 note |
Stay, Intake Manifold
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17138-0T010 note |
Stay, Intake Manifold
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17138-37010 note |
Stay, Intake Manifold
2010-12 → 2013-05
ended
|
2ZRFE ZRE142 JPP | — | |
| 17138-37011 note |
Stay, Intake Manifold
2013-05 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17141 — Manifold, Exhaust | ||||
| 17141-0T040 note |
Manifold, Exhaust
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17141-37051 note |
Manifold, Exhaust
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17141-0T080 note |
Manifold, Exhaust
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17141-37130 note |
Manifold, Exhaust
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90126-08052 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2012-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 90126-08052 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 90126-A0006 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2012-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17167 — Insulator, Exhaust Manifold Heat, NO.1 | ||||
| 17167-37011 |
Insulator, Exhaust Manifold Heat, NO.1
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17167-0T060 note |
Insulator, Exhaust Manifold Heat, NO.1
2012-04 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17167-37110 note |
Insulator, Exhaust Manifold Heat, NO.1
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17168 — Insulator, Exhaust Manifold Heat, NO.2 | ||||
| 17168-37100 |
Insulator, Exhaust Manifold Heat, NO.2
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17168-0T090 note |
Insulator, Exhaust Manifold Heat, NO.2
2012-04 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17168-37100 note |
Insulator, Exhaust Manifold Heat, NO.2
2012-04 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17168-37100 |
Insulator, Exhaust Manifold Heat, NO.2
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-0T030 note |
Gasket, Exhaust Manifold TO Head
2010-09 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17173-37010 note |
Gasket, Exhaust Manifold TO Head
2008-07 → 2010-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 17173-37010 note |
Gasket, Exhaust Manifold TO Head
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17173-37010 note |
Gasket, Exhaust Manifold TO Head
2010-09 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17173-0T030 note |
Gasket, Exhaust Manifold TO Head
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17173-37010 note |
Gasket, Exhaust Manifold TO Head
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17177-0T020 note |
Gasket, Intake Manifold TO Head, NO.1
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17177-37030 note |
Gasket, Intake Manifold TO Head, NO.1
2007-12 → 2009-06
ended
|
2ZRFE ZRE142 JPP | — | |
| 17177-37030 note |
Gasket, Intake Manifold TO Head, NO.1
2009-06 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 17177-0T020 note |
Gasket, Intake Manifold TO Head, NO.1
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 17177-37030 note |
Gasket, Intake Manifold TO Head, NO.1
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
