Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

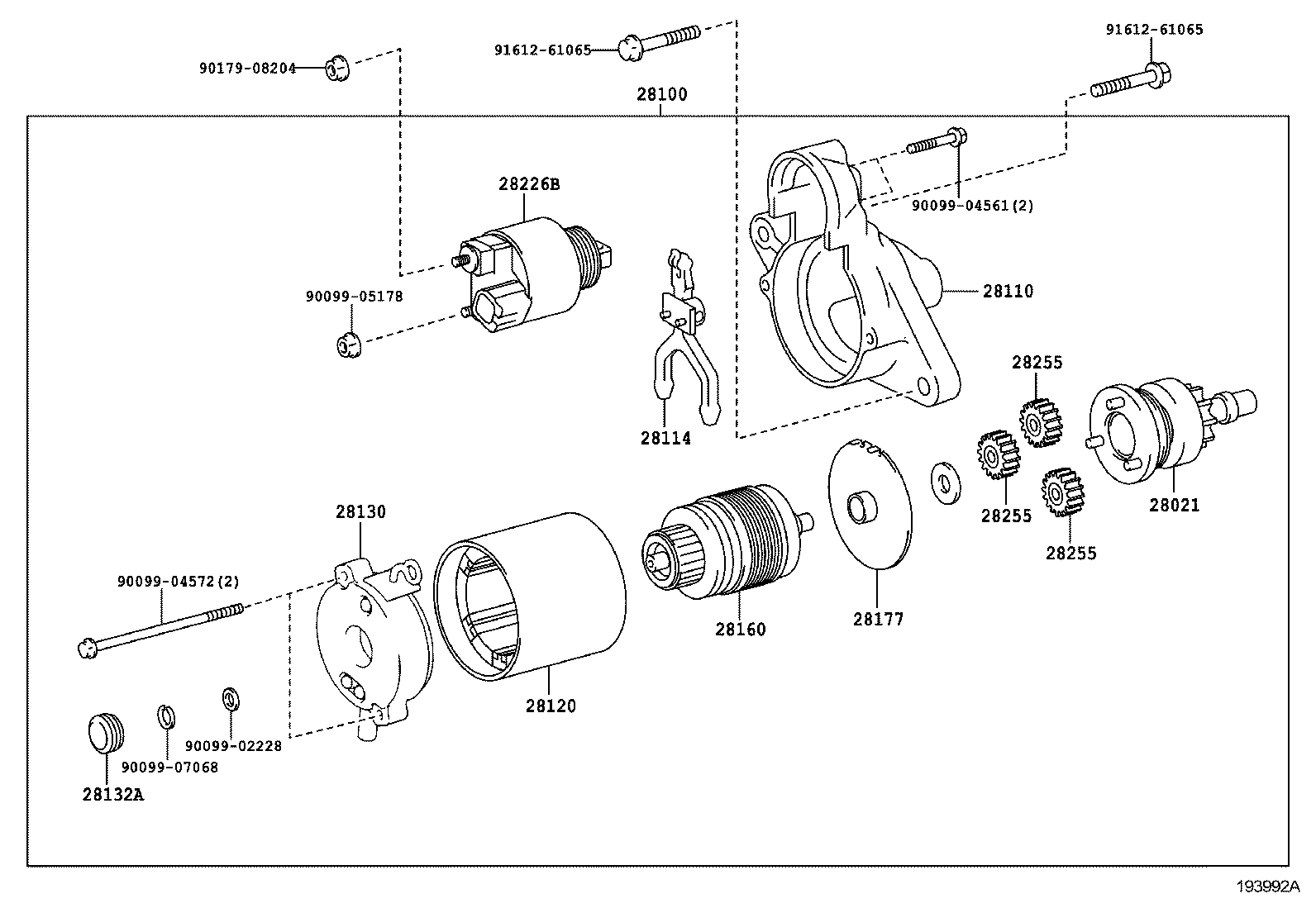

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28021 — Clutch Sub-assy, Starter Center Bearing | ||||
| 28021-37050 |
Clutch Sub-assy, Starter Center Bearing
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 28021-21060 |
Clutch Sub-assy, Starter Center Bearing
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28021-37050 |
Clutch Sub-assy, Starter Center Bearing
2010-12 → 2012-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 28100 — Starter Assy | ||||
| 28100-37050 note |
Starter Assy
2007-12 → 2009-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28100-37051 note |
Starter Assy
2009-09 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 28100-37051 note |
Starter Assy
2010-12 → 2011-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28100-37052 note |
Starter Assy
2011-08 → 2012-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28100-37120 note |
Starter Assy
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28110 — Housing Assy, Starter Drive | ||||
| 28110-37050 |
Housing Assy, Starter Drive
2007-12 → 2009-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 28110-37040 |
Housing Assy, Starter Drive
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28114 — Pin, Starter Drive Lever Set | ||||
| 28114-21060 |
Pin, Starter Drive Lever Set
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-37050 |
Yoke Assy, Starter
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 28120-28060 |
Yoke Assy, Starter
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28120-37050 |
Yoke Assy, Starter
2010-12 → 2012-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 28130 — Frame Assy, Starter Commutator End | ||||
| 28130-37050 |
Frame Assy, Starter Commutator End
2007-12 → 2009-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 28130-37120 |
Frame Assy, Starter Commutator End
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28132A — Cover, Starter Commutator End Frame | ||||
| 28132-28040 |
Cover, Starter Commutator End Frame
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28160 — Armature Assy, Starter | ||||
| 28160-37050 |
Armature Assy, Starter
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 28160-21060 |
Armature Assy, Starter
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28160-37050 |
Armature Assy, Starter
2010-12 → 2012-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 28177 — Plate(FOR STARTER ARMATURE) | ||||
| 28177-37050 |
Plate(FOR STARTER ARMATURE)
2007-12 → 2009-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 28177-28040 |
Plate(FOR STARTER ARMATURE)
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28226B — Starter Kit, Repair Service | ||||
| 28226-37120 |
Starter Kit, Repair Service
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28255 — Gear, Planet | ||||
| 28255-37050 |
Gear, Planet
2007-12 → 2009-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 28255-28040 |
Gear, Planet
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
