Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

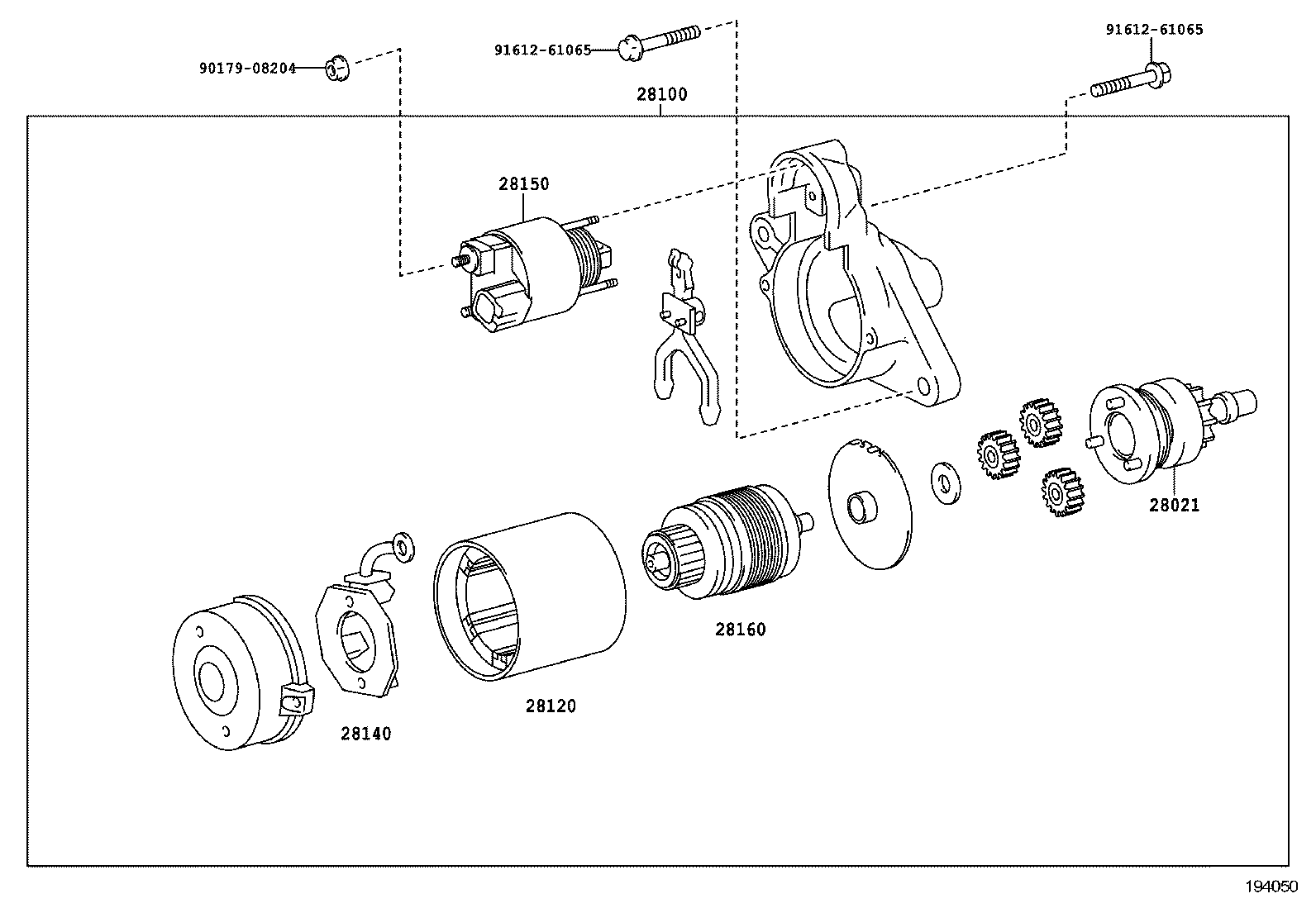

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28021 — Clutch Sub-assy, Starter Center Bearing | ||||
| 28021-37050 |
Clutch Sub-assy, Starter Center Bearing
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 28021-21060 |
Clutch Sub-assy, Starter Center Bearing
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28021-37050 |
Clutch Sub-assy, Starter Center Bearing
2010-12 → 2012-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-37050 |
Yoke Assy, Starter
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 28120-28060 |
Yoke Assy, Starter
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28120-37050 |
Yoke Assy, Starter
2010-12 → 2012-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 28140 — Holder Assy, Starter Brush | ||||
| 28140-37050 |
Holder Assy, Starter Brush
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 28140-37050 |
Holder Assy, Starter Brush
2010-12 → 2012-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 28150 — Switch Assy, Magnet Starter | ||||
| 28150-37050 |
Switch Assy, Magnet Starter
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 28150-37050 |
Switch Assy, Magnet Starter
2010-12 → 2012-09
ended
|
2ZRFE ZRE142 JPP | — | |
| 28160 — Armature Assy, Starter | ||||
| 28160-37050 |
Armature Assy, Starter
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 28160-21060 |
Armature Assy, Starter
2012-09 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 28160-37050 |
Armature Assy, Starter
2010-12 → 2012-09
ended
|
2ZRFE ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
