Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

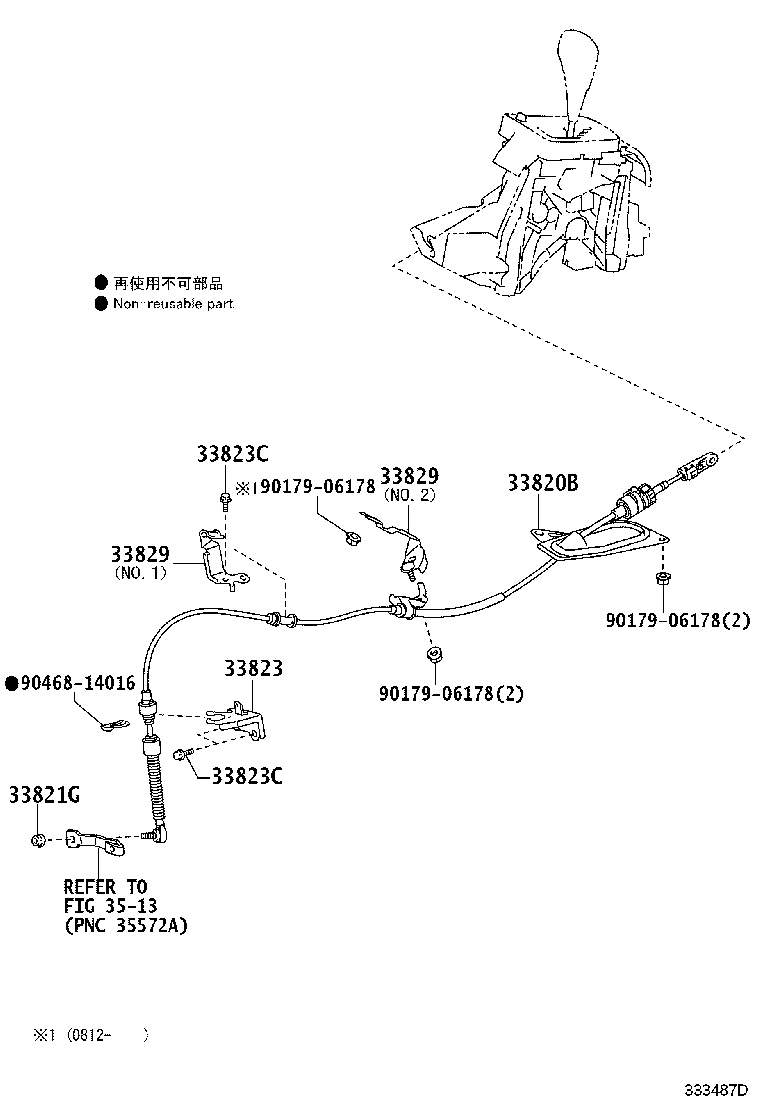

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33820B — Cable Assy, Transmission Control | ||||
| 33820-12D30 |
Cable Assy, Transmission Control
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 33820-12D30 |
Cable Assy, Transmission Control
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 33821G — Nut (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90179-08061 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 33823 — Bracket, Transmission Control Cable, NO.1 | ||||
| 33823-12280 |
Bracket, Transmission Control Cable, NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 33823-12280 |
Bracket, Transmission Control Cable, NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 33823C — Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 33829 — Support, Transmission Control Cable | ||||
| 33829-12120 note |
Support, Transmission Control Cable
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 33829-12130 note |
Support, Transmission Control Cable
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 33829-12120 note |
Support, Transmission Control Cable
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 33829-12130 note |
Support, Transmission Control Cable
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
