Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

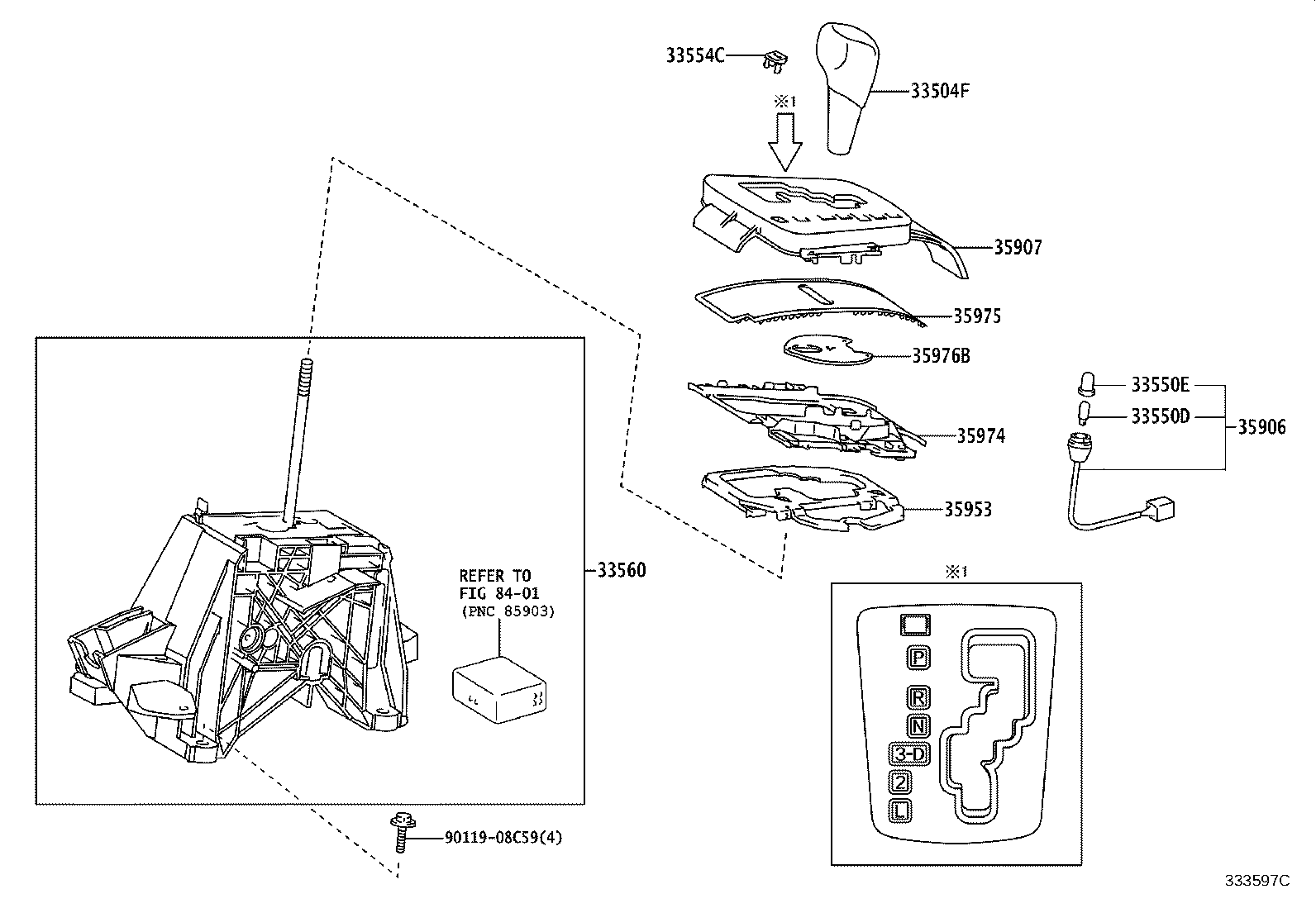

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-42020-B0 note |
Knob Sub-assy, Shift Lever
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 33504-42020-E0 note |
Knob Sub-assy, Shift Lever
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 33504-12470-B4 note |
Knob Sub-assy, Shift Lever
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 33504-42020-B0 note |
Knob Sub-assy, Shift Lever
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 33550D — Bulb, Position Indicator Lamp | ||||
| 90981-11018 note |
Bulb, Position Indicator Lamp
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90981-11018 note |
Bulb, Position Indicator Lamp
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 33550E — Cap, Position Indicator Lamp | ||||
| 90339-04071 |
Cap, Position Indicator Lamp
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90339-04071 |
Cap, Position Indicator Lamp
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 33554C — Cover, Shift Lock Release Button | ||||
| 33554-12120 |
Cover, Shift Lock Release Button
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 33554-12120 note |
Cover, Shift Lock Release Button
2009-01 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 33554-12130 |
Cover, Shift Lock Release Button
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 33554-12120 |
Cover, Shift Lock Release Button
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 33554-12130 |
Cover, Shift Lock Release Button
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 33560 — Unit Assy, Shift Lock Control | ||||
| 33560-12340 |
Unit Assy, Shift Lock Control
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 33560-12340 |
Unit Assy, Shift Lock Control
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 35906 — Wire Sub-assy, Indicator Lamp | ||||
| 35906-12270 |
Wire Sub-assy, Indicator Lamp
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 35906-12270 |
Wire Sub-assy, Indicator Lamp
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 35907 — Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT) | ||||
| 35907-12280 |
Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
2007-12 → 2010-06
ended
|
ZRE142 JPP LE | — | |
| 35907-12280 note |
Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
2009-01 → 2010-06
ended
|
ZRE142 JPP STD | — | |
| 35907-12281 |
Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
2010-07 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 35907-12281 note |
Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
2010-07 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 35907-12290 |
Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
2007-12 → 2010-06
ended
|
ZRE142 JPP STD | — | |
| 35907-12291 |
Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
2010-07 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 35907-12281 |
Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 35907-12291 |
Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 35953 — Guide, Position Indicator Light | ||||
| 35953-12140 |
Guide, Position Indicator Light
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 35953-12140 |
Guide, Position Indicator Light
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 35974 — Housing, Position Indicator, Lower | ||||
| 35974-12310 |
Housing, Position Indicator, Lower
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 35974-12310 |
Housing, Position Indicator, Lower
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 35975 — Cover, Slide (FOR POSITION INDICATOR) | ||||
| 35975-12400 |
Cover, Slide (FOR POSITION INDICATOR)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 35975-12400 |
Cover, Slide (FOR POSITION INDICATOR)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 35976B — Cover, Shift Lever Knob (FOR FLOOR SHIFT) | ||||
| 35976-12160 |
Cover, Shift Lever Knob (FOR FLOOR SHIFT)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 35976-12160 |
Cover, Shift Lever Knob (FOR FLOOR SHIFT)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
