Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

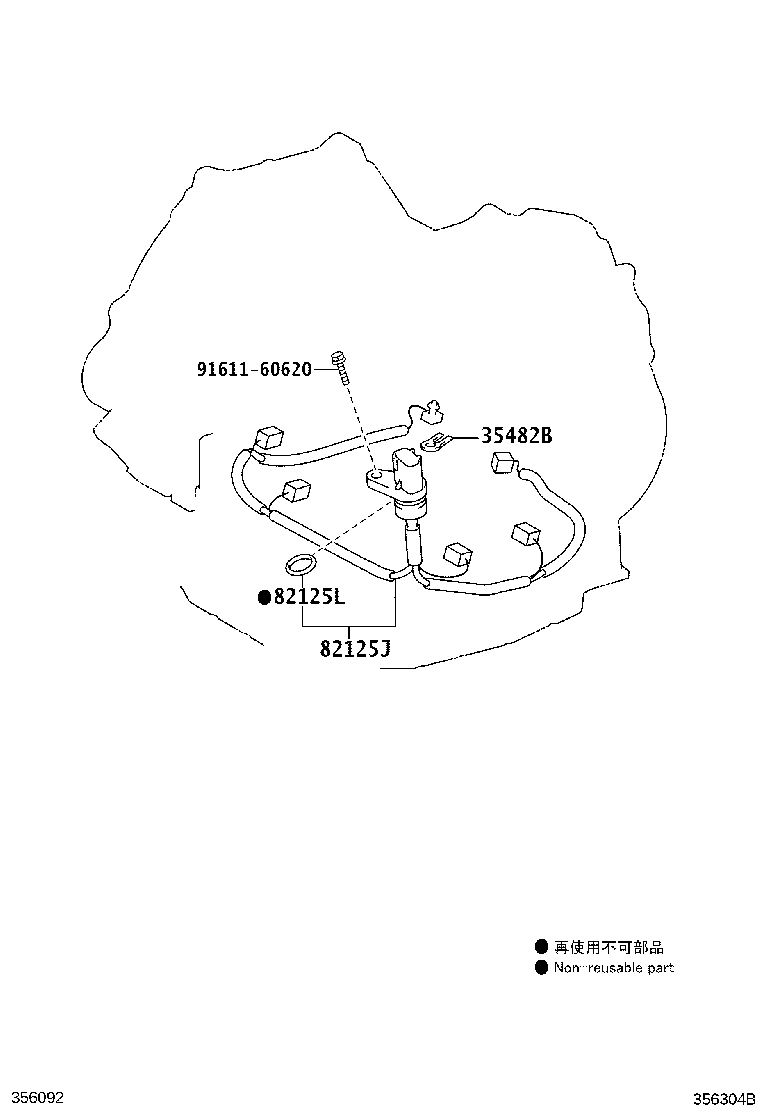

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35482B — Clamp, Temperature Sensor | ||||
| 35482-52020 |
Clamp, Temperature Sensor
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 35482-52020 |
Clamp, Temperature Sensor
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82125J — Wire, Transmission | ||||
| 82125-52070 |
Wire, Transmission
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82125-52070 |
Wire, Transmission
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82125L — Ring, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
Ring, O(FOR TRANSMISSION WIRE)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90301-21009 |
Ring, O(FOR TRANSMISSION WIRE)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
