Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

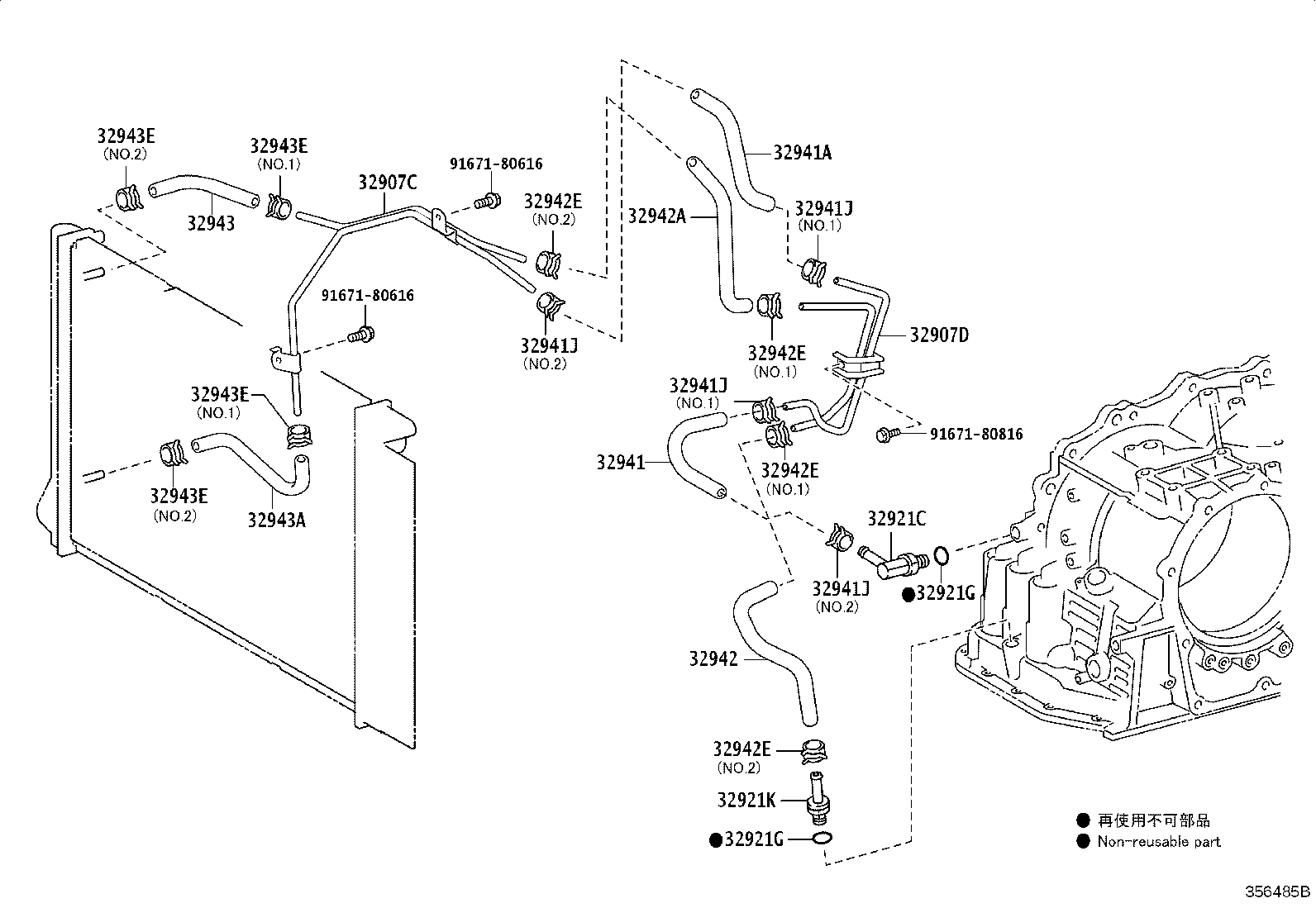

Exploded illustration 356485B 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 9167180816 — not listed in this catalogue 32921G — RING, O(FOR OIL COOLER TUBE UNION) (3 parts) 32943A — HOSE, TRANSMISSION OIL COOLER, NO.2 (3 parts) 32943 — HOSE, TRANSMISSION OIL COOLER, NO.1 (3 parts) 32942A — HOSE, OIL COOLER OUTLET, NO.2 (2 parts) 32942 — HOSE, OIL COOLER OUTLET, NO.1 (4 parts) 32941A — HOSE, OIL COOLER INLET, NO.2 (2 parts) 32941 — HOSE, OIL COOLER INLET, NO.1 (3 parts) 32943E — CLIP, NO.3(FOR OIL COOLER HOSE) (4 parts) 32943E — CLIP, NO.3(FOR OIL COOLER HOSE) (4 parts) 32943E — CLIP, NO.3(FOR OIL COOLER HOSE) (4 parts) 32943E — CLIP, NO.3(FOR OIL COOLER HOSE) (4 parts) 32942E — CLIP, NO.2(FOR OIL COOLER HOSE) (4 parts) 32942E — CLIP, NO.2(FOR OIL COOLER HOSE) (4 parts) 32942E — CLIP, NO.2(FOR OIL COOLER HOSE) (4 parts) 32941J — CLIP, NO.1(FOR OIL COOLER HOSE) (4 parts) 32941J — CLIP, NO.1(FOR OIL COOLER HOSE) (4 parts) 32941J — CLIP, NO.1(FOR OIL COOLER HOSE) (4 parts) 32941J — CLIP, NO.1(FOR OIL COOLER HOSE) (4 parts) 32942E — CLIP, NO.2(FOR OIL COOLER HOSE) (4 parts) 32921G — RING, O(FOR OIL COOLER TUBE UNION) (3 parts) 32921C — UNION(FOR OIL COOLER TUBE) (2 parts) 32907D — TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2 (4 parts) 32907C — TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1 (2 parts) 32921K — UNION, NO.2(FOR OIL COOLER TUBE) (2 parts)
356485B · 24 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
32907C — Tube Sub-assy, Oil Cooler W/O Hose, NO.1
32907-12160 Tube Sub-assy, Oil Cooler W/O Hose, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
32907-12160 Tube Sub-assy, Oil Cooler W/O Hose, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
32907D — Tube Sub-assy, Oil Cooler W/O Hose, NO.2
32907-12060 Tube Sub-assy, Oil Cooler W/O Hose, NO.2
2007-12 → 2010-08 ended
ZRE142 JPP —
32907-12140 Tube Sub-assy, Oil Cooler W/O Hose, NO.2
2010-09 → 2010-12 ended
ZRE142 JPP —
32907-12140 Tube Sub-assy, Oil Cooler W/O Hose, NO.2
2010-12 → 2012-02 ended
ZRE142 JPP —
32907-12141 Tube Sub-assy, Oil Cooler W/O Hose, NO.2
2012-03 → 2013-08 ended
ZRE142 JPP —
32921C — Union(FOR OIL COOLER TUBE)
90404-13005 Union(FOR OIL COOLER TUBE)
2007-12 → 2010-12 ended
ZRE142 JPP —
90404-13005 Union(FOR OIL COOLER TUBE)
2010-12 → 2013-08 ended
ZRE142 JPP —
32921G — Ring, O(FOR OIL COOLER TUBE UNION)
90301-10189 Ring, O(FOR OIL COOLER TUBE UNION)
2007-12 → 2010-12 ended
ZRE142 JPP —
90301-10018 Ring, O(FOR OIL COOLER TUBE UNION)
2013-07 → 2013-08 ended
ZRE142 JPP —
90301-10189 Ring, O(FOR OIL COOLER TUBE UNION)
2010-12 → 2013-07 ended
ZRE142 JPP —
32921K — Union, NO.2(FOR OIL COOLER TUBE)
90404-13007 Union, NO.2(FOR OIL COOLER TUBE)
2007-12 → 2010-12 ended
ZRE142 JPP —
90404-13007 Union, NO.2(FOR OIL COOLER TUBE)
2010-12 → 2013-08 ended
ZRE142 JPP —
32941 — Hose, Oil Cooler Inlet, NO.1
32943-12060 Hose, Oil Cooler Inlet, NO.1
2007-12 → 2009-06 ended
ZRE142 JPP —
32943-12061 Hose, Oil Cooler Inlet, NO.1
2009-07 → 2010-12 ended
ZRE142 JPP —
32943-12061 Hose, Oil Cooler Inlet, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
32941A — Hose, Oil Cooler Inlet, NO.2
90445-15020 Hose, Oil Cooler Inlet, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
90445-15020 Hose, Oil Cooler Inlet, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
32941J — Clip, NO.1(FOR OIL COOLER HOSE)
96135-51300 note Clip, NO.1(FOR OIL COOLER HOSE)
2007-12 → 2010-12 ended
ZRE142 JPP —
96137-41501 note Clip, NO.1(FOR OIL COOLER HOSE)
2007-12 → 2010-12 ended
ZRE142 JPP —
96135-51300 note Clip, NO.1(FOR OIL COOLER HOSE)
2010-12 → 2013-08 ended
ZRE142 JPP —
96137-41501 note Clip, NO.1(FOR OIL COOLER HOSE)
2010-12 → 2013-08 ended
ZRE142 JPP —
32942 — Hose, Oil Cooler Outlet, NO.1
32943-12050 Hose, Oil Cooler Outlet, NO.1
2007-12 → 2009-06 ended
ZRE142 JPP —
32943-12051 Hose, Oil Cooler Outlet, NO.1
2009-07 → 2009-10 ended
ZRE142 JPP —
32943-12220 Hose, Oil Cooler Outlet, NO.1
2009-10 → 2010-12 ended
ZRE142 JPP —
32943-12220 Hose, Oil Cooler Outlet, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
32942A — Hose, Oil Cooler Outlet, NO.2
90445-15054 Hose, Oil Cooler Outlet, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
90445-15054 Hose, Oil Cooler Outlet, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
32942E — Clip, NO.2(FOR OIL COOLER HOSE)
96135-51300 note Clip, NO.2(FOR OIL COOLER HOSE)
2007-12 → 2010-12 ended
ZRE142 JPP —
96137-41501 note Clip, NO.2(FOR OIL COOLER HOSE)
2007-12 → 2010-12 ended
ZRE142 JPP —
96135-51300 note Clip, NO.2(FOR OIL COOLER HOSE)
2010-12 → 2013-08 ended
ZRE142 JPP —
96137-41501 note Clip, NO.2(FOR OIL COOLER HOSE)
2010-12 → 2013-08 ended
ZRE142 JPP —
32943 — Hose, Transmission Oil Cooler, NO.1
32943-12260 Hose, Transmission Oil Cooler, NO.1
2007-12 → 2009-06 ended
ZRE142 JPP —
32943-12261 Hose, Transmission Oil Cooler, NO.1
2009-07 → 2010-12 ended
ZRE142 JPP —
32943-12261 Hose, Transmission Oil Cooler, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
32943A — Hose, Transmission Oil Cooler, NO.2
32943-12400 Hose, Transmission Oil Cooler, NO.2
2007-12 → 2009-06 ended
ZRE142 JPP —
32943-12401 Hose, Transmission Oil Cooler, NO.2
2009-07 → 2010-12 ended
ZRE142 JPP —
32943-12401 Hose, Transmission Oil Cooler, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
32943E — Clip, NO.3(FOR OIL COOLER HOSE)
96135-51300 note Clip, NO.3(FOR OIL COOLER HOSE)
2007-12 → 2010-12 ended
ZRE142 JPP —
96137-41501 note Clip, NO.3(FOR OIL COOLER HOSE)
2007-12 → 2010-12 ended
ZRE142 JPP —
96135-51300 note Clip, NO.3(FOR OIL COOLER HOSE)
2010-12 → 2013-08 ended
ZRE142 JPP —
96137-41501 note Clip, NO.3(FOR OIL COOLER HOSE)
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
