Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

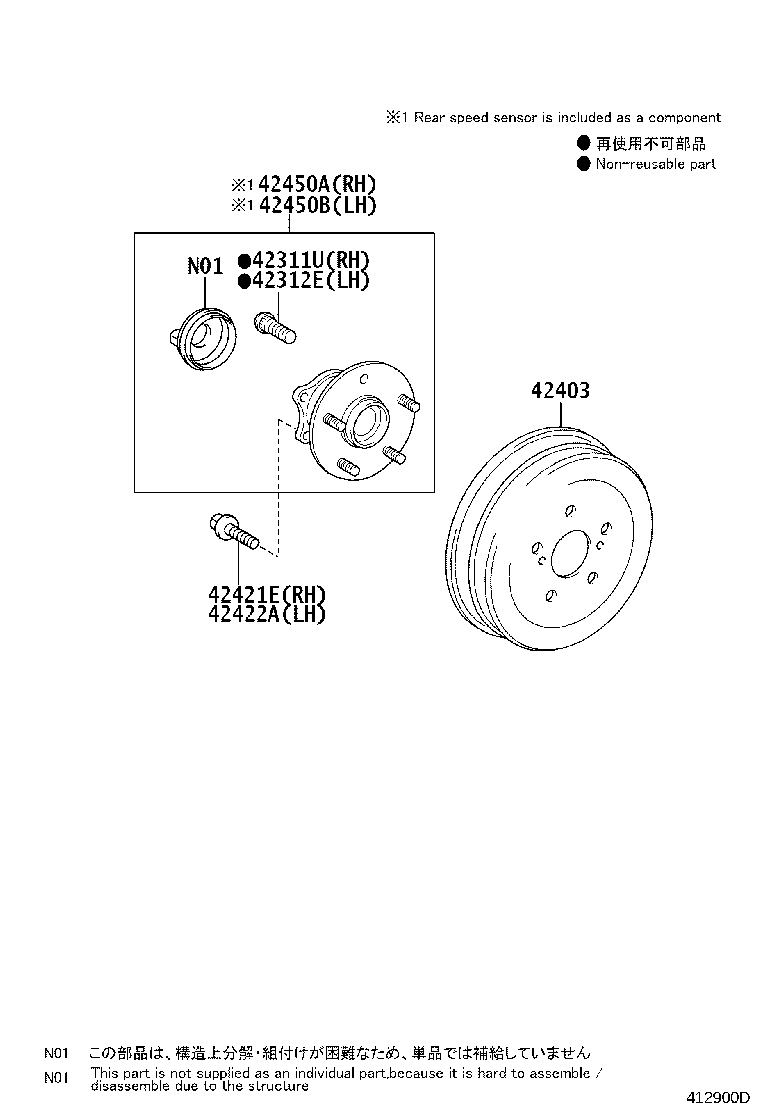

| 42311U — Bolt, Hub(FOR REAR AXLE RH) | ||||
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE RH)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE RH)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 42312E — Bolt, Hub(FOR REAR AXLE LH) | ||||
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE LH)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE LH)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 42403 — Drum Sub-assy, Rear Brake | ||||
| 42431-12300 |
Drum Sub-assy, Rear Brake
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 42431-12300 |
Drum Sub-assy, Rear Brake
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 42421E — Bolt (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-12350 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90105-12350 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 42422A — Bolt (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-12350 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90105-12350 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 42450A — Hub & Bearing Assy, Rear Axle, RH | ||||
| 42450-12170 |
Hub & Bearing Assy, Rear Axle, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 42450-12170 |
Hub & Bearing Assy, Rear Axle, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 42450B — Hub & Bearing Assy, Rear Axle, LH | ||||
| 42450-12170 |
Hub & Bearing Assy, Rear Axle, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 42450-12170 |
Hub & Bearing Assy, Rear Axle, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
