Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

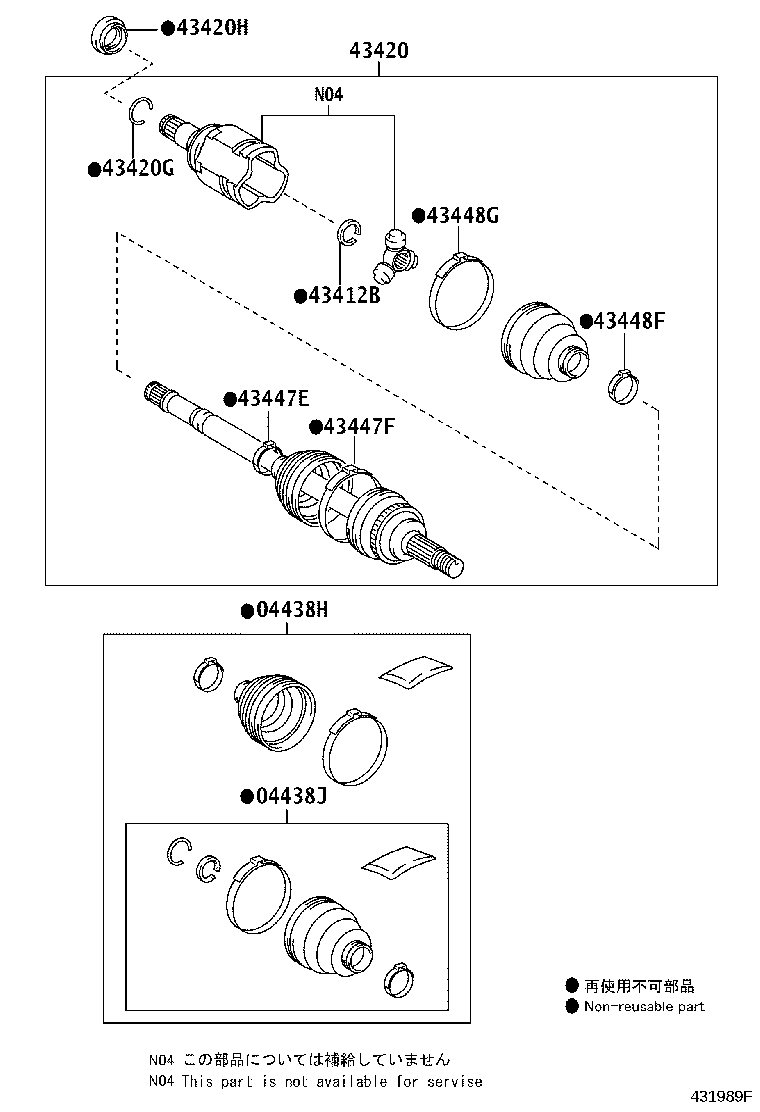

Exploded illustration 431989F 43420 — SHAFT ASSY, FRONT DRIVE, LH (5 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (3 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (3 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (4 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (4 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (3 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (3 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (4 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (3 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (3 parts)
431989F · 10 callouts Full size ↗
35 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04428-01040 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
04428-01040 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2010-12 → 2011-04 ended
ZRE142 JPP —
04428-02610 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2011-04 → 2013-08 ended
ZRE142 JPP —
04428-42101 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-01020 Boot Kit, Front Drive Shaft Inboard Joint, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
04437-01020 Boot Kit, Front Drive Shaft Inboard Joint, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
04438-42201 note Boot Kit, Front Drive Shaft Inboard Joint, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-01040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2007-12 → 2010-12 ended
ZRE142 JPP —
43425-01040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2010-12 → 2013-08 ended
ZRE142 JPP —
90520-22005 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43420 — Shaft Assy, Front Drive, LH
43420-01110 Shaft Assy, Front Drive, LH
2007-12 → 2008-06 ended
ZRE142 JPP —
43420-02820 Shaft Assy, Front Drive, LH
2008-07 → 2010-12 ended
ZRE142 JPP —
43420-02820 Shaft Assy, Front Drive, LH
2010-12 → 2011-04 ended
ZRE142 JPP —
43420-02B10 Shaft Assy, Front Drive, LH
2011-04 → 2013-08 ended
ZRE142 JPP —
43420-42091 note Shaft Assy, Front Drive, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43425-01030 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2007-12 → 2010-12 ended
ZRE142 JPP —
43425-01030 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2010-12 → 2013-08 ended
ZRE142 JPP —
90521-27005 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43420H — Oil Seal, Front Drive Shaft, LH
90311-35054 Oil Seal, Front Drive Shaft, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
90311-35054 Oil Seal, Front Drive Shaft, LH
2010-12 → 2012-01 ended
ZRE142 JPP —
90311-35068 Oil Seal, Front Drive Shaft, LH
2012-01 → 2013-08 ended
ZRE142 JPP —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-01060 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2007-12 → 2010-12 ended
ZRE142 JPP —
42345-01060 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2010-12 → 2011-04 ended
ZRE142 JPP —
42345-0R080 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2011-04 → 2013-08 ended
ZRE142 JPP —
42345-12190 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-01070 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2007-12 → 2010-12 ended
ZRE142 JPP —
42345-01070 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2010-12 → 2011-04 ended
ZRE142 JPP —
42345-0R070 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2011-04 → 2013-08 ended
ZRE142 JPP —
42345-12180 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-01040 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-12 → 2010-12 ended
ZRE142 JPP —
42345-01040 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2010-12 → 2013-08 ended
ZRE142 JPP —
90949-01078 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-01030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-12 → 2010-12 ended
ZRE142 JPP —
42345-01030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2010-12 → 2013-08 ended
ZRE142 JPP —
42345-12160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
