Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

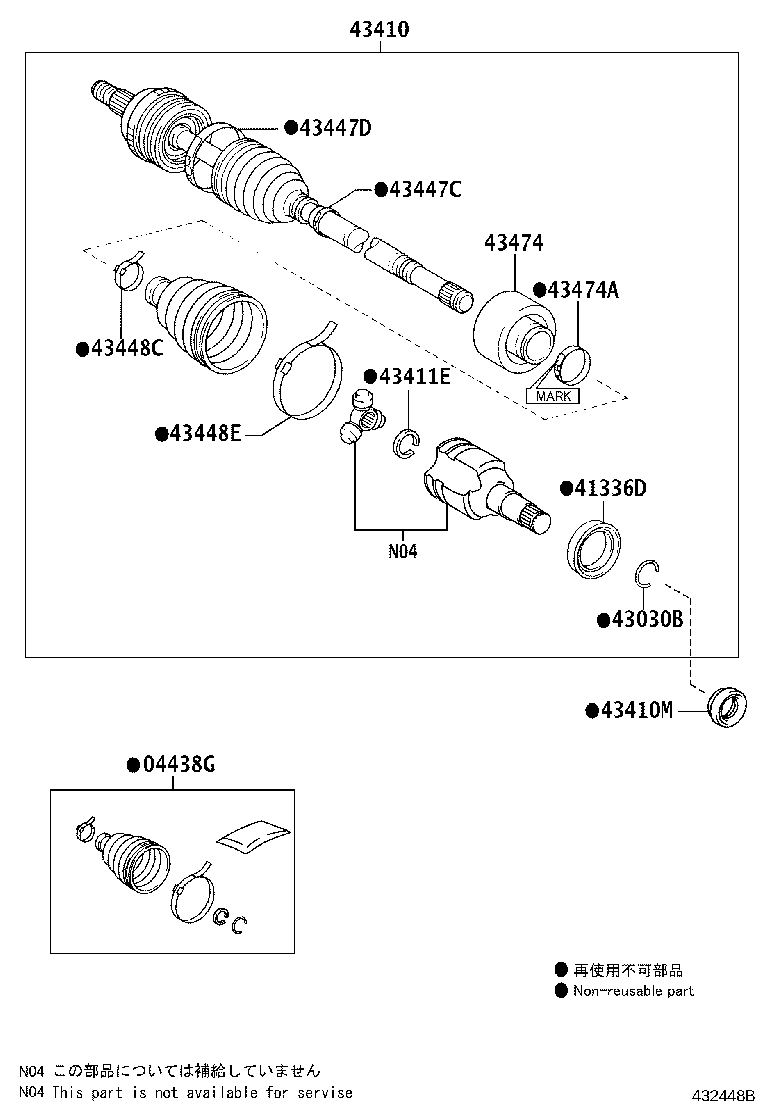

Exploded illustration 432448B 43030B — RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH) (1 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (7 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (3 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (3 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (4 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (4 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (1 parts) 43474 — DAMPER, DRIVE SHAFT (4 parts) 43474A — CLAMP (FOR DRIVE SHAFT DAMPER SETTING) (5 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (3 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (3 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (2 parts)
432448B · 12 callouts Full size ↗
40 parts on this figure
Part number Description Fitment Price
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-01020 Boot Kit, Front Drive Shaft Inboard Joint, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
04437-01020 Boot Kit, Front Drive Shaft Inboard Joint, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
04438-42201 note Boot Kit, Front Drive Shaft Inboard Joint, RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
41336D — Cover, Front Drive Shaft Dust, RH
41336-12060 note Cover, Front Drive Shaft Dust, RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43030B — Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
90521-27005 note Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43410 — Shaft Assy, Front Drive, RH
43410-01130 Shaft Assy, Front Drive, RH
2007-12 → 2008-03 ended
ZRE142 JPP —
43410-01131 Shaft Assy, Front Drive, RH
2008-04 → 2008-06 ended
ZRE142 JPP —
43410-02760 Shaft Assy, Front Drive, RH
2008-07 → 2010-12 ended
ZRE142 JPP —
43410-02760 Shaft Assy, Front Drive, RH
2010-12 → 2011-04 ended
ZRE142 JPP —
43410-02A00 Shaft Assy, Front Drive, RH
2011-04 → 2012-10 ended
ZRE142 JPP —
43410-02A01 Shaft Assy, Front Drive, RH
2012-10 → 2013-08 ended
ZRE142 JPP —
43410-12B00 note Shaft Assy, Front Drive, RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43410M — Oil Seal, Front Drive Shaft, RH
90311-35055 Oil Seal, Front Drive Shaft, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
90311-35055 Oil Seal, Front Drive Shaft, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-01040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2007-12 → 2010-12 ended
ZRE142 JPP —
43425-01040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2010-12 → 2013-08 ended
ZRE142 JPP —
90520-22005 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-01060 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2007-12 → 2010-12 ended
ZRE142 JPP —
42345-01060 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2010-12 → 2011-04 ended
ZRE142 JPP —
42345-0R080 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2011-04 → 2013-08 ended
ZRE142 JPP —
42345-12190 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-01070 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2007-12 → 2010-12 ended
ZRE142 JPP —
42345-01070 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2010-12 → 2011-04 ended
ZRE142 JPP —
42345-0R070 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2011-04 → 2013-08 ended
ZRE142 JPP —
42345-12180 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-01040 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-12 → 2010-12 ended
ZRE142 JPP —
42345-01040 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2010-12 → 2013-08 ended
ZRE142 JPP —
90949-01078 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-01030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-12 → 2010-12 ended
ZRE142 JPP —
42345-01030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2010-12 → 2013-08 ended
ZRE142 JPP —
42345-12160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43474 — Damper, Drive Shaft
43474-01020 Damper, Drive Shaft
2007-12 → 2008-04 ended
ZRE142 JPP —
43474-01021 Damper, Drive Shaft
2008-04 → 2010-12 ended
ZRE142 JPP —
43474-01021 Damper, Drive Shaft
2010-12 → 2013-08 ended
ZRE142 JPP —
43474-12120 note Damper, Drive Shaft
2010-12 → 2013-08 ended
ZRE142 JPP LE —
43474A — Clamp (FOR DRIVE SHAFT DAMPER SETTING)
42345-07090 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2007-12 → 2010-12 ended
ZRE142 JPP —
42345-02871 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2012-10 → 2013-08 ended
ZRE142 JPP —
42345-07090 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2010-12 → 2012-10 ended
ZRE142 JPP —
42345-14010 note Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
90949-01947 note Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2010-12 → 2013-08 ended
ZRE142 JPP LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
