Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

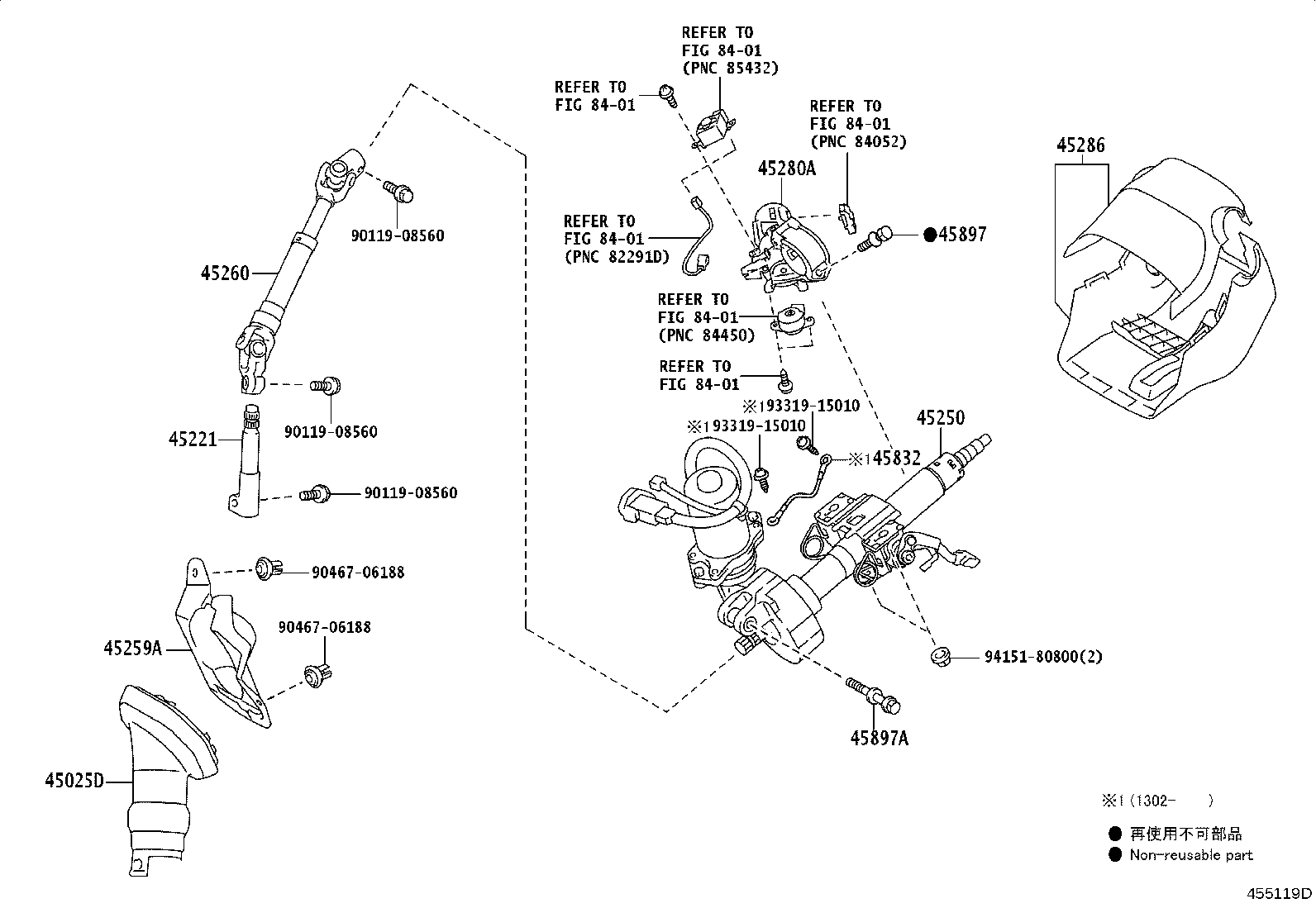

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45025D — Cover Sub-assy, Steering Column Hole, NO.1 | ||||
| 45025-12250 |
Cover Sub-assy, Steering Column Hole, NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 45025-12250 |
Cover Sub-assy, Steering Column Hole, NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 45221 — Shaft, Steering Intermediate | ||||
| 45221-12350 |
Shaft, Steering Intermediate
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 45221-12350 |
Shaft, Steering Intermediate
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 45250 — Column Assy, Steering | ||||
| 45250-12C30 |
Column Assy, Steering
2007-12 → 2008-04
ended
|
ZRE142 JPP | — | |
| 45250-12C31 |
Column Assy, Steering
2008-05 → 2010-12
ended
|
ZRE142 JPP | — | |
| 45250-12C50 note |
Column Assy, Steering
2007-12 → 2008-04
ended
|
ZRE142 JPP LE | — | |
| 45250-12C51 note |
Column Assy, Steering
2008-05 → 2009-02
ended
|
ZRE142 JPP LE | — | |
| 45250-12C31 |
Column Assy, Steering
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 45259A — Sheet, Column Hole Cover Silencer | ||||
| 45259-12100 |
Sheet, Column Hole Cover Silencer
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 45259-12100 |
Sheet, Column Hole Cover Silencer
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 45260 — Shaft Assy, Steering Intermediate, NO.2 | ||||
| 45260-12620 |
Shaft Assy, Steering Intermediate, NO.2
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 45260-12620 |
Shaft Assy, Steering Intermediate, NO.2
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 45280A — Bracket Assy, Steering Column, Upper | ||||
| 45280-42130 |
Bracket Assy, Steering Column, Upper
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 45280-42130 |
Bracket Assy, Steering Column, Upper
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 45286 — Cover, Steering Column | ||||
| 45286-12986-B1 note |
Cover, Steering Column
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 45286-12986-E0 note |
Cover, Steering Column
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 45286-12993-B1 note |
Cover, Steering Column
2007-12 → 2009-02
ended
|
ZRE142 JPP LE | — | |
| 45286-12993-E0 note |
Cover, Steering Column
2007-12 → 2009-02
ended
|
ZRE142 JPP LE | — | |
| 45286-12977-B0 note |
Cover, Steering Column
2012-09 → 2013-08
ended
|
ZRE142 JPP | — | |
| 45286-12986-B0 note |
Cover, Steering Column
2010-12 → 2012-09
ended
|
ZRE142 JPP | — | |
| 45832 — Cable, Tilt Steering Support Bond | ||||
| 45832-21010 |
Cable, Tilt Steering Support Bond
2013-02 → 2013-08
ended
|
ZRE142 JPP | — | |
| 45897 — Bolt, Steering Lock Set | ||||
| 45897-12020 |
Bolt, Steering Lock Set
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 45897-12020 |
Bolt, Steering Lock Set
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 45897A — Bolt, Tilt Steering Pawl Set | ||||
| 45897-42010 |
Bolt, Tilt Steering Pawl Set
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 45897-42010 |
Bolt, Tilt Steering Pawl Set
2010-12 → 2012-09
ended
|
ZRE142 JPP | — | |
| 90119-10981 |
Bolt, Tilt Steering Pawl Set
2012-10 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
