Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

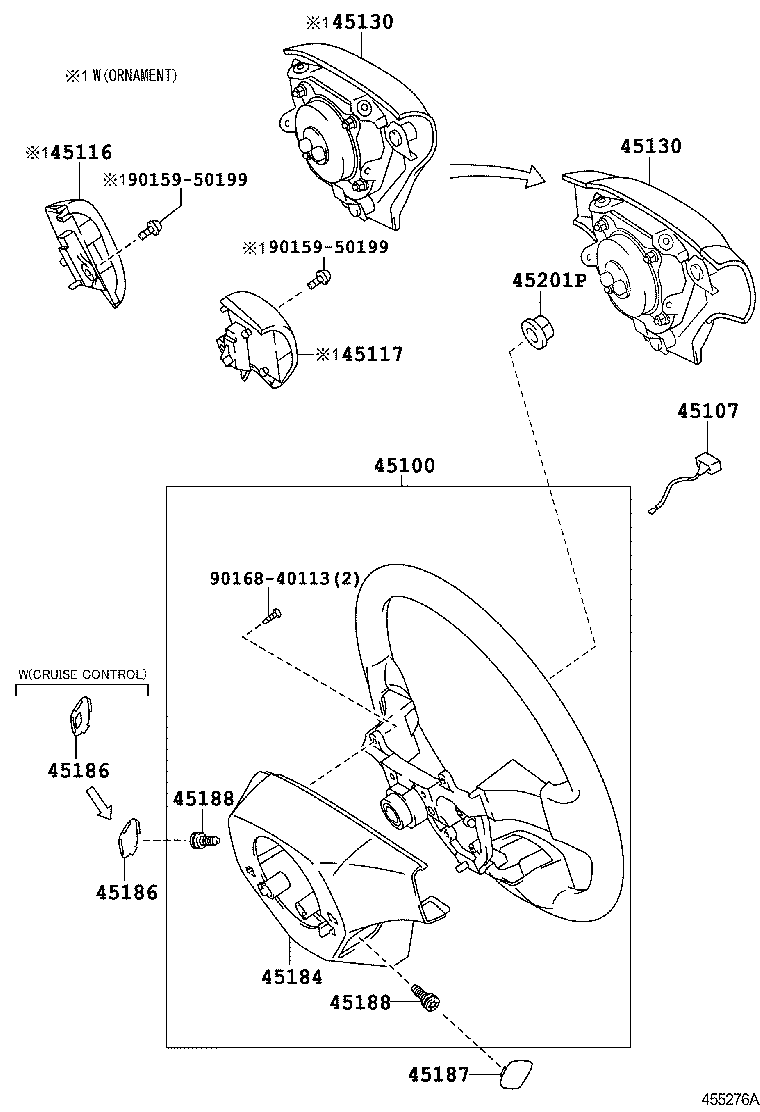

Exploded illustration 455276A 45107 — WIRE SUB-ASSY, HORN BUTTON (11 parts) 45130 — BUTTON ASSY, HORN (11 parts) 45130 — BUTTON ASSY, HORN (11 parts) 45116 — ORNAMENT, STEERING WHEEL, NO.1 (4 parts) 45117 — ORNAMENT, STEERING WHEEL, NO.2 (3 parts) 9015950199 — not listed in this catalogue 9015950199 — not listed in this catalogue 45201P — NUT, STEERING WHEEL SET (2 parts) 45100 — WHEEL ASSY, STEERING (6 parts) 45188 — SCREW, STEERING WHEEL PAD ATTACHING (2 parts) 45187 — COVER, STEERING WHEEL, LOWER NO.3 (3 parts) 45186 — COVER, STEERING WHEEL, LOWER NO.2 (10 parts) 45186 — COVER, STEERING WHEEL, LOWER NO.2 (10 parts) 45188 — SCREW, STEERING WHEEL PAD ATTACHING (2 parts) 45184 — COVER, STEERING WHEEL BOSS, LOWER (3 parts) 9016840113 — not listed in this catalogue
455276A · 13 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
45100 — Wheel Assy, Steering
45100-12A70-B1 note Wheel Assy, Steering
2007-12 → 2010-12 ended
ZRE142 JPP —
45100-12A70-E0 note Wheel Assy, Steering
2007-12 → 2010-12 ended
ZRE142 JPP —
45100-12A70-B0 note Wheel Assy, Steering
2010-12 → 2013-08 ended
ZRE142 JPP —
45100-12A80-B0 note Wheel Assy, Steering
2010-12 → 2011-12 ended
ZRE142 JPP LE —
45100-12A80-B0 note Wheel Assy, Steering
2011-12 → 2013-08 ended
ZRE142 JPP LE —
45100-12A80-B0 note Wheel Assy, Steering
2011-12 → 2013-08 ended
ZRE142 JPP LE —
45107 — Wire Sub-assy, Horn Button
45107-52010 Wire Sub-assy, Horn Button
2007-12 → 2010-12 ended
ZRE142 JPP —
45107-52010 note Wire Sub-assy, Horn Button
2007-12 → 2010-12 ended
ZRE142 JPP —
45107-52010 Wire Sub-assy, Horn Button
2010-12 → 2013-08 ended
ZRE142 JPP STD —
45107-52010 note Wire Sub-assy, Horn Button
2010-12 → 2013-08 ended
ZRE142 JPP STD —
45107-52010 note Wire Sub-assy, Horn Button
2010-12 → 2013-08 ended
ZRE142 JPP STD —
45107-52010 note Wire Sub-assy, Horn Button
2010-12 → 2013-08 ended
ZRE142 JPP STD —
45107-52010 note Wire Sub-assy, Horn Button
2010-12 → 2011-12 ended
ZRE142 JPP LE —
45107-52010 note Wire Sub-assy, Horn Button
2010-12 → 2011-12 ended
ZRE142 JPP LE —
45107-52010 note Wire Sub-assy, Horn Button
2010-12 → 2011-12 ended
ZRE142 JPP LE —
45107-52010 note Wire Sub-assy, Horn Button
2010-12 → 2011-12 ended
ZRE142 JPP LE —
45107-52010 Wire Sub-assy, Horn Button
2010-12 → 2011-12 ended
ZRE142 JPP LE —
45116 — Ornament, Steering Wheel, NO.1
45116-52030 Ornament, Steering Wheel, NO.1
2009-01 → 2010-12 ended
ZRE142 JPP LE —
45116-52030 note Ornament, Steering Wheel, NO.1
2009-01 → 2010-12 ended
ZRE142 JPP STD —
45116-52030 Ornament, Steering Wheel, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP LE —
45116-52030 note Ornament, Steering Wheel, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP STD —
45117 — Ornament, Steering Wheel, NO.2
45117-12030 Ornament, Steering Wheel, NO.2
2009-01 → 2010-12 ended
ZRE142 JPP LE —
45117-12030 note Ornament, Steering Wheel, NO.2
2009-01 → 2010-12 ended
ZRE142 JPP STD —
45117-12030 Ornament, Steering Wheel, NO.2
2010-12 → 2011-12 ended
ZRE142 JPP LE —
45130 — Button Assy, Horn
45130-12A90-B0 note Button Assy, Horn
2007-12 → 2009-01 ended
ZRE142 JPP LE —
45130-12A90-B0 note Button Assy, Horn
2007-12 → 2010-12 ended
ZRE142 JPP STD —
45130-12A90-E0 note Button Assy, Horn
2007-12 → 2010-12 ended
ZRE142 JPP STD —
45130-12A90-E0 note Button Assy, Horn
2007-12 → 2009-01 ended
ZRE142 JPP LE —
45130-12C60-B0 note Button Assy, Horn
2009-01 → 2010-12 ended
ZRE142 JPP LE —
45130-12C60-B0 note Button Assy, Horn
2009-01 → 2010-12 ended
ZRE142 JPP STD —
45130-12C60-E0 note Button Assy, Horn
2009-01 → 2010-12 ended
ZRE142 JPP LE —
45130-12C60-E0 note Button Assy, Horn
2009-01 → 2010-12 ended
ZRE142 JPP STD —
45130-12A90-B1 note Button Assy, Horn
2010-12 → 2013-08 ended
ZRE142 JPP STD —
45130-12C60-B1 note Button Assy, Horn
2010-12 → 2013-08 ended
ZRE142 JPP LE —
45130-12C60-B1 note Button Assy, Horn
2011-12 → 2013-08 ended
ZRE142 JPP STD —
45184 — Cover, Steering Wheel Boss, Lower
45184-12340-B1 note Cover, Steering Wheel Boss, Lower
2007-12 → 2010-12 ended
ZRE142 JPP —
45184-12340-E0 note Cover, Steering Wheel Boss, Lower
2007-12 → 2010-12 ended
ZRE142 JPP —
45184-12340-B0 note Cover, Steering Wheel Boss, Lower
2010-12 → 2013-08 ended
ZRE142 JPP —
45186 — Cover, Steering Wheel, Lower NO.2
45186-12010-B1 note Cover, Steering Wheel, Lower NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
45186-12010-E0 note Cover, Steering Wheel, Lower NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
45186-12020-B1 note Cover, Steering Wheel, Lower NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
45186-12020-E0 note Cover, Steering Wheel, Lower NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
45186-12010-B0 note Cover, Steering Wheel, Lower NO.2
2010-12 → 2011-12 ended
ZRE142 JPP LE —
45186-12010-B0 note Cover, Steering Wheel, Lower NO.2
2010-12 → 2013-08 ended
ZRE142 JPP STD —
45186-12010-B0 note Cover, Steering Wheel, Lower NO.2
2011-12 → 2013-08 ended
ZRE142 JPP LE —
45186-12020-B0 note Cover, Steering Wheel, Lower NO.2
2010-12 → 2011-12 ended
ZRE142 JPP LE —
45186-12020-B0 note Cover, Steering Wheel, Lower NO.2
2010-12 → 2013-08 ended
ZRE142 JPP STD —
45186-12020-B0 note Cover, Steering Wheel, Lower NO.2
2011-12 → 2013-08 ended
ZRE142 JPP LE —
45187 — Cover, Steering Wheel, Lower NO.3
45187-12020-B1 note Cover, Steering Wheel, Lower NO.3
2007-12 → 2010-12 ended
ZRE142 JPP —
45187-12020-E0 note Cover, Steering Wheel, Lower NO.3
2007-12 → 2010-12 ended
ZRE142 JPP —
45187-12020-B0 note Cover, Steering Wheel, Lower NO.3
2010-12 → 2013-08 ended
ZRE142 JPP —
45188 — Screw, Steering Wheel Pad Attaching
45188-60010 note Screw, Steering Wheel Pad Attaching
2007-12 → 2010-12 ended
ZRE142 JPP —
45188-60010 note Screw, Steering Wheel Pad Attaching
2010-12 → 2013-08 ended
ZRE142 JPP —
45201P — Nut, Steering Wheel Set
90179-12071 Nut, Steering Wheel Set
2007-12 → 2010-12 ended
ZRE142 JPP —
90179-12071 Nut, Steering Wheel Set
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
