Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

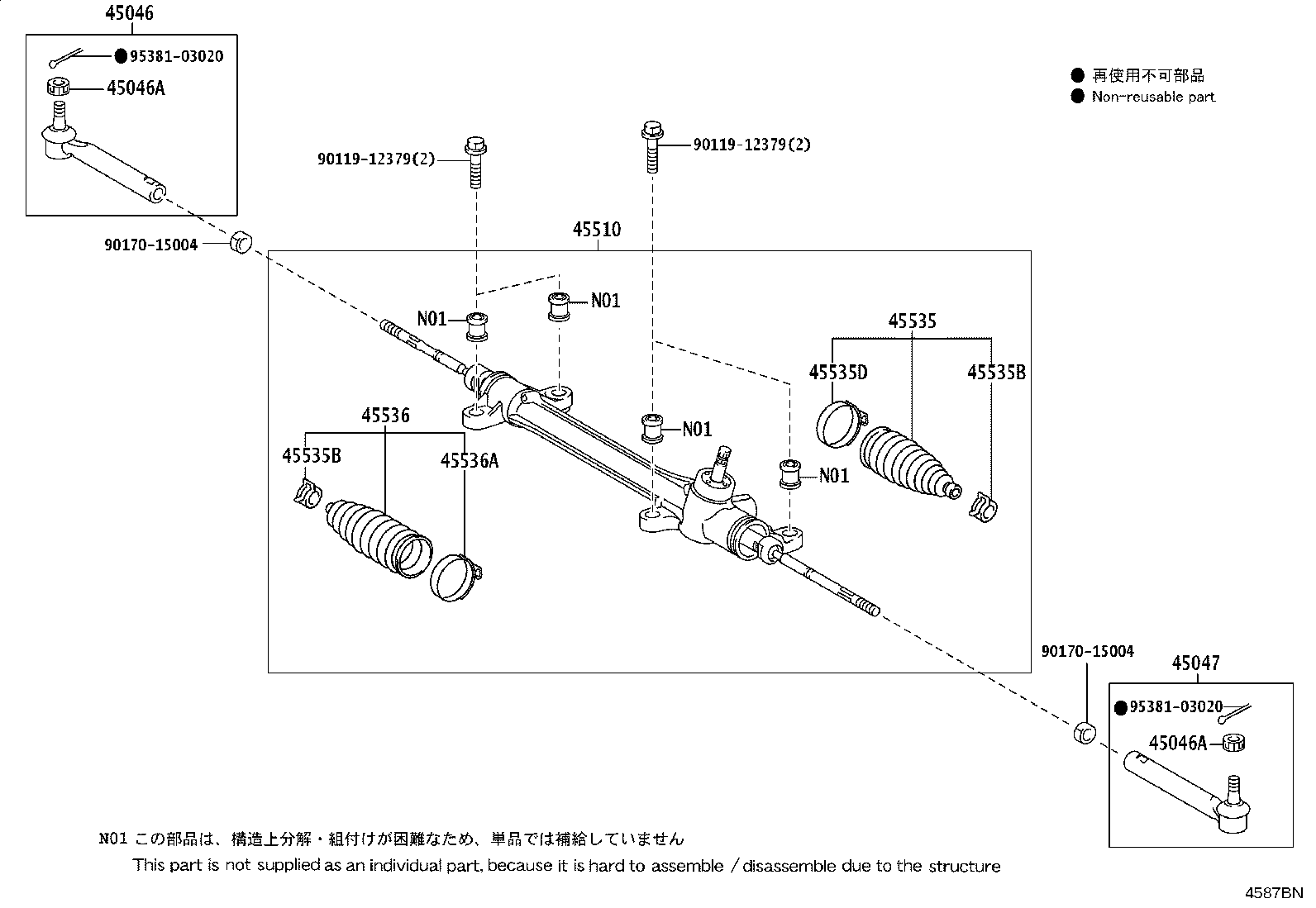

Exploded illustration 4587BN 9017015004 — not listed in this catalogue 9538103020 — not listed in this catalogue 9011912379 — not listed in this catalogue 9011912379 — not listed in this catalogue 9017015004 — not listed in this catalogue 9538103020 — not listed in this catalogue 45047 — END SUB-ASSY, TIE ROD, LH (2 parts) 45046A — NUT, CASTLE(FOR TIE ROD END) (2 parts) 45510 — GEAR ASSY, STEERING (3 parts) 45046A — NUT, CASTLE(FOR TIE ROD END) (2 parts) 45046 — END SUB-ASSY, TIE ROD, RH (2 parts) 45536 — BOOT, STEERING RACK, NO.2 (2 parts) 45535B — CLIP(FOR STEERING RACK BOOT) (2 parts) 45536A — CLAMP(FOR STEERING RACK BOOT NO.2) (2 parts) 45535 — BOOT, STEERING RACK, NO.1 (2 parts) 45535D — CLAMP(FOR STEERING RACK BOOT NO.1) (2 parts) 45535B — CLIP(FOR STEERING RACK BOOT) (2 parts)
4587BN · 11 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
45046 — End Sub-assy, Tie Rod, RH
45046-19425 End Sub-assy, Tie Rod, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
45046-19425 End Sub-assy, Tie Rod, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
45046A — Nut, Castle(FOR TIE ROD END)
90171-12028 Nut, Castle(FOR TIE ROD END)
2007-12 → 2010-12 ended
ZRE142 JPP —
90171-12028 Nut, Castle(FOR TIE ROD END)
2010-12 → 2013-08 ended
ZRE142 JPP —
45047 — End Sub-assy, Tie Rod, LH
45046-19425 End Sub-assy, Tie Rod, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
45046-19425 End Sub-assy, Tie Rod, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
45510 — Gear Assy, Steering
45510-12450 Gear Assy, Steering
2007-12 → 2010-12 ended
ZRE142 JPP —
45510-12450 Gear Assy, Steering
2010-12 → 2013-04 ended
ZRE142 JPP —
45510-12451 Gear Assy, Steering
2013-05 → 2013-08 ended
ZRE142 JPP —
45535 — Boot, Steering Rack, NO.1
45535-29015 Boot, Steering Rack, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
45535-29015 Boot, Steering Rack, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
45535B — Clip(FOR STEERING RACK BOOT)
90467-19021 Clip(FOR STEERING RACK BOOT)
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-19021 Clip(FOR STEERING RACK BOOT)
2010-12 → 2013-08 ended
ZRE142 JPP —
45535D — Clamp(FOR STEERING RACK BOOT NO.1)
45538-52010 Clamp(FOR STEERING RACK BOOT NO.1)
2007-12 → 2010-12 ended
ZRE142 JPP —
45538-52010 Clamp(FOR STEERING RACK BOOT NO.1)
2010-12 → 2013-08 ended
ZRE142 JPP —
45536 — Boot, Steering Rack, NO.2
45535-29015 Boot, Steering Rack, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
45535-29015 Boot, Steering Rack, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
45536A — Clamp(FOR STEERING RACK BOOT NO.2)
45538-52010 Clamp(FOR STEERING RACK BOOT NO.2)
2007-12 → 2010-12 ended
ZRE142 JPP —
45538-52010 Clamp(FOR STEERING RACK BOOT NO.2)
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
