Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

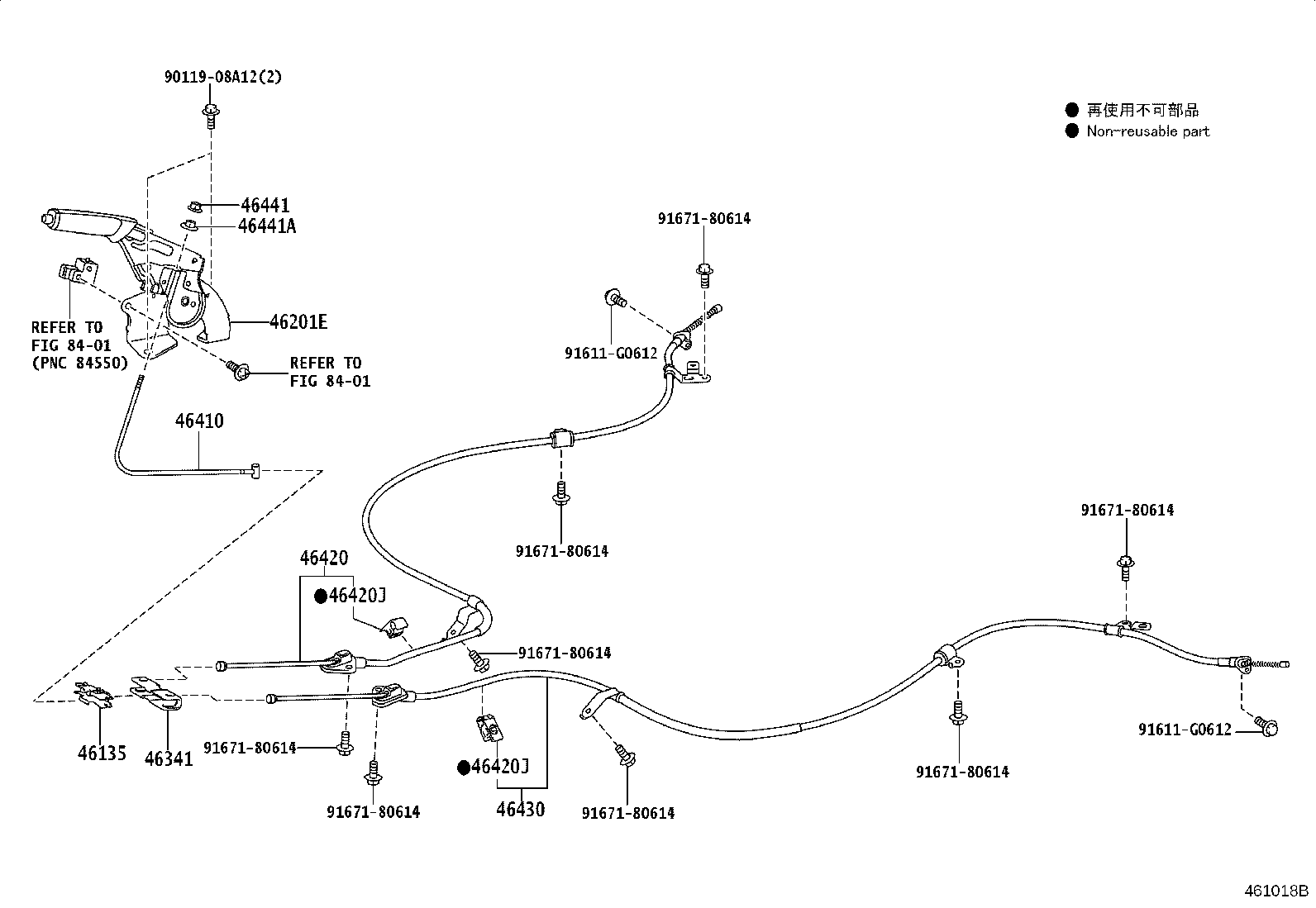

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46135 — Stopper, Parking Brake Cable End | ||||
| 46135-12010 |
Stopper, Parking Brake Cable End
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 46135-12010 |
Stopper, Parking Brake Cable End
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 46201E — Lever Sub-assy, Parking Brake | ||||
| 46201-12430-B1 note |
Lever Sub-assy, Parking Brake
2007-12 → 2010-11
ended
|
ZRE142 JPP STD | — | |
| 46201-12430-C0 note |
Lever Sub-assy, Parking Brake
2010-11 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 46201-12430-E0 note |
Lever Sub-assy, Parking Brake
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 46201-12440-B0 note |
Lever Sub-assy, Parking Brake
2007-12 → 2010-11
ended
|
ZRE142 JPP LE | — | |
| 46201-12440-B0 note |
Lever Sub-assy, Parking Brake
2009-01 → 2010-11
ended
|
ZRE142 JPP STD | — | |
| 46201-12440-C0 note |
Lever Sub-assy, Parking Brake
2010-11 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 46201-12440-C0 note |
Lever Sub-assy, Parking Brake
2010-11 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 46201-12440-E0 note |
Lever Sub-assy, Parking Brake
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 46201-12440-E0 note |
Lever Sub-assy, Parking Brake
2009-01 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 46201-12430-C0 note |
Lever Sub-assy, Parking Brake
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 46201-12440-C0 note |
Lever Sub-assy, Parking Brake
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 46341 — Equalizer, Parking Brake | ||||
| 46341-12040 |
Equalizer, Parking Brake
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 46341-12040 |
Equalizer, Parking Brake
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 46410 — Cable Assy, Parking Brake, NO.1 | ||||
| 46410-12300 |
Cable Assy, Parking Brake, NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 46410-12300 |
Cable Assy, Parking Brake, NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 46420 — Cable Assy, Parking Brake, NO.2 | ||||
| 46420-12670 |
Cable Assy, Parking Brake, NO.2
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 46420-12670 |
Cable Assy, Parking Brake, NO.2
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 46420J — Clamp, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46402-12020 |
Clamp, NO.3(FOR PARKING BRAKE CABLE)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 46402-12020 |
Clamp, NO.3(FOR PARKING BRAKE CABLE)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 46430 — Cable Assy, Parking Brake, NO.3 | ||||
| 46430-12560 |
Cable Assy, Parking Brake, NO.3
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 46430-12560 |
Cable Assy, Parking Brake, NO.3
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 46441 — Nut, Wire Adjusting, NO.1 | ||||
| 90179-06299 |
Nut, Wire Adjusting, NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90179-06299 |
Nut, Wire Adjusting, NO.1
2010-12 → 2011-04
ended
|
ZRE142 JPP | — | |
| 90179-06299 |
Nut, Wire Adjusting, NO.1
2011-05 → 2013-08
ended
|
ZRE142 JPP | — | |
| 46441A — Nut, Wire Adjusting, NO.2 | ||||
| 46441-12010 |
Nut, Wire Adjusting, NO.2
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 46441-12010 |
Nut, Wire Adjusting, NO.2
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
