Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

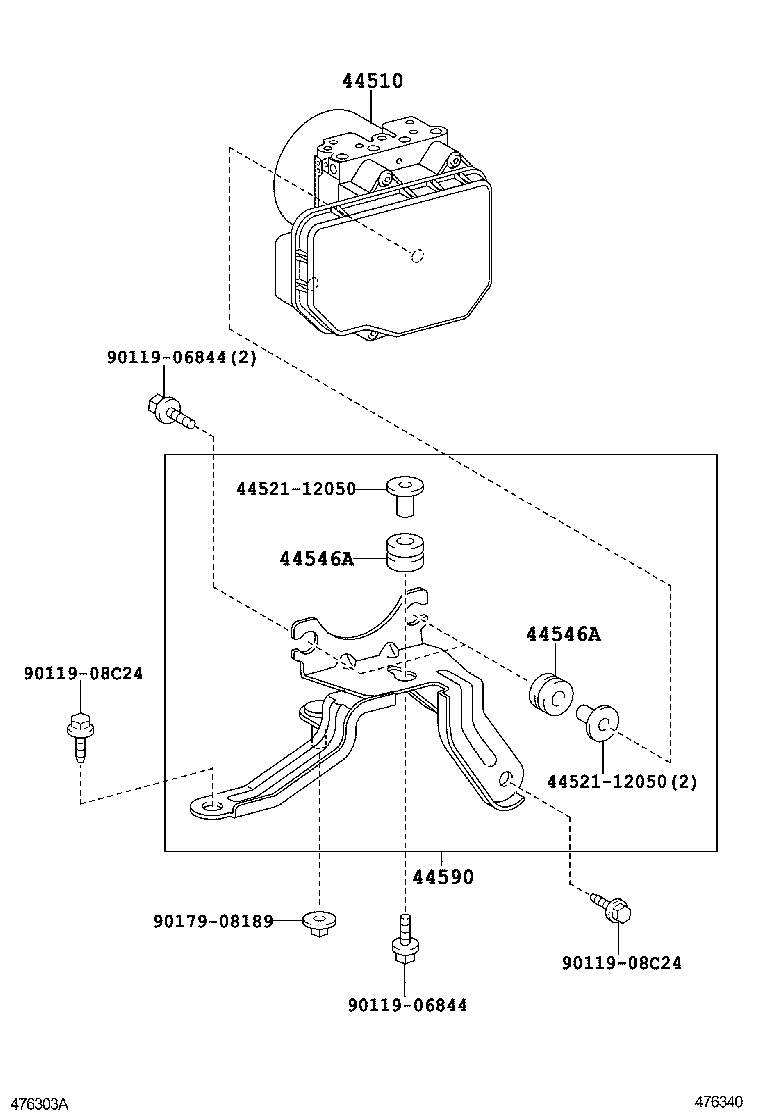

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-12540 note |
Actuator Assy, Brake
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 44050-12620 |
Actuator Assy, Brake
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 44050-12730 |
Actuator Assy, Brake
2009-01 → 2010-12
ended
|
ZRE142 JPP | — | |
| 44050-12840 |
Actuator Assy, Brake
2010-12 → 2011-06
ended
|
ZRE142 JPP | — | |
| 44050-12841 |
Actuator Assy, Brake
2011-06 → 2011-11
ended
|
ZRE142 JPP | — | |
| 44050-12842 |
Actuator Assy, Brake
2011-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 44546A — Cushion, Brake Actuator Bolt | ||||
| 44546-12110 |
Cushion, Brake Actuator Bolt
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 44546-12110 |
Cushion, Brake Actuator Bolt
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-12160 |
Bracket Assy, Brake Actuator
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 44590-12170 note |
Bracket Assy, Brake Actuator
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 44590-12190 |
Bracket Assy, Brake Actuator
2009-01 → 2010-12
ended
|
ZRE142 JPP | — | |
| 44590-12190 |
Bracket Assy, Brake Actuator
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
