Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

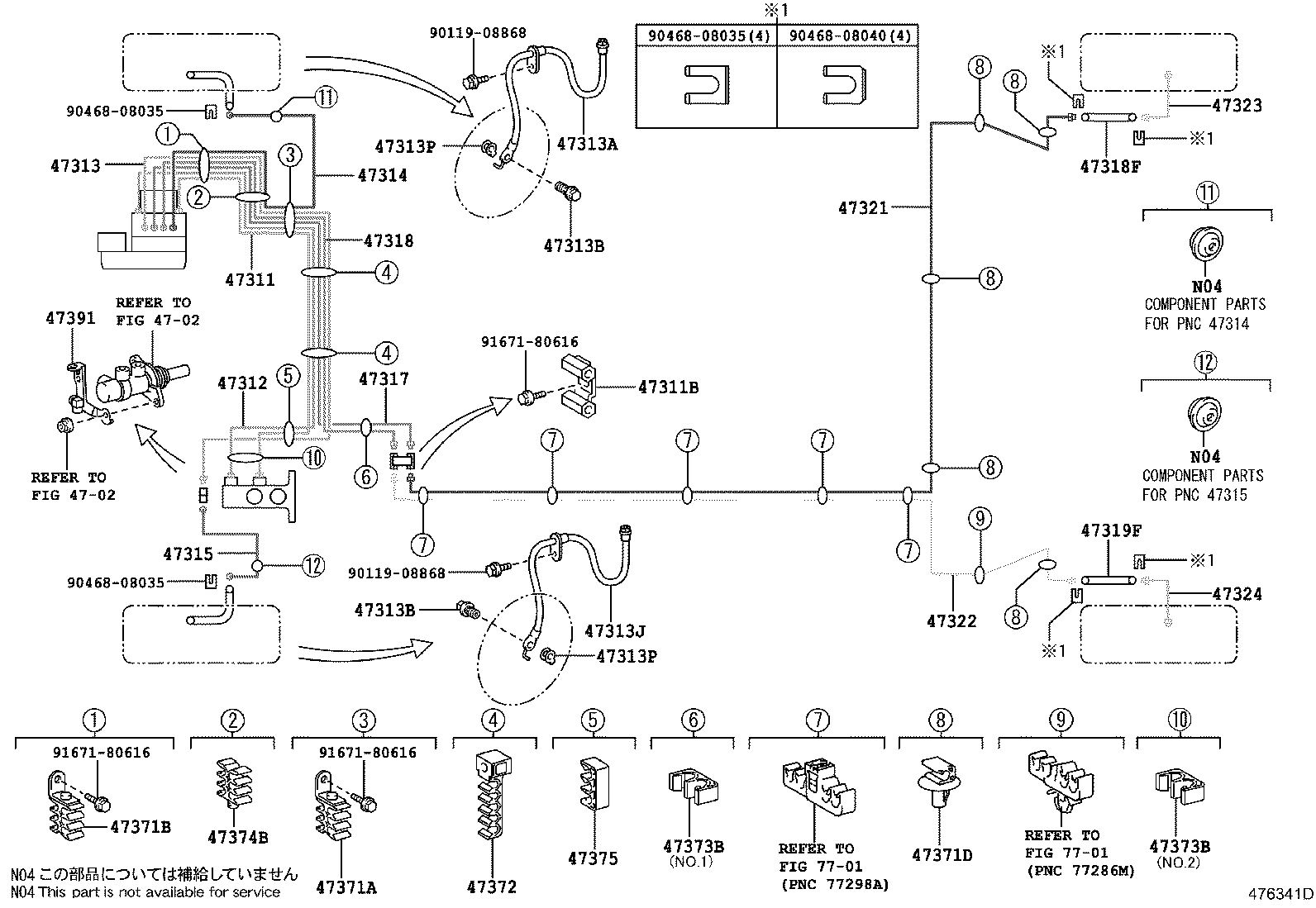

Exploded illustration 476341D 47311 — TUBE, FRONT BRAKE, NO.1 (4 parts) 47315 — TUBE, FRONT BRAKE, NO.5 (2 parts) 9167180616 — not listed in this catalogue 47311B — WAY, NO.1(FOR FRONT BRAKE TUBE) (2 parts) 47312 — TUBE, FRONT BRAKE, NO.2 (4 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (4 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (3 parts) 47313J — HOSE, FLEXIBLE, NO.2(FOR FRONT) (3 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (2 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (2 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (2 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (2 parts) 47314 — TUBE, FRONT BRAKE, NO.4 (4 parts) 47318F — HOSE, FLEXIBLE(FOR REAR RH) (2 parts) 47319F — HOSE, FLEXIBLE(FOR REAR LH) (2 parts) 47317 — TUBE, FRONT BRAKE, NO.7 (4 parts) 47318 — TUBE, FRONT BRAKE, NO.8 (4 parts) 47321 — TUBE, REAR BRAKE, NO.1 (2 parts) 47322 — TUBE, REAR BRAKE, NO.2 (2 parts) 47323 — TUBE, REAR BRAKE, NO.3 (3 parts) 47324 — TUBE, REAR BRAKE, NO.4 (3 parts) 47371B — CLAMP, BRAKE TUBE, NO.6 (3 parts) 47371D — CLAMP, BRAKE TUBE, NO.8 (2 parts) 47372 — CLAMP, BRAKE TUBE, NO.2 (3 parts) 47373B — CLAMP, BRAKE TUBE, NO.3 (6 parts) 47373B — CLAMP, BRAKE TUBE, NO.3 (6 parts) 47374B — CLAMP, BRAKE TUBE, NO.4 (3 parts) 47375 — CLAMP, BRAKE TUBE, NO.5 (3 parts) 47391 — WAY, BRAKE TUBE (2 parts) 9011908868 — not listed in this catalogue 9011908868 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 4702 — not listed in this catalogue 4702 — not listed in this catalogue 9167180616 — not listed in this catalogue 47371A — CLAMP, BRAKE TUBE, NO.1 (3 parts) 9167180616 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808040 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue
476341D · 29 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-12A80 Tube, Front Brake, NO.1
2007-12 → 2009-01 ended
ZRE142 JPP —
47311-12A90 note Tube, Front Brake, NO.1
2007-12 → 2009-01 ended
ZRE142 JPP —
47311-12B60 Tube, Front Brake, NO.1
2009-01 → 2010-12 ended
ZRE142 JPP —
47311-12B60 Tube, Front Brake, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
47311B — Way, NO.1(FOR FRONT BRAKE TUBE)
90412-10260 Way, NO.1(FOR FRONT BRAKE TUBE)
2007-12 → 2010-12 ended
ZRE142 JPP —
90412-10260 Way, NO.1(FOR FRONT BRAKE TUBE)
2010-12 → 2013-08 ended
ZRE142 JPP —
47312 — Tube, Front Brake, NO.2
47312-12610 Tube, Front Brake, NO.2
2007-12 → 2009-01 ended
ZRE142 JPP —
47312-12620 note Tube, Front Brake, NO.2
2007-12 → 2009-01 ended
ZRE142 JPP —
47312-12690 Tube, Front Brake, NO.2
2009-01 → 2010-12 ended
ZRE142 JPP —
47312-12690 Tube, Front Brake, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
47313 — Tube, Front Brake, NO.3
47313-12780 Tube, Front Brake, NO.3
2007-12 → 2009-01 ended
ZRE142 JPP —
47313-12790 note Tube, Front Brake, NO.3
2007-12 → 2009-01 ended
ZRE142 JPP —
47313-12860 Tube, Front Brake, NO.3
2009-01 → 2010-12 ended
ZRE142 JPP —
47313-12860 Tube, Front Brake, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP —
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-02E76 Hose, Flexible, NO.1(FOR FRONT)
2007-12 → 2010-12 ended
ZRE142 JPP —
90947-02E76 Hose, Flexible, NO.1(FOR FRONT)
2010-12 → 2011-07 ended
ZRE142 JPP —
90947-02G77 Hose, Flexible, NO.1(FOR FRONT)
2011-08 → 2013-08 ended
ZRE142 JPP —
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2007-12 → 2010-12 ended
ZRE142 JPP —
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2010-12 → 2013-08 ended
ZRE142 JPP —
47313J — Hose, Flexible, NO.2(FOR FRONT)
90947-02E78 Hose, Flexible, NO.2(FOR FRONT)
2007-12 → 2010-12 ended
ZRE142 JPP —
90947-02E78 Hose, Flexible, NO.2(FOR FRONT)
2010-12 → 2011-07 ended
ZRE142 JPP —
90947-02G78 Hose, Flexible, NO.2(FOR FRONT)
2011-08 → 2013-08 ended
ZRE142 JPP —
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
2007-12 → 2010-12 ended
ZRE142 JPP —
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
2010-12 → 2013-08 ended
ZRE142 JPP —
47314 — Tube, Front Brake, NO.4
47314-12660 Tube, Front Brake, NO.4
2007-12 → 2009-01 ended
ZRE142 JPP —
47314-12670 note Tube, Front Brake, NO.4
2007-12 → 2009-01 ended
ZRE142 JPP —
47314-12720 Tube, Front Brake, NO.4
2009-01 → 2010-12 ended
ZRE142 JPP —
47314-12720 Tube, Front Brake, NO.4
2010-12 → 2013-08 ended
ZRE142 JPP —
47315 — Tube, Front Brake, NO.5
47315-12620 Tube, Front Brake, NO.5
2007-12 → 2010-12 ended
ZRE142 JPP —
47315-12620 Tube, Front Brake, NO.5
2010-12 → 2013-08 ended
ZRE142 JPP —
47317 — Tube, Front Brake, NO.7
47317-12420 Tube, Front Brake, NO.7
2007-12 → 2009-01 ended
ZRE142 JPP —
47317-12430 note Tube, Front Brake, NO.7
2007-12 → 2009-01 ended
ZRE142 JPP —
47317-12480 Tube, Front Brake, NO.7
2009-01 → 2010-12 ended
ZRE142 JPP —
47317-12490 Tube, Front Brake, NO.7
2010-12 → 2013-08 ended
ZRE142 JPP —
47318 — Tube, Front Brake, NO.8
47318-12560 Tube, Front Brake, NO.8
2007-12 → 2009-01 ended
ZRE142 JPP —
47318-12570 note Tube, Front Brake, NO.8
2007-12 → 2009-01 ended
ZRE142 JPP —
47318-12620 Tube, Front Brake, NO.8
2009-01 → 2010-12 ended
ZRE142 JPP —
47318-12630 Tube, Front Brake, NO.8
2010-12 → 2013-08 ended
ZRE142 JPP —
47318F — Hose, Flexible(FOR REAR RH)
90947-02E75 Hose, Flexible(FOR REAR RH)
2007-12 → 2010-12 ended
ZRE142 JPP —
90947-02E75 Hose, Flexible(FOR REAR RH)
2010-12 → 2013-08 ended
ZRE142 JPP —
47319F — Hose, Flexible(FOR REAR LH)
90947-02E75 Hose, Flexible(FOR REAR LH)
2007-12 → 2010-12 ended
ZRE142 JPP —
90947-02E75 Hose, Flexible(FOR REAR LH)
2010-12 → 2013-08 ended
ZRE142 JPP —
47321 — Tube, Rear Brake, NO.1
47321-12360 Tube, Rear Brake, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
47321-12360 Tube, Rear Brake, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
47322 — Tube, Rear Brake, NO.2
47322-12520 Tube, Rear Brake, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
47322-12520 Tube, Rear Brake, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
47323 — Tube, Rear Brake, NO.3
47323-12290 Tube, Rear Brake, NO.3
2007-12 → 2008-07 ended
ZRE142 JPP —
47323-12310 Tube, Rear Brake, NO.3
2008-08 → 2010-12 ended
ZRE142 JPP —
47323-12310 Tube, Rear Brake, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP —
47324 — Tube, Rear Brake, NO.4
47324-12250 Tube, Rear Brake, NO.4
2007-12 → 2008-07 ended
ZRE142 JPP —
47324-12270 Tube, Rear Brake, NO.4
2008-08 → 2010-12 ended
ZRE142 JPP —
47324-12270 Tube, Rear Brake, NO.4
2010-12 → 2013-08 ended
ZRE142 JPP —
47371A — Clamp, Brake Tube, NO.1
90949-04050 Clamp, Brake Tube, NO.1
2007-12 → 2009-01 ended
ZRE142 JPP —
90949-04054 Clamp, Brake Tube, NO.1
2009-01 → 2010-12 ended
ZRE142 JPP —
90949-04054 Clamp, Brake Tube, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
47371B — Clamp, Brake Tube, NO.6
47371-12240 Clamp, Brake Tube, NO.6
2007-12 → 2009-01 ended
ZRE142 JPP —
90949-04053 Clamp, Brake Tube, NO.6
2009-01 → 2010-12 ended
ZRE142 JPP —
90949-04053 Clamp, Brake Tube, NO.6
2010-12 → 2013-08 ended
ZRE142 JPP —
47371D — Clamp, Brake Tube, NO.8
90949-01D17 Clamp, Brake Tube, NO.8
2007-12 → 2010-12 ended
ZRE142 JPP —
90949-01D17 Clamp, Brake Tube, NO.8
2010-12 → 2013-08 ended
ZRE142 JPP —
47372 — Clamp, Brake Tube, NO.2
90949-01D28 Clamp, Brake Tube, NO.2
2007-12 → 2009-01 ended
ZRE142 JPP —
90949-01D73 Clamp, Brake Tube, NO.2
2009-01 → 2010-12 ended
ZRE142 JPP —
90949-01D73 Clamp, Brake Tube, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
47373B — Clamp, Brake Tube, NO.3
90464-00904 note Clamp, Brake Tube, NO.3
2007-12 → 2009-01 ended
ZRE142 JPP —
90464-00904 note Clamp, Brake Tube, NO.3
2007-12 → 2009-01 ended
ZRE142 JPP —
90464-00904 note Clamp, Brake Tube, NO.3
2009-01 → 2010-12 ended
ZRE142 JPP —
90464-00920 note Clamp, Brake Tube, NO.3
2009-01 → 2010-12 ended
ZRE142 JPP —
90464-00904 note Clamp, Brake Tube, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP —
90464-00920 note Clamp, Brake Tube, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP —
47374B — Clamp, Brake Tube, NO.4
90949-01C51 Clamp, Brake Tube, NO.4
2007-12 → 2009-01 ended
ZRE142 JPP —
90949-01D33 Clamp, Brake Tube, NO.4
2009-01 → 2010-12 ended
ZRE142 JPP —
90949-01D33 Clamp, Brake Tube, NO.4
2010-12 → 2013-08 ended
ZRE142 JPP —
47375 — Clamp, Brake Tube, NO.5
90464-00857 Clamp, Brake Tube, NO.5
2007-12 → 2009-01 ended
ZRE142 JPP —
90464-00914 Clamp, Brake Tube, NO.5
2009-01 → 2010-12 ended
ZRE142 JPP —
90464-00914 Clamp, Brake Tube, NO.5
2010-12 → 2013-08 ended
ZRE142 JPP —
47391 — Way, Brake Tube
47391-12050 Way, Brake Tube
2007-12 → 2010-12 ended
ZRE142 JPP —
47391-12050 Way, Brake Tube
2010-12 → 2013-08 ended
ZRE142 JPP —
