Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 482618D 48684A — COVER, FRONT SUSPENSION SUPPORT DUST, RH (5 parts) 48684B — COVER, FRONT SUSPENSION SUPPORT DUST, LH (5 parts) 9017808010 — not listed in this catalogue 48603 — SUPPORT SUB-ASSY, FRONT SUSPENSION, RH (2 parts) 48609 — SUPPORT SUB-ASSY, FRONT SUSPENSION, LH (2 parts) 48471B — SEAT, FRONT COIL SPRING, UPPER RH (2 parts) 48471C — SEAT, FRONT COIL SPRING, UPPER LH (2 parts) 48157B — INSULATOR, FRONT COIL SPRING, UPPER RH (2 parts) 48157C — INSULATOR, FRONT COIL SPRING, UPPER LH (2 parts) 48331B — BUMPER, FRONT SPRING, RH (2 parts) 48331C — BUMPER, FRONT SPRING, LH (2 parts) 48131 — SPRING, FRONT COIL, RH (2 parts) 48132 — SPRING, FRONT COIL, LH (2 parts) 48603D — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) (2 parts) 48609E — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) (2 parts) 48603C — SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) (2 parts) 48609D — SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) (2 parts) 48820B — LINK ASSY, FRONT STABILIZER, RH (2 parts) 48824A — BRACKET, FRONT STABILIZER, NO.1 RH (2 parts) 48829A — BRACKET, FRONT STABILIZER, NO.1 LH (2 parts) 48158B — INSULATOR, FRONT COIL SPRING, LOWER RH (2 parts) 48158C — INSULATOR, FRONT COIL SPRING, LOWER LH (2 parts) 48510 — ABSORBER ASSY, SHOCK, FRONT RH (3 parts) 48520 — ABSORBER ASSY, SHOCK, FRONT LH (3 parts) 48815 — BUSH, FRONT STABILIZER BAR, NO.1 (2 parts) 48811 — BAR, STABILIZER, FRONT (3 parts) 48820A — NUT(FOR FRONT STABILIZER LINK) (2 parts) 48820A — NUT(FOR FRONT STABILIZER LINK) (2 parts) 48810 — LINK ASSY, FRONT STABILIZER, LH (2 parts) 9011908C04 — not listed in this catalogue 4802 — not listed in this catalogue 4802 — not listed in this catalogue

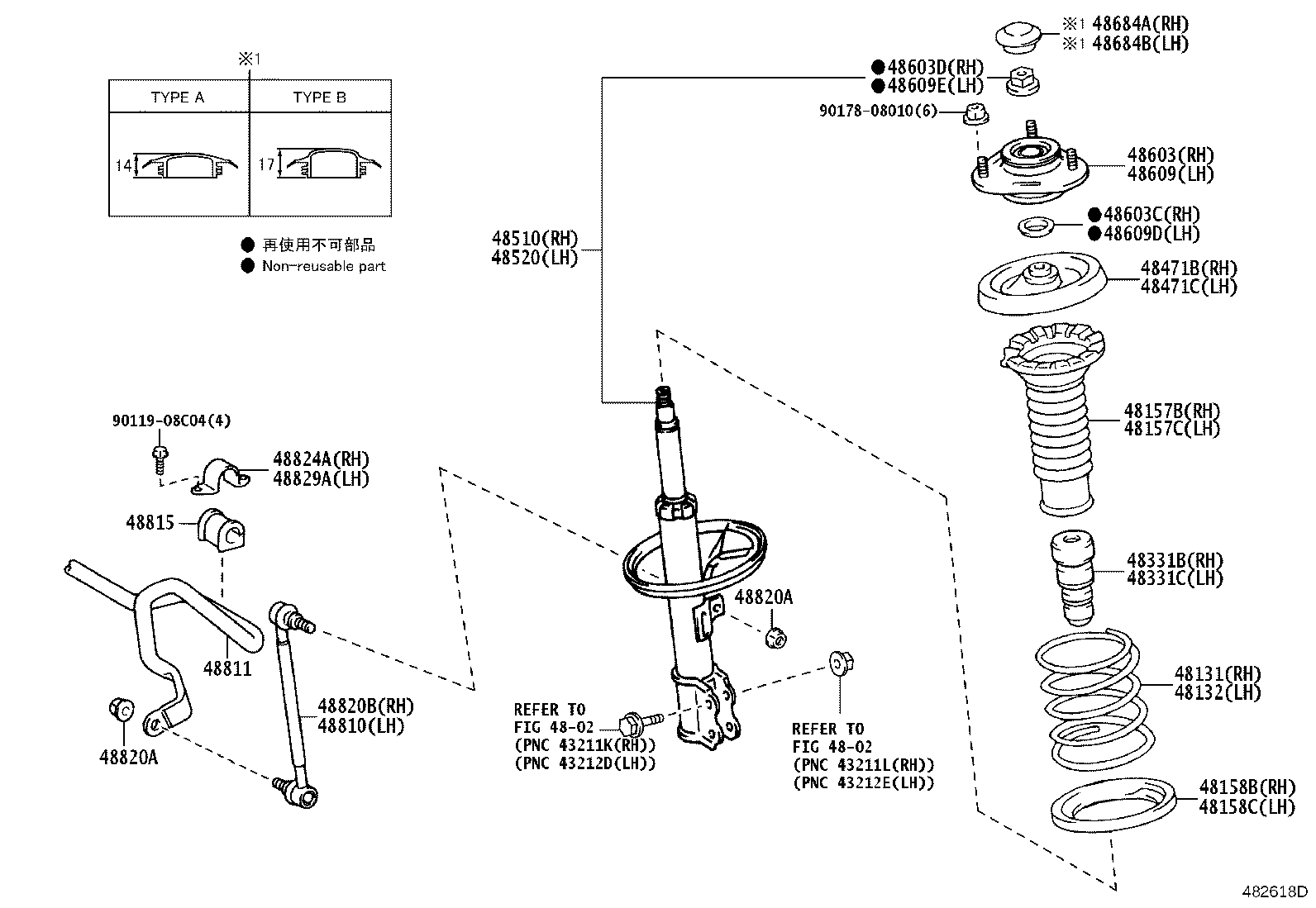

482618D · 28 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
48131 — Spring, Front Coil, RH
48131-12C10 Spring, Front Coil, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48131-12D70 Spring, Front Coil, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
48132 — Spring, Front Coil, LH
48131-12C10 Spring, Front Coil, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48131-12D70 Spring, Front Coil, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
48157B — Insulator, Front Coil Spring, Upper RH
48157-12080 Insulator, Front Coil Spring, Upper RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48157-12080 Insulator, Front Coil Spring, Upper RH
2010-12 → 2013-08 ended
ZRE142 JPP —
48157C — Insulator, Front Coil Spring, Upper LH
48157-12080 Insulator, Front Coil Spring, Upper LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48157-12080 Insulator, Front Coil Spring, Upper LH
2010-12 → 2013-08 ended
ZRE142 JPP —
48158B — Insulator, Front Coil Spring, Lower RH
48158-47010 Insulator, Front Coil Spring, Lower RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48158-47010 Insulator, Front Coil Spring, Lower RH
2010-12 → —
ZRE142 JPP —
48158C — Insulator, Front Coil Spring, Lower LH
48158-47010 Insulator, Front Coil Spring, Lower LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48158-47010 Insulator, Front Coil Spring, Lower LH
2010-12 → —
ZRE142 JPP —
48331B — Bumper, Front Spring, RH
48331-12210 Bumper, Front Spring, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48331-12210 Bumper, Front Spring, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
48331C — Bumper, Front Spring, LH
48331-12210 Bumper, Front Spring, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48331-12210 Bumper, Front Spring, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
48471B — Seat, Front Coil Spring, Upper RH
48044-12110 Seat, Front Coil Spring, Upper RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48044-12110 Seat, Front Coil Spring, Upper RH
2010-12 → 2013-08 ended
ZRE142 JPP —
48471C — Seat, Front Coil Spring, Upper LH
48044-12110 Seat, Front Coil Spring, Upper LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48044-12110 Seat, Front Coil Spring, Upper LH
2010-12 → 2013-08 ended
ZRE142 JPP —
48510 — Absorber Assy, Shock, Front RH
48510-80384 note Absorber Assy, Shock, Front RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48510-80528 note Absorber Assy, Shock, Front RH
2010-12 → 2011-12 ended
ZRE142 JPP —
48510-80563 note Absorber Assy, Shock, Front RH
2011-12 → 2013-08 ended
ZRE142 JPP —
48520 — Absorber Assy, Shock, Front LH
48520-80143 note Absorber Assy, Shock, Front LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48520-80256 note Absorber Assy, Shock, Front LH
2010-12 → 2011-12 ended
ZRE142 JPP —
48520-80283 note Absorber Assy, Shock, Front LH
2011-12 → 2013-08 ended
ZRE142 JPP —
48603 — Support Sub-assy, Front Suspension, RH
48609-12530 Support Sub-assy, Front Suspension, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48609-12530 Support Sub-assy, Front Suspension, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
48603C — Seal, Dust(FOR FRONT SUSPENSION SUPPORT RH)
90303-22002 Seal, Dust(FOR FRONT SUSPENSION SUPPORT RH)
2007-12 → 2010-12 ended
ZRE142 JPP —
90303-22002 Seal, Dust(FOR FRONT SUSPENSION SUPPORT RH)
2010-12 → 2013-08 ended
ZRE142 JPP —
48603D — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90179-14015 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2007-12 → 2010-12 ended
ZRE142 JPP —
90179-14015 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2010-12 → 2013-08 ended
ZRE142 JPP —
48609 — Support Sub-assy, Front Suspension, LH
48609-12530 Support Sub-assy, Front Suspension, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48609-12530 Support Sub-assy, Front Suspension, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
48609D — Seal, Dust(FOR FRONT SUSPENSION SUPPORT LH)
90303-22002 Seal, Dust(FOR FRONT SUSPENSION SUPPORT LH)
2007-12 → 2010-12 ended
ZRE142 JPP —
90303-22002 Seal, Dust(FOR FRONT SUSPENSION SUPPORT LH)
2010-12 → 2013-08 ended
ZRE142 JPP —
48609E — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90179-14015 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2007-12 → 2010-12 ended
ZRE142 JPP —
90179-14015 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2010-12 → 2013-08 ended
ZRE142 JPP —
48684A — Cover, Front Suspension Support Dust, RH
48684-52010 Cover, Front Suspension Support Dust, RH
2007-12 → 2010-05 ended
ZRE142 JPP —
48684-52010 note Cover, Front Suspension Support Dust, RH
2010-05 → 2010-12 ended
ZRE142 JPP —
48684-74010 note Cover, Front Suspension Support Dust, RH
2010-05 → 2010-12 ended
ZRE142 JPP —
48684-52010 note Cover, Front Suspension Support Dust, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
48684-74010 note Cover, Front Suspension Support Dust, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
48684B — Cover, Front Suspension Support Dust, LH
48684-52010 Cover, Front Suspension Support Dust, LH
2007-12 → 2010-05 ended
ZRE142 JPP —
48684-52010 note Cover, Front Suspension Support Dust, LH
2010-05 → 2010-12 ended
ZRE142 JPP —
48684-74010 note Cover, Front Suspension Support Dust, LH
2010-05 → 2010-12 ended
ZRE142 JPP —
48684-52010 note Cover, Front Suspension Support Dust, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
48684-74010 note Cover, Front Suspension Support Dust, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
48810 — Link Assy, Front Stabilizer, LH
48820-47010 Link Assy, Front Stabilizer, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48820-47010 Link Assy, Front Stabilizer, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
48811 — Bar, Stabilizer, Front
48811-12A70 Bar, Stabilizer, Front
2007-12 → 2010-12 ended
ZRE142 JPP —
48811-12A60 Bar, Stabilizer, Front
2011-10 → —
ZRE142 JPP —
48811-12A70 Bar, Stabilizer, Front
2010-12 → 2011-10 ended
ZRE142 JPP —
48815 — Bush, Front Stabilizer Bar, NO.1
48815-12360 Bush, Front Stabilizer Bar, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
48815-12360 Bush, Front Stabilizer Bar, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
48820A — Nut(FOR FRONT STABILIZER LINK)
90179-12151 Nut(FOR FRONT STABILIZER LINK)
2007-12 → 2010-12 ended
ZRE142 JPP —
90179-12151 Nut(FOR FRONT STABILIZER LINK)
2010-12 → 2013-08 ended
ZRE142 JPP —
48820B — Link Assy, Front Stabilizer, RH
48820-47010 Link Assy, Front Stabilizer, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48820-47010 Link Assy, Front Stabilizer, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
48824A — Bracket, Front Stabilizer, NO.1 RH
48824-26210 Bracket, Front Stabilizer, NO.1 RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48824-26210 Bracket, Front Stabilizer, NO.1 RH
2010-12 → 2013-08 ended
ZRE142 JPP —
48829A — Bracket, Front Stabilizer, NO.1 LH
48824-26210 Bracket, Front Stabilizer, NO.1 LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48824-26210 Bracket, Front Stabilizer, NO.1 LH
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
