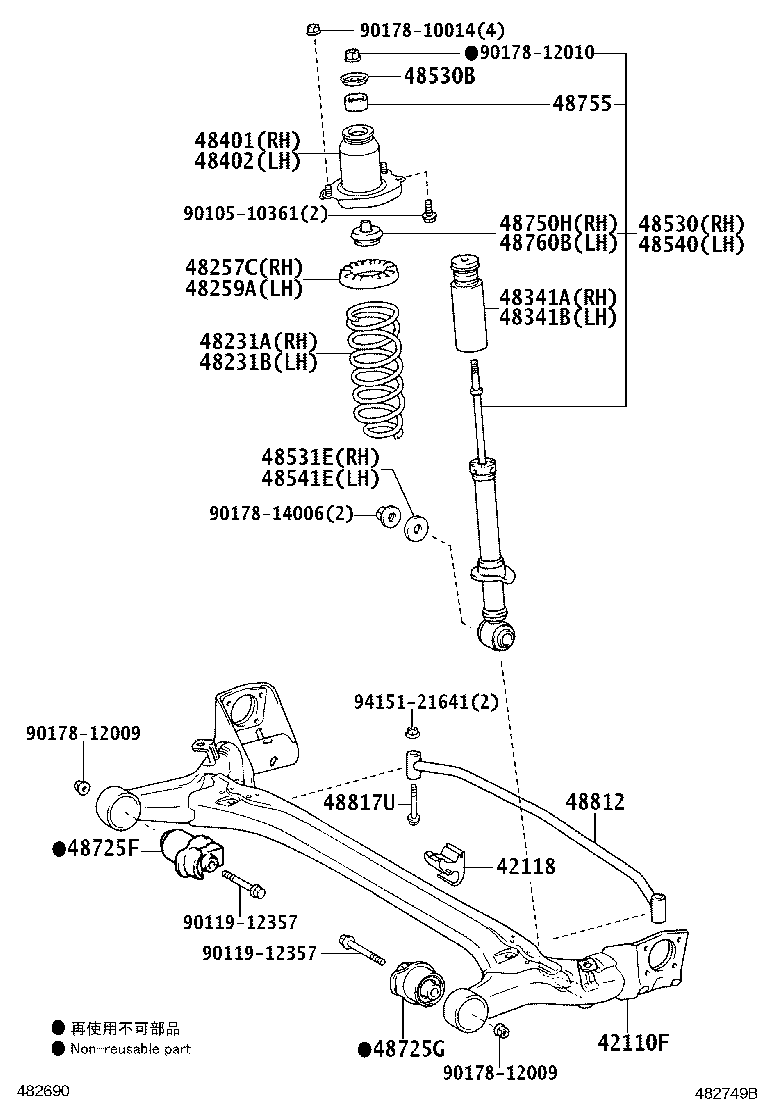

Exploded illustration 482749B 9017814006 — not listed in this catalogue 48401 — BRACKET SUB-ASSY, REAR SPRING, FRONT RH (2 parts) 48402 — BRACKET SUB-ASSY, REAR SPRING, FRONT LH (2 parts) 48530B — WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 (2 parts) 48755 — SUPPORT, REAR SUSPENSION (2 parts) 48257C — INSULATOR, REAR COIL SPRING, UPPER RH (2 parts) 48259A — INSULATOR, REAR COIL SPRING, UPPER LH (2 parts) 9017812010 — not listed in this catalogue 48341A — BUMPER, REAR SPRING, NO.1 RH (2 parts) 48341B — BUMPER, REAR SPRING, NO.1 LH (2 parts) 48750H — SUPPORT ASSY, REAR SUSPENSION, RH (2 parts) 48760B — SUPPORT ASSY REAR SUSPENSION, LH (2 parts) 48530 — ABSORBER ASSY, SHOCK, REAR RH (3 parts) 48540 — ABSORBER ASSY, SHOCK, REAR LH (3 parts) 9010510361 — not listed in this catalogue 48812 — BAR, STABILIZER, REAR (2 parts) 9017812009 — not listed in this catalogue 48725F — BUSH, REAR AXLE CARRIER, RH (3 parts) 48725G — BUSH, REAR AXLE CARRIER, LH (3 parts) 9011912357 — not listed in this catalogue 42110F — BEAM ASSY, REAR AXLE (2 parts) 9011912357 — not listed in this catalogue 9017812009 — not listed in this catalogue 48231A — SPRING, COIL, REAR RH (2 parts) 48231B — SPRING, COIL, REAR LH (2 parts) 48531E — RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH) (2 parts) 48541E — RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH) (2 parts) 9017810014 — not listed in this catalogue 42118 — DAMPER, REAR AXLE BEAM (2 parts) 9415121641 — not listed in this catalogue 48817U — BOLT(FOR REAR STABILIZER) (2 parts)
482749B · 22 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
42110F — Beam Assy, Rear Axle
42101-12190 Beam Assy, Rear Axle
2007-12 → 2010-12 ended
ZRE142 JPP —
42101-12190 Beam Assy, Rear Axle
2010-12 → 2013-08 ended
ZRE142 JPP —
42118 — Damper, Rear Axle Beam
42118-12020 Damper, Rear Axle Beam
2007-12 → 2010-12 ended
ZRE142 JPP —
42118-12020 Damper, Rear Axle Beam
2010-12 → 2013-08 ended
ZRE142 JPP —
48231A — Spring, Coil, Rear RH
48231-12B70 Spring, Coil, Rear RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48231-12B70 Spring, Coil, Rear RH
2010-12 → —
ZRE142 JPP —
48231B — Spring, Coil, Rear LH
48231-12B70 Spring, Coil, Rear LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48231-12B70 Spring, Coil, Rear LH
2010-12 → —
ZRE142 JPP —
48257C — Insulator, Rear Coil Spring, Upper RH
48257-32090 Insulator, Rear Coil Spring, Upper RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48257-32090 Insulator, Rear Coil Spring, Upper RH
2010-12 → 2013-08 ended
ZRE142 JPP —
48259A — Insulator, Rear Coil Spring, Upper LH
48257-32090 Insulator, Rear Coil Spring, Upper LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48257-32090 Insulator, Rear Coil Spring, Upper LH
2010-12 → 2013-08 ended
ZRE142 JPP —
48341A — Bumper, Rear Spring, NO.1 RH
48341-12230 Bumper, Rear Spring, NO.1 RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48341-12230 Bumper, Rear Spring, NO.1 RH
2010-12 → —
ZRE142 JPP —
48341B — Bumper, Rear Spring, NO.1 LH
48341-12230 Bumper, Rear Spring, NO.1 LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48341-12230 Bumper, Rear Spring, NO.1 LH
2010-12 → —
ZRE142 JPP —
48401 — Bracket Sub-assy, Rear Spring, Front RH
48401-12020 Bracket Sub-assy, Rear Spring, Front RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48401-12020 Bracket Sub-assy, Rear Spring, Front RH
2010-12 → —
ZRE142 JPP —
48402 — Bracket Sub-assy, Rear Spring, Front LH
48403-12020 Bracket Sub-assy, Rear Spring, Front LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48403-12020 Bracket Sub-assy, Rear Spring, Front LH
2010-12 → —
ZRE142 JPP —
48530 — Absorber Assy, Shock, Rear RH
48530-80443 note Absorber Assy, Shock, Rear RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48530-80562 note Absorber Assy, Shock, Rear RH
2010-12 → 2011-11 ended
ZRE142 JPP —
48530-80626 note Absorber Assy, Shock, Rear RH
2011-11 → 2013-08 ended
ZRE142 JPP —
48530B — Washer, Rear Shock Absorber Cushion, NO.1
90948-03021 Washer, Rear Shock Absorber Cushion, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
90948-03021 Washer, Rear Shock Absorber Cushion, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
48531E — Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER RH)
90201-14034 Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER RH)
2007-12 → 2010-12 ended
ZRE142 JPP —
90201-14034 Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER RH)
2010-12 → 2013-08 ended
ZRE142 JPP —
48540 — Absorber Assy, Shock, Rear LH
48530-80443 note Absorber Assy, Shock, Rear LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48530-80562 note Absorber Assy, Shock, Rear LH
2010-12 → 2011-11 ended
ZRE142 JPP —
48530-80626 note Absorber Assy, Shock, Rear LH
2011-11 → 2013-08 ended
ZRE142 JPP —
48541E — Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER LH)
90201-14034 Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER LH)
2007-12 → 2010-12 ended
ZRE142 JPP —
90201-14034 Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER LH)
2010-12 → 2013-08 ended
ZRE142 JPP —
48725F — Bush, Rear Axle Carrier, RH
48725-12630 Bush, Rear Axle Carrier, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48725-02250 Bush, Rear Axle Carrier, RH
2011-11 → 2013-08 ended
ZRE142 JPP —
48725-12630 Bush, Rear Axle Carrier, RH
2010-12 → 2011-11 ended
ZRE142 JPP —
48725G — Bush, Rear Axle Carrier, LH
48725-12630 Bush, Rear Axle Carrier, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48725-02250 Bush, Rear Axle Carrier, LH
2011-11 → 2013-08 ended
ZRE142 JPP —
48725-12630 Bush, Rear Axle Carrier, LH
2010-12 → 2011-11 ended
ZRE142 JPP —
48750H — Support Assy, Rear Suspension, RH
48750-47010 Support Assy, Rear Suspension, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
48750-47010 Support Assy, Rear Suspension, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
48755 — Support, Rear Suspension
48755-63010 Support, Rear Suspension
2007-12 → 2010-12 ended
ZRE142 JPP —
48755-63010 Support, Rear Suspension
2010-12 → 2013-08 ended
ZRE142 JPP —
48760B — Support Assy Rear Suspension, LH
48750-47010 Support Assy Rear Suspension, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
48750-47010 Support Assy Rear Suspension, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
48812 — Bar, Stabilizer, Rear
48812-12430 Bar, Stabilizer, Rear
2007-12 → 2010-12 ended
ZRE142 JPP —
48812-12430 Bar, Stabilizer, Rear
2010-12 → 2013-08 ended
ZRE142 JPP —
48817U — Bolt(FOR REAR STABILIZER)
90105-16085 Bolt(FOR REAR STABILIZER)
2007-12 → 2010-12 ended
ZRE142 JPP —
90105-16085 Bolt(FOR REAR STABILIZER)
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
