Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

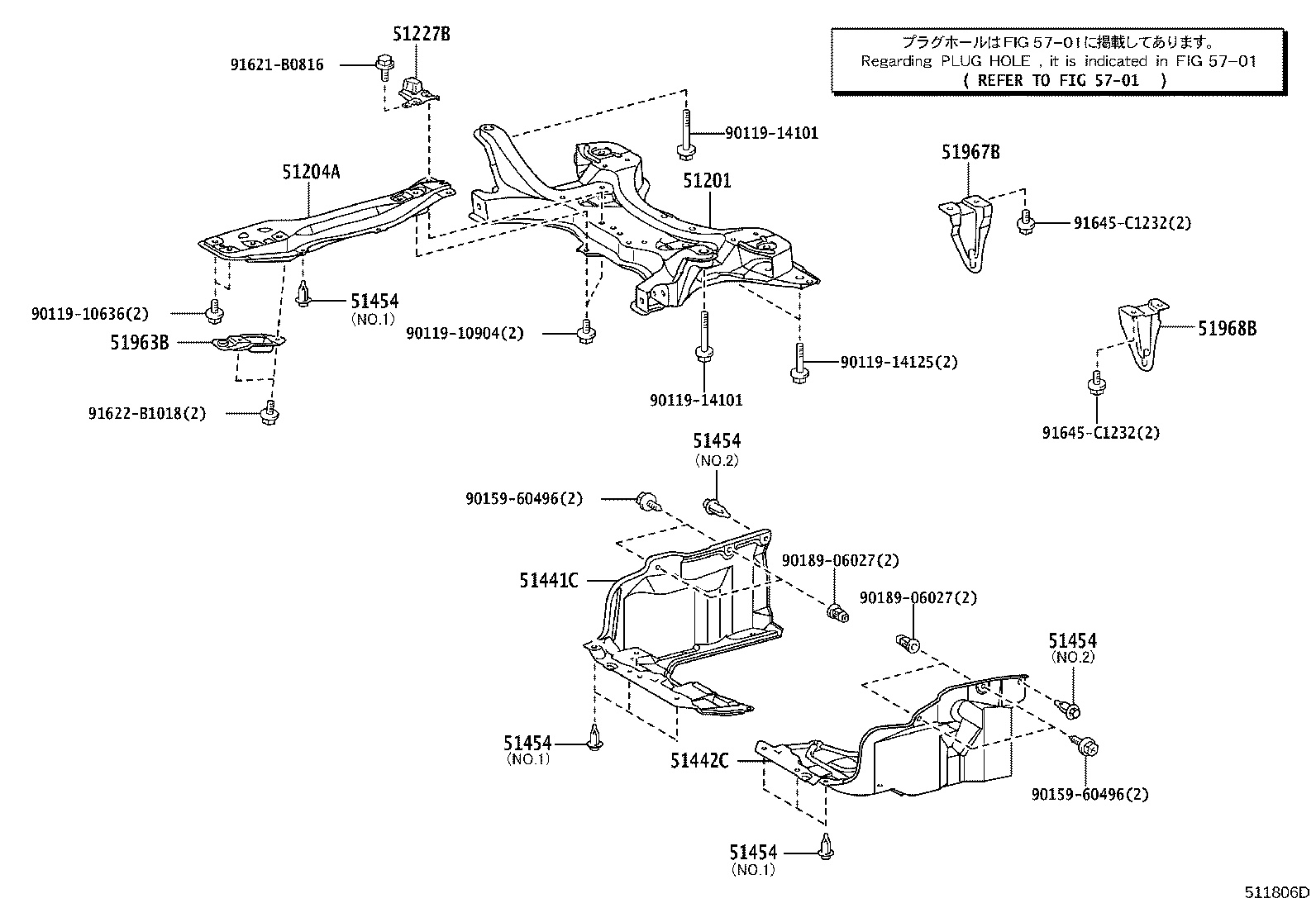

Exploded illustration 511806D 51441C — COVER, ENGINE UNDER, RH (2 parts) 51442C — COVER, ENGINE UNDER, LH (2 parts) 9018906027 — not listed in this catalogue 9018906027 — not listed in this catalogue 9015960496 — not listed in this catalogue 9015960496 — not listed in this catalogue 51968B — HOOK, TRANSPORT, REAR LH (2 parts) 51967B — HOOK, TRANSPORT, REAR RH (2 parts) 91645C1232 — not listed in this catalogue 91645C1232 — not listed in this catalogue 51201 — CROSSMEMBER SUB-ASSY, FRONT SUSPENSION (2 parts) 51204A — MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER (2 parts) 51963B — HOOK, TRANSPORT, FRONT RH (2 parts) 91621B0816 — not listed in this catalogue 9011910636 — not listed in this catalogue 9011914125 — not listed in this catalogue 9011910904 — not listed in this catalogue 9011914101 — not listed in this catalogue 9011914101 — not listed in this catalogue 91622B1018 — not listed in this catalogue 51227B — DAMPER, FRONT SUSPENSION MEMBER DYNAMIC (2 parts) 5701 — not listed in this catalogue 51454 — CLIP (4 parts) 51454 — CLIP (4 parts) 51454 — CLIP (4 parts) 51454 — CLIP (4 parts) 51454 — CLIP (4 parts)
511806D · 13 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
20 parts on this figure
Part number Description Fitment Price
51201 — Crossmember Sub-assy, Front Suspension
51201-20352 Crossmember Sub-assy, Front Suspension
2007-12 → 2010-12 ended
ZRE142 JPP —
51201-20352 Crossmember Sub-assy, Front Suspension
2010-12 → 2013-08 ended
ZRE142 JPP —
51204A — Member Sub-assy, Engine Mounting, Center
51204-12150 Member Sub-assy, Engine Mounting, Center
2007-12 → 2010-12 ended
ZRE142 JPP —
51204-12150 Member Sub-assy, Engine Mounting, Center
2010-12 → 2013-08 ended
ZRE142 JPP —
51227B — Damper, Front Suspension Member Dynamic
51227-12081 Damper, Front Suspension Member Dynamic
2007-12 → 2010-12 ended
ZRE142 JPP —
51227-12081 Damper, Front Suspension Member Dynamic
2010-12 → 2013-08 ended
ZRE142 JPP —
51441C — Cover, Engine Under, RH
51441-12240 Cover, Engine Under, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
51441-12240 Cover, Engine Under, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
51442C — Cover, Engine Under, LH
51442-12230 Cover, Engine Under, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
51442-12230 Cover, Engine Under, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
51454 — Clip
90467-07201 note Clip
2007-12 → 2010-02 ended
ZRE142 JPP —
90467-07201 note Clip
2010-02 → 2010-12 ended
ZRE142 JPP —
90467-07201 note Clip
2010-12 → 2013-08 ended
ZRE142 JPP —
90467-07214 note Clip
2010-12 → 2013-08 ended
ZRE142 JPP —
51963B — Hook, Transport, Front RH
51960-12080 Hook, Transport, Front RH
2007-12 → 2010-12 ended
ZRE142 JPP —
51960-12080 Hook, Transport, Front RH
2010-12 → 2013-08 ended
ZRE142 JPP —
51967B — Hook, Transport, Rear RH
51967-12270 Hook, Transport, Rear RH
2007-12 → 2010-12 ended
ZRE142 JPP —
51967-12270 Hook, Transport, Rear RH
2010-12 → 2013-08 ended
ZRE142 JPP —
51968B — Hook, Transport, Rear LH
51968-12200 Hook, Transport, Rear LH
2007-12 → 2010-12 ended
ZRE142 JPP —
51968-12200 Hook, Transport, Rear LH
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
