Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

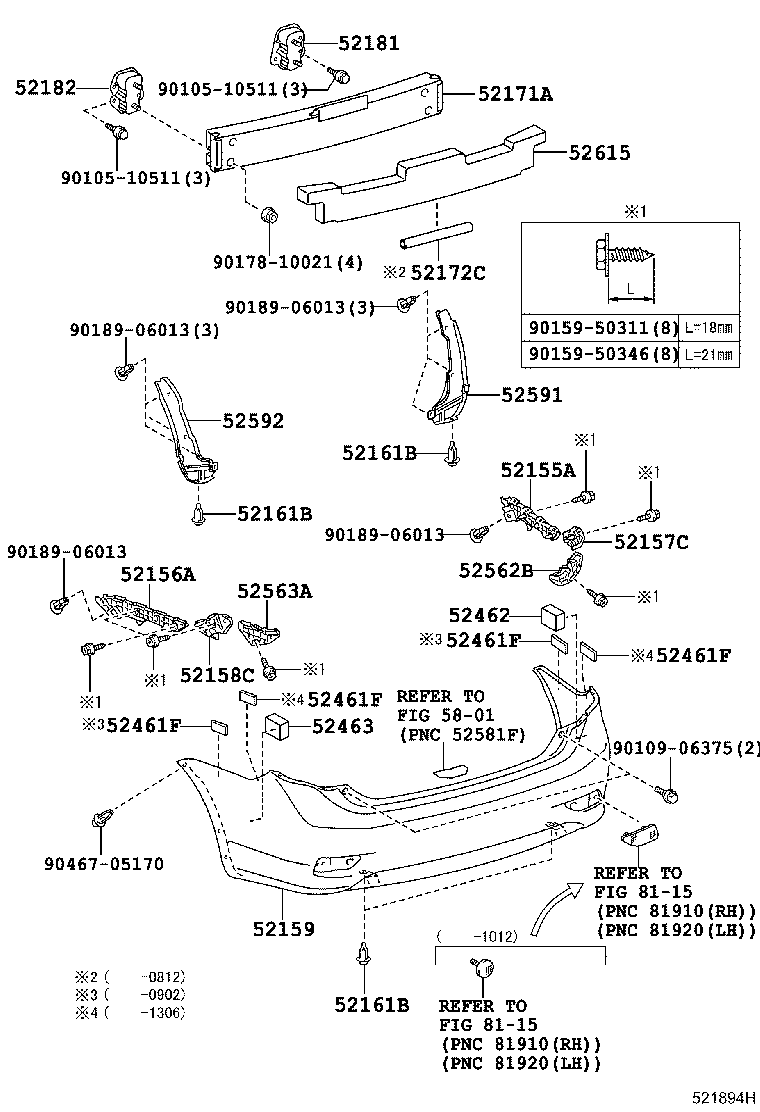

Exploded illustration 521894H 52591 — SEAL, REAR BUMPER SIDE, RH (2 parts) 52592 — SEAL, REAR BUMPER SIDE, LH (2 parts) 9018906013 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015950346 — not listed in this catalogue 9018906013 — not listed in this catalogue 9010906375 — not listed in this catalogue 9046705170 — not listed in this catalogue 52155A — SUPPORT, REAR BUMPER SIDE, RH (2 parts) 52156A — SUPPORT, REAR BUMPER SIDE, LH (2 parts) 52157C — SUPPORT, REAR BUMPER SIDE, NO.2 RH (2 parts) 52158C — SUPPORT, REAR BUMPER SIDE, NO.2 LH (2 parts) 52159 — COVER, REAR BUMPER (2 parts) 52161B — PIECE, REAR BUMPER (2 parts) 52161B — PIECE, REAR BUMPER (2 parts) 52161B — PIECE, REAR BUMPER (2 parts) 52562B — RETAINER, REAR BUMPER, UPPER RH (2 parts) 52563A — RETAINER, REAR BUMPER, UPPER LH (2 parts) 9018906013 — not listed in this catalogue 9018906013 — not listed in this catalogue 52462 — PAD, REAR BUMPER, RH (2 parts) 52463 — PAD, REAR BUMPER, LH (2 parts) 52461F — PAD, REAR BUMPER (3 parts) 52461F — PAD, REAR BUMPER (3 parts) 52461F — PAD, REAR BUMPER (3 parts) 52171A — REINFORCEMENT, REAR BUMPER, NO.1 (2 parts) 52172C — REINFORCEMENT, REAR BUMPER BAR, CENTER (1 parts) 52181 — ARM, REAR BUMPER, RH (2 parts) 52182 — ARM, REAR BUMPER, LH (2 parts) 52615 — ABSORBER, REAR BUMPER ENERGY (2 parts) 9010510511 — not listed in this catalogue 9010510511 — not listed in this catalogue 9017810021 — not listed in this catalogue 52461F — PAD, REAR BUMPER (3 parts) 5801 — not listed in this catalogue 8115 — not listed in this catalogue 8115 — not listed in this catalogue
521894H · 23 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
36 parts on this figure
Part number Description Fitment Price
52155A — Support, Rear Bumper Side, RH
52155-12320 Support, Rear Bumper Side, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
52155-12320 Support, Rear Bumper Side, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
52156A — Support, Rear Bumper Side, LH
52156-12290 Support, Rear Bumper Side, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
52156-12290 Support, Rear Bumper Side, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
52157C — Support, Rear Bumper Side, NO.2 RH
52157-12160 Support, Rear Bumper Side, NO.2 RH
2007-12 → 2010-12 ended
ZRE142 JPP —
52157-12160 Support, Rear Bumper Side, NO.2 RH
2010-12 → 2013-08 ended
ZRE142 JPP —
52158C — Support, Rear Bumper Side, NO.2 LH
52158-12090 Support, Rear Bumper Side, NO.2 LH
2007-12 → 2010-12 ended
ZRE142 JPP —
52158-12090 Support, Rear Bumper Side, NO.2 LH
2010-12 → 2013-08 ended
ZRE142 JPP —
52159 — Cover, Rear Bumper
52159-12934 note Cover, Rear Bumper
2007-12 → 2010-12 ended
ZRE142 JPP —
52159-12941 note Cover, Rear Bumper
2010-12 → 2013-08 ended
ZRE142 JPP —
52161B — Piece, Rear Bumper
52161-16010 Piece, Rear Bumper
2007-12 → 2010-12 ended
ZRE142 JPP —
52161-16010 Piece, Rear Bumper
2010-12 → 2013-08 ended
ZRE142 JPP —
52171A — Reinforcement, Rear Bumper, NO.1
52023-12250 Reinforcement, Rear Bumper, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
52023-12250 Reinforcement, Rear Bumper, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
52172C — Reinforcement, Rear Bumper Bar, Center
52172-12120 Reinforcement, Rear Bumper Bar, Center
2007-12 → 2008-12 ended
ZRE142 JPP —
52181 — Arm, Rear Bumper, RH
52181-12520 Arm, Rear Bumper, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
52181-12520 Arm, Rear Bumper, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
52182 — Arm, Rear Bumper, LH
52182-12420 Arm, Rear Bumper, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
52182-12420 Arm, Rear Bumper, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
52461F — Pad, Rear Bumper
52461-12030 Pad, Rear Bumper
2009-02 → 2010-12 ended
ZRE142 JPP —
52461-12030 Pad, Rear Bumper
2007-12 → 2009-02 ended
ZRE142 JPP —
52461-12030 Pad, Rear Bumper
2010-12 → 2013-06 ended
ZRE142 JPP —
52462 — Pad, Rear Bumper, RH
52462-12100 Pad, Rear Bumper, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
52462-12110 Pad, Rear Bumper, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
52463 — Pad, Rear Bumper, LH
52462-12100 Pad, Rear Bumper, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
52462-12110 Pad, Rear Bumper, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
52562B — Retainer, Rear Bumper, Upper RH
52562-12130 Retainer, Rear Bumper, Upper RH
2007-12 → 2010-12 ended
ZRE142 JPP —
52562-12120 Retainer, Rear Bumper, Upper RH
2010-12 → 2013-08 ended
ZRE142 JPP —
52563A — Retainer, Rear Bumper, Upper LH
52563-12040 Retainer, Rear Bumper, Upper LH
2007-12 → 2010-12 ended
ZRE142 JPP —
52563-12090 Retainer, Rear Bumper, Upper LH
2010-12 → 2013-08 ended
ZRE142 JPP —
52591 — Seal, Rear Bumper Side, RH
52591-12230 Seal, Rear Bumper Side, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
52591-12230 Seal, Rear Bumper Side, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
52592 — Seal, Rear Bumper Side, LH
52592-12150 Seal, Rear Bumper Side, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
52592-12150 Seal, Rear Bumper Side, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
52615 — Absorber, Rear Bumper Energy
52615-12131 Absorber, Rear Bumper Energy
2007-12 → 2010-12 ended
ZRE142 JPP —
52615-12180 Absorber, Rear Bumper Energy
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
