Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

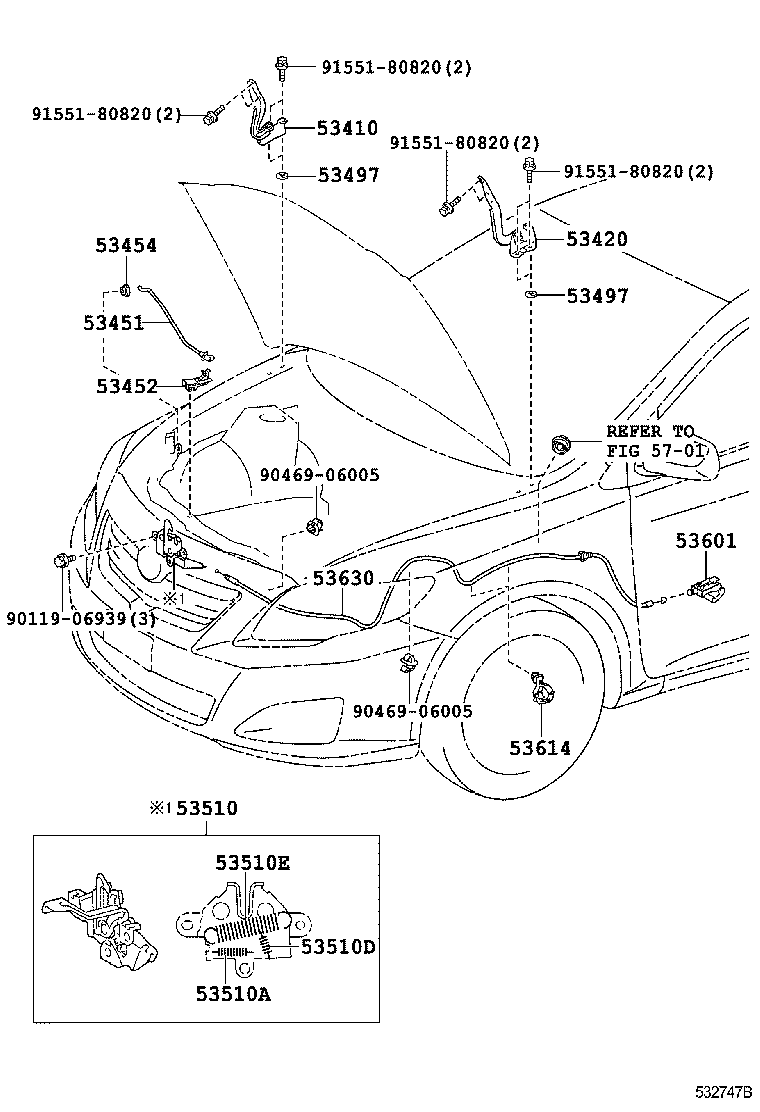

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53410 — Hinge Assy, Hood, RH | ||||
| 53410-12550 |
Hinge Assy, Hood, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53410-12550 |
Hinge Assy, Hood, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53420 — Hinge Assy, Hood, LH | ||||
| 53420-12520 |
Hinge Assy, Hood, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53420-12520 |
Hinge Assy, Hood, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53451 — Rod, Hood Support | ||||
| 53440-12100 |
Rod, Hood Support
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53440-12100 |
Rod, Hood Support
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53452 — Holder, Hood Stay | ||||
| 53452-12090 |
Holder, Hood Stay
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53452-12090 |
Holder, Hood Stay
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53454 — Clip, Hood Support Rod | ||||
| 53454-12040 |
Clip, Hood Support Rod
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53454-12040 |
Clip, Hood Support Rod
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53497 — Pad, Hood Hinge, NO.1 | ||||
| 53497-42010 note |
Pad, Hood Hinge, NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53497-20070 note |
Pad, Hood Hinge, NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53497-42010 note |
Pad, Hood Hinge, NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53510 — Lock Assy, Hood | ||||
| 53510-12A60 |
Lock Assy, Hood
2007-12 → 2010-11
ended
|
ZRE142 JPP | — | |
| 53510-12A60 |
Lock Assy, Hood
2010-12 → 2011-03
ended
|
ZRE142 JPP | — | |
| 53510-12A61 |
Lock Assy, Hood
2011-04 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53510A — Spring, Tension(FOR HOOD LOCK) | ||||
| 90506-09055 note |
Spring, Tension(FOR HOOD LOCK)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90506-09055 note |
Spring, Tension(FOR HOOD LOCK)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53510D — Spring, Tension(FOR HOOD LOCK) | ||||
| 90506-12063 note |
Spring, Tension(FOR HOOD LOCK)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90506-12063 note |
Spring, Tension(FOR HOOD LOCK)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53510E — Spring, Tension(FOR HOOD LOCK) | ||||
| 90506-18067 note |
Spring, Tension(FOR HOOD LOCK)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90506-18067 note |
Spring, Tension(FOR HOOD LOCK)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53601 — Lever Sub-assy, Hood Lock Control | ||||
| 53601-52010-B9 note |
Lever Sub-assy, Hood Lock Control
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53601-52010-E4 note |
Lever Sub-assy, Hood Lock Control
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53601-52010-B9 note |
Lever Sub-assy, Hood Lock Control
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53601-52010-E4 note |
Lever Sub-assy, Hood Lock Control
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53614 — Clamp, Hood Lock Control Cable | ||||
| 53614-12040 |
Clamp, Hood Lock Control Cable
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53614-12040 |
Clamp, Hood Lock Control Cable
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53630 — Cable Assy, Hood Lock Control | ||||
| 53630-12610 |
Cable Assy, Hood Lock Control
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53630-12610 |
Cable Assy, Hood Lock Control
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
