Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

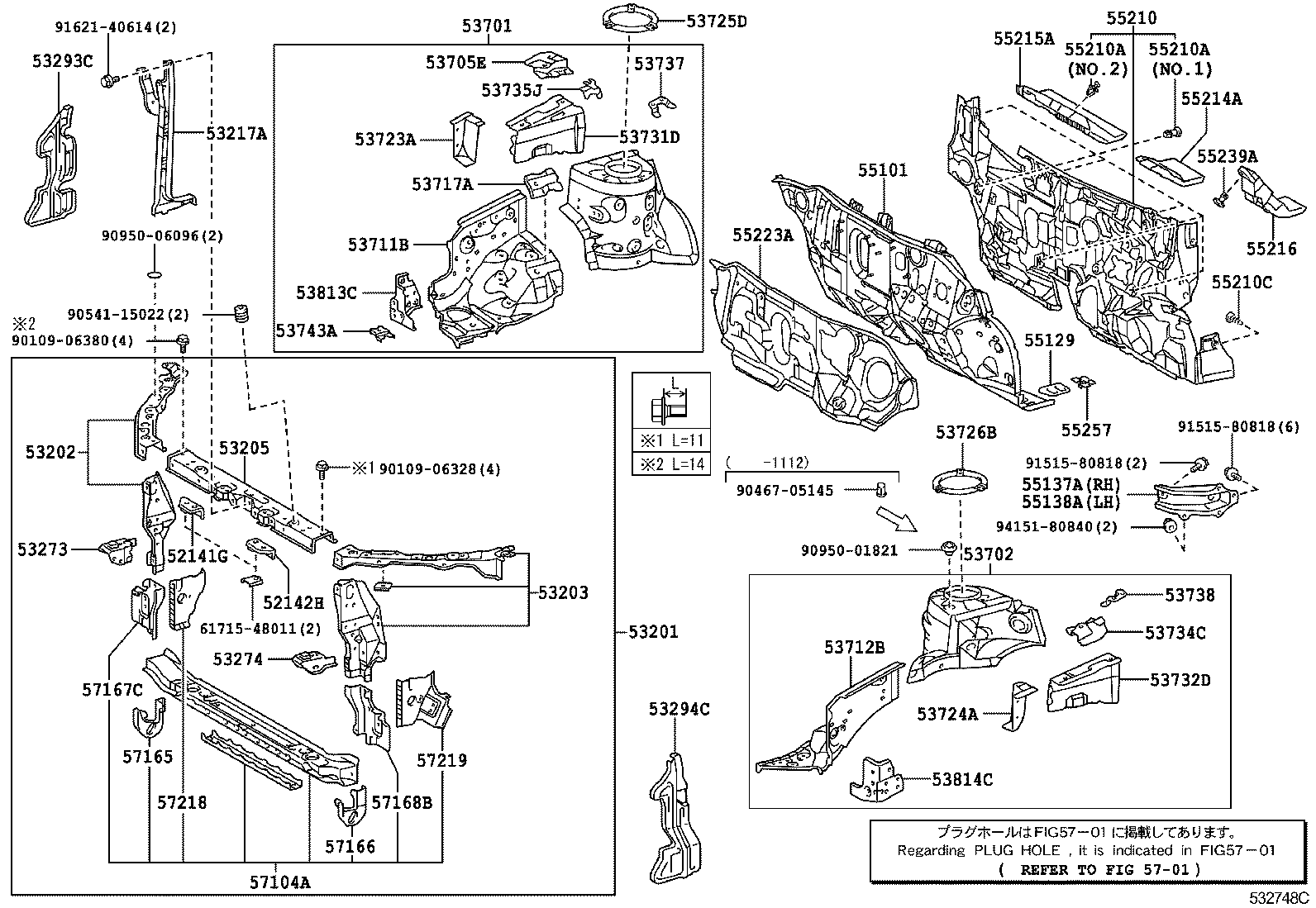

Exploded illustration 532748C 52141G — STAY, FRONT BUMPER, RH (2 parts) 52142H — STAY, FRONT BUMPER, LH (2 parts) 53201 — SUPPORT SUB-ASSY, RADIATOR (2 parts) 53202 — SUPPORT SUB-ASSY, RADIATOR, RH (2 parts) 53203 — SUPPORT SUB-ASSY, RADIATOR, LH (2 parts) 53205 — SUPPORT SUB-ASSY, RADIATOR, UPPER (2 parts) 53217A — BRACE, HOOD LOCK SUPPORT (2 parts) 53293C — DEFLECTOR, RADIATOR SIDE, RH (2 parts) 53294C — DEFLECTOR, RADIATOR SIDE, LH (2 parts) 53273 — BRACKET, FRONT BUMPER ARM MOUNTING, RH (2 parts) 53274 — BRACKET, FRONT BUMPER ARM MOUNTING, LH (2 parts) 53701 — APRON SUB-ASSY, FRONT FENDER, RH (2 parts) 53702 — APRON SUB-ASSY, FRONT FENDER, LH (3 parts) 53712B — APRON, FRONT FENDER, FRONT LH (2 parts) 53723A — REINFORCEMENT, FRONT SPRING SUPPORT, RH (2 parts) 53724A — REINFORCEMENT, FRONT SPRING SUPPORT, LH (2 parts) 53732D — MEMBER, FRONT APRON TO COWL SIDE, UPPER LH (2 parts) 53734C — MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH (2 parts) 53725D — REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH (3 parts) 53726B — REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH (3 parts) 53814C — EXTENSION, FRONT FENDER, LH (2 parts) 55101 — PANEL SUB-ASSY, DASH (2 parts) 55129 — COVER, DASH PANEL HOLE (4 parts) 55137A — BRACE, DASH TO FRAME, RH (2 parts) 55138A — BRACE, DASH TO FRAME, LH (2 parts) 55210 — INSULATOR ASSY, DASH PANEL (3 parts) 55210C — CLIP (2 parts) 55214A — PAD, DASH PANEL INSULATOR, NO.2 (3 parts) 55239A — PLATE, DASH PANEL INSULATOR, NO.3 (2 parts) 55215A — PAD, DASH PANEL INSULATOR, NO.3 (2 parts) 55216 — PAD, DASH PANEL INSULATOR, NO.4 (2 parts) 55223A — INSULATOR, DASH PANEL, OUTER (2 parts) 55257 — COVER, DASH PANEL OPENING (2 parts) 57104A — MEMBER SUB-ASSY, FRONT CROSS (2 parts) 57165 — REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH (2 parts) 57166 — REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH (2 parts) 57167C — GUSSET, FRONT CROSSMEMBER SIDE, RH (2 parts) 57168B — GUSSET, FRONT CROSSMEMBER SIDE, LH (2 parts) 57218 — GUSSET, FRONT SIDE MEMBER, NO.1 (2 parts) 57219 — GUSSET, FRONT SIDE MEMBER, NO.2 (2 parts) 9054115022 — not listed in this catalogue 9095006096 — not listed in this catalogue 9151580818 — not listed in this catalogue 9151580818 — not listed in this catalogue 9162140614 — not listed in this catalogue 9010906328 — not listed in this catalogue 6171548011 — not listed in this catalogue 9415180840 — not listed in this catalogue 53711B — APRON, FRONT FENDER, FRONT RH (2 parts) 53717A — PLATE, FENDER APRON (2 parts) 53813C — EXTENSION, FRONT FENDER, RH (2 parts) 53743A — REINFORCEMENT, FRONT FENDER APRON, FRONT RH (2 parts) 53735J — PATCH, FRONT FENDER APRON, NO.5 (2 parts) 53731D — MEMBER, FRONT APRON TO COWL SIDE, UPPER RH (2 parts) 53737 — PLATE, FRONT APRON TO COWL SIDE MEMBER, RH (2 parts) 53738 — PLATE, FRONT APRON TO COWL SIDE MEMBER, LH (2 parts) 53705E — MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH (2 parts) 5701 — not listed in this catalogue 9010906380 — not listed in this catalogue 55210A — CLIP (4 parts) 55210A — CLIP (4 parts) 9046705145 — not listed in this catalogue 9095001821 — not listed in this catalogue
532748C · 51 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
109 parts on this figure
Part number Description Fitment Price
52141G — Stay, Front Bumper, RH
52141-12550 Stay, Front Bumper, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
52141-12550 Stay, Front Bumper, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
52142H — Stay, Front Bumper, LH
52142-12470 Stay, Front Bumper, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
52142-12470 Stay, Front Bumper, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
53201 — Support Sub-assy, Radiator
53201-12B50 Support Sub-assy, Radiator
2007-12 → 2010-12 ended
ZRE142 JPP —
53201-12B50 Support Sub-assy, Radiator
2010-12 → 2013-08 ended
ZRE142 JPP —
53202 — Support Sub-assy, Radiator, RH
53202-12540 Support Sub-assy, Radiator, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53202-12540 Support Sub-assy, Radiator, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53203 — Support Sub-assy, Radiator, LH
53203-12470 Support Sub-assy, Radiator, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
53203-12470 Support Sub-assy, Radiator, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
53205 — Support Sub-assy, Radiator, Upper
53205-12291 Support Sub-assy, Radiator, Upper
2007-12 → 2010-12 ended
ZRE142 JPP —
53205-12291 Support Sub-assy, Radiator, Upper
2010-12 → 2013-08 ended
ZRE142 JPP —
53217A — Brace, Hood Lock Support
53208-12540 Brace, Hood Lock Support
2007-12 → 2010-12 ended
ZRE142 JPP —
53208-12540 Brace, Hood Lock Support
2010-12 → 2013-08 ended
ZRE142 JPP —
53273 — Bracket, Front Bumper Arm Mounting, RH
53273-12120 Bracket, Front Bumper Arm Mounting, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53273-12120 Bracket, Front Bumper Arm Mounting, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53274 — Bracket, Front Bumper Arm Mounting, LH
53274-12120 Bracket, Front Bumper Arm Mounting, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
53274-12120 Bracket, Front Bumper Arm Mounting, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
53293C — Deflector, Radiator Side, RH
53293-12080 Deflector, Radiator Side, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53293-12150 Deflector, Radiator Side, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53294C — Deflector, Radiator Side, LH
53294-12110 Deflector, Radiator Side, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
53294-12170 Deflector, Radiator Side, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
53701 — Apron Sub-assy, Front Fender, RH
53701-12A20 Apron Sub-assy, Front Fender, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53701-12A20 Apron Sub-assy, Front Fender, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53702 — Apron Sub-assy, Front Fender, LH
53702-12A30 Apron Sub-assy, Front Fender, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
53702-12A30 Apron Sub-assy, Front Fender, LH
2010-12 → 2011-12 ended
ZRE142 JPP —
53702-12A31 Apron Sub-assy, Front Fender, LH
2011-12 → 2013-08 ended
ZRE142 JPP —
53705E — Member Sub-assy, Front Apron TO Cowl Side, RH
53705-12020 Member Sub-assy, Front Apron TO Cowl Side, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53705-12020 Member Sub-assy, Front Apron TO Cowl Side, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53711B — Apron, Front Fender, Front RH
53711-12280 Apron, Front Fender, Front RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53711-12280 Apron, Front Fender, Front RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53712B — Apron, Front Fender, Front LH
53712-12230 Apron, Front Fender, Front LH
2007-12 → 2010-12 ended
ZRE142 JPP —
53712-12230 Apron, Front Fender, Front LH
2010-12 → 2013-08 ended
ZRE142 JPP —
53717A — Plate, Fender Apron
53717-12060 Plate, Fender Apron
2007-12 → 2010-12 ended
ZRE142 JPP —
53717-12060 Plate, Fender Apron
2010-12 → 2013-08 ended
ZRE142 JPP —
53723A — Reinforcement, Front Spring Support, RH
53723-12080 Reinforcement, Front Spring Support, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53723-12080 Reinforcement, Front Spring Support, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53724A — Reinforcement, Front Spring Support, LH
53724-12070 Reinforcement, Front Spring Support, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
53724-12070 Reinforcement, Front Spring Support, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
53725D — Reinforcement, Front Spring Support, NO.2 RH
53723-12091 Reinforcement, Front Spring Support, NO.2 RH
2007-12 → 2010-05 ended
ZRE142 JPP —
53723-12110 Reinforcement, Front Spring Support, NO.2 RH
2010-06 → 2010-12 ended
ZRE142 JPP —
53723-12110 Reinforcement, Front Spring Support, NO.2 RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53726B — Reinforcement, Front Spring Support, NO.2 LH
53723-12091 Reinforcement, Front Spring Support, NO.2 LH
2007-12 → 2010-05 ended
ZRE142 JPP —
53723-12110 Reinforcement, Front Spring Support, NO.2 LH
2010-06 → 2010-12 ended
ZRE142 JPP —
53723-12110 Reinforcement, Front Spring Support, NO.2 LH
2010-12 → 2013-08 ended
ZRE142 JPP —
53731D — Member, Front Apron TO Cowl Side, Upper RH
53731-12160 Member, Front Apron TO Cowl Side, Upper RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53731-12160 Member, Front Apron TO Cowl Side, Upper RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53732D — Member, Front Apron TO Cowl Side, Upper LH
53732-12140 Member, Front Apron TO Cowl Side, Upper LH
2007-12 → 2010-12 ended
ZRE142 JPP —
53732-12140 Member, Front Apron TO Cowl Side, Upper LH
2010-12 → 2013-08 ended
ZRE142 JPP —
53734C — Member, Front Apron TO Cowl Side, Lower Front LH
53706-12040 Member, Front Apron TO Cowl Side, Lower Front LH
2007-12 → 2010-12 ended
ZRE142 JPP —
53706-12040 Member, Front Apron TO Cowl Side, Lower Front LH
2010-12 → 2013-08 ended
ZRE142 JPP —
53735J — Patch, Front Fender Apron, NO.5
53735-12080 Patch, Front Fender Apron, NO.5
2007-12 → 2010-12 ended
ZRE142 JPP —
53735-12080 Patch, Front Fender Apron, NO.5
2010-12 → 2013-08 ended
ZRE142 JPP —
53737 — Plate, Front Apron TO Cowl Side Member, RH
53737-12110 Plate, Front Apron TO Cowl Side Member, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53737-12110 Plate, Front Apron TO Cowl Side Member, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53738 — Plate, Front Apron TO Cowl Side Member, LH
53738-12070 Plate, Front Apron TO Cowl Side Member, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
53738-12070 Plate, Front Apron TO Cowl Side Member, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
53743A — Reinforcement, Front Fender Apron, Front RH
53743-12050 Reinforcement, Front Fender Apron, Front RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53743-12050 Reinforcement, Front Fender Apron, Front RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53813C — Extension, Front Fender, RH
53803-12060 Extension, Front Fender, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53803-12060 Extension, Front Fender, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53814C — Extension, Front Fender, LH
53814-12090 Extension, Front Fender, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
53814-12090 Extension, Front Fender, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
55101 — Panel Sub-assy, Dash
55101-12D40 Panel Sub-assy, Dash
2007-12 → 2010-12 ended
ZRE142 JPP —
55101-12D40 Panel Sub-assy, Dash
2010-12 → 2013-08 ended
ZRE142 JPP —
55129 — Cover, Dash Panel Hole
55129-32030 note Cover, Dash Panel Hole
2007-12 → 2010-12 ended
ZRE142 JPP —
55139-32010 note Cover, Dash Panel Hole
2007-12 → 2010-12 ended
ZRE142 JPP —
55129-32030 note Cover, Dash Panel Hole
2010-12 → 2013-08 ended
ZRE142 JPP —
55139-32010 note Cover, Dash Panel Hole
2010-12 → 2013-08 ended
ZRE142 JPP —
55137A — Brace, Dash TO Frame, RH
55137-12060 Brace, Dash TO Frame, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
55137-12060 Brace, Dash TO Frame, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
55138A — Brace, Dash TO Frame, LH
55138-12030 Brace, Dash TO Frame, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
55138-12030 Brace, Dash TO Frame, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
55210 — Insulator Assy, Dash Panel
55210-12590 Insulator Assy, Dash Panel
2007-12 → 2010-02 ended
ZRE142 JPP —
55210-12591 Insulator Assy, Dash Panel
2010-03 → 2010-12 ended
ZRE142 JPP —
55210-12591 Insulator Assy, Dash Panel
2010-12 → 2013-08 ended
ZRE142 JPP —
55210A — Clip
90467-11122 note Clip
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-11127 note Clip
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-11122 note Clip
2010-12 → 2013-08 ended
ZRE142 JPP —
90467-11127 note Clip
2010-12 → 2013-08 ended
ZRE142 JPP —
55210C — Clip
90467-08186-C0 note Clip
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-08186-C0 note Clip
2010-12 → 2013-08 ended
ZRE142 JPP —
55214A — Pad, Dash Panel Insulator, NO.2
55214-12050 Pad, Dash Panel Insulator, NO.2
2007-12 → 2010-03 ended
ZRE142 JPP —
55214-12100 Pad, Dash Panel Insulator, NO.2
2010-04 → 2010-12 ended
ZRE142 JPP —
55214-12100 Pad, Dash Panel Insulator, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
55215A — Pad, Dash Panel Insulator, NO.3
55215-12130 Pad, Dash Panel Insulator, NO.3
2007-12 → 2010-12 ended
ZRE142 JPP —
55215-12130 Pad, Dash Panel Insulator, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP —
55216 — Pad, Dash Panel Insulator, NO.4
55216-12030 Pad, Dash Panel Insulator, NO.4
2007-12 → 2010-12 ended
ZRE142 JPP —
55216-12030 Pad, Dash Panel Insulator, NO.4
2010-12 → 2013-08 ended
ZRE142 JPP —
55223A — Insulator, Dash Panel, Outer
55223-12190 Insulator, Dash Panel, Outer
2007-12 → 2010-12 ended
ZRE142 JPP —
55223-12190 Insulator, Dash Panel, Outer
2010-12 → 2013-08 ended
ZRE142 JPP —
55239A — Plate, Dash Panel Insulator, NO.3
55239-48020 Plate, Dash Panel Insulator, NO.3
2007-12 → 2010-12 ended
ZRE142 JPP —
55239-48020 Plate, Dash Panel Insulator, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP —
55257 — Cover, Dash Panel Opening
55257-32010 Cover, Dash Panel Opening
2007-12 → 2010-12 ended
ZRE142 JPP —
55257-32010 Cover, Dash Panel Opening
2010-12 → 2013-08 ended
ZRE142 JPP —
57104A — Member Sub-assy, Front Cross
57104-12291 Member Sub-assy, Front Cross
2007-12 → 2010-12 ended
ZRE142 JPP —
57104-12291 Member Sub-assy, Front Cross
2010-12 → 2013-08 ended
ZRE142 JPP —
57165 — Reinforcement, Front Crossmember, Lower RH
57165-12070 Reinforcement, Front Crossmember, Lower RH
2007-12 → 2010-12 ended
ZRE142 JPP —
57165-12070 Reinforcement, Front Crossmember, Lower RH
2010-12 → 2013-08 ended
ZRE142 JPP —
57166 — Reinforcement, Front Crossmember, Lower LH
57166-12020 Reinforcement, Front Crossmember, Lower LH
2007-12 → 2010-12 ended
ZRE142 JPP —
57166-12020 Reinforcement, Front Crossmember, Lower LH
2010-12 → 2013-08 ended
ZRE142 JPP —
57167C — Gusset, Front Crossmember Side, RH
57167-12130 Gusset, Front Crossmember Side, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
57167-12130 Gusset, Front Crossmember Side, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
57168B — Gusset, Front Crossmember Side, LH
57168-12130 Gusset, Front Crossmember Side, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
57168-12130 Gusset, Front Crossmember Side, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
57218 — Gusset, Front Side Member, NO.1
57218-12030 Gusset, Front Side Member, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
57218-12030 Gusset, Front Side Member, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
57219 — Gusset, Front Side Member, NO.2
57219-12030 Gusset, Front Side Member, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
57219-12030 Gusset, Front Side Member, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
