Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

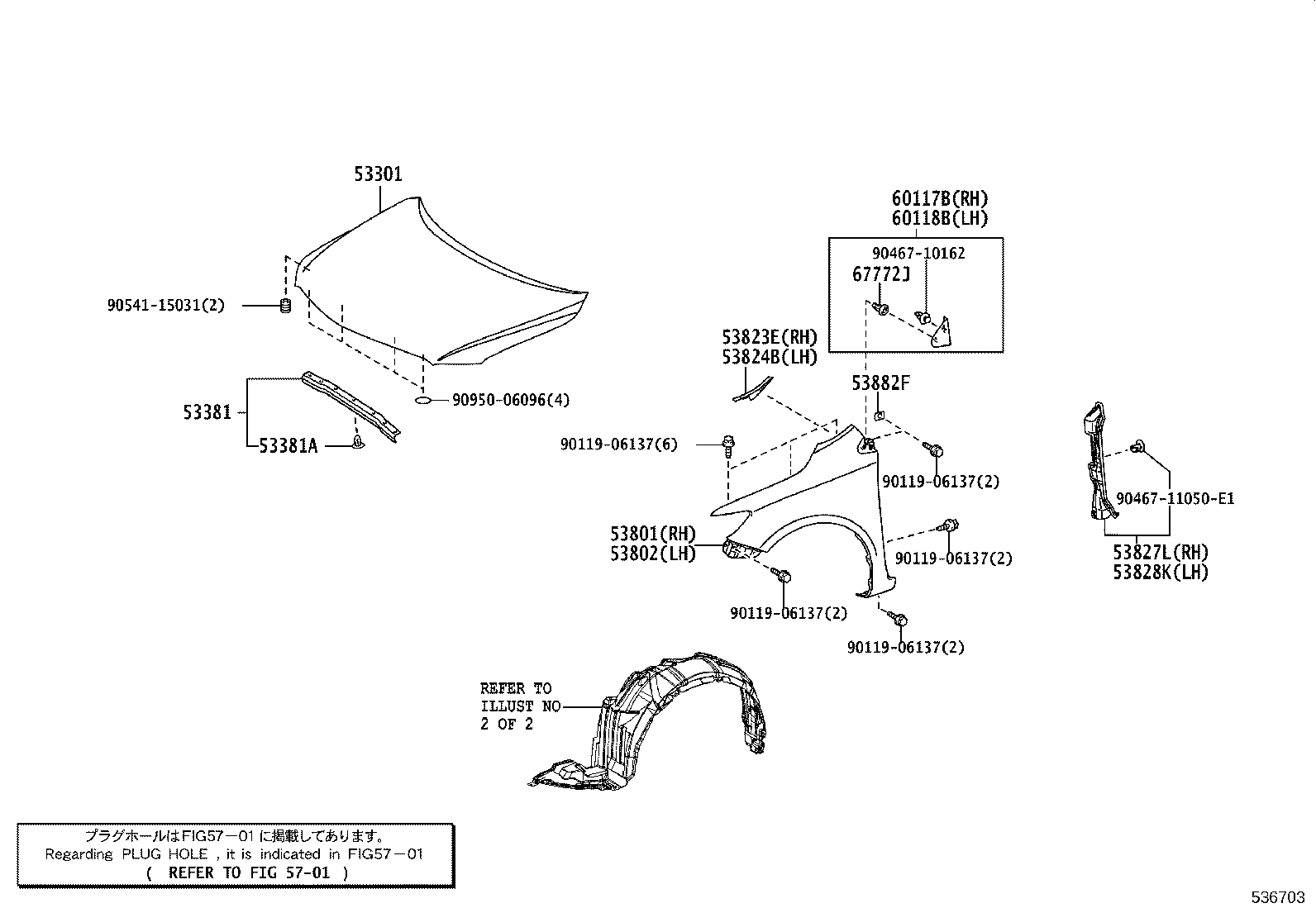

Exploded illustration 536703 53301 — HOOD SUB-ASSY (2 parts) 53381 — SEAL, HOOD TO RADIATOR SUPPORT (2 parts) 53381A — CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) (2 parts) 53882F — SEAL, FRONT FENDER (2 parts) 9011906137 — not listed in this catalogue 9046711050E1 — not listed in this catalogue 9011906137 — not listed in this catalogue 9011906137 — not listed in this catalogue 9011906137 — not listed in this catalogue 9054115031 — not listed in this catalogue 9046710162 — not listed in this catalogue 67772J — CAP, FRONT PILLAR COVER RETAINER (2 parts) 9095006096 — not listed in this catalogue 5701 — not listed in this catalogue 60117B — COVER SUB-ASSY, FRONT PILLAR, UPR RH (2 parts) 60118B — COVER SUB-ASSY, FRONT PILLAR, UPR LH (2 parts) 53801 — FENDER SUB-ASSY, FRONT RH (2 parts) 53802 — FENDER SUB-ASSY, FRONT LH (2 parts) 53823E — PROTECTOR, FRONT SIDE PANEL, NO.2 RH (2 parts) 53824B — PROTECTOR, FRONT SIDE PANEL, NO.2 LH (2 parts) 9011906137 — not listed in this catalogue 53827L — PROTECTOR, FRONT FENDER SIDE PANEL, RH (2 parts) 53828K — PROTECTOR, FRONT FENDER SIDE PANEL, LH (2 parts)
536703 · 13 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
53301 — Hood Sub-assy
53301-12A80 Hood Sub-assy
2007-12 → 2010-12 ended
ZRE142 JPP —
53301-12A80 Hood Sub-assy
2010-12 → 2013-08 ended
ZRE142 JPP —
53381 — Seal, Hood TO Radiator Support
53381-12220 Seal, Hood TO Radiator Support
2007-12 → 2010-12 ended
ZRE142 JPP —
53381-12220 Seal, Hood TO Radiator Support
2010-12 → 2013-08 ended
ZRE142 JPP —
53381A — Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011 Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-08011 Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
2010-12 → 2013-08 ended
ZRE142 JPP —
53801 — Fender Sub-assy, Front RH
53801-12A70 Fender Sub-assy, Front RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53801-12A70 Fender Sub-assy, Front RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53802 — Fender Sub-assy, Front LH
53802-12A70 Fender Sub-assy, Front LH
2007-12 → 2010-12 ended
ZRE142 JPP —
53802-12A70 Fender Sub-assy, Front LH
2010-12 → 2013-08 ended
ZRE142 JPP —
53823E — Protector, Front Side Panel, NO.2 RH
53823-12030 Protector, Front Side Panel, NO.2 RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53823-12030 Protector, Front Side Panel, NO.2 RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53824B — Protector, Front Side Panel, NO.2 LH
53824-12020 Protector, Front Side Panel, NO.2 LH
2007-12 → 2010-12 ended
ZRE142 JPP —
53824-12020 Protector, Front Side Panel, NO.2 LH
2010-12 → 2013-08 ended
ZRE142 JPP —
53827L — Protector, Front Fender Side Panel, RH
53827-12100 Protector, Front Fender Side Panel, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
53827-12100 Protector, Front Fender Side Panel, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
53828K — Protector, Front Fender Side Panel, LH
53828-12100 Protector, Front Fender Side Panel, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
53828-12100 Protector, Front Fender Side Panel, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
53882F — Seal, Front Fender
53882-16030 Seal, Front Fender
2007-12 → 2010-12 ended
ZRE142 JPP —
53882-16030 Seal, Front Fender
2010-12 → 2013-08 ended
ZRE142 JPP —
60117B — Cover Sub-assy, Front Pillar, Upr RH
60117-12030 Cover Sub-assy, Front Pillar, Upr RH
2007-12 → 2010-12 ended
ZRE142 JPP —
60117-12030 Cover Sub-assy, Front Pillar, Upr RH
2010-12 → 2013-08 ended
ZRE142 JPP —
60118B — Cover Sub-assy, Front Pillar, Upr LH
60118-12030 Cover Sub-assy, Front Pillar, Upr LH
2007-12 → 2010-12 ended
ZRE142 JPP —
60118-12030 Cover Sub-assy, Front Pillar, Upr LH
2010-12 → 2013-08 ended
ZRE142 JPP —
67772J — Cap, Front Pillar Cover Retainer
67772-95J03 Cap, Front Pillar Cover Retainer
2007-12 → 2010-12 ended
ZRE142 JPP —
67772-95J03 Cap, Front Pillar Cover Retainer
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
