Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

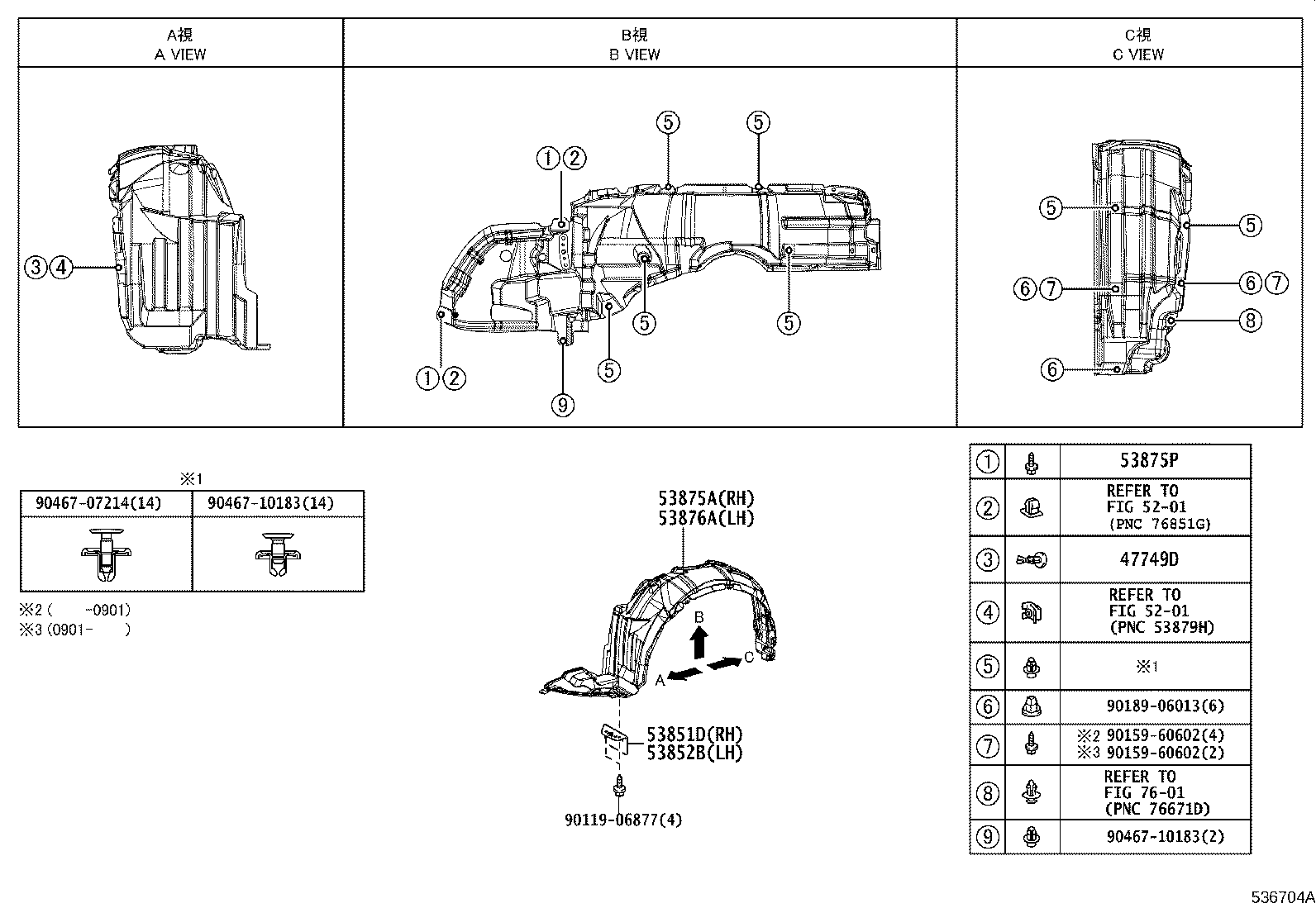

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47749D — Clip, Pin Hold | ||||
| 47749-58010 |
Clip, Pin Hold
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 47749-58010 |
Clip, Pin Hold
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53851D — Pad, Front Wheel Opening Extension, RH | ||||
| 53851-12080 |
Pad, Front Wheel Opening Extension, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53851-12080 |
Pad, Front Wheel Opening Extension, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53852B — Pad, Front Wheel Opening Extension, LH | ||||
| 53852-12070 |
Pad, Front Wheel Opening Extension, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53852-12070 |
Pad, Front Wheel Opening Extension, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53875A — Liner, Front Fender, RH | ||||
| 53875-12460 |
Liner, Front Fender, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53875-12540 |
Liner, Front Fender, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53875P — Screw, NO.1 | ||||
| 90159-60488 |
Screw, NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90159-60488 |
Screw, NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 53876A — Liner, Front Fender, LH | ||||
| 53876-12440 |
Liner, Front Fender, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 53876-12520 |
Liner, Front Fender, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
