Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

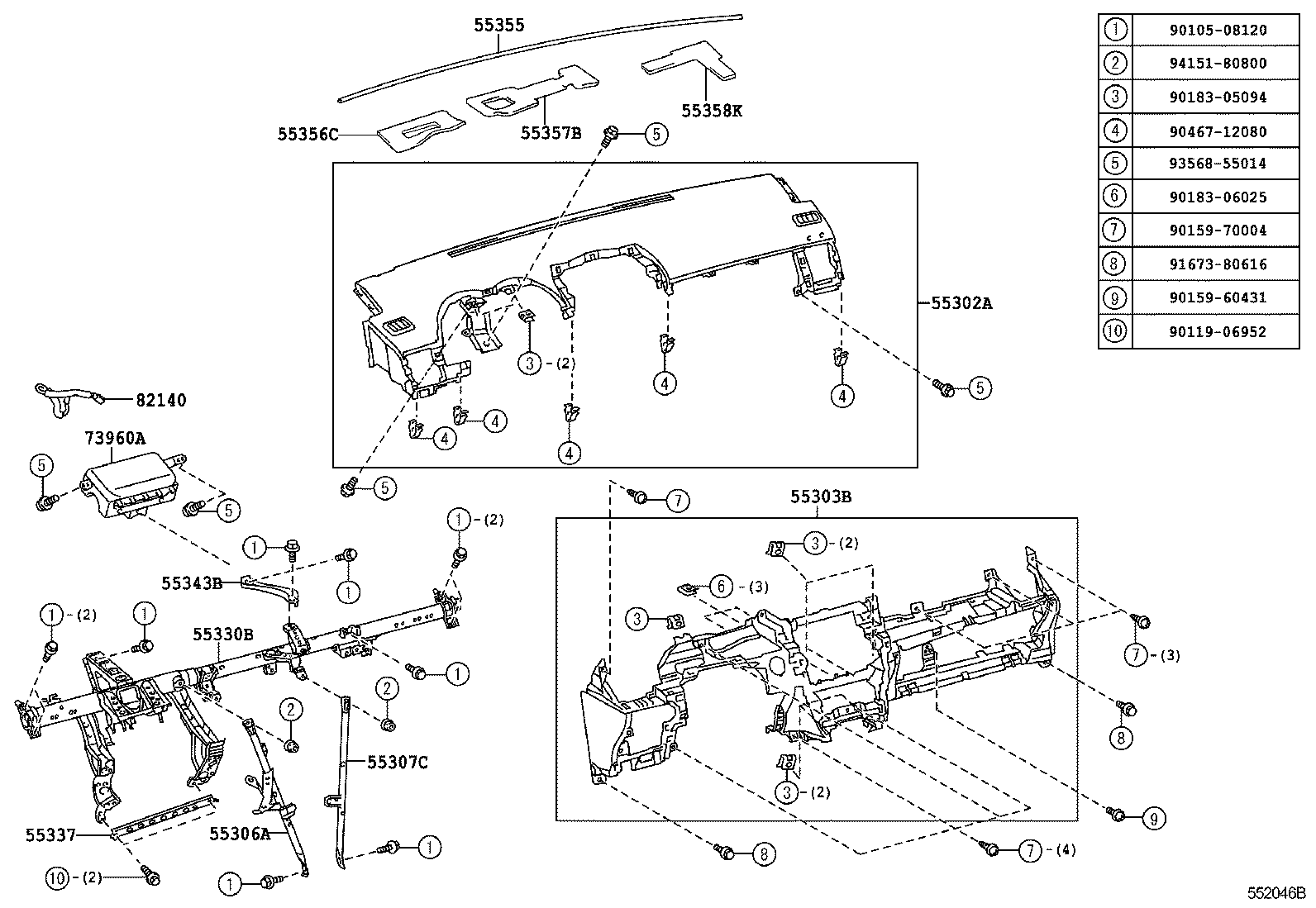

Exploded illustration 552046B 9415180800 — not listed in this catalogue 9018305094 — not listed in this catalogue 9046712080 — not listed in this catalogue 9018306025 — not listed in this catalogue 9015970004 — not listed in this catalogue 9015960431 — not listed in this catalogue 9167380616 — not listed in this catalogue 9010508120 — not listed in this catalogue 9356855014 — not listed in this catalogue 9011906952 — not listed in this catalogue 55307C — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 (2 parts) 55330B — REINFORCEMENT ASSY, INSTRUMENT PANEL (2 parts) 73960A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR (4 parts) 82140 — WIRE ASSY, INSTRUMENT PANEL (3 parts) 55343B — BRACE, INSTRUMENT PANEL TO COWL, CENTER (2 parts) 55337 — REINFORCEMENT, INSTRUMENT PANEL SUB (2 parts) 55302A — PANEL SUB-ASSY, INSTRUMENT, UPPER (8 parts) 55303B — PANEL SUB-ASSY, INSTRUMENT, LOWER (4 parts) 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (2 parts) 55356C — CUSHION, INSTRUMENT PANEL, NO.2 (2 parts) 55357B — CUSHION, INSTRUMENT PANEL, NO.3 (2 parts) 55358K — CUSHION, INSTRUMENT PANEL, NO.4 (2 parts) 55355 — CUSHION, INSTRUMENT PANEL, NO.1 (2 parts)
552046B · 13 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
55302A — Panel Sub-assy, Instrument, Upper
55302-12190-B0 note Panel Sub-assy, Instrument, Upper
2007-12 → 2008-06 ended
ZRE142 JPP —
55302-12190-E0 note Panel Sub-assy, Instrument, Upper
2007-12 → 2008-06 ended
ZRE142 JPP —
55302-12191-B0 note Panel Sub-assy, Instrument, Upper
2008-07 → 2010-07 ended
ZRE142 JPP —
55302-12191-E0 note Panel Sub-assy, Instrument, Upper
2008-07 → 2010-07 ended
ZRE142 JPP —
55302-12192-B0 note Panel Sub-assy, Instrument, Upper
2010-08 → 2010-12 ended
ZRE142 JPP —
55302-12192-E0 note Panel Sub-assy, Instrument, Upper
2010-08 → 2010-12 ended
ZRE142 JPP —
55302-12121-B0 note Panel Sub-assy, Instrument, Upper
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55302-12192-B1 note Panel Sub-assy, Instrument, Upper
2010-12 → 2013-08 ended
ZRE142 JPP —
55303B — Panel Sub-assy, Instrument, Lower
55303-12350-B1 note Panel Sub-assy, Instrument, Lower
2007-12 → 2010-12 ended
ZRE142 JPP —
55303-12350-E0 note Panel Sub-assy, Instrument, Lower
2007-12 → 2010-12 ended
ZRE142 JPP —
55303-12350-B1 note Panel Sub-assy, Instrument, Lower
2010-12 → 2013-08 ended
ZRE142 JPP —
55303-12350-E0 note Panel Sub-assy, Instrument, Lower
2010-12 → 2013-08 ended
ZRE142 JPP —
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-12370 Brace Sub-assy, Instrument Panel, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
55306-12370 Brace Sub-assy, Instrument Panel, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
55307C — Brace Sub-assy, Instrument Panel, NO.2
55307-12320 Brace Sub-assy, Instrument Panel, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
55307-12320 Brace Sub-assy, Instrument Panel, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
55330B — Reinforcement Assy, Instrument Panel
55330-12770 Reinforcement Assy, Instrument Panel
2007-12 → 2010-12 ended
ZRE142 JPP —
55330-12770 Reinforcement Assy, Instrument Panel
2010-12 → 2013-08 ended
ZRE142 JPP —
55337 — Reinforcement, Instrument Panel Sub
55337-12040 Reinforcement, Instrument Panel Sub
2007-12 → 2010-12 ended
ZRE142 JPP —
55337-12040 Reinforcement, Instrument Panel Sub
2010-12 → 2013-08 ended
ZRE142 JPP —
55343B — Brace, Instrument Panel TO Cowl, Center
55343-12070 Brace, Instrument Panel TO Cowl, Center
2007-12 → 2010-12 ended
ZRE142 JPP —
55343-12070 Brace, Instrument Panel TO Cowl, Center
2010-12 → 2013-08 ended
ZRE142 JPP —
55355 — Cushion, Instrument Panel, NO.1
55355-12110 Cushion, Instrument Panel, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
55355-12110 Cushion, Instrument Panel, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
55356C — Cushion, Instrument Panel, NO.2
55356-12150 Cushion, Instrument Panel, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
55356-12150 Cushion, Instrument Panel, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
55357B — Cushion, Instrument Panel, NO.3
55357-12090 Cushion, Instrument Panel, NO.3
2007-12 → 2010-12 ended
ZRE142 JPP —
55357-12090 Cushion, Instrument Panel, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP —
55358K — Cushion, Instrument Panel, NO.4
55358-12080 Cushion, Instrument Panel, NO.4
2007-12 → 2010-12 ended
ZRE142 JPP —
55358-12080 Cushion, Instrument Panel, NO.4
2010-12 → 2013-08 ended
ZRE142 JPP —
73960A — Airbag Assy, Instrument Panel Passenger W/O Door
73960-12130 Airbag Assy, Instrument Panel Passenger W/O Door
2007-12 → 2010-05 ended
ZRE142 JPP —
73960-12160 Airbag Assy, Instrument Panel Passenger W/O Door
2010-05 → 2010-12 ended
ZRE142 JPP —
73960-12160 Airbag Assy, Instrument Panel Passenger W/O Door
2010-12 → 2013-08 ended
ZRE142 JPP —
73960-12170 note Airbag Assy, Instrument Panel Passenger W/O Door
2010-12 → 2013-08 ended
ZRE142 JPP LE —
82140 — Wire Assy, Instrument Panel
82140-1A240 Wire Assy, Instrument Panel
2007-12 → 2010-12 ended
ZRE142 JPP —
82140-12A20 note Wire Assy, Instrument Panel
2010-12 → 2013-08 ended
ZRE142 JPP LE —
82140-1A240 Wire Assy, Instrument Panel
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
