Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

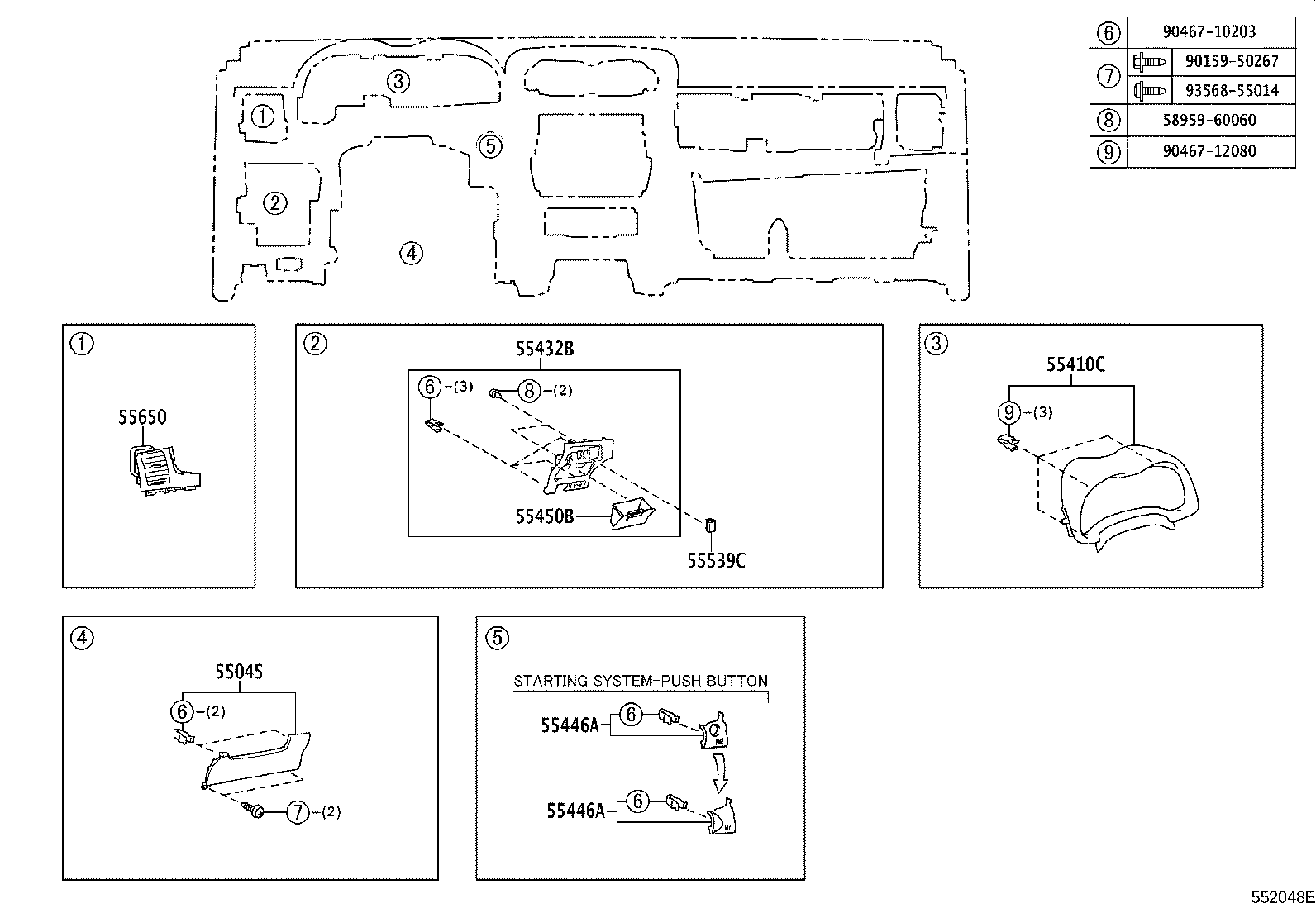

Exploded illustration 552048E 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (20 parts) 55045 — PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER (4 parts) 55410C — PANEL ASSY, INSTRUMENT CLUSTER FINISH (3 parts) 9015950267 — not listed in this catalogue 9356855014 — not listed in this catalogue 5895960060 — not listed in this catalogue 9046712080 — not listed in this catalogue 9046710203 — not listed in this catalogue 55446A — BASE, SWITCH HOLE, NO.1 (6 parts) 55446A — BASE, SWITCH HOLE, NO.1 (6 parts) 55450B — BOX ASSY, COIN (6 parts) 55432B — PANEL, INSTRUMENT PANEL FINISH, LOWER (6 parts) 55539C — COVER, SPARE SWITCH HOLE (4 parts)
552048E · 8 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
49 parts on this figure
Part number Description Fitment Price
55045 — Panel Sub-assy, Instrument Panel Finish, Lower
55045-12380-B1 note Panel Sub-assy, Instrument Panel Finish, Lower
2007-12 → 2010-12 ended
ZRE142 JPP —
55045-12380-E0 note Panel Sub-assy, Instrument Panel Finish, Lower
2007-12 → 2010-12 ended
ZRE142 JPP —
55045-12380-B1 note Panel Sub-assy, Instrument Panel Finish, Lower
2010-12 → 2013-08 ended
ZRE142 JPP —
55045-12380-E0 note Panel Sub-assy, Instrument Panel Finish, Lower
2010-12 → 2013-08 ended
ZRE142 JPP —
55410C — Panel Assy, Instrument Cluster Finish
55410-12A20-B1 note Panel Assy, Instrument Cluster Finish
2007-12 → 2010-12 ended
ZRE142 JPP —
55410-12A20-E0 note Panel Assy, Instrument Cluster Finish
2007-12 → 2010-12 ended
ZRE142 JPP —
55410-12A20-B0 note Panel Assy, Instrument Cluster Finish
2010-12 → 2013-08 ended
ZRE142 JPP —
55432B — Panel, Instrument Panel Finish, Lower
55480-12010-B1 note Panel, Instrument Panel Finish, Lower
2008-10 → 2010-12 ended
ZRE142 JPP —
55480-12010-E0 note Panel, Instrument Panel Finish, Lower
2008-10 → 2010-12 ended
ZRE142 JPP —
55480-12070-B0 note Panel, Instrument Panel Finish, Lower
2007-12 → 2008-10 ended
ZRE142 JPP —
55480-12070-E0 note Panel, Instrument Panel Finish, Lower
2007-12 → 2008-10 ended
ZRE142 JPP —
55480-12040-B0 note Panel, Instrument Panel Finish, Lower
2010-12 → 2013-08 ended
ZRE142 JPP —
55480-12040-E0 note Panel, Instrument Panel Finish, Lower
2010-12 → 2013-08 ended
ZRE142 JPP —
55446A — Base, Switch Hole, NO.1
55446-12120-B1 note Base, Switch Hole, NO.1
2007-12 → 2009-01 ended
ZRE142 JPP LE —
55446-12120-E0 note Base, Switch Hole, NO.1
2007-12 → 2009-01 ended
ZRE142 JPP LE —
55446-12130-B1 note Base, Switch Hole, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
55446-12130-E0 note Base, Switch Hole, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
55446-12130-B1 note Base, Switch Hole, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
55446-12130-E0 note Base, Switch Hole, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
55450B — Box Assy, Coin
55450-12020-B1 note Box Assy, Coin
2008-10 → 2010-12 ended
ZRE142 JPP —
55450-12020-E0 note Box Assy, Coin
2008-10 → 2010-12 ended
ZRE142 JPP —
55450-12040-B0 note Box Assy, Coin
2007-12 → 2008-10 ended
ZRE142 JPP —
55450-12040-E0 note Box Assy, Coin
2007-12 → 2008-10 ended
ZRE142 JPP —
55450-12020-B1 note Box Assy, Coin
2010-12 → 2013-08 ended
ZRE142 JPP —
55450-12020-E0 note Box Assy, Coin
2010-12 → 2013-08 ended
ZRE142 JPP —
55539C — Cover, Spare Switch Hole
55539-52060-B1 note Cover, Spare Switch Hole
2007-12 → 2010-12 ended
ZRE142 JPP —
55539-52060-E0 note Cover, Spare Switch Hole
2007-12 → 2010-12 ended
ZRE142 JPP —
55539-52060-B1 note Cover, Spare Switch Hole
2010-12 → 2013-08 ended
ZRE142 JPP —
55539-52060-E0 note Cover, Spare Switch Hole
2010-12 → 2013-08 ended
ZRE142 JPP —
55650 — Register Assy, Instrument Panel, NO.1
55650-12410-B1 note Register Assy, Instrument Panel, NO.1
2007-12 → 2008-03 ended
ZRE142 JPP LE —
55650-12410-E0 note Register Assy, Instrument Panel, NO.1
2007-12 → 2008-03 ended
ZRE142 JPP LE —
55650-12412-B1 note Register Assy, Instrument Panel, NO.1
2009-01 → 2010-09 ended
ZRE142 JPP STD —
55650-12412-B1 note Register Assy, Instrument Panel, NO.1
2008-04 → 2010-09 ended
ZRE142 JPP LE —
55650-12412-E0 note Register Assy, Instrument Panel, NO.1
2008-04 → 2010-09 ended
ZRE142 JPP LE —
55650-12412-E0 note Register Assy, Instrument Panel, NO.1
2009-01 → 2010-09 ended
ZRE142 JPP STD —
55650-12420-B1 note Register Assy, Instrument Panel, NO.1
2007-12 → 2008-03 ended
ZRE142 JPP STD —
55650-12420-E0 note Register Assy, Instrument Panel, NO.1
2007-12 → 2008-03 ended
ZRE142 JPP STD —
55650-12422-B1 note Register Assy, Instrument Panel, NO.1
2008-04 → 2010-09 ended
ZRE142 JPP STD —
55650-12422-E0 note Register Assy, Instrument Panel, NO.1
2008-04 → 2010-09 ended
ZRE142 JPP STD —
55650-12470-B0 note Register Assy, Instrument Panel, NO.1
2010-10 → 2010-12 ended
ZRE142 JPP LE —
55650-12470-B0 note Register Assy, Instrument Panel, NO.1
2010-10 → 2010-12 ended
ZRE142 JPP STD —
55650-12470-E0 note Register Assy, Instrument Panel, NO.1
2010-10 → 2010-12 ended
ZRE142 JPP LE —
55650-12470-E0 note Register Assy, Instrument Panel, NO.1
2010-10 → 2010-12 ended
ZRE142 JPP STD —
55650-12480-B0 note Register Assy, Instrument Panel, NO.1
2010-10 → 2010-12 ended
ZRE142 JPP STD —
55650-12480-E0 note Register Assy, Instrument Panel, NO.1
2010-10 → 2010-12 ended
ZRE142 JPP STD —
55650-12470-B0 note Register Assy, Instrument Panel, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55650-12470-E0 note Register Assy, Instrument Panel, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55650-12480-B0 note Register Assy, Instrument Panel, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP STD —
55650-12480-E0 note Register Assy, Instrument Panel, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP STD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
