Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

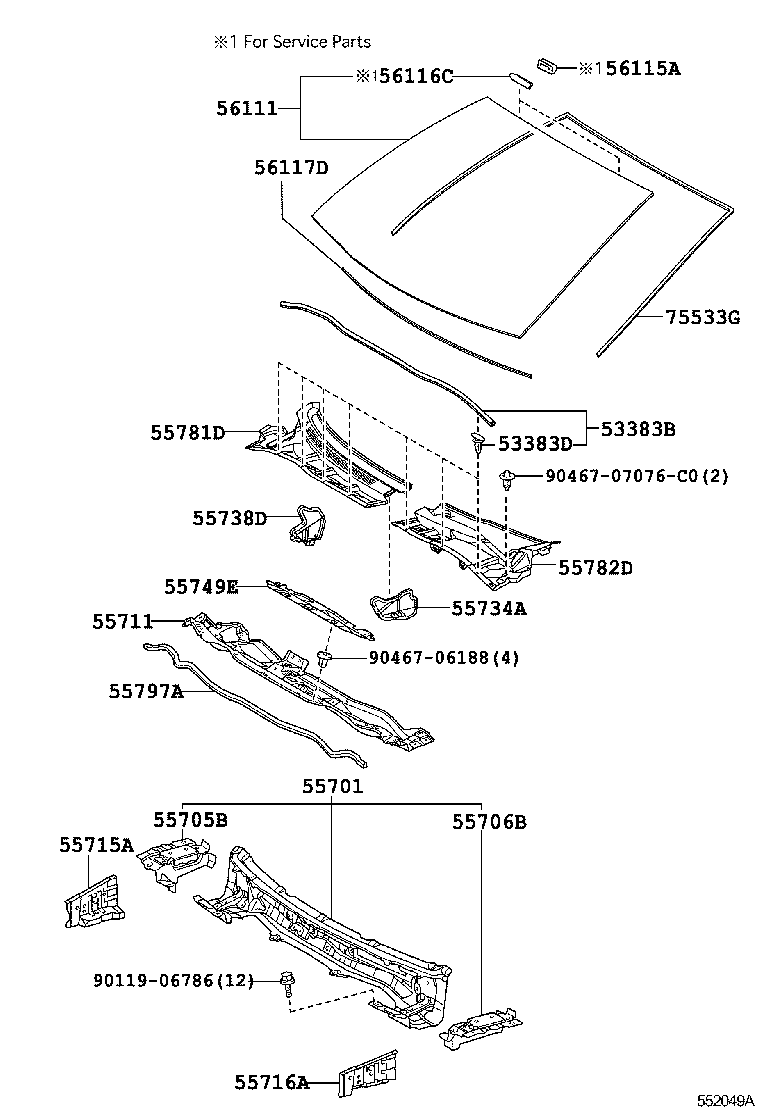

Exploded illustration 552049A 55701 — PANEL SUB-ASSY, COWL (2 parts) 55705B — PANEL SUB-ASSY, COWL TOP SIDE, RH (2 parts) 55706B — PANEL SUB-ASSY, COWL TOP SIDE, LH (2 parts) 55711 — PANEL, COWL TOP, OUTER (2 parts) 55715A — BRACE, COWL TOP TO APRON, RH (2 parts) 55716A — BRACE, COWL TOP TO APRON, LH (2 parts) 55797A — SEAL, COWL WATER EXTRACT (3 parts) 9011906786 — not listed in this catalogue 53383B — SEAL, HOOD TO COWL TOP (2 parts) 55781D — LOUVER, COWL TOP VENTILATOR, RH (6 parts) 55738D — SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 (2 parts) 55734A — PLATE, WATER GUARD, RH (2 parts) 55782D — LOUVER, COWL TOP VENTILATOR, LH (2 parts) 9046707076C0 — not listed in this catalogue 56117D — DAM, WINDSHIELD GLASS ADHESIVE (2 parts) 56111 — GLASS, WINDSHIELD (3 parts) 75533G — MOULDING, WINDSHIELD, OUTSIDE (2 parts) 55749E — PLATE, COWL TOP INSULATOR, NO.2 (2 parts) 9046706188 — not listed in this catalogue 53383D — CLIP(FOR HOOD TO COWL TOP SEAL) (4 parts) 56115A — STOPPER, WINDSHIELD GLASS, NO.1 (2 parts) 56116C — STOPPER, WINDSHIELD GLASS, NO.2 (2 parts)
552049A · 19 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
53383B — Seal, Hood TO Cowl Top
53383-12160 Seal, Hood TO Cowl Top
2007-12 → 2010-12 ended
ZRE142 JPP —
53383-12160 Seal, Hood TO Cowl Top
2010-12 → 2013-08 ended
ZRE142 JPP —
53383D — Clip(FOR HOOD TO COWL TOP SEAL)
67867-12150 note Clip(FOR HOOD TO COWL TOP SEAL)
2007-12 → 2010-12 ended
ZRE142 JPP —
67867-52030 note Clip(FOR HOOD TO COWL TOP SEAL)
2007-12 → 2010-12 ended
ZRE142 JPP —
67867-12150 note Clip(FOR HOOD TO COWL TOP SEAL)
2010-12 → 2013-08 ended
ZRE142 JPP —
67867-52030 note Clip(FOR HOOD TO COWL TOP SEAL)
2010-12 → 2013-08 ended
ZRE142 JPP —
55701 — Panel Sub-assy, Cowl
55700-12B20 Panel Sub-assy, Cowl
2007-12 → 2010-12 ended
ZRE142 JPP —
55700-12B20 Panel Sub-assy, Cowl
2010-12 → 2013-08 ended
ZRE142 JPP —
55705B — Panel Sub-assy, Cowl Top Side, RH
55705-12100 Panel Sub-assy, Cowl Top Side, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
55705-12100 Panel Sub-assy, Cowl Top Side, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
55706B — Panel Sub-assy, Cowl Top Side, LH
55706-12110 Panel Sub-assy, Cowl Top Side, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
55706-12110 Panel Sub-assy, Cowl Top Side, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
55711 — Panel, Cowl Top, Outer
55701-12A80 Panel, Cowl Top, Outer
2007-12 → 2010-12 ended
ZRE142 JPP —
55701-12A80 Panel, Cowl Top, Outer
2010-12 → 2013-08 ended
ZRE142 JPP —
55715A — Brace, Cowl Top TO Apron, RH
55715-12110 Brace, Cowl Top TO Apron, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
55715-12110 Brace, Cowl Top TO Apron, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
55716A — Brace, Cowl Top TO Apron, LH
55716-12110 Brace, Cowl Top TO Apron, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
55716-12110 Brace, Cowl Top TO Apron, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
55734A — Plate, Water Guard, RH
55734-12160 Plate, Water Guard, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
55734-12160 Plate, Water Guard, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
55738D — Seal, Heater Air Duct Splash Shield, NO.2
55737-12090 Seal, Heater Air Duct Splash Shield, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
55737-12090 Seal, Heater Air Duct Splash Shield, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
55749E — Plate, Cowl Top Insulator, NO.2
55749-12080 Plate, Cowl Top Insulator, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
55749-12080 Plate, Cowl Top Insulator, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
55781D — Louver, Cowl Top Ventilator, RH
55708-12330 Louver, Cowl Top Ventilator, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
55708-12340 note Louver, Cowl Top Ventilator, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
55708-12330 Louver, Cowl Top Ventilator, RH
2010-12 → 2011-02 ended
ZRE142 JPP —
55708-12330 note Louver, Cowl Top Ventilator, RH
2011-02 → 2013-08 ended
ZRE142 JPP —
55708-12340 note Louver, Cowl Top Ventilator, RH
2010-12 → 2011-02 ended
ZRE142 JPP —
55708-12340 Louver, Cowl Top Ventilator, RH
2011-02 → 2013-08 ended
ZRE142 JPP —
55782D — Louver, Cowl Top Ventilator, LH
55709-12110 Louver, Cowl Top Ventilator, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
55709-12110 Louver, Cowl Top Ventilator, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
55797A — Seal, Cowl Water Extract
55737-74010 Seal, Cowl Water Extract
2008-06 → 2010-12 ended
ZRE142 JPP —
55797-12040 Seal, Cowl Water Extract
2007-12 → 2008-05 ended
ZRE142 JPP —
55737-74010 Seal, Cowl Water Extract
2010-12 → 2013-08 ended
ZRE142 JPP —
56111 — Glass, Windshield
56101-12421 note Glass, Windshield
2007-12 → 2008-07 ended
ZRE142 JPP —
56101-12422 note Glass, Windshield
2008-08 → 2010-12 ended
ZRE142 JPP —
56101-12510 note Glass, Windshield
2010-12 → 2013-08 ended
ZRE142 JPP —
56115A — Stopper, Windshield Glass, NO.1
56115-30120 Stopper, Windshield Glass, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
56115-30120 Stopper, Windshield Glass, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
56116C — Stopper, Windshield Glass, NO.2
56116-22050 Stopper, Windshield Glass, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
56116-22050 Stopper, Windshield Glass, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
56117D — Dam, Windshield Glass Adhesive
56117-12300 note Dam, Windshield Glass Adhesive
2007-12 → 2010-12 ended
ZRE142 JPP —
56117-12300 note Dam, Windshield Glass Adhesive
2010-12 → 2013-08 ended
ZRE142 JPP —
75533G — Moulding, Windshield, Outside
75531-12690 Moulding, Windshield, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
75531-12690 Moulding, Windshield, Outside
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
