Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

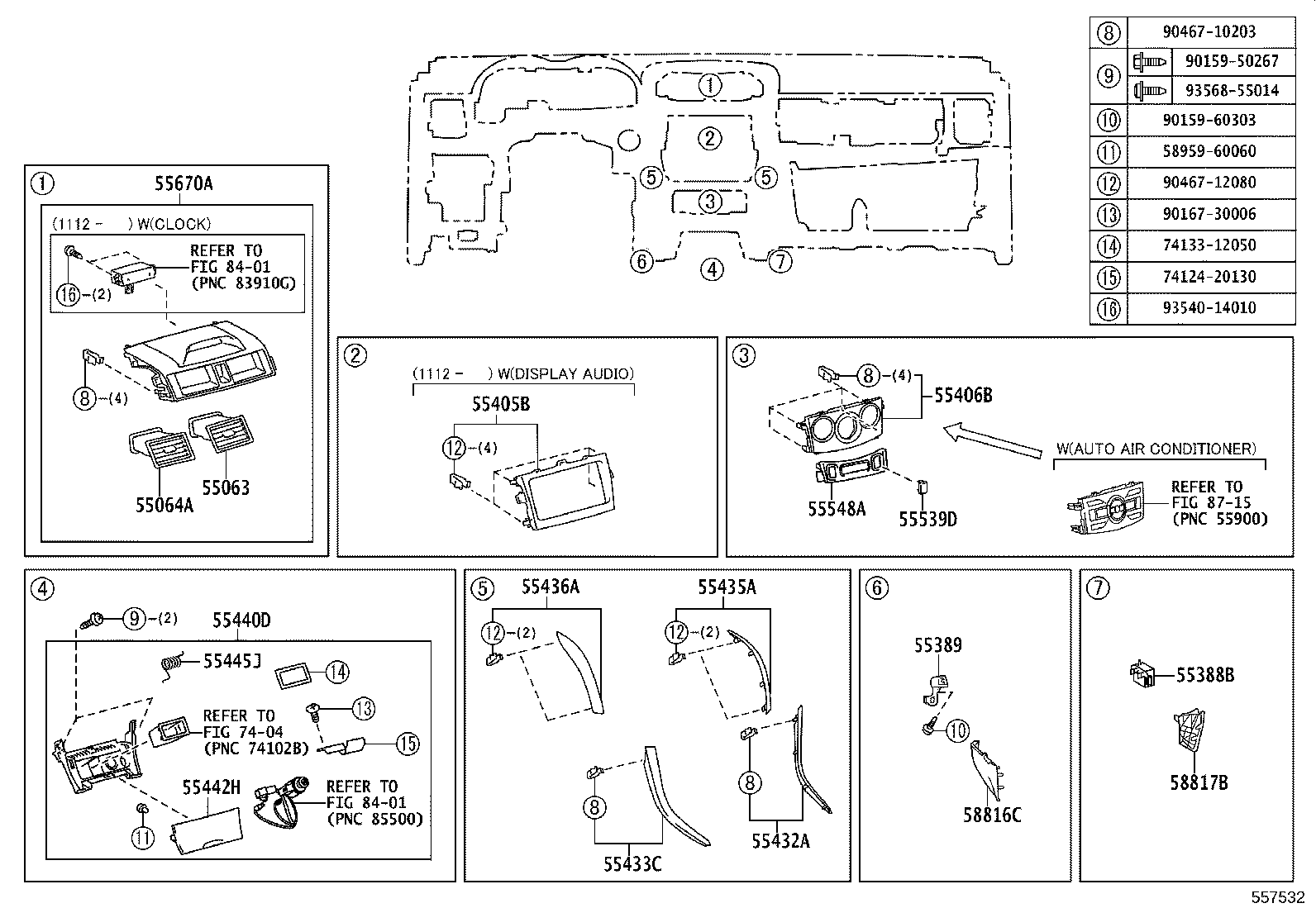

Exploded illustration 557532 8715 — not listed in this catalogue 58816C — INSERT, CONSOLE BOX, FRONT NO.1 (4 parts) 58817B — INSERT, CONSOLE BOX, FRONT NO.2 (4 parts) 55388B — BRACKET, CONSOLE MOUNTING, RH (2 parts) 55389 — BRACKET, CONSOLE MOUNTING, LH (2 parts) 55436A — PANEL, INSTRUMENT PANEL FINISH, END LH (2 parts) 55435A — PANEL, INSTRUMENT PANEL FINISH, END RH (2 parts) 55433C — PANEL, INSTRUMENT PANEL FINISH, LOWER LH (2 parts) 55432A — PANEL, INSTRUMENT PANEL FINISH, LOWER RH (2 parts) 9015950267 — not listed in this catalogue 9356855014 — not listed in this catalogue 9015960303 — not listed in this catalogue 5895960060 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046712080 — not listed in this catalogue 9016730006 — not listed in this catalogue 7413312050 — not listed in this catalogue 7412420130 — not listed in this catalogue 9354014010 — not listed in this catalogue 8401 — not listed in this catalogue 55064A — REGISTER SUB-ASSY, INSTRUMENT, NO.4 (6 parts) 55670A — REGISTER ASSY, INSTRUMENT PANEL, CENTER (14 parts) 55063 — REGISTER SUB-ASSY, INSTRUMENT, NO.3 (6 parts) 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (4 parts) 55406B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER (6 parts) 55548A — COVER, INSTRUMENT PANEL HOLE (7 parts) 55539D — COVER, SPARE SWITCH HOLE (5 parts) 55442H — DOOR, INSTRUMENT PANEL (5 parts) 55445J — SPRING, INSTRUMENT PANEL BOX (3 parts) 55440D — BOX ASSY, INSTRUMENT PANEL (10 parts) 7404 — not listed in this catalogue 8401 — not listed in this catalogue
557532 · 18 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
86 parts on this figure
Part number Description Fitment Price
55063 — Register Sub-assy, Instrument, NO.3
55063-12170 note Register Sub-assy, Instrument, NO.3
2009-01 → 2010-08 ended
ZRE142 JPP STD —
55063-12170 Register Sub-assy, Instrument, NO.3
2007-12 → 2010-08 ended
ZRE142 JPP LE —
55063-12171 note Register Sub-assy, Instrument, NO.3
2010-08 → 2010-12 ended
ZRE142 JPP STD —
55063-12171 Register Sub-assy, Instrument, NO.3
2010-08 → 2010-12 ended
ZRE142 JPP LE —
55063-12171 Register Sub-assy, Instrument, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55063-12181 Register Sub-assy, Instrument, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP STD —
55064A — Register Sub-assy, Instrument, NO.4
55064-12130 Register Sub-assy, Instrument, NO.4
2007-12 → 2010-08 ended
ZRE142 JPP LE —
55064-12130 note Register Sub-assy, Instrument, NO.4
2009-01 → 2010-08 ended
ZRE142 JPP STD —
55064-12131 Register Sub-assy, Instrument, NO.4
2010-08 → 2010-12 ended
ZRE142 JPP LE —
55064-12131 note Register Sub-assy, Instrument, NO.4
2010-08 → 2010-12 ended
ZRE142 JPP STD —
55064-12131 Register Sub-assy, Instrument, NO.4
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55064-12141 Register Sub-assy, Instrument, NO.4
2010-12 → 2013-08 ended
ZRE142 JPP STD —
55388B — Bracket, Console Mounting, RH
55388-42010 Bracket, Console Mounting, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
55388-42010 Bracket, Console Mounting, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
55389 — Bracket, Console Mounting, LH
55389-12040 Bracket, Console Mounting, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
55389-12040 Bracket, Console Mounting, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-12A31 Panel Sub-assy, Instrument Cluster Finish, Center
2011-12 → 2013-08 ended
ZRE142 JPP LE —
55405-12A31 note Panel Sub-assy, Instrument Cluster Finish, Center
2011-12 → 2013-08 ended
ZRE142 JPP LE —
55405-12A31 note Panel Sub-assy, Instrument Cluster Finish, Center
2011-12 → 2013-08 ended
ZRE142 JPP LE —
55405-12A71 note Panel Sub-assy, Instrument Cluster Finish, Center
2011-12 → 2013-08 ended
ZRE142 JPP STD —
55406B — Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406-12480 Panel Sub-assy, Instrument Cluster Finish, Lower Center
2007-12 → 2010-12 ended
ZRE142 JPP —
55406-12480 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2007-12 → 2010-12 ended
ZRE142 JPP LE —
55406-12440 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55406-12440 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55406-12440 Panel Sub-assy, Instrument Cluster Finish, Lower Center
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55406-12480 Panel Sub-assy, Instrument Cluster Finish, Lower Center
2010-12 → 2013-08 ended
ZRE142 JPP STD —
55432A — Panel, Instrument Panel Finish, Lower RH
55432-12480 Panel, Instrument Panel Finish, Lower RH
2007-12 → 2010-12 ended
ZRE142 JPP —
55432-12480 Panel, Instrument Panel Finish, Lower RH
2010-12 → 2013-08 ended
ZRE142 JPP —
55433C — Panel, Instrument Panel Finish, Lower LH
55433-12220 Panel, Instrument Panel Finish, Lower LH
2007-12 → 2010-12 ended
ZRE142 JPP —
55433-12220 Panel, Instrument Panel Finish, Lower LH
2010-12 → 2013-08 ended
ZRE142 JPP —
55435A — Panel, Instrument Panel Finish, End RH
55435-12120 Panel, Instrument Panel Finish, End RH
2007-12 → 2010-12 ended
ZRE142 JPP —
55435-12120 Panel, Instrument Panel Finish, End RH
2010-12 → 2013-08 ended
ZRE142 JPP —
55436A — Panel, Instrument Panel Finish, End LH
55436-12090 Panel, Instrument Panel Finish, End LH
2007-12 → 2010-12 ended
ZRE142 JPP —
55436-12090 Panel, Instrument Panel Finish, End LH
2010-12 → 2013-08 ended
ZRE142 JPP —
55440D — Box Assy, Instrument Panel
55440-12140 note Box Assy, Instrument Panel
2007-12 → 2010-12 ended
ZRE142 JPP STD —
55440-12170 Box Assy, Instrument Panel
2007-12 → 2010-12 ended
ZRE142 JPP STD —
55440-12180 Box Assy, Instrument Panel
2007-12 → 2010-12 ended
ZRE142 JPP LE —
55440-12190 note Box Assy, Instrument Panel
2007-12 → 2010-12 ended
ZRE142 JPP LE —
55440-12100 note Box Assy, Instrument Panel
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55440-12140 note Box Assy, Instrument Panel
2010-12 → 2013-08 ended
ZRE142 JPP STD —
55440-12160 Box Assy, Instrument Panel
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55440-12170 Box Assy, Instrument Panel
2010-12 → 2013-08 ended
ZRE142 JPP STD —
55440-12290 note Box Assy, Instrument Panel
2010-12 → 2013-01 ended
ZRE142 JPP LE —
55440-12300 note Box Assy, Instrument Panel
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55442H — Door, Instrument Panel
55442-12150 note Door, Instrument Panel
2007-12 → 2010-12 ended
ZRE142 JPP STD —
55442-12210 note Door, Instrument Panel
2007-12 → 2010-12 ended
ZRE142 JPP LE —
55442-12140 note Door, Instrument Panel
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55442-12150 note Door, Instrument Panel
2010-12 → 2013-08 ended
ZRE142 JPP STD —
55442-12410 note Door, Instrument Panel
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55445J — Spring, Instrument Panel Box
55445-12130 note Spring, Instrument Panel Box
2007-12 → 2010-12 ended
ZRE142 JPP —
55445-12130 note Spring, Instrument Panel Box
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55445-12130 note Spring, Instrument Panel Box
2010-12 → 2013-08 ended
ZRE142 JPP —
55539D — Cover, Spare Switch Hole
55539-52060-B0 note Cover, Spare Switch Hole
2007-12 → 2010-12 ended
ZRE142 JPP —
55539-52060-B0 note Cover, Spare Switch Hole
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55539-52060-B0 note Cover, Spare Switch Hole
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55539-52060-B0 note Cover, Spare Switch Hole
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55539-52060-B0 note Cover, Spare Switch Hole
2010-12 → 2013-08 ended
ZRE142 JPP —
55548A — Cover, Instrument Panel Hole
55548-12160 Cover, Instrument Panel Hole
2007-12 → 2010-12 ended
ZRE142 JPP STD —
55548-12220 Cover, Instrument Panel Hole
2007-12 → 2010-12 ended
ZRE142 JPP LE —
55548-12100 Cover, Instrument Panel Hole
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55548-12160 Cover, Instrument Panel Hole
2010-12 → 2013-08 ended
ZRE142 JPP STD —
55548-12310 note Cover, Instrument Panel Hole
2010-12 → 2011-12 ended
ZRE142 JPP LE —
55548-12310 note Cover, Instrument Panel Hole
2011-12 → 2013-08 ended
ZRE142 JPP LE —
55548-12310 note Cover, Instrument Panel Hole
2011-12 → 2013-08 ended
ZRE142 JPP LE —
55670A — Register Assy, Instrument Panel, Center
55670-12440 Register Assy, Instrument Panel, Center
2007-12 → 2010-06 ended
ZRE142 JPP LE —
55670-12440 note Register Assy, Instrument Panel, Center
2009-01 → 2010-06 ended
ZRE142 JPP STD —
55670-12450 Register Assy, Instrument Panel, Center
2007-12 → 2010-06 ended
ZRE142 JPP STD —
55670-12610 note Register Assy, Instrument Panel, Center
2010-07 → 2010-08 ended
ZRE142 JPP STD —
55670-12610 Register Assy, Instrument Panel, Center
2010-07 → 2010-08 ended
ZRE142 JPP LE —
55670-12611 Register Assy, Instrument Panel, Center
2010-08 → 2010-12 ended
ZRE142 JPP LE —
55670-12611 note Register Assy, Instrument Panel, Center
2010-08 → 2010-12 ended
ZRE142 JPP STD —
55670-12620 Register Assy, Instrument Panel, Center
2010-07 → 2010-08 ended
ZRE142 JPP STD —
55670-12621 Register Assy, Instrument Panel, Center
2010-08 → 2010-12 ended
ZRE142 JPP STD —
55670-12391 Register Assy, Instrument Panel, Center
2010-12 → 2011-12 ended
ZRE142 JPP LE —
55670-12391 note Register Assy, Instrument Panel, Center
2011-12 → 2013-08 ended
ZRE142 JPP LE —
55670-12621 Register Assy, Instrument Panel, Center
2010-12 → 2011-12 ended
ZRE142 JPP STD —
55670-12680 Register Assy, Instrument Panel, Center
2011-12 → 2013-08 ended
ZRE142 JPP STD —
55670-12690 Register Assy, Instrument Panel, Center
2011-12 → 2013-08 ended
ZRE142 JPP LE —
58816C — Insert, Console Box, Front NO.1
58816-12111-B0 note Insert, Console Box, Front NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
58816-12111-E0 note Insert, Console Box, Front NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
58816-12111-B0 note Insert, Console Box, Front NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
58816-12111-E0 note Insert, Console Box, Front NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
58817B — Insert, Console Box, Front NO.2
58817-12071-B1 note Insert, Console Box, Front NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
58817-12071-E0 note Insert, Console Box, Front NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
58817-12071-B1 note Insert, Console Box, Front NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
58817-12071-E0 note Insert, Console Box, Front NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
