Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

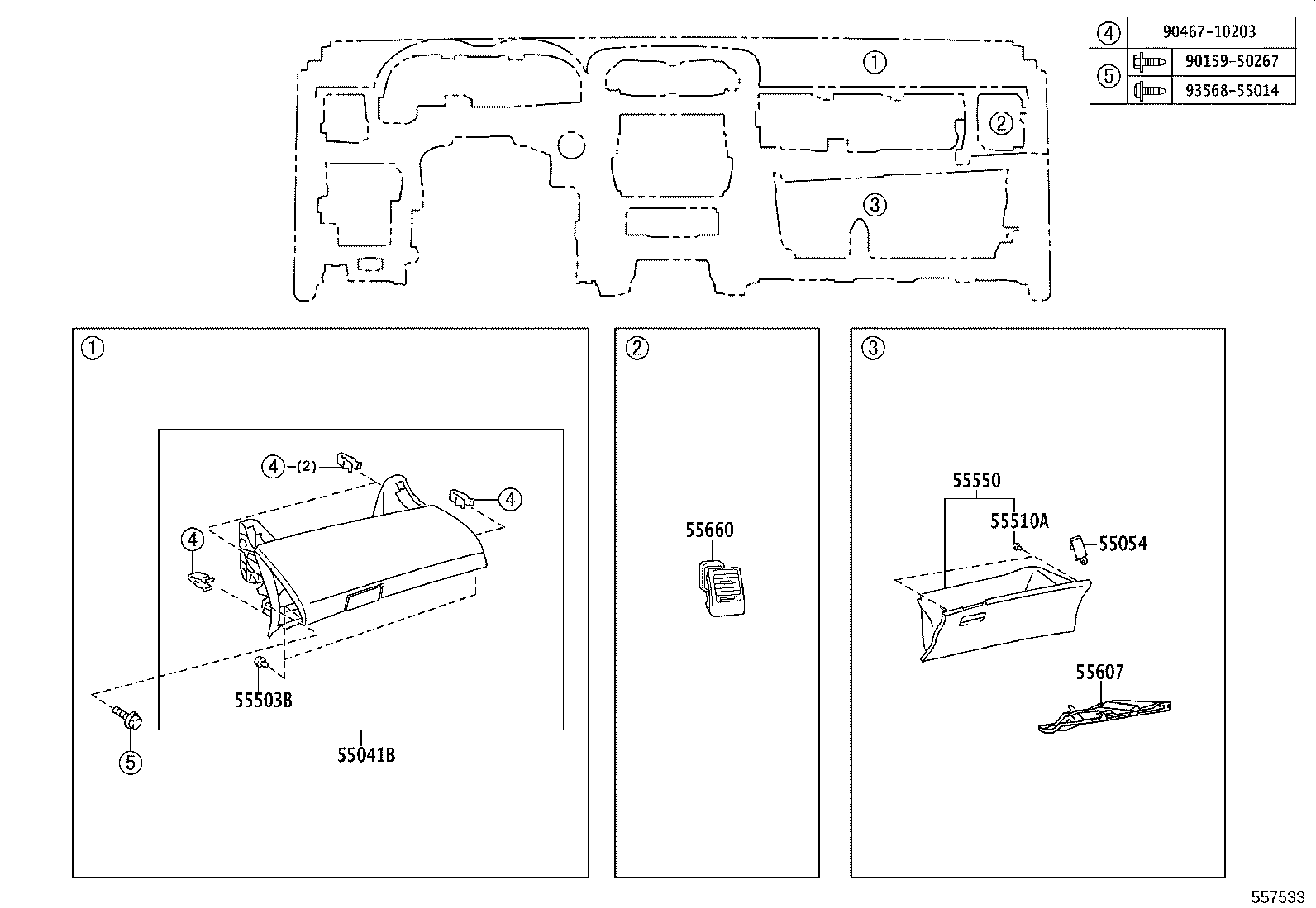

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55041B — Door Sub-assy, Instrument Panel Box, NO.1 | ||||
| 55041-12050-B1 note |
Door Sub-assy, Instrument Panel Box, NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 55041-12050-E0 note |
Door Sub-assy, Instrument Panel Box, NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 55041-12050-B1 note |
Door Sub-assy, Instrument Panel Box, NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 55041-12050-E0 note |
Door Sub-assy, Instrument Panel Box, NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 55054 — Stopper Sub-assy, Glove Compartment Door | ||||
| 55054-12030 |
Stopper Sub-assy, Glove Compartment Door
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 55054-12030 |
Stopper Sub-assy, Glove Compartment Door
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 55503B — Cushion(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
Cushion(FOR GLOVE COMPARTMENT)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 58959-60060 |
Cushion(FOR GLOVE COMPARTMENT)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 55510A — Cushion(FOR GLOVE COMPARTMENT DOOR) | ||||
| 55557-53030 |
Cushion(FOR GLOVE COMPARTMENT DOOR)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 55557-53030 |
Cushion(FOR GLOVE COMPARTMENT DOOR)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 55550 — Door Assy, Glove Compartment | ||||
| 55550-12490-B0 note |
Door Assy, Glove Compartment
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 55550-12490-E0 note |
Door Assy, Glove Compartment
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 55550-12491-B0 note |
Door Assy, Glove Compartment
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 55550-12491-E0 note |
Door Assy, Glove Compartment
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 55607 — Cover Sub-assy, Instrument Panel Under, NO.2 | ||||
| 55607-12070 note |
Cover Sub-assy, Instrument Panel Under, NO.2
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 55607-12070 note |
Cover Sub-assy, Instrument Panel Under, NO.2
2010-12 → 2011-02
ended
|
ZRE142 JPP | — | |
| 55607-12070 |
Cover Sub-assy, Instrument Panel Under, NO.2
2011-02 → 2013-08
ended
|
ZRE142 JPP | — | |
| 55607-12070 note |
Cover Sub-assy, Instrument Panel Under, NO.2
2011-02 → 2013-08
ended
|
ZRE142 JPP | — | |
| 55660 — Register Assy, Instrument Panel, NO.2 | ||||
| 55660-12430-B1 note |
Register Assy, Instrument Panel, NO.2
2007-12 → 2008-03
ended
|
ZRE142 JPP LE | — | |
| 55660-12430-E0 note |
Register Assy, Instrument Panel, NO.2
2007-12 → 2008-03
ended
|
ZRE142 JPP LE | — | |
| 55660-12432-B1 note |
Register Assy, Instrument Panel, NO.2
2008-04 → 2010-09
ended
|
ZRE142 JPP LE | — | |
| 55660-12432-B1 note |
Register Assy, Instrument Panel, NO.2
2009-01 → 2010-09
ended
|
ZRE142 JPP STD | — | |
| 55660-12432-E0 note |
Register Assy, Instrument Panel, NO.2
2008-04 → 2010-09
ended
|
ZRE142 JPP LE | — | |
| 55660-12432-E0 note |
Register Assy, Instrument Panel, NO.2
2009-01 → 2010-09
ended
|
ZRE142 JPP STD | — | |
| 55660-12440-B1 note |
Register Assy, Instrument Panel, NO.2
2007-12 → 2008-03
ended
|
ZRE142 JPP STD | — | |
| 55660-12440-E0 note |
Register Assy, Instrument Panel, NO.2
2007-12 → 2008-03
ended
|
ZRE142 JPP STD | — | |
| 55660-12442-B1 note |
Register Assy, Instrument Panel, NO.2
2008-04 → 2010-09
ended
|
ZRE142 JPP STD | — | |
| 55660-12442-E0 note |
Register Assy, Instrument Panel, NO.2
2008-04 → 2010-09
ended
|
ZRE142 JPP STD | — | |
| 55660-12490-B0 note |
Register Assy, Instrument Panel, NO.2
2010-10 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 55660-12490-B0 note |
Register Assy, Instrument Panel, NO.2
2010-10 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 55660-12490-E0 note |
Register Assy, Instrument Panel, NO.2
2010-10 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 55660-12490-E0 note |
Register Assy, Instrument Panel, NO.2
2010-10 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 55660-12500-B0 note |
Register Assy, Instrument Panel, NO.2
2010-10 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 55660-12500-E0 note |
Register Assy, Instrument Panel, NO.2
2010-10 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 55660-12490-B0 note |
Register Assy, Instrument Panel, NO.2
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 55660-12490-E0 note |
Register Assy, Instrument Panel, NO.2
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 55660-12500-B0 note |
Register Assy, Instrument Panel, NO.2
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 55660-12500-E0 note |
Register Assy, Instrument Panel, NO.2
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
