Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

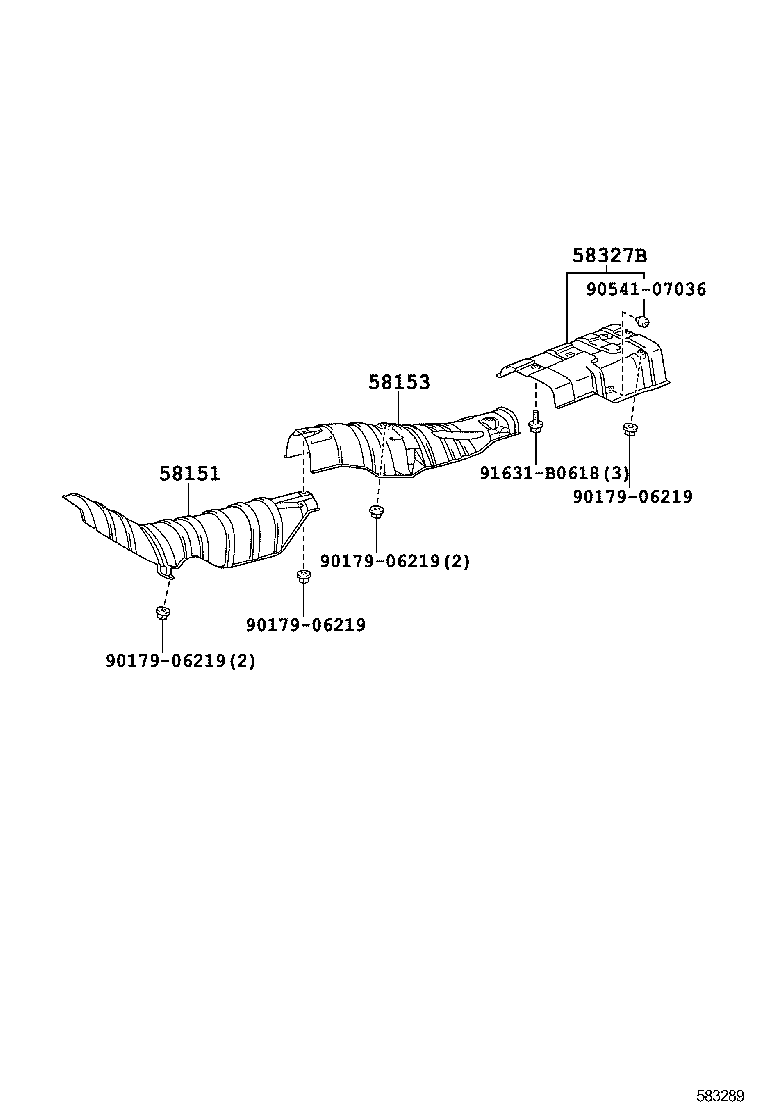

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58151-12300 |
Insulator, Front Floor Heat, NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 58151-12300 |
Insulator, Front Floor Heat, NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 58153 — Insulator, Front Floor Heat, NO.2 | ||||
| 58153-12190 |
Insulator, Front Floor Heat, NO.2
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 58153-12190 |
Insulator, Front Floor Heat, NO.2
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 58327B — Insulator, Main Muffler Heat | ||||
| 58327-12160 |
Insulator, Main Muffler Heat
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 58327-12160 |
Insulator, Main Muffler Heat
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
