Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

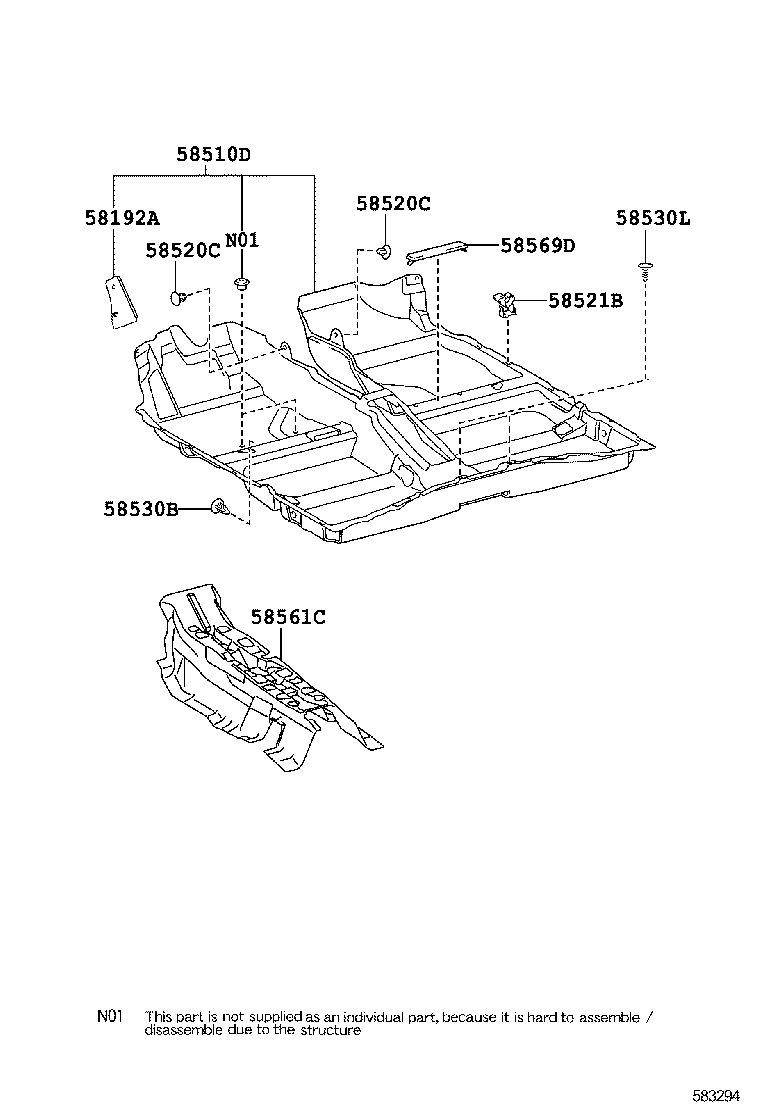

Exploded illustration 583294 58510D — CARPET ASSY, FLOOR, FRONT (16 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (2 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (2 parts) 58521B — HOOK, FLOOR CARPET (2 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (2 parts) 58569D — COVER, FRONT FLOOR CAUTION PLATE (2 parts) 58530L — CLIP, FLOOR CARPET, CENTER (2 parts) 58561C — SILENCER, FRONT FLOOR, NO.1 (2 parts) 58192A — FOOTREST, FRONT FLOOR, LH (2 parts)
583294 · 9 callouts Full size ↗
30 parts on this figure
Part number Description Fitment Price
58192A — Footrest, Front Floor, LH
58191-12170 Footrest, Front Floor, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
58191-12170 Footrest, Front Floor, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
58510D — Carpet Assy, Floor, Front
58510-12E30-B2 note Carpet Assy, Floor, Front
2007-12 → 2010-04 ended
ZRE142 JPP —
58510-12E30-E1 note Carpet Assy, Floor, Front
2007-12 → 2010-04 ended
ZRE142 JPP —
58510-12E31-B2 note Carpet Assy, Floor, Front
2010-04 → 2010-12 ended
ZRE142 JPP —
58510-12E31-E1 note Carpet Assy, Floor, Front
2010-04 → 2010-12 ended
ZRE142 JPP —
58510-12E40-B3 note Carpet Assy, Floor, Front
2007-12 → 2010-04 ended
ZRE142 JPP —
58510-12E40-E1 note Carpet Assy, Floor, Front
2007-12 → 2010-04 ended
ZRE142 JPP —
58510-12E41-B3 note Carpet Assy, Floor, Front
2010-04 → 2010-12 ended
ZRE142 JPP —
58510-12E41-E1 note Carpet Assy, Floor, Front
2010-04 → 2010-12 ended
ZRE142 JPP —
58510-12E31-B2 note Carpet Assy, Floor, Front
2010-12 → 2011-02 ended
ZRE142 JPP —
58510-12E31-B2 note Carpet Assy, Floor, Front
2011-02 → 2013-08 ended
ZRE142 JPP —
58510-12E31-E1 note Carpet Assy, Floor, Front
2011-02 → 2013-08 ended
ZRE142 JPP —
58510-12E31-E1 note Carpet Assy, Floor, Front
2010-12 → 2011-02 ended
ZRE142 JPP —
58510-12E41-B3 note Carpet Assy, Floor, Front
2010-12 → 2011-02 ended
ZRE142 JPP —
58510-12E41-B3 note Carpet Assy, Floor, Front
2011-02 → 2013-08 ended
ZRE142 JPP —
58510-12E41-E1 note Carpet Assy, Floor, Front
2011-02 → 2013-08 ended
ZRE142 JPP —
58510-12E41-E1 note Carpet Assy, Floor, Front
2010-12 → 2011-02 ended
ZRE142 JPP —
58520C — Clip(FOR FRONT FLOOR CARPET)
90467-05164-B2 note Clip(FOR FRONT FLOOR CARPET)
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-05164-B0 note Clip(FOR FRONT FLOOR CARPET)
2010-12 → 2013-08 ended
ZRE142 JPP —
58521B — Hook, Floor Carpet
58521-12140 Hook, Floor Carpet
2007-12 → 2010-12 ended
ZRE142 JPP —
58521-12140 Hook, Floor Carpet
2010-12 → 2013-08 ended
ZRE142 JPP —
58530B — Clip(FOR FRONT FLOOR CARPET)
90467-07049-C0 note Clip(FOR FRONT FLOOR CARPET)
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-07049-C0 note Clip(FOR FRONT FLOOR CARPET)
2010-12 → 2013-08 ended
ZRE142 JPP —
58530L — Clip, Floor Carpet, Center
90467-07049-B7 note Clip, Floor Carpet, Center
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-07049-C0 note Clip, Floor Carpet, Center
2010-12 → 2013-08 ended
ZRE142 JPP —
58561C — Silencer, Front Floor, NO.1
58561-12060 Silencer, Front Floor, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
58561-12060 Silencer, Front Floor, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
58569D — Cover, Front Floor Caution Plate
58569-12010-B0 note Cover, Front Floor Caution Plate
2007-12 → 2010-12 ended
ZRE142 JPP —
58569-12010-B0 note Cover, Front Floor Caution Plate
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
