Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

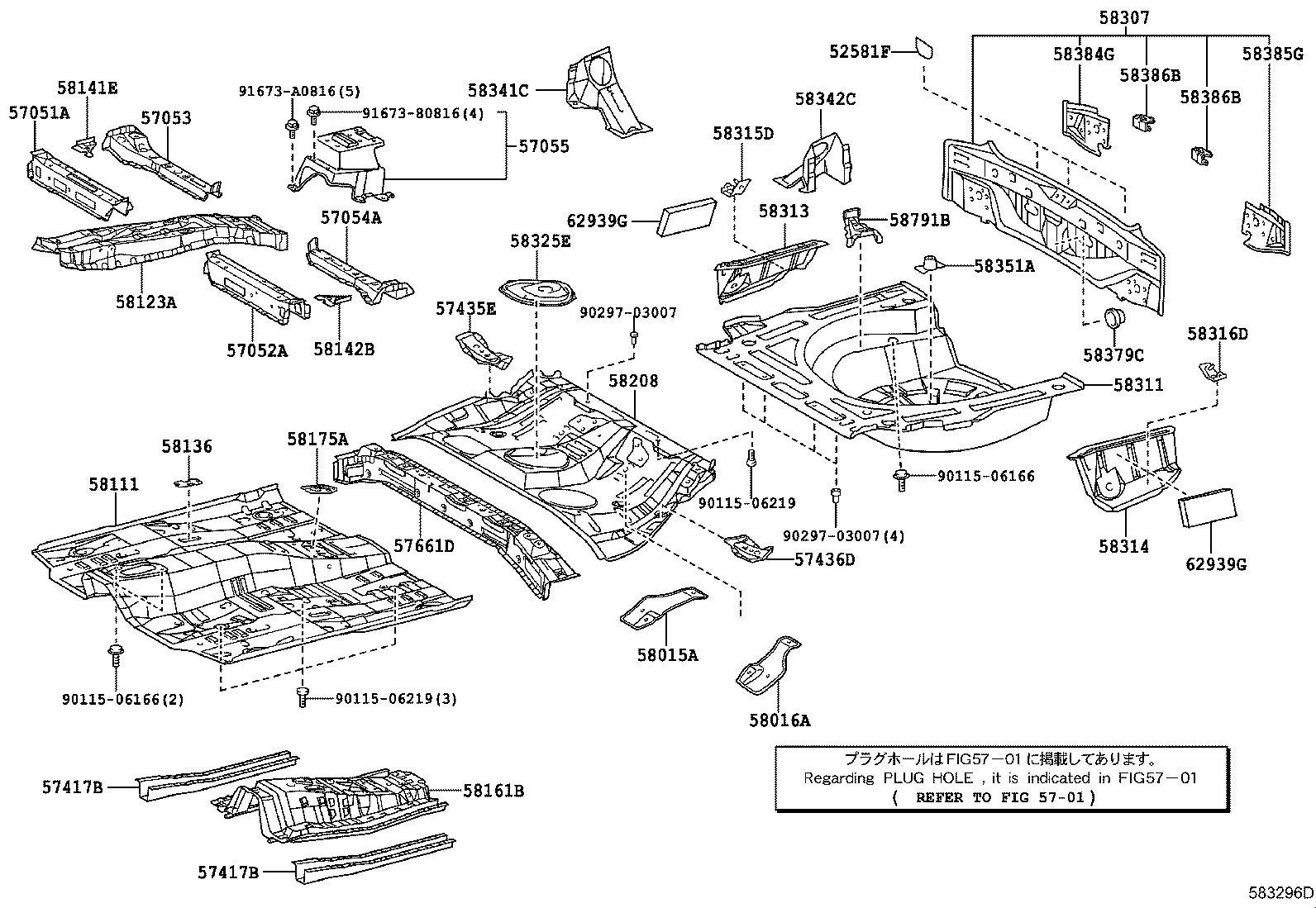

Exploded illustration 583296D 9167380816 — not listed in this catalogue 91673A0816 — not listed in this catalogue 57051A — MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH (2 parts) 58141E — REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH (2 parts) 57052A — MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH (2 parts) 58142B — REINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH (2 parts) 57053 — REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH (2 parts) 57054A — REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH (2 parts) 57417B — REINFORCEMENT, FRONT FLOOR UNDER (2 parts) 57417B — REINFORCEMENT, FRONT FLOOR UNDER (2 parts) 57661D — MEMBER, REAR FLOOR CROSS, FRONT (2 parts) 58015A — REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH (2 parts) 58016A — REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH (2 parts) 58111 — PAN, FRONT FLOOR (2 parts) 58123A — SUPPORT, SHIFT & SELECT LEVER (2 parts) 58136 — COVER, FRONT FLOOR HOLE (2 parts) 58161B — REINFORCEMENT, BELT ANCHOR TO FLOOR PAN (2 parts) 58175A — REINFORCEMENT, PARKING BRAKE BASE, NO.1 (2 parts) 58208 — PAN, CENTER FLOOR (2 parts) 58311 — PAN, REAR FLOOR (2 parts) 58313 — PANEL, REAR FLOOR SIDE, RH (2 parts) 58315D — EXTENSION, REAR FLOOR PAN, RH (2 parts) 62939G — SILENCER, QUARTER VENT (1 parts) 62939G — SILENCER, QUARTER VENT (1 parts) 58316D — EXTENSION, REAR FLOOR PAN, LH (2 parts) 58314 — PANEL, REAR FLOOR SIDE, LH (2 parts) 58325E — COVER, REAR FLOOR SERVICE HOLE (2 parts) 58341C — BRACKET, REAR ABSORBER MOUNTING, NO.1 RH (2 parts) 58342C — BRACKET, REAR ABSORBER MOUNTING, NO.1 LH (2 parts) 58307 — PANEL SUB-ASSY, BODY LOWER BACK (3 parts) 58384G — GUSSET, LOWER BACK, UPPER RH (2 parts) 58385G — GUSSET, LOWER BACK, UPPER LH (2 parts) 58386B — BRACKET, REAR BUMPER COVER, NO.2 (2 parts) 58386B — BRACKET, REAR BUMPER COVER, NO.2 (2 parts) 58791B — CARRIER, JACK (2 parts) 9011506166 — not listed in this catalogue 9011506166 — not listed in this catalogue 9029703007 — not listed in this catalogue 9011506219 — not listed in this catalogue 58351A — BRACKET, SPARE WHEEL CARRIER (2 parts) 57435E — MEMBER, CENTER FLOOR SIDE, RH (2 parts) 57436D — MEMBER, CENTER FLOOR SIDE, LH (2 parts) 9029703007 — not listed in this catalogue 9011506219 — not listed in this catalogue 58379C — PROTECTOR, BODY LOWER BACK (2 parts) 57055 — REINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.5 (2 parts) 5701 — not listed in this catalogue 52581F — PROTECTOR, REAR BUMPER (2 parts)
583296D · 39 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
72 parts on this figure
Part number Description Fitment Price
52581F — Protector, Rear Bumper
52581-13030 Protector, Rear Bumper
2007-12 → 2010-12 ended
ZRE142 JPP —
52581-13030 Protector, Rear Bumper
2011-07 → 2013-08 ended
ZRE142 JPP —
57051A — Member Sub-assy, Front Floor Cross, RH
57051-12071 Member Sub-assy, Front Floor Cross, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
57051-12071 Member Sub-assy, Front Floor Cross, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
57052A — Member Sub-assy, Front Floor Cross, LH
57052-12021 Member Sub-assy, Front Floor Cross, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
57052-12021 Member Sub-assy, Front Floor Cross, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
57053 — Reinforcement Sub-assy, Front Floor Crossmember, RH
57053-12020 Reinforcement Sub-assy, Front Floor Crossmember, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
57053-12020 Reinforcement Sub-assy, Front Floor Crossmember, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
57054A — Reinforcement Sub-assy, Front Floor Crossmember, LH
57054-12020 Reinforcement Sub-assy, Front Floor Crossmember, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
57054-12020 Reinforcement Sub-assy, Front Floor Crossmember, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
57055 — Reinforcet Sub-assy, Crossmember Floor, NO.5
57055-12020 Reinforcet Sub-assy, Crossmember Floor, NO.5
2007-12 → 2010-12 ended
ZRE142 JPP —
57055-12020 Reinforcet Sub-assy, Crossmember Floor, NO.5
2010-12 → 2013-08 ended
ZRE142 JPP —
57417B — Reinforcement, Front Floor Under
57417-12120 Reinforcement, Front Floor Under
2007-12 → 2010-12 ended
ZRE142 JPP —
57417-12120 Reinforcement, Front Floor Under
2010-12 → 2013-08 ended
ZRE142 JPP —
57435E — Member, Center Floor Side, RH
57435-12020 Member, Center Floor Side, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
57435-12020 Member, Center Floor Side, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
57436D — Member, Center Floor Side, LH
57436-12020 Member, Center Floor Side, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
57436-12020 Member, Center Floor Side, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
57661D — Member, Rear Floor Cross, Front
57407-12152 Member, Rear Floor Cross, Front
2007-12 → 2010-12 ended
ZRE142 JPP —
57407-12152 Member, Rear Floor Cross, Front
2010-12 → 2013-08 ended
ZRE142 JPP —
58015A — Reinforce Sub-assy, Belt Anchor, NO.3 RH
58015-12110 Reinforce Sub-assy, Belt Anchor, NO.3 RH
2007-12 → 2010-12 ended
ZRE142 JPP —
58015-12110 Reinforce Sub-assy, Belt Anchor, NO.3 RH
2010-12 → 2013-08 ended
ZRE142 JPP —
58016A — Reinforce Sub-assy, Belt Anchor, NO.3 LH
58016-12080 Reinforce Sub-assy, Belt Anchor, NO.3 LH
2007-12 → 2010-12 ended
ZRE142 JPP —
58016-12080 Reinforce Sub-assy, Belt Anchor, NO.3 LH
2010-12 → 2013-08 ended
ZRE142 JPP —
58111 — Pan, Front Floor
58111-12918 Pan, Front Floor
2007-12 → 2010-12 ended
ZRE142 JPP —
58111-12918 Pan, Front Floor
2010-12 → 2013-08 ended
ZRE142 JPP —
58123A — Support, Shift & Select Lever
58013-12140 Support, Shift & Select Lever
2007-12 → 2010-12 ended
ZRE142 JPP —
58013-12140 Support, Shift & Select Lever
2010-12 → 2013-08 ended
ZRE142 JPP —
58136 — Cover, Front Floor Hole
58136-33010 Cover, Front Floor Hole
2007-12 → 2010-12 ended
ZRE142 JPP —
58136-33010 Cover, Front Floor Hole
2010-12 → 2013-08 ended
ZRE142 JPP —
58141E — Reinforcement, Front Side Member TO Floor Pan, RH
58141-13040 Reinforcement, Front Side Member TO Floor Pan, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
58141-13040 Reinforcement, Front Side Member TO Floor Pan, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
58142B — Reinforcemnet, Front Side Member TO Floor Pan, LH
58142-13020 Reinforcemnet, Front Side Member TO Floor Pan, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
58142-13020 Reinforcemnet, Front Side Member TO Floor Pan, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
58161B — Reinforcement, Belt Anchor TO Floor Pan
57805-12161 Reinforcement, Belt Anchor TO Floor Pan
2007-12 → 2010-12 ended
ZRE142 JPP —
57805-12161 Reinforcement, Belt Anchor TO Floor Pan
2010-12 → 2013-08 ended
ZRE142 JPP —
58175A — Reinforcement, Parking Brake Base, NO.1
58176-12030 Reinforcement, Parking Brake Base, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
58176-12030 Reinforcement, Parking Brake Base, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
58208 — Pan, Center Floor
58211-12938 Pan, Center Floor
2007-12 → 2010-12 ended
ZRE142 JPP —
58211-12938 Pan, Center Floor
2010-12 → 2013-08 ended
ZRE142 JPP —
58307 — Panel Sub-assy, Body Lower Back
58307-12A80 Panel Sub-assy, Body Lower Back
2010-07 → 2010-12 ended
ZRE142 JPP —
58307-12B00 Panel Sub-assy, Body Lower Back
2007-12 → 2010-07 ended
ZRE142 JPP —
58307-12A80 Panel Sub-assy, Body Lower Back
2010-12 → 2013-08 ended
ZRE142 JPP —
58311 — Pan, Rear Floor
58311-12270 Pan, Rear Floor
2007-12 → 2010-12 ended
ZRE142 JPP —
58311-12270 Pan, Rear Floor
2010-12 → 2013-08 ended
ZRE142 JPP —
58313 — Panel, Rear Floor Side, RH
58313-12330 Panel, Rear Floor Side, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
58313-12330 Panel, Rear Floor Side, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
58314 — Panel, Rear Floor Side, LH
58314-12330 Panel, Rear Floor Side, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
58314-12330 Panel, Rear Floor Side, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
58315D — Extension, Rear Floor Pan, RH
58315-12080 Extension, Rear Floor Pan, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
58315-12080 Extension, Rear Floor Pan, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
58316D — Extension, Rear Floor Pan, LH
58316-12080 Extension, Rear Floor Pan, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
58316-12080 Extension, Rear Floor Pan, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
58325E — Cover, Rear Floor Service Hole
58325-12150 Cover, Rear Floor Service Hole
2007-12 → 2010-12 ended
ZRE142 JPP —
58325-12150 Cover, Rear Floor Service Hole
2010-12 → 2013-08 ended
ZRE142 JPP —
58341C — Bracket, Rear Absorber Mounting, NO.1 RH
58341-12020 Bracket, Rear Absorber Mounting, NO.1 RH
2007-12 → 2010-12 ended
ZRE142 JPP —
58341-12020 Bracket, Rear Absorber Mounting, NO.1 RH
2010-12 → 2013-08 ended
ZRE142 JPP —
58342C — Bracket, Rear Absorber Mounting, NO.1 LH
58342-12020 Bracket, Rear Absorber Mounting, NO.1 LH
2007-12 → 2010-12 ended
ZRE142 JPP —
58342-12020 Bracket, Rear Absorber Mounting, NO.1 LH
2010-12 → 2013-08 ended
ZRE142 JPP —
58351A — Bracket, Spare Wheel Carrier
58351-33010 Bracket, Spare Wheel Carrier
2007-12 → 2010-12 ended
ZRE142 JPP —
58351-33010 Bracket, Spare Wheel Carrier
2010-12 → 2013-08 ended
ZRE142 JPP —
58379C — Protector, Body Lower Back
58379-12060 Protector, Body Lower Back
2007-12 → 2010-12 ended
ZRE142 JPP —
58379-12060 Protector, Body Lower Back
2010-12 → 2013-08 ended
ZRE142 JPP —
58384G — Gusset, Lower Back, Upper RH
58384-12190 Gusset, Lower Back, Upper RH
2007-12 → 2010-12 ended
ZRE142 JPP —
58384-12190 Gusset, Lower Back, Upper RH
2010-12 → 2013-08 ended
ZRE142 JPP —
58385G — Gusset, Lower Back, Upper LH
58385-12180 Gusset, Lower Back, Upper LH
2007-12 → 2010-12 ended
ZRE142 JPP —
58385-12180 Gusset, Lower Back, Upper LH
2010-12 → 2013-08 ended
ZRE142 JPP —
58386B — Bracket, Rear Bumper Cover, NO.2
58386-12020 Bracket, Rear Bumper Cover, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
58386-12020 Bracket, Rear Bumper Cover, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
58791B — Carrier, Jack
58791-12200 Carrier, Jack
2007-12 → 2010-12 ended
ZRE142 JPP —
58791-12200 Carrier, Jack
2010-12 → 2013-08 ended
ZRE142 JPP —
62939G — Silencer, Quarter Vent
62939-12030 Silencer, Quarter Vent
2007-12 → 2009-01 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
