Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

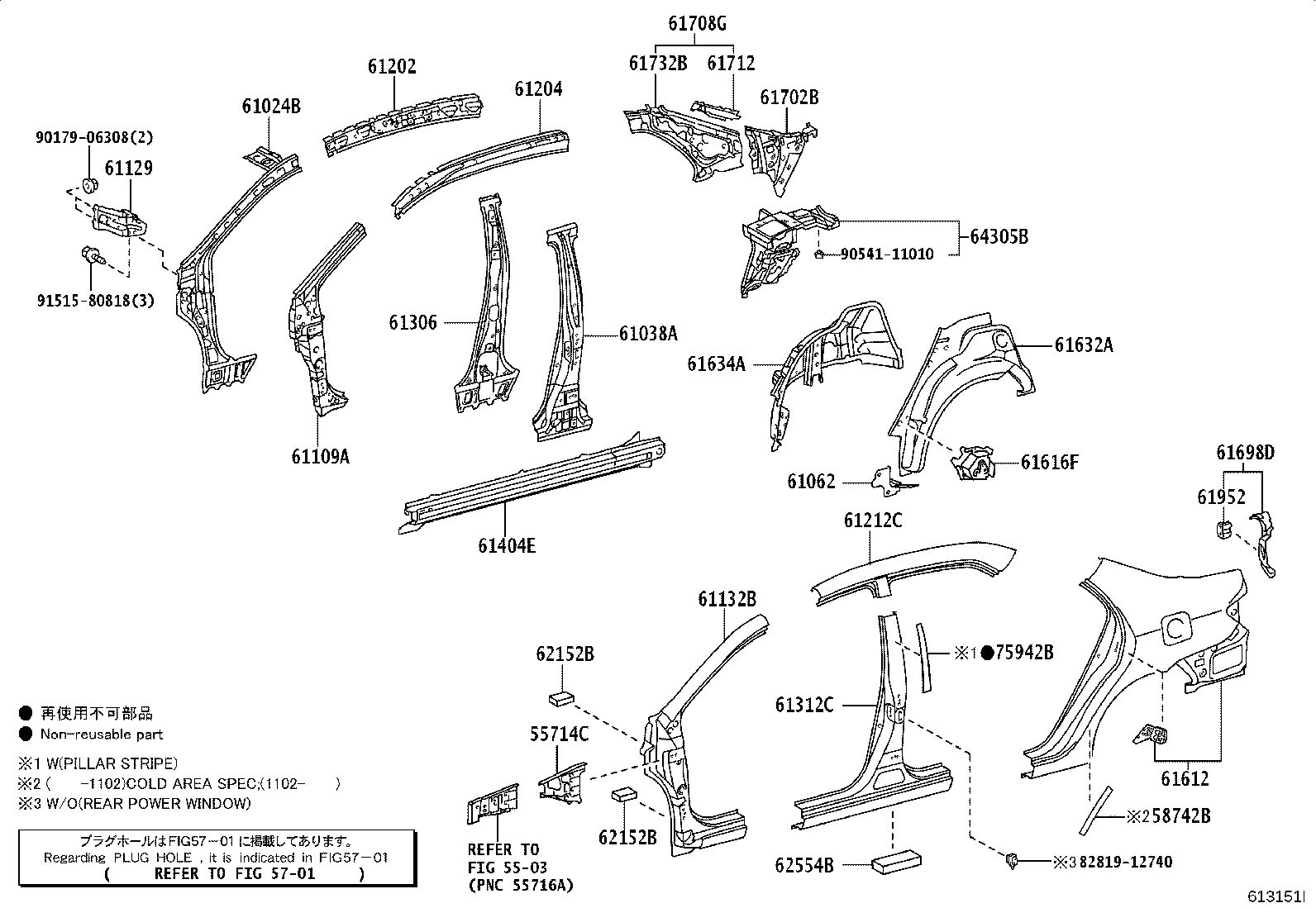

Exploded illustration 613151I 61024B — PILLAR SUB-ASSY, FRONT BODY, INNER LH (2 parts) 61038A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH (2 parts) 61062 — REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH (2 parts) 61616F — REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH (2 parts) 61109A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH (2 parts) 61129 — REINFORCEMENT, COWL SIDE PANEL, LH (2 parts) 61202 — RAIL SUB-ASSY, ROOF SIDE, LH (2 parts) 61204 — RAIL SUB-ASSY, ROOF SIDE, INNER LH (2 parts) 61306 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH (2 parts) 61404E — REINFORCE SUB-ASSY, ROCKER, OUTER LH (3 parts) 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (2 parts) 61634A — PANEL, QUARTER WHEEL HOUSE, INNER LH (3 parts) 61732B — PANEL, ROOF SIDE, INNER LH (2 parts) 61712 — PANEL, ROOF SIDE, OUTER LH (2 parts) 61708G — PANEL SUB-ASSY, ROOF SIDE, INNER FRONT LH (2 parts) 61702B — PANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH (2 parts) 64305B — REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH (3 parts) 9017906308 — not listed in this catalogue 9151580818 — not listed in this catalogue 5701 — not listed in this catalogue 55714C — PANEL, COWL TOP SIDE, LH (2 parts) 61132B — PILLAR, FRONT BODY, OUTER LH (2 parts) 61212C — RAIL, ROOF SIDE, LH (2 parts) 61312C — PANEL, REAR BODY FRONT OUTSIDE, LH (2 parts) 61612 — PANEL, QUARTER, LH (2 parts) 61698D — HOUSING, QUARTER PANEL END, LH (2 parts) 75942B — STRIPE, CENTER PILLAR, LH (2 parts) 62152B — PAD, COWL SIDE SILENCER, NO.2 (2 parts) 62152B — PAD, COWL SIDE SILENCER, NO.2 (2 parts) 62554B — PAD, PILLAR, NO.4 (2 parts) 61952 — BRACKET, SIDE TRIM, RH (2 parts) 9054111010 — not listed in this catalogue 8281912740 — not listed in this catalogue 58742B — PROTECTOR, QUARTER PANEL, LH (4 parts) 5503 — not listed in this catalogue
613151I · 29 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
61 parts on this figure
Part number Description Fitment Price
55714C — Panel, Cowl Top Side, LH
55714-12150 Panel, Cowl Top Side, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
55714-12150 Panel, Cowl Top Side, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
58742B — Protector, Quarter Panel, LH
58742-12190 note Protector, Quarter Panel, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
58742-12190 note Protector, Quarter Panel, LH
2010-12 → 2011-02 ended
ZRE142 JPP —
58742-12190 Protector, Quarter Panel, LH
2011-02 → 2013-08 ended
ZRE142 JPP —
58742-12190 note Protector, Quarter Panel, LH
2011-02 → 2013-08 ended
ZRE142 JPP —
61024B — Pillar Sub-assy, Front Body, Inner LH
61024-12390 Pillar Sub-assy, Front Body, Inner LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61024-12390 Pillar Sub-assy, Front Body, Inner LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61038A — Reinforcement Sub-assy, Center Body Pillar, LH
61038-12915 Reinforcement Sub-assy, Center Body Pillar, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61038-12915 Reinforcement Sub-assy, Center Body Pillar, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61062 — Reinforcement Sub-assy, Wheel House, LH
61062-12040 Reinforcement Sub-assy, Wheel House, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61062-12040 Reinforcement Sub-assy, Wheel House, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61109A — Reinforce Sub-assy, Front Body Pillar, Lower LH
61109-12270 Reinforce Sub-assy, Front Body Pillar, Lower LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61109-12270 Reinforce Sub-assy, Front Body Pillar, Lower LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61129 — Reinforcement, Cowl Side Panel, LH
61104-12260 Reinforcement, Cowl Side Panel, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61104-12260 Reinforcement, Cowl Side Panel, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61132B — Pillar, Front Body, Outer LH
61132-12720 Pillar, Front Body, Outer LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61132-12720 Pillar, Front Body, Outer LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61202 — Rail Sub-assy, Roof Side, LH
61202-12200 Rail Sub-assy, Roof Side, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61202-12200 Rail Sub-assy, Roof Side, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61204 — Rail Sub-assy, Roof Side, Inner LH
61204-12290 Rail Sub-assy, Roof Side, Inner LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61204-12290 Rail Sub-assy, Roof Side, Inner LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61212C — Rail, Roof Side, LH
61212-12490 Rail, Roof Side, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61212-12490 Rail, Roof Side, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61306 — Reinforce Sub-assy, Center Body Pillar, Lower LH
61306-12160 Reinforce Sub-assy, Center Body Pillar, Lower LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61306-12160 Reinforce Sub-assy, Center Body Pillar, Lower LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61312C — Panel, Rear Body Front Outside, LH
61312-12460 Panel, Rear Body Front Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61312-12460 Panel, Rear Body Front Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61404E — Reinforce Sub-assy, Rocker, Outer LH
61404-12100 Reinforce Sub-assy, Rocker, Outer LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61404-12100 Reinforce Sub-assy, Rocker, Outer LH
2010-12 → 2011-03 ended
ZRE142 JPP —
61404-12101 Reinforce Sub-assy, Rocker, Outer LH
2011-04 → 2013-08 ended
ZRE142 JPP —
61612 — Panel, Quarter, LH
61602-12A10 Panel, Quarter, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61602-12A10 Panel, Quarter, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61616F — Reinforcement, Rear Body Rear Side Panel, LH
61616-12070 Reinforcement, Rear Body Rear Side Panel, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61616-12070 Reinforcement, Rear Body Rear Side Panel, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61632A — Panel, Quarter Wheel House, Outer LH
61632-12490 Panel, Quarter Wheel House, Outer LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61632-12490 Panel, Quarter Wheel House, Outer LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61634A — Panel, Quarter Wheel House, Inner LH
61608-12A80 Panel, Quarter Wheel House, Inner LH
2010-07 → 2010-12 ended
ZRE142 JPP —
61608-12B70 Panel, Quarter Wheel House, Inner LH
2007-12 → 2010-07 ended
ZRE142 JPP —
61608-12A80 Panel, Quarter Wheel House, Inner LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61698D — Housing, Quarter Panel End, LH
61698-12913 Housing, Quarter Panel End, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61698-12913 Housing, Quarter Panel End, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61702B — Panel Sub-assy, Roof Side, Inner Upper LH
61702-12310 Panel Sub-assy, Roof Side, Inner Upper LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61702-12310 Panel Sub-assy, Roof Side, Inner Upper LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61708G — Panel Sub-assy, Roof Side, Inner Front LH
61708-12080 Panel Sub-assy, Roof Side, Inner Front LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61708-12080 Panel Sub-assy, Roof Side, Inner Front LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61712 — Panel, Roof Side, Outer LH
61712-12380 Panel, Roof Side, Outer LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61712-12380 Panel, Roof Side, Outer LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61732B — Panel, Roof Side, Inner LH
61732-12740 Panel, Roof Side, Inner LH
2007-12 → 2010-12 ended
ZRE142 JPP —
61732-12740 Panel, Roof Side, Inner LH
2010-12 → 2013-08 ended
ZRE142 JPP —
61952 — Bracket, Side Trim, RH
61952-12010 Bracket, Side Trim, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61952-12010 Bracket, Side Trim, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62152B — Pad, Cowl Side Silencer, NO.2
62152-12050 Pad, Cowl Side Silencer, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
62152-12050 Pad, Cowl Side Silencer, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
62554B — Pad, Pillar, NO.4
62554-12180 Pad, Pillar, NO.4
2007-12 → 2010-12 ended
ZRE142 JPP —
62554-12180 Pad, Pillar, NO.4
2010-12 → 2013-08 ended
ZRE142 JPP —
64305B — Reinforce Sub-assy, Package Tray Bracket, LH
64305-12151 Reinforce Sub-assy, Package Tray Bracket, LH
2007-12 → 2008-02 ended
ZRE142 JPP —
64305-12152 Reinforce Sub-assy, Package Tray Bracket, LH
2008-03 → 2010-12 ended
ZRE142 JPP —
64305-12152 Reinforce Sub-assy, Package Tray Bracket, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
75942B — Stripe, Center Pillar, LH
75942-12040 Stripe, Center Pillar, LH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
75942-12040 Stripe, Center Pillar, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
