Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

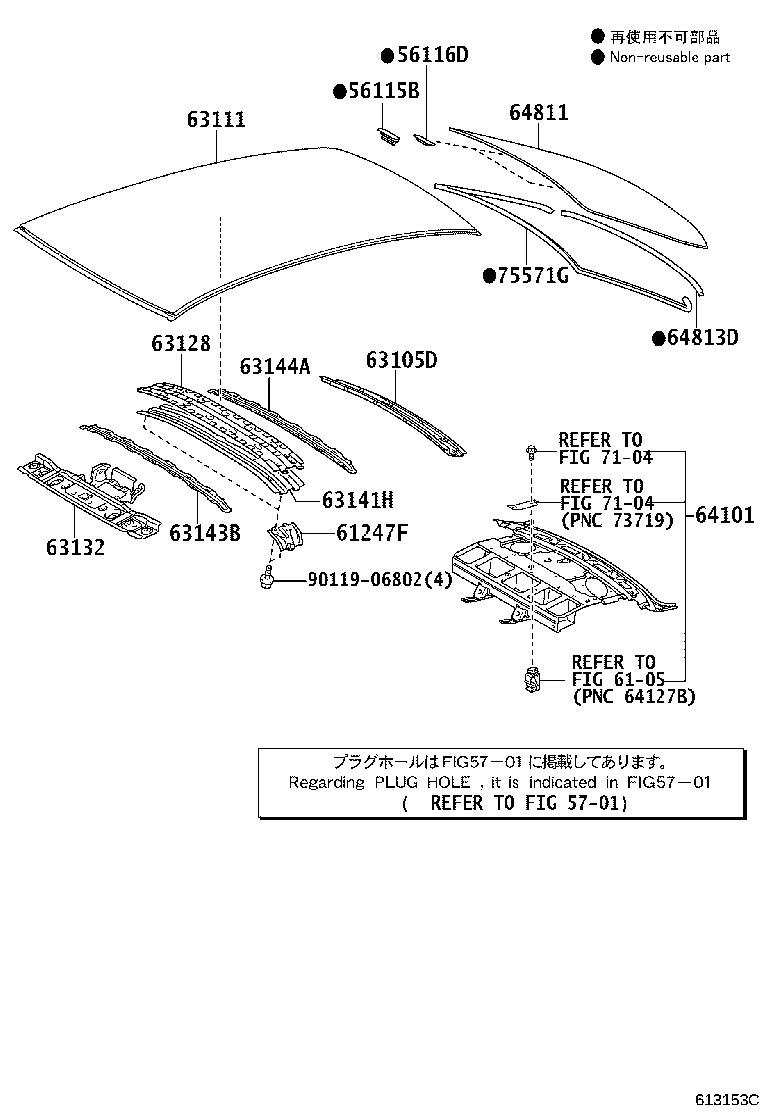

Exploded illustration 613153C 61247F — REINFORCEMENT, ROOF SIDE RAIL, INNER (4 parts) 63132 — PANEL, WINDSHIELD HEADER, INNER (2 parts) 63105D — FRAME SUB-ASSY, BACK WINDOW, UPPER (2 parts) 63111 — PANEL, ROOF (6 parts) 63143B — REINFORCEMENT, ROOF PANEL, NO.3 (2 parts) 63128 — REINFORCEMENT, ROOF PANEL, NO.6 (2 parts) 63141H — REINFORCEMENT, ROOF PANEL, CENTER (2 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (2 parts) 64101 — PANEL SUB-ASSY, UPPER BACK (2 parts) 64813D — DAM, BACK WINDOW GLASS ADHESIVE (2 parts) 9011906802 — not listed in this catalogue 5701 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 64811 — GLASS, BACK WINDOW (2 parts) 56116D — STOPPER, BACK WINDOW GLASS, NO.2 (2 parts) 56115B — STOPPER, BACK WINDOW GLASS, NO.1 (2 parts) 75571G — MOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1 (2 parts) 6105 — not listed in this catalogue
613153C · 14 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
56115B — Stopper, Back Window Glass, NO.1
56115-30120 Stopper, Back Window Glass, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
56115-30120 Stopper, Back Window Glass, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
56116D — Stopper, Back Window Glass, NO.2
56116-22050 Stopper, Back Window Glass, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
56116-22050 Stopper, Back Window Glass, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
61247F — Reinforcement, Roof Side Rail, Inner
61247-12080 note Reinforcement, Roof Side Rail, Inner
2007-12 → 2010-12 ended
ZRE142 JPP —
61248-12060 note Reinforcement, Roof Side Rail, Inner
2007-12 → 2010-12 ended
ZRE142 JPP —
61247-12080 note Reinforcement, Roof Side Rail, Inner
2010-12 → 2013-08 ended
ZRE142 JPP —
61248-12060 note Reinforcement, Roof Side Rail, Inner
2010-12 → 2013-08 ended
ZRE142 JPP —
63105D — Frame Sub-assy, Back Window, Upper
63105-12290 Frame Sub-assy, Back Window, Upper
2007-12 → 2010-12 ended
ZRE142 JPP —
63105-12290 Frame Sub-assy, Back Window, Upper
2010-12 → 2013-08 ended
ZRE142 JPP —
63111 — Panel, Roof
63111-12A40 Panel, Roof
2007-12 → 2010-12 ended
ZRE142 JPP —
63111-12870 note Panel, Roof
2010-12 → 2011-02 ended
ZRE142 JPP LE —
63111-12870 note Panel, Roof
2011-02 → 2011-12 ended
ZRE142 JPP LE —
63111-12870 note Panel, Roof
2011-02 → 2011-12 ended
ZRE142 JPP LE —
63111-12870 Panel, Roof
2010-12 → 2013-08 ended
ZRE142 JPP —
63111-12A40 note Panel, Roof
2010-12 → 2011-12 ended
ZRE142 JPP LE —
63128 — Reinforcement, Roof Panel, NO.6
63128-12020 Reinforcement, Roof Panel, NO.6
2007-12 → 2010-12 ended
ZRE142 JPP —
63128-12020 Reinforcement, Roof Panel, NO.6
2010-12 → 2013-08 ended
ZRE142 JPP —
63132 — Panel, Windshield Header, Inner
63102-12300 Panel, Windshield Header, Inner
2007-12 → 2010-12 ended
ZRE142 JPP —
63102-12300 Panel, Windshield Header, Inner
2010-12 → 2013-08 ended
ZRE142 JPP —
63141H — Reinforcement, Roof Panel, Center
63141-12330 Reinforcement, Roof Panel, Center
2007-12 → 2010-12 ended
ZRE142 JPP —
63141-12330 Reinforcement, Roof Panel, Center
2010-12 → 2013-08 ended
ZRE142 JPP —
63143B — Reinforcement, Roof Panel, NO.3
63143-12130 Reinforcement, Roof Panel, NO.3
2007-12 → 2010-12 ended
ZRE142 JPP —
63143-12130 Reinforcement, Roof Panel, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP —
63144A — Reinforcement, Roof Panel, NO.4
63144-12110 Reinforcement, Roof Panel, NO.4
2007-12 → 2010-12 ended
ZRE142 JPP —
63144-12110 Reinforcement, Roof Panel, NO.4
2010-12 → 2013-08 ended
ZRE142 JPP —
64101 — Panel Sub-assy, Upper Back
64101-12870 Panel Sub-assy, Upper Back
2007-12 → 2010-12 ended
ZRE142 JPP —
64101-12870 Panel Sub-assy, Upper Back
2010-12 → 2013-08 ended
ZRE142 JPP —
64811 — Glass, Back Window
64811-12A40 note Glass, Back Window
2007-12 → 2010-12 ended
ZRE142 JPP —
64811-12A40 note Glass, Back Window
2010-12 → 2013-08 ended
ZRE142 JPP —
64813D — Dam, Back Window Glass Adhesive
64813-12180 Dam, Back Window Glass Adhesive
2007-12 → 2010-12 ended
ZRE142 JPP —
64813-12180 Dam, Back Window Glass Adhesive
2010-12 → 2013-08 ended
ZRE142 JPP —
75571G — Moulding, Back Window, Outside Upper, NO.1
75571-12A10 Moulding, Back Window, Outside Upper, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
75571-12A10 Moulding, Back Window, Outside Upper, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
