Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

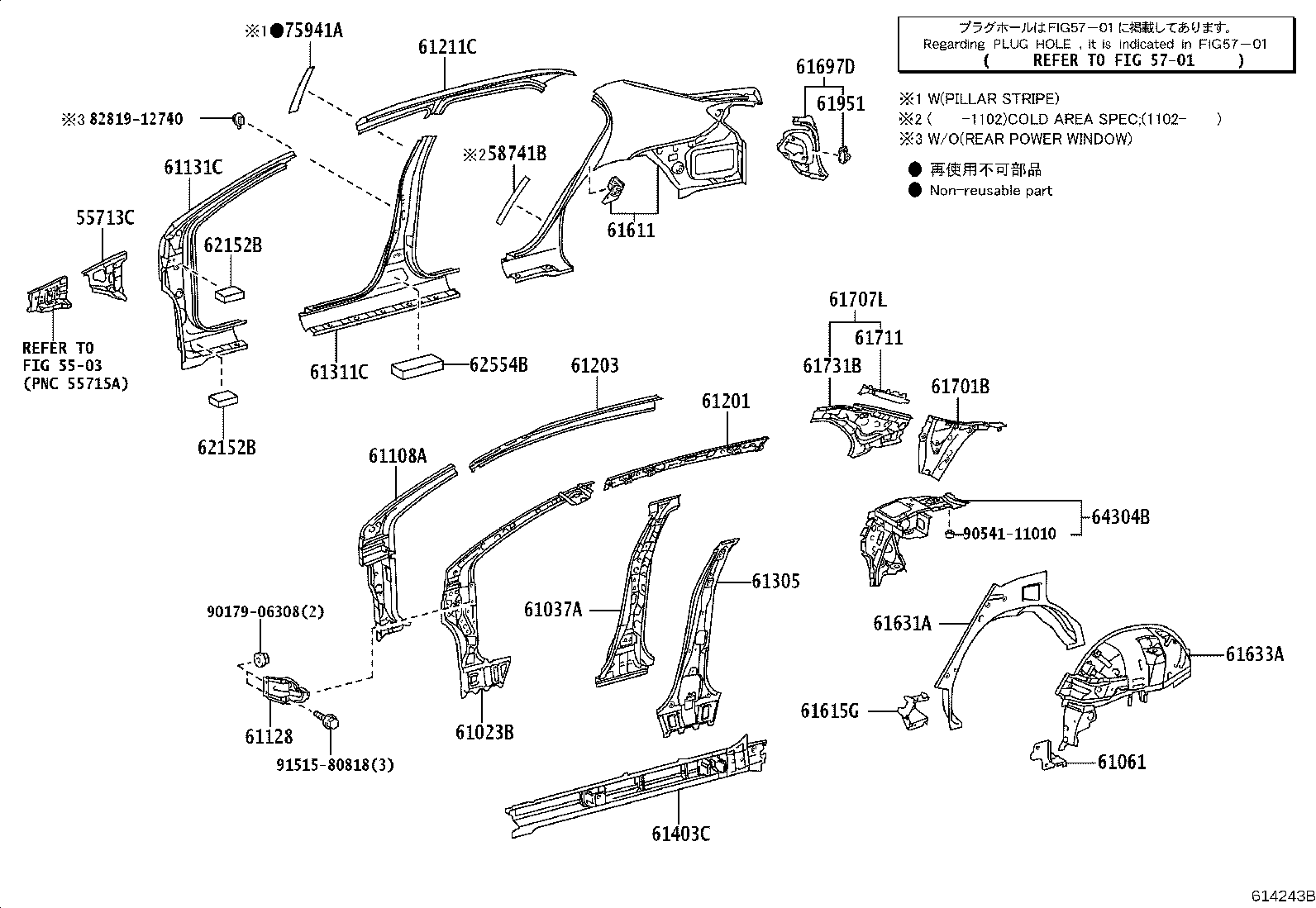

Exploded illustration 614243B 55713C — PANEL, COWL TOP SIDE, RH (2 parts) 61023B — PILLAR SUB-ASSY, FRONT BODY, INNER RH (2 parts) 61615G — REINFORCEMENT, REAR BODY REAR SIDE PANEL, RH (2 parts) 61061 — REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH (2 parts) 61108A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH (2 parts) 61128 — REINFORCEMENT, COWL SIDE PANEL, RH (2 parts) 61131C — PILLAR, FRONT BODY, OUTER RH (2 parts) 61203 — RAIL SUB-ASSY, ROOF SIDE, INNER RH (2 parts) 61311C — PANEL, REAR BODY FRONT OUTSIDE, RH (2 parts) 61211C — RAIL, ROOF SIDE, RH (2 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (2 parts) 61633A — PANEL, QUARTER WHEEL HOUSE, INNER RH (3 parts) 61731B — PANEL, ROOF SIDE, INNER RH (2 parts) 61711 — PANEL, ROOF SIDE, OUTER RH (2 parts) 61707L — PANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH (2 parts) 61701B — PANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH (2 parts) 9017906308 — not listed in this catalogue 9151580818 — not listed in this catalogue 8281912740 — not listed in this catalogue 61611 — PANEL, QUARTER, RH (2 parts) 61697D — HOUSING, QUARTER PANEL END, RH (2 parts) 61951 — BRACKET, SIDE TRIM, RH (2 parts) 62152B — PAD, COWL SIDE SILENCER, NO.2 (2 parts) 62152B — PAD, COWL SIDE SILENCER, NO.2 (2 parts) 62554B — PAD, PILLAR, NO.4 (2 parts) 75941A — STRIPE, CENTER PILLAR, RH (2 parts) 61201 — RAIL SUB-ASSY, ROOF SIDE, RH (2 parts) 64304B — REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH (3 parts) 9054111010 — not listed in this catalogue 5701 — not listed in this catalogue 61037A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH (2 parts) 61305 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH (2 parts) 61403C — REINFORCE SUB-ASSY, ROCKER, OUTER RH (3 parts) 58741B — PROTECTOR, QUARTER PANEL, RH (4 parts) 5503 — not listed in this catalogue
614243B · 29 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
61 parts on this figure
Part number Description Fitment Price
55713C — Panel, Cowl Top Side, RH
55713-12150 Panel, Cowl Top Side, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
55713-12150 Panel, Cowl Top Side, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
58741B — Protector, Quarter Panel, RH
58741-12200 note Protector, Quarter Panel, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
58741-12200 note Protector, Quarter Panel, RH
2010-12 → 2011-02 ended
ZRE142 JPP —
58741-12200 Protector, Quarter Panel, RH
2011-02 → 2013-08 ended
ZRE142 JPP —
58741-12200 note Protector, Quarter Panel, RH
2011-02 → 2013-08 ended
ZRE142 JPP —
61023B — Pillar Sub-assy, Front Body, Inner RH
61023-12390 Pillar Sub-assy, Front Body, Inner RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61023-12390 Pillar Sub-assy, Front Body, Inner RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61037A — Reinforcement Sub-assy, Center Body Pillar, RH
61037-12915 Reinforcement Sub-assy, Center Body Pillar, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61037-12915 Reinforcement Sub-assy, Center Body Pillar, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61061 — Reinforcement Sub-assy, Wheel House, RH
61061-12020 Reinforcement Sub-assy, Wheel House, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61061-12020 Reinforcement Sub-assy, Wheel House, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61108A — Reinforce Sub-assy, Front Body Pillar, Lower RH
61108-12280 Reinforce Sub-assy, Front Body Pillar, Lower RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61108-12280 Reinforce Sub-assy, Front Body Pillar, Lower RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61128 — Reinforcement, Cowl Side Panel, RH
61103-12230 Reinforcement, Cowl Side Panel, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61103-12230 Reinforcement, Cowl Side Panel, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61131C — Pillar, Front Body, Outer RH
61131-12740 Pillar, Front Body, Outer RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61131-12740 Pillar, Front Body, Outer RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61201 — Rail Sub-assy, Roof Side, RH
61201-12210 Rail Sub-assy, Roof Side, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61201-12210 Rail Sub-assy, Roof Side, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61203 — Rail Sub-assy, Roof Side, Inner RH
61203-12310 Rail Sub-assy, Roof Side, Inner RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61203-12310 Rail Sub-assy, Roof Side, Inner RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61211C — Rail, Roof Side, RH
61211-12490 Rail, Roof Side, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61211-12490 Rail, Roof Side, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61305 — Reinforce Sub-assy, Center Body Pillar, Lower RH
61305-12160 Reinforce Sub-assy, Center Body Pillar, Lower RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61305-12160 Reinforce Sub-assy, Center Body Pillar, Lower RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61311C — Panel, Rear Body Front Outside, RH
61311-12420 Panel, Rear Body Front Outside, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61311-12420 Panel, Rear Body Front Outside, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61403C — Reinforce Sub-assy, Rocker, Outer RH
61403-12090 Reinforce Sub-assy, Rocker, Outer RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61403-12090 Reinforce Sub-assy, Rocker, Outer RH
2010-12 → 2011-03 ended
ZRE142 JPP —
61403-12091 Reinforce Sub-assy, Rocker, Outer RH
2011-04 → 2013-08 ended
ZRE142 JPP —
61611 — Panel, Quarter, RH
61601-12A10 Panel, Quarter, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61601-12A10 Panel, Quarter, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61615G — Reinforcement, Rear Body Rear Side Panel, RH
61615-12020 Reinforcement, Rear Body Rear Side Panel, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61615-12020 Reinforcement, Rear Body Rear Side Panel, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61631A — Panel, Quarter Wheel House, Outer RH
61631-12470 Panel, Quarter Wheel House, Outer RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61631-12470 Panel, Quarter Wheel House, Outer RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61633A — Panel, Quarter Wheel House, Inner RH
61607-12B60 Panel, Quarter Wheel House, Inner RH
2007-12 → 2010-07 ended
ZRE142 JPP —
61607-12C20 Panel, Quarter Wheel House, Inner RH
2010-07 → 2010-12 ended
ZRE142 JPP —
61607-12C20 Panel, Quarter Wheel House, Inner RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61697D — Housing, Quarter Panel End, RH
61697-12913 Housing, Quarter Panel End, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61697-12913 Housing, Quarter Panel End, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61701B — Panel Sub-assy, Roof Side, Inner Upper RH
61701-12310 Panel Sub-assy, Roof Side, Inner Upper RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61701-12310 Panel Sub-assy, Roof Side, Inner Upper RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61707L — Panel Sub-assy, Roof Side, Inner Front RH
61707-12080 Panel Sub-assy, Roof Side, Inner Front RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61707-12080 Panel Sub-assy, Roof Side, Inner Front RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61711 — Panel, Roof Side, Outer RH
61711-12340 Panel, Roof Side, Outer RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61711-12340 Panel, Roof Side, Outer RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61731B — Panel, Roof Side, Inner RH
61731-12790 Panel, Roof Side, Inner RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61731-12790 Panel, Roof Side, Inner RH
2010-12 → 2013-08 ended
ZRE142 JPP —
61951 — Bracket, Side Trim, RH
61951-12010 Bracket, Side Trim, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
61951-12010 Bracket, Side Trim, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62152B — Pad, Cowl Side Silencer, NO.2
62152-12050 Pad, Cowl Side Silencer, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
62152-12050 Pad, Cowl Side Silencer, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
62554B — Pad, Pillar, NO.4
62554-12180 Pad, Pillar, NO.4
2007-12 → 2010-12 ended
ZRE142 JPP —
62554-12180 Pad, Pillar, NO.4
2010-12 → 2013-08 ended
ZRE142 JPP —
64304B — Reinforce Sub-assy, Package Tray Bracket, RH
64304-12141 Reinforce Sub-assy, Package Tray Bracket, RH
2007-12 → 2008-02 ended
ZRE142 JPP —
64304-12142 Reinforce Sub-assy, Package Tray Bracket, RH
2008-03 → 2010-12 ended
ZRE142 JPP —
64304-12142 Reinforce Sub-assy, Package Tray Bracket, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
75941A — Stripe, Center Pillar, RH
75941-12040 Stripe, Center Pillar, RH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
75941-12040 Stripe, Center Pillar, RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
