Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

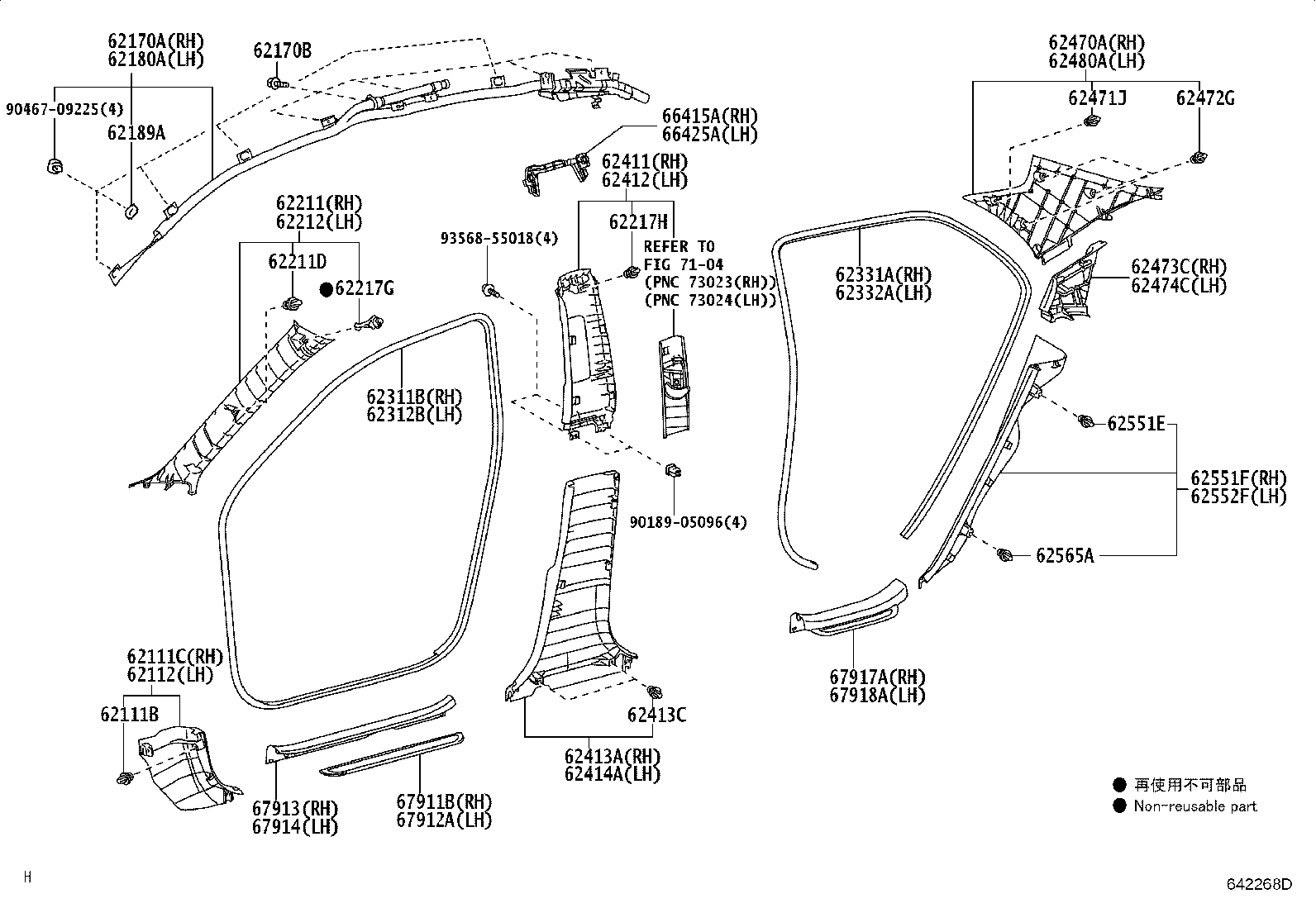

Exploded illustration 642268D 62111C — BOARD, COWL SIDE TRIM, RH (4 parts) 62111B — CLIP(FOR COWL SIDE TRIM) (2 parts) 62413C — CLIP (FOR CENTER LOWER GARNISH) (2 parts) 62112 — BOARD, COWL SIDE TRIM, LH (4 parts) 62413A — GARNISH, CENTER PILLAR, LOWER RH (4 parts) 62414A — GARNISH, CENTER PILLAR, LOWER LH (4 parts) 67911B — PLATE, FRONT DOOR SCUFF, OUTSIDE, RH (4 parts) 67912A — PLATE, FRONT DOOR SCUFF, OUTSIDE LH (4 parts) 67913 — PLATE, FRONT DOOR SCUFF, RH (4 parts) 67914 — PLATE, FRONT DOOR SCUFF, LH (4 parts) 62311B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH (2 parts) 62312B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH (2 parts) 62331A — WEATHERSTRIP, REAR DOOR OPENING TRIM, RH (2 parts) 62332A — WEATHERSTRIP, REAR DOOR OPENING TRIM, LH (2 parts) 67917A — PLATE, REAR DOOR SCUFF, RH (4 parts) 67918A — PLATE, REAR DOOR SCUFF, LH (4 parts) 7104 — not listed in this catalogue 62217G — CLIP, FRONT PILLAR GARNISH (2 parts) 62211D — CLIP(FOR FRONT BODY PILLAR GARNISH) (2 parts) 62212 — GARNISH, FRONT PILLAR, LH (4 parts) 62211 — GARNISH, FRONT PILLAR, RH (4 parts) 62412 — GARNISH, CENTER PILLAR, LH (4 parts) 62411 — GARNISH, CENTER PILLAR, RH (4 parts) 62480A — GARNISH ASSY, ROOF SIDE, INNER LH (4 parts) 62470A — GARNISH ASSY, ROOF SIDE, INNER RH (4 parts) 62217H — CLIP, CENTER PILLER GARNISH (2 parts) 9356855018 — not listed in this catalogue 9018905096 — not listed in this catalogue 62471J — CLIP (FOR ROOF SIDE GARNISH) (2 parts) 62472G — CLIP (FOR ROOF SIDE GARNISH) (2 parts) 62474C — BOARD, ROOF SIDE INNER GARNISH, LH (3 parts) 62473C — BOARD, ROOF SIDE INNER GARNISH, RH (3 parts) 62551E — CLIP(FOR REAR SEAT SIDE GARNISH) (2 parts) 62551F — GARNISH, REAR SEAT SIDE, RH (6 parts) 62552F — GARNISH, REAR SEAT SIDE, LH (6 parts) 62565A — CLIP (FOR REAR SEAT SIDE GARNISH) (2 parts) 66425A — SPACER, SIDE RAIL, REAR NO.2 LH (2 parts) 66415A — SPACER, SIDE RAIL, REAR NO.2 RH (2 parts) 62170B — BOLT, W/WASHER (2 parts) 62170A — AIRBAG ASSY, CURTAIN SHIELD, RH (6 parts) 62180A — AIRBAG ASSY, CURTAIN SHIELD, LH (6 parts) 62189A — SPACER, CURTAIN SHIELD AIRBAG CLIP (2 parts) 9046709225 — not listed in this catalogue
642268D · 39 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
128 parts on this figure
Part number Description Fitment Price
62111B — Clip(FOR COWL SIDE TRIM)
90467-10161 Clip(FOR COWL SIDE TRIM)
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-10161 Clip(FOR COWL SIDE TRIM)
2010-12 → 2013-08 ended
ZRE142 JPP —
62111C — Board, Cowl Side Trim, RH
62111-12320-B1 note Board, Cowl Side Trim, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62111-12320-E0 note Board, Cowl Side Trim, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62111-12320-B1 note Board, Cowl Side Trim, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62111-12320-E0 note Board, Cowl Side Trim, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62112 — Board, Cowl Side Trim, LH
62112-12350-B1 note Board, Cowl Side Trim, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62112-12350-E0 note Board, Cowl Side Trim, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62112-12350-B1 note Board, Cowl Side Trim, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
62112-12350-E0 note Board, Cowl Side Trim, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
62170A — Airbag Assy, Curtain Shield, RH
62170-12030 Airbag Assy, Curtain Shield, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62170-12030 Airbag Assy, Curtain Shield, RH
2010-12 → 2011-12 ended
ZRE142 JPP —
62170-12031 Airbag Assy, Curtain Shield, RH
2012-01 → 2012-03 ended
ZRE142 JPP —
62170-12031 note Airbag Assy, Curtain Shield, RH
2012-03 → 2013-01 ended
ZRE142 JPP LE —
62170-12032 note Airbag Assy, Curtain Shield, RH
2013-02 → 2013-08 ended
ZRE142 JPP LE —
62170-12111 Airbag Assy, Curtain Shield, RH
2012-03 → 2013-08 ended
ZRE142 JPP —
62170B — Bolt, W/Washer
90119-06869 Bolt, W/Washer
2007-12 → 2010-12 ended
ZRE142 JPP —
90119-06869 Bolt, W/Washer
2010-12 → 2013-08 ended
ZRE142 JPP —
62180A — Airbag Assy, Curtain Shield, LH
62180-12030 Airbag Assy, Curtain Shield, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62180-12030 Airbag Assy, Curtain Shield, LH
2010-12 → 2011-12 ended
ZRE142 JPP —
62180-12031 Airbag Assy, Curtain Shield, LH
2012-01 → 2012-03 ended
ZRE142 JPP —
62180-12031 note Airbag Assy, Curtain Shield, LH
2012-03 → 2013-01 ended
ZRE142 JPP LE —
62180-12032 note Airbag Assy, Curtain Shield, LH
2013-02 → 2013-08 ended
ZRE142 JPP LE —
62180-12111 Airbag Assy, Curtain Shield, LH
2012-03 → 2013-08 ended
ZRE142 JPP —
62189A — Spacer, Curtain Shield Airbag Clip
62189-33010 Spacer, Curtain Shield Airbag Clip
2007-12 → 2010-12 ended
ZRE142 JPP —
62189-33010 Spacer, Curtain Shield Airbag Clip
2010-12 → 2013-08 ended
ZRE142 JPP —
62211 — Garnish, Front Pillar, RH
62211-12410-B0 note Garnish, Front Pillar, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62211-12410-E0 note Garnish, Front Pillar, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62211-12410-B0 note Garnish, Front Pillar, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62211-12410-E0 note Garnish, Front Pillar, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62211D — Clip(FOR FRONT BODY PILLAR GARNISH)
90467-10161 Clip(FOR FRONT BODY PILLAR GARNISH)
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-10161 Clip(FOR FRONT BODY PILLAR GARNISH)
2010-12 → 2013-08 ended
ZRE142 JPP —
62212 — Garnish, Front Pillar, LH
62212-12410-B0 note Garnish, Front Pillar, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62212-12410-E0 note Garnish, Front Pillar, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62212-12410-B0 note Garnish, Front Pillar, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
62212-12410-E0 note Garnish, Front Pillar, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
62217G — Clip, Front Pillar Garnish
90950-08004 Clip, Front Pillar Garnish
2007-12 → 2010-12 ended
ZRE142 JPP —
90950-08004 Clip, Front Pillar Garnish
2010-12 → 2013-08 ended
ZRE142 JPP —
62217H — Clip, Center Piller Garnish
90467-10167 Clip, Center Piller Garnish
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-10167 Clip, Center Piller Garnish
2010-12 → 2013-08 ended
ZRE142 JPP —
62311B — Weatherstrip, Front Door Opening Trim, RH
62311-12220 Weatherstrip, Front Door Opening Trim, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62311-12220 Weatherstrip, Front Door Opening Trim, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62312B — Weatherstrip, Front Door Opening Trim, LH
62312-12220 Weatherstrip, Front Door Opening Trim, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62312-12220 Weatherstrip, Front Door Opening Trim, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
62331A — Weatherstrip, Rear Door Opening Trim, RH
62331-12240 Weatherstrip, Rear Door Opening Trim, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62331-12240 Weatherstrip, Rear Door Opening Trim, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62332A — Weatherstrip, Rear Door Opening Trim, LH
62332-12240 Weatherstrip, Rear Door Opening Trim, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62332-12240 Weatherstrip, Rear Door Opening Trim, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
62411 — Garnish, Center Pillar, RH
62410-12060-B0 note Garnish, Center Pillar, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62410-12060-E0 note Garnish, Center Pillar, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62410-12060-B0 note Garnish, Center Pillar, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62410-12060-E0 note Garnish, Center Pillar, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62412 — Garnish, Center Pillar, LH
62420-12060-B0 note Garnish, Center Pillar, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62420-12060-E0 note Garnish, Center Pillar, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62420-12060-B0 note Garnish, Center Pillar, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
62420-12060-E0 note Garnish, Center Pillar, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
62413A — Garnish, Center Pillar, Lower RH
62413-12270-B1 note Garnish, Center Pillar, Lower RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62413-12270-E0 note Garnish, Center Pillar, Lower RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62413-12270-B1 note Garnish, Center Pillar, Lower RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62413-12270-E0 note Garnish, Center Pillar, Lower RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62413C — Clip (FOR CENTER LOWER GARNISH)
62217-13010 Clip (FOR CENTER LOWER GARNISH)
2007-12 → 2010-12 ended
ZRE142 JPP —
62217-13010 Clip (FOR CENTER LOWER GARNISH)
2010-12 → 2013-08 ended
ZRE142 JPP —
62414A — Garnish, Center Pillar, Lower LH
62414-12270-B1 note Garnish, Center Pillar, Lower LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62414-12270-E0 note Garnish, Center Pillar, Lower LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62414-12270-B1 note Garnish, Center Pillar, Lower LH
2010-12 → 2013-08 ended
ZRE142 JPP —
62414-12270-E0 note Garnish, Center Pillar, Lower LH
2010-12 → 2013-08 ended
ZRE142 JPP —
62470A — Garnish Assy, Roof Side, Inner RH
62470-12140-B1 note Garnish Assy, Roof Side, Inner RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62470-12140-E1 note Garnish Assy, Roof Side, Inner RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62470-12140-B1 note Garnish Assy, Roof Side, Inner RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62470-12140-E1 note Garnish Assy, Roof Side, Inner RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62471J — Clip (FOR ROOF SIDE GARNISH)
90467-10188 Clip (FOR ROOF SIDE GARNISH)
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-10188 Clip (FOR ROOF SIDE GARNISH)
2010-12 → 2013-08 ended
ZRE142 JPP —
62472G — Clip (FOR ROOF SIDE GARNISH)
90467-10161 Clip (FOR ROOF SIDE GARNISH)
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-10161 Clip (FOR ROOF SIDE GARNISH)
2010-12 → 2013-08 ended
ZRE142 JPP —
62473C — Board, Roof Side Inner Garnish, RH
62473-12030-B0 note Board, Roof Side Inner Garnish, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62473-12030-E0 note Board, Roof Side Inner Garnish, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62473-12030-B1 note Board, Roof Side Inner Garnish, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
62474C — Board, Roof Side Inner Garnish, LH
62474-12030-B0 note Board, Roof Side Inner Garnish, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62474-12030-E0 note Board, Roof Side Inner Garnish, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62474-12030-B1 note Board, Roof Side Inner Garnish, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
62480A — Garnish Assy, Roof Side, Inner LH
62480-12140-B1 note Garnish Assy, Roof Side, Inner LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62480-12140-E1 note Garnish Assy, Roof Side, Inner LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62480-12140-B1 note Garnish Assy, Roof Side, Inner LH
2010-12 → 2013-08 ended
ZRE142 JPP —
62480-12140-E1 note Garnish Assy, Roof Side, Inner LH
2010-12 → 2013-08 ended
ZRE142 JPP —
62551E — Clip(FOR REAR SEAT SIDE GARNISH)
90467-10161 Clip(FOR REAR SEAT SIDE GARNISH)
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-10161 Clip(FOR REAR SEAT SIDE GARNISH)
2010-12 → 2013-08 ended
ZRE142 JPP —
62551F — Garnish, Rear Seat Side, RH
62551-12240-B1 note Garnish, Rear Seat Side, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62551-12240-E0 note Garnish, Rear Seat Side, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
62551-12240-B1 note Garnish, Rear Seat Side, RH
2010-12 → 2012-02 ended
ZRE142 JPP —
62551-12240-E0 note Garnish, Rear Seat Side, RH
2010-12 → 2012-02 ended
ZRE142 JPP —
62551-12241-B1 note Garnish, Rear Seat Side, RH
2012-03 → 2013-08 ended
ZRE142 JPP —
62551-12241-E0 note Garnish, Rear Seat Side, RH
2012-03 → 2013-08 ended
ZRE142 JPP —
62552F — Garnish, Rear Seat Side, LH
62552-12210-B1 note Garnish, Rear Seat Side, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62552-12210-E0 note Garnish, Rear Seat Side, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
62552-12210-B1 note Garnish, Rear Seat Side, LH
2010-12 → 2012-02 ended
ZRE142 JPP —
62552-12210-E0 note Garnish, Rear Seat Side, LH
2010-12 → 2012-02 ended
ZRE142 JPP —
62552-12211-B1 note Garnish, Rear Seat Side, LH
2012-03 → 2013-08 ended
ZRE142 JPP —
62552-12211-E0 note Garnish, Rear Seat Side, LH
2012-03 → 2013-08 ended
ZRE142 JPP —
62565A — Clip (FOR REAR SEAT SIDE GARNISH)
90467-10167 Clip (FOR REAR SEAT SIDE GARNISH)
2007-12 → 2010-12 ended
ZRE142 JPP —
90467-10167 Clip (FOR REAR SEAT SIDE GARNISH)
2010-12 → 2013-08 ended
ZRE142 JPP —
66415A — Spacer, Side Rail, Rear NO.2 RH
66415-12060 Spacer, Side Rail, Rear NO.2 RH
2007-12 → 2010-12 ended
ZRE142 JPP —
66415-12060 Spacer, Side Rail, Rear NO.2 RH
2010-12 → 2013-08 ended
ZRE142 JPP —
66425A — Spacer, Side Rail, Rear NO.2 LH
66425-12060 Spacer, Side Rail, Rear NO.2 LH
2007-12 → 2010-12 ended
ZRE142 JPP —
66425-12060 Spacer, Side Rail, Rear NO.2 LH
2010-12 → 2013-08 ended
ZRE142 JPP —
67911B — Plate, Front Door Scuff, Outside, RH
67911-12120-B1 note Plate, Front Door Scuff, Outside, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
67911-12120-E0 note Plate, Front Door Scuff, Outside, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
67911-12120-B1 note Plate, Front Door Scuff, Outside, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
67911-12120-E0 note Plate, Front Door Scuff, Outside, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
67912A — Plate, Front Door Scuff, Outside LH
67911-12120-B1 note Plate, Front Door Scuff, Outside LH
2007-12 → 2010-12 ended
ZRE142 JPP —
67911-12120-E0 note Plate, Front Door Scuff, Outside LH
2007-12 → 2010-12 ended
ZRE142 JPP —
67911-12120-B1 note Plate, Front Door Scuff, Outside LH
2010-12 → 2013-08 ended
ZRE142 JPP —
67911-12120-E0 note Plate, Front Door Scuff, Outside LH
2010-12 → 2013-08 ended
ZRE142 JPP —
67913 — Plate, Front Door Scuff, RH
67913-12310-B1 note Plate, Front Door Scuff, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
67913-12310-E0 note Plate, Front Door Scuff, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
67913-12310-B1 note Plate, Front Door Scuff, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
67913-12310-E0 note Plate, Front Door Scuff, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
67914 — Plate, Front Door Scuff, LH
67914-12270-B1 note Plate, Front Door Scuff, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
67914-12270-E0 note Plate, Front Door Scuff, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
67914-12270-B1 note Plate, Front Door Scuff, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
67914-12270-E0 note Plate, Front Door Scuff, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
67917A — Plate, Rear Door Scuff, RH
67917-12160-B1 note Plate, Rear Door Scuff, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
67917-12160-E0 note Plate, Rear Door Scuff, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
67917-12160-B1 note Plate, Rear Door Scuff, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
67917-12160-E0 note Plate, Rear Door Scuff, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
67918A — Plate, Rear Door Scuff, LH
67918-12150-B1 note Plate, Rear Door Scuff, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
67918-12150-E0 note Plate, Rear Door Scuff, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
67918-12150-B1 note Plate, Rear Door Scuff, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
67918-12150-E0 note Plate, Rear Door Scuff, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
