Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

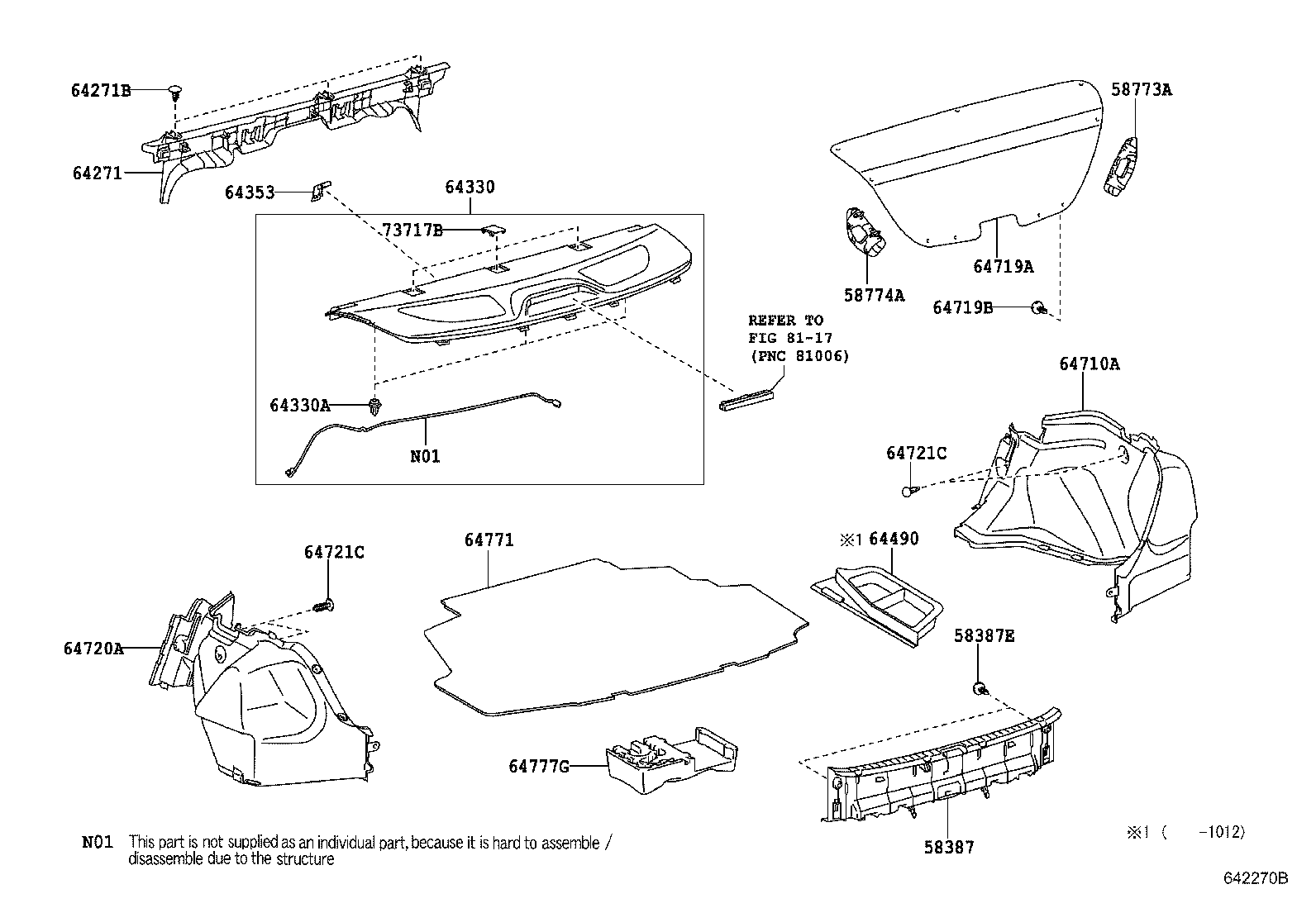

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58387 — Plate, Rear Floor Finish | ||||
| 58387-12090 |
Plate, Rear Floor Finish
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 58387-12090 |
Plate, Rear Floor Finish
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 58387E — Clip(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-08186-C0 note |
Clip(FOR REAR FLOOR FINISH PLATE)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90467-08186-C0 note |
Clip(FOR REAR FLOOR FINISH PLATE)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 58773A — Cover, Luggage Compartment Side, RH | ||||
| 58773-12130 |
Cover, Luggage Compartment Side, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 58773-12130 |
Cover, Luggage Compartment Side, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 58774A — Cover, Luggage Compartment Side, LH | ||||
| 58774-12120 |
Cover, Luggage Compartment Side, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 58774-12120 |
Cover, Luggage Compartment Side, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 64271 — Board, Room Partition, NO.1 | ||||
| 64271-12240 |
Board, Room Partition, NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 64271-12240 |
Board, Room Partition, NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 64271B — Clip(FOR ROOM PARTITION BOARD) | ||||
| 90467-08186-C0 note |
Clip(FOR ROOM PARTITION BOARD)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90467-08186-C0 note |
Clip(FOR ROOM PARTITION BOARD)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 64330 — Panel Assy, Package Tray Trim | ||||
| 64330-12C51-B0 note |
Panel Assy, Package Tray Trim
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 64330-12C51-E0 note |
Panel Assy, Package Tray Trim
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 64330-12C51-B1 note |
Panel Assy, Package Tray Trim
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 64330A — Clip(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-10161 |
Clip(FOR PACKAGE TRAY TRIM PANEL)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90467-10161 |
Clip(FOR PACKAGE TRAY TRIM PANEL)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 64353 — Cover, Package Tray Trim Belt Hole | ||||
| 64353-12120-B1 note |
Cover, Package Tray Trim Belt Hole
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 64353-12120-E0 note |
Cover, Package Tray Trim Belt Hole
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 64353-12120-B0 note |
Cover, Package Tray Trim Belt Hole
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 64490 — Tray Assy, Luggage Compartment Side | ||||
| 64490-12020 |
Tray Assy, Luggage Compartment Side
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 64710A — Cover Assy, Luggage Compartment Trim, RH | ||||
| 64710-12060-C0 note |
Cover Assy, Luggage Compartment Trim, RH
2007-12 → 2010-06
ended
|
ZRE142 JPP | — | |
| 64710-12110-C0 note |
Cover Assy, Luggage Compartment Trim, RH
2010-07 → 2010-12
ended
|
ZRE142 JPP | — | |
| 64710-12070-C0 note |
Cover Assy, Luggage Compartment Trim, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 64719A — Cover, Luggage Compartment Door | ||||
| 64719-12150-C0 note |
Cover, Luggage Compartment Door
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 64719-12150-C0 note |
Cover, Luggage Compartment Door
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 64719B — Clip(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186-C0 note |
Clip(FOR LUGGAGE COMPARTMENT DOOR)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90467-08186-C0 note |
Clip(FOR LUGGAGE COMPARTMENT DOOR)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 64720A — Cover Assy, Luggage Compartment Trim, LH | ||||
| 64720-12060-C0 note |
Cover Assy, Luggage Compartment Trim, LH
2007-12 → 2010-06
ended
|
ZRE142 JPP | — | |
| 64720-12110-C0 note |
Cover Assy, Luggage Compartment Trim, LH
2010-07 → 2010-12
ended
|
ZRE142 JPP | — | |
| 64720-12110-C0 note |
Cover Assy, Luggage Compartment Trim, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 64721C — Clip(LUGGAGE COMPARTMENT) | ||||
| 90467-06020-C0 note |
Clip(LUGGAGE COMPARTMENT)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90467-06020-C0 note |
Clip(LUGGAGE COMPARTMENT)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 64771 — Cover, Spare Wheel | ||||
| 64771-12290-C0 note |
Cover, Spare Wheel
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 64771-12240-C0 note |
Cover, Spare Wheel
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 64777G — Cushion, Spare Wheel | ||||
| 64777-12080 |
Cushion, Spare Wheel
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 64777-12080 |
Cushion, Spare Wheel
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73717B — Cover, Child Restraint Seat Tether Anchor | ||||
| 73717-12050-B1 note |
Cover, Child Restraint Seat Tether Anchor
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73717-12050-E0 note |
Cover, Child Restraint Seat Tether Anchor
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73717-12060-B1 note |
Cover, Child Restraint Seat Tether Anchor
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73717-12060-E0 note |
Cover, Child Restraint Seat Tether Anchor
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73717-12070-B1 note |
Cover, Child Restraint Seat Tether Anchor
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73717-12070-E0 note |
Cover, Child Restraint Seat Tether Anchor
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73717-12050-B0 note |
Cover, Child Restraint Seat Tether Anchor
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73717-12060-B0 note |
Cover, Child Restraint Seat Tether Anchor
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73717-12070-B0 note |
Cover, Child Restraint Seat Tether Anchor
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
