Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

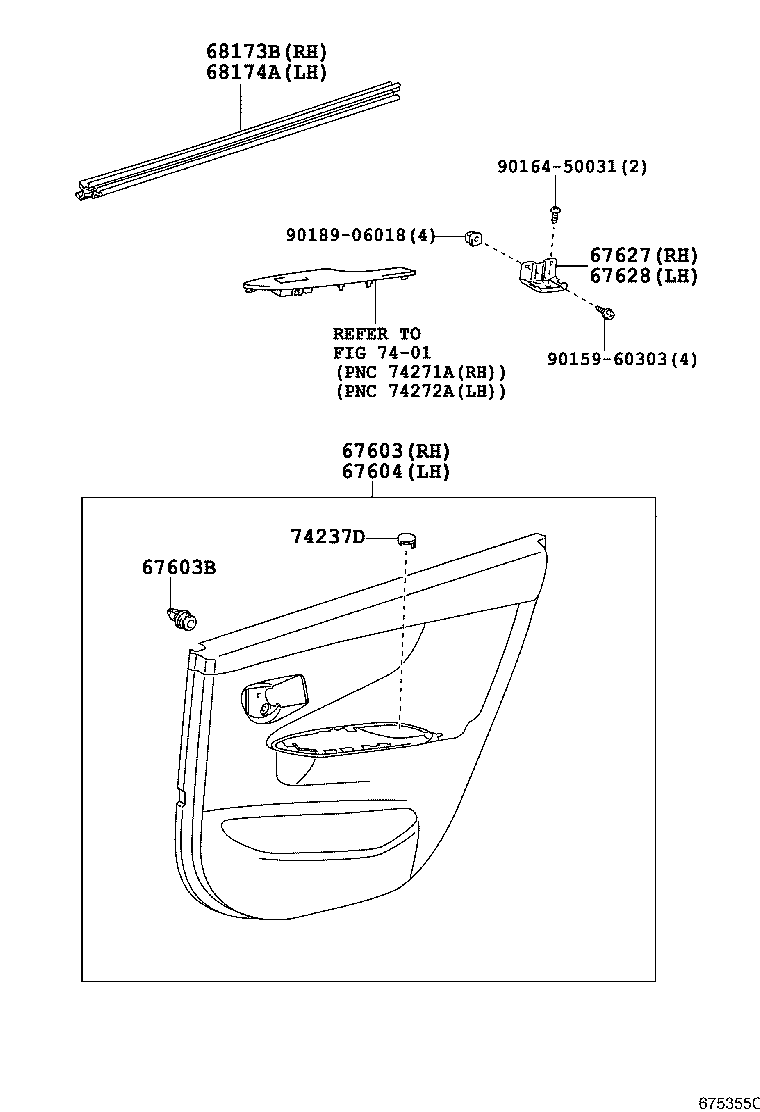

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67603 — Board Sub-assy, Rear Door Trim, RH | ||||
| 67630-12F30-B0 note |
Board Sub-assy, Rear Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67630-12F30-E0 note |
Board Sub-assy, Rear Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67630-12F50-B0 note |
Board Sub-assy, Rear Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67630-12F50-B0 note |
Board Sub-assy, Rear Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 67630-12F50-E0 note |
Board Sub-assy, Rear Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 67630-12F50-E0 note |
Board Sub-assy, Rear Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67630-12K60-B0 note |
Board Sub-assy, Rear Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67630-12K60-E0 note |
Board Sub-assy, Rear Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67630-12K61-B0 note |
Board Sub-assy, Rear Door Trim, RH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67630-12K61-E0 note |
Board Sub-assy, Rear Door Trim, RH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67630-12K62-B0 note |
Board Sub-assy, Rear Door Trim, RH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67630-12K62-E0 note |
Board Sub-assy, Rear Door Trim, RH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67630-12K70-B0 note |
Board Sub-assy, Rear Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP LE | — | |
| 67630-12K70-B0 note |
Board Sub-assy, Rear Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67630-12K70-E0 note |
Board Sub-assy, Rear Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP LE | — | |
| 67630-12K70-E0 note |
Board Sub-assy, Rear Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67630-12K71-B0 note |
Board Sub-assy, Rear Door Trim, RH
2011-05 → 2012-02
ended
|
ZRE142 JPP LE | — | |
| 67630-12K71-B0 note |
Board Sub-assy, Rear Door Trim, RH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67630-12K71-E0 note |
Board Sub-assy, Rear Door Trim, RH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67630-12K71-E0 note |
Board Sub-assy, Rear Door Trim, RH
2011-05 → 2012-02
ended
|
ZRE142 JPP LE | — | |
| 67630-12K72-B0 note |
Board Sub-assy, Rear Door Trim, RH
2012-03 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67630-12K72-B0 note |
Board Sub-assy, Rear Door Trim, RH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67630-12K72-E0 note |
Board Sub-assy, Rear Door Trim, RH
2012-03 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67630-12K72-E0 note |
Board Sub-assy, Rear Door Trim, RH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67630-12L90-B0 note |
Board Sub-assy, Rear Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP LE | — | |
| 67630-12L91-B0 note |
Board Sub-assy, Rear Door Trim, RH
2011-05 → 2012-02
ended
|
ZRE142 JPP LE | — | |
| 67630-12L92-B0 note |
Board Sub-assy, Rear Door Trim, RH
2012-03 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67603B — Clip(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
Clip(FOR REAR DOOR TRIM BOARD)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90467-09206 |
Clip(FOR REAR DOOR TRIM BOARD)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 67604 — Board Sub-assy, Rear Door Trim, LH | ||||
| 67640-12F20-B0 note |
Board Sub-assy, Rear Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67640-12F20-E0 note |
Board Sub-assy, Rear Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67640-12F40-B0 note |
Board Sub-assy, Rear Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 67640-12F40-B0 note |
Board Sub-assy, Rear Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67640-12F40-E0 note |
Board Sub-assy, Rear Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67640-12F40-E0 note |
Board Sub-assy, Rear Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 67640-12K50-B0 note |
Board Sub-assy, Rear Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67640-12K50-E0 note |
Board Sub-assy, Rear Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67640-12K51-B0 note |
Board Sub-assy, Rear Door Trim, LH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67640-12K51-E0 note |
Board Sub-assy, Rear Door Trim, LH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67640-12K52-B0 note |
Board Sub-assy, Rear Door Trim, LH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67640-12K52-E0 note |
Board Sub-assy, Rear Door Trim, LH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67640-12K60-B0 note |
Board Sub-assy, Rear Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67640-12K60-B0 note |
Board Sub-assy, Rear Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP LE | — | |
| 67640-12K60-E0 note |
Board Sub-assy, Rear Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP LE | — | |
| 67640-12K60-E0 note |
Board Sub-assy, Rear Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67640-12K61-B0 note |
Board Sub-assy, Rear Door Trim, LH
2011-05 → 2012-02
ended
|
ZRE142 JPP LE | — | |
| 67640-12K61-B0 note |
Board Sub-assy, Rear Door Trim, LH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67640-12K61-E0 note |
Board Sub-assy, Rear Door Trim, LH
2011-05 → 2012-02
ended
|
ZRE142 JPP LE | — | |
| 67640-12K61-E0 note |
Board Sub-assy, Rear Door Trim, LH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67640-12K62-B0 note |
Board Sub-assy, Rear Door Trim, LH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67640-12K62-B0 note |
Board Sub-assy, Rear Door Trim, LH
2012-03 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67640-12K62-E0 note |
Board Sub-assy, Rear Door Trim, LH
2012-03 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67640-12K62-E0 note |
Board Sub-assy, Rear Door Trim, LH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67640-12L90-B0 note |
Board Sub-assy, Rear Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP LE | — | |
| 67640-12L91-B0 note |
Board Sub-assy, Rear Door Trim, LH
2011-05 → 2012-02
ended
|
ZRE142 JPP LE | — | |
| 67640-12L92-B0 note |
Board Sub-assy, Rear Door Trim, LH
2012-03 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67627 — Bracket, Rear Door Trim, RH | ||||
| 67625-12210 |
Bracket, Rear Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 67625-12210 |
Bracket, Rear Door Trim, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 67628 — Bracket, Rear Door Trim, LH | ||||
| 67625-12210 |
Bracket, Rear Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 67625-12210 |
Bracket, Rear Door Trim, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 68173B — Weatherstrip, Rear Door Glass, Inner RH | ||||
| 68173-12310 |
Weatherstrip, Rear Door Glass, Inner RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 68173-12310 |
Weatherstrip, Rear Door Glass, Inner RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 68174A — Weatherstrip, Rear Door Glass, Inner LH | ||||
| 68174-12170 |
Weatherstrip, Rear Door Glass, Inner LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 68174-12170 |
Weatherstrip, Rear Door Glass, Inner LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 74237D — Cap, Rear Door Armrest Base | ||||
| 74223-12130-B1 note |
Cap, Rear Door Armrest Base
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 74223-12130-E0 note |
Cap, Rear Door Armrest Base
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 74223-12130-B1 note |
Cap, Rear Door Armrest Base
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 74223-12130-E0 note |
Cap, Rear Door Armrest Base
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
