Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

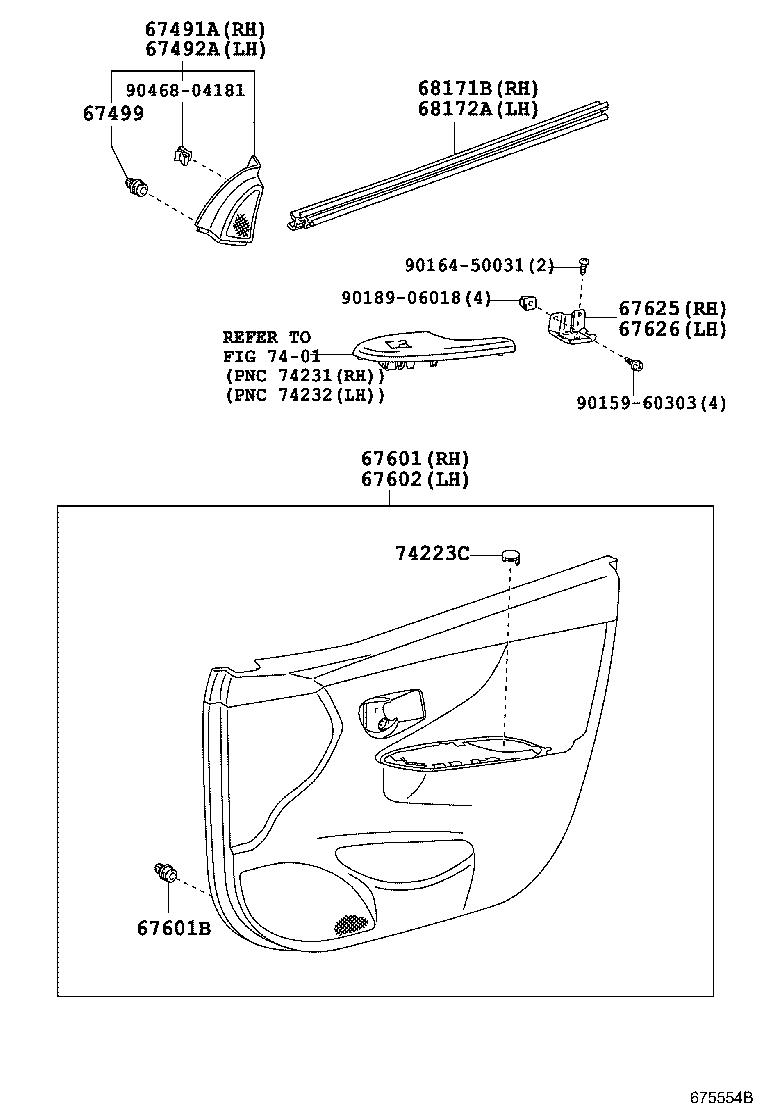

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67491A — Garnish, Front Door Lower Frame Bracket, RH | ||||
| 67491-12500 |
Garnish, Front Door Lower Frame Bracket, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 67491-12510 note |
Garnish, Front Door Lower Frame Bracket, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 67491-12510 note |
Garnish, Front Door Lower Frame Bracket, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 67491-12500 |
Garnish, Front Door Lower Frame Bracket, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67491-12510 note |
Garnish, Front Door Lower Frame Bracket, RH
2011-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67491-12510 |
Garnish, Front Door Lower Frame Bracket, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67492A — Garnish, Front Door Lower Frame Bracket, LH | ||||
| 67492-12500 |
Garnish, Front Door Lower Frame Bracket, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 67492-12510 note |
Garnish, Front Door Lower Frame Bracket, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 67492-12510 note |
Garnish, Front Door Lower Frame Bracket, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 67492-12500 |
Garnish, Front Door Lower Frame Bracket, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67492-12510 |
Garnish, Front Door Lower Frame Bracket, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67492-12510 note |
Garnish, Front Door Lower Frame Bracket, LH
2011-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67499 — Retainer, Front Door Lower Frame Bracket Garnish | ||||
| 67771-12060 |
Retainer, Front Door Lower Frame Bracket Garnish
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 67771-12060 |
Retainer, Front Door Lower Frame Bracket Garnish
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 67601 — Board Sub-assy, Front Door Trim, RH | ||||
| 67610-12G80-B0 note |
Board Sub-assy, Front Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67610-12G80-E0 note |
Board Sub-assy, Front Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67610-12J00-B0 note |
Board Sub-assy, Front Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 67610-12J00-B0 note |
Board Sub-assy, Front Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67610-12J00-E0 note |
Board Sub-assy, Front Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 67610-12J00-E0 note |
Board Sub-assy, Front Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67610-12G81-B1 note |
Board Sub-assy, Front Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67610-12G81-E1 note |
Board Sub-assy, Front Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67610-12G82-B1 note |
Board Sub-assy, Front Door Trim, RH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67610-12G82-E1 note |
Board Sub-assy, Front Door Trim, RH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67610-12G83-B1 note |
Board Sub-assy, Front Door Trim, RH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67610-12G83-E1 note |
Board Sub-assy, Front Door Trim, RH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67610-12J01-B1 note |
Board Sub-assy, Front Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67610-12J01-B1 note |
Board Sub-assy, Front Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP LE | — | |
| 67610-12J01-E1 note |
Board Sub-assy, Front Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP LE | — | |
| 67610-12J01-E1 note |
Board Sub-assy, Front Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67610-12J02-B1 note |
Board Sub-assy, Front Door Trim, RH
2011-05 → 2012-02
ended
|
ZRE142 JPP LE | — | |
| 67610-12J02-B1 note |
Board Sub-assy, Front Door Trim, RH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67610-12J02-E1 note |
Board Sub-assy, Front Door Trim, RH
2011-05 → 2012-02
ended
|
ZRE142 JPP LE | — | |
| 67610-12J02-E1 note |
Board Sub-assy, Front Door Trim, RH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67610-12J03-B1 note |
Board Sub-assy, Front Door Trim, RH
2012-03 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67610-12J03-B1 note |
Board Sub-assy, Front Door Trim, RH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67610-12J03-E1 note |
Board Sub-assy, Front Door Trim, RH
2012-03 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67610-12J03-E1 note |
Board Sub-assy, Front Door Trim, RH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67610-12L81-B0 note |
Board Sub-assy, Front Door Trim, RH
2010-12 → 2011-04
ended
|
ZRE142 JPP LE | — | |
| 67610-12L82-B0 note |
Board Sub-assy, Front Door Trim, RH
2011-05 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67601B — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
Clip(FOR FRONT DOOR TRIM BOARD)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90467-09206 |
Clip(FOR FRONT DOOR TRIM BOARD)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 67602 — Board Sub-assy, Front Door Trim, LH | ||||
| 67620-12G20-B0 note |
Board Sub-assy, Front Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67620-12G20-E0 note |
Board Sub-assy, Front Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67620-12G40-B0 note |
Board Sub-assy, Front Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 67620-12G40-B0 note |
Board Sub-assy, Front Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67620-12G40-E0 note |
Board Sub-assy, Front Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 67620-12G40-E0 note |
Board Sub-assy, Front Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 67620-12G21-B1 note |
Board Sub-assy, Front Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67620-12G21-E1 note |
Board Sub-assy, Front Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67620-12G22-B1 note |
Board Sub-assy, Front Door Trim, LH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67620-12G22-E1 note |
Board Sub-assy, Front Door Trim, LH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67620-12G23-B1 note |
Board Sub-assy, Front Door Trim, LH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67620-12G23-E1 note |
Board Sub-assy, Front Door Trim, LH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67620-12G41-B1 note |
Board Sub-assy, Front Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP LE | — | |
| 67620-12G41-B1 note |
Board Sub-assy, Front Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67620-12G41-E1 note |
Board Sub-assy, Front Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP LE | — | |
| 67620-12G41-E1 note |
Board Sub-assy, Front Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP STD | — | |
| 67620-12G42-B1 note |
Board Sub-assy, Front Door Trim, LH
2011-05 → 2012-02
ended
|
ZRE142 JPP LE | — | |
| 67620-12G42-B1 note |
Board Sub-assy, Front Door Trim, LH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67620-12G42-E1 note |
Board Sub-assy, Front Door Trim, LH
2011-05 → 2012-02
ended
|
ZRE142 JPP STD | — | |
| 67620-12G42-E1 note |
Board Sub-assy, Front Door Trim, LH
2011-05 → 2012-02
ended
|
ZRE142 JPP LE | — | |
| 67620-12G43-B1 note |
Board Sub-assy, Front Door Trim, LH
2012-03 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67620-12G43-B1 note |
Board Sub-assy, Front Door Trim, LH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67620-12G43-E1 note |
Board Sub-assy, Front Door Trim, LH
2012-03 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67620-12G43-E1 note |
Board Sub-assy, Front Door Trim, LH
2012-03 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 67620-12L21-B0 note |
Board Sub-assy, Front Door Trim, LH
2010-12 → 2011-04
ended
|
ZRE142 JPP LE | — | |
| 67620-12L22-B0 note |
Board Sub-assy, Front Door Trim, LH
2011-05 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 67625 — Bracket, Front Door Trim, RH | ||||
| 67625-12210 |
Bracket, Front Door Trim, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 67625-12210 |
Bracket, Front Door Trim, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 67626 — Bracket, Front Door Trim, LH | ||||
| 67625-12210 |
Bracket, Front Door Trim, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 67625-12210 |
Bracket, Front Door Trim, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 68171B — Weatherstrip, Front Door Glass, Inner RH | ||||
| 68171-12340 |
Weatherstrip, Front Door Glass, Inner RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 68171-12340 |
Weatherstrip, Front Door Glass, Inner RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 68172A — Weatherstrip, Front Door Glass, Inner LH | ||||
| 68172-12260 |
Weatherstrip, Front Door Glass, Inner LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 68172-12260 |
Weatherstrip, Front Door Glass, Inner LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 74223C — Cap, Door Armrest | ||||
| 74223-12130-B1 note |
Cap, Door Armrest
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 74223-12130-E0 note |
Cap, Door Armrest
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 74223-12130-B1 note |
Cap, Door Armrest
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 74223-12130-E0 note |
Cap, Door Armrest
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
