Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

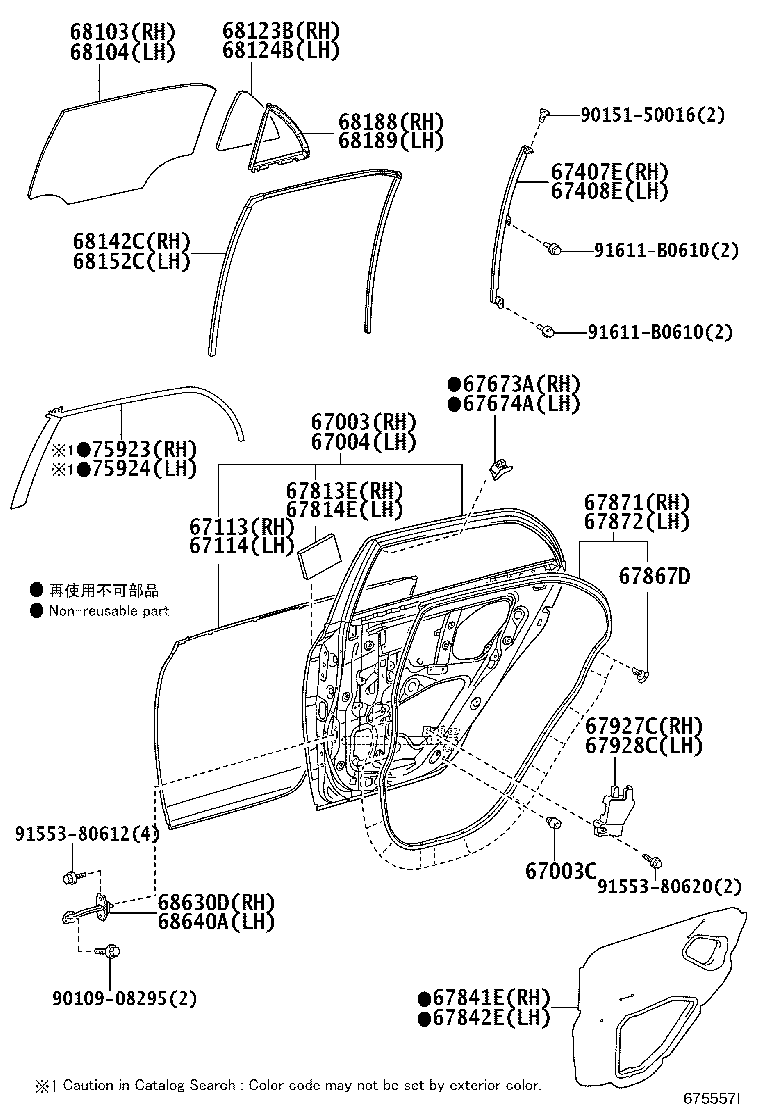

Exploded illustration 675557I 67407E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH (2 parts) 67408E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH (2 parts) 67003 — PANEL SUB-ASSY, REAR DOOR, RH (12 parts) 67113 — PANEL, REAR DOOR, OUTER RH (2 parts) 67114 — PANEL, REAR DOOR, OUTER LH (2 parts) 68103 — GLASS SUB-ASSY, REAR DOOR, RH (2 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (2 parts) 67813E — SHEET, QUARTER PANEL SILENCER, RH (1 parts) 67814E — SHEET, QUARTER PANEL SILENCER, LH (1 parts) 67841E — COVER, REAR DOOR SERVICE HOLE, RH (2 parts) 67842E — COVER, REAR DOOR SERVICE HOLE, LH (2 parts) 67927C — CUSHION, SEPARATOR DOOR STIFFENER, NO.1 (3 parts) 67928C — CUSHION, SEPARATOR DOOR STIFFENER, NO.2 (3 parts) 68142C — RUN, REAR DOOR GLASS, RH (2 parts) 68152C — RUN, REAR DOOR GLASS, LH (2 parts) 68188 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH (2 parts) 68189 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH (2 parts) 9015150016 — not listed in this catalogue 91611B0610 — not listed in this catalogue 68630D — CHECK ASSY, REAR DOOR, RH (3 parts) 68640A — CHECK ASSY, REAR DOOR, LH (3 parts) 9010908295 — not listed in this catalogue 9155380612 — not listed in this catalogue 91611B0610 — not listed in this catalogue 67004 — PANEL SUB-ASSY, REAR DOOR, LH (12 parts) 67867D — RETAINER, REAR DOOR WEATHERSTRIP, RH (2 parts) 67871 — WEATHERSTRIP, REAR DOOR, RH (2 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (2 parts) 68123B — GLASS, REAR DOOR QUARTER WINDOW, RH (2 parts) 68124B — GLASS, REAR DOOR QUARTER WINDOW, LH (2 parts) 67673A — GARNISH, REAR DOOR FRAME, RH (2 parts) 67674A — GARNISH, REAR DOOR FRAME, LH (2 parts) 9155380620 — not listed in this catalogue 67003C — CUSHION, REAR DOOR PANEL (3 parts) 75923 — TAPE, BLACK OUT, NO.2 RH (2 parts) 75924 — TAPE, BLACK OUT, NO.2 LH (2 parts)
675557I · 30 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
83 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-12A90 note Panel Sub-assy, Rear Door, RH
2007-12 → 2008-12 ended
ZRE142 JPP STD —
67003-12A90 Panel Sub-assy, Rear Door, RH
2007-12 → 2008-12 ended
ZRE142 JPP LE —
67003-12A90 note Panel Sub-assy, Rear Door, RH
2009-01 → 2010-12 ended
ZRE142 JPP STD —
67003-12A90 Panel Sub-assy, Rear Door, RH
2009-01 → 2010-12 ended
ZRE142 JPP LE —
67003-12A91 Panel Sub-assy, Rear Door, RH
2008-12 → 2009-01 ended
ZRE142 JPP LE —
67003-12A91 note Panel Sub-assy, Rear Door, RH
2008-12 → 2009-01 ended
ZRE142 JPP STD —
67003-12B00 Panel Sub-assy, Rear Door, RH
2007-12 → 2008-12 ended
ZRE142 JPP STD —
67003-12B00 Panel Sub-assy, Rear Door, RH
2009-01 → 2010-12 ended
ZRE142 JPP STD —
67003-12B01 Panel Sub-assy, Rear Door, RH
2008-12 → 2009-01 ended
ZRE142 JPP STD —
67003-12A90 Panel Sub-assy, Rear Door, RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
67003-12A90 note Panel Sub-assy, Rear Door, RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
67003-12B00 Panel Sub-assy, Rear Door, RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
67003C — Cushion, Rear Door Panel
90541-09124 Cushion, Rear Door Panel
2007-12 → 2008-08 ended
ZRE142 JPP —
90541-09143 Cushion, Rear Door Panel
2008-08 → 2010-12 ended
ZRE142 JPP —
90541-09143 Cushion, Rear Door Panel
2010-12 → 2013-08 ended
ZRE142 JPP —
67004 — Panel Sub-assy, Rear Door, LH
67004-12A90 Panel Sub-assy, Rear Door, LH
2007-12 → 2008-12 ended
ZRE142 JPP LE —
67004-12A90 note Panel Sub-assy, Rear Door, LH
2007-12 → 2008-12 ended
ZRE142 JPP STD —
67004-12A90 note Panel Sub-assy, Rear Door, LH
2009-01 → 2010-12 ended
ZRE142 JPP STD —
67004-12A90 Panel Sub-assy, Rear Door, LH
2009-01 → 2010-12 ended
ZRE142 JPP LE —
67004-12A91 Panel Sub-assy, Rear Door, LH
2008-12 → 2009-01 ended
ZRE142 JPP LE —
67004-12A91 note Panel Sub-assy, Rear Door, LH
2008-12 → 2009-01 ended
ZRE142 JPP STD —
67004-12B00 Panel Sub-assy, Rear Door, LH
2009-01 → 2010-12 ended
ZRE142 JPP STD —
67004-12B00 Panel Sub-assy, Rear Door, LH
2007-12 → 2008-12 ended
ZRE142 JPP STD —
67004-12B01 Panel Sub-assy, Rear Door, LH
2008-12 → 2009-01 ended
ZRE142 JPP STD —
67004-12A90 Panel Sub-assy, Rear Door, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
67004-12A90 note Panel Sub-assy, Rear Door, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
67004-12B00 Panel Sub-assy, Rear Door, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
67113 — Panel, Rear Door, Outer RH
67113-12310 Panel, Rear Door, Outer RH
2007-12 → 2010-12 ended
ZRE142 JPP —
67113-12310 Panel, Rear Door, Outer RH
2010-12 → 2013-08 ended
ZRE142 JPP —
67114 — Panel, Rear Door, Outer LH
67114-12300 Panel, Rear Door, Outer LH
2007-12 → 2010-12 ended
ZRE142 JPP —
67114-12300 Panel, Rear Door, Outer LH
2010-12 → 2013-08 ended
ZRE142 JPP —
67407E — Bar Sub-assy, Rear Door Window Division, RH
67407-12290 Bar Sub-assy, Rear Door Window Division, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
67407-12290 Bar Sub-assy, Rear Door Window Division, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
67408E — Bar Sub-assy, Rear Door Window Division, LH
67408-12290 Bar Sub-assy, Rear Door Window Division, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
67408-12290 Bar Sub-assy, Rear Door Window Division, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
67673A — Garnish, Rear Door Frame, RH
67673-48010 Garnish, Rear Door Frame, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
67673-48010 Garnish, Rear Door Frame, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
67674A — Garnish, Rear Door Frame, LH
67674-48010 Garnish, Rear Door Frame, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
67674-48010 Garnish, Rear Door Frame, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
67813E — Sheet, Quarter Panel Silencer, RH
67817-47010 Sheet, Quarter Panel Silencer, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
67814E — Sheet, Quarter Panel Silencer, LH
67817-47010 Sheet, Quarter Panel Silencer, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
67841E — Cover, Rear Door Service Hole, RH
67841-12360 Cover, Rear Door Service Hole, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
67841-12360 Cover, Rear Door Service Hole, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
67842E — Cover, Rear Door Service Hole, LH
67842-12170 Cover, Rear Door Service Hole, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
67842-12170 Cover, Rear Door Service Hole, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
67867D — Retainer, Rear Door Weatherstrip, RH
67867-12150 Retainer, Rear Door Weatherstrip, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
67867-12150 Retainer, Rear Door Weatherstrip, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
67871 — Weatherstrip, Rear Door, RH
67871-12530 Weatherstrip, Rear Door, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
67871-12530 Weatherstrip, Rear Door, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
67872 — Weatherstrip, Rear Door, LH
67872-12530 Weatherstrip, Rear Door, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
67872-12530 Weatherstrip, Rear Door, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
67927C — Cushion, Separator Door Stiffener, NO.1
67927-12020 Cushion, Separator Door Stiffener, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
67927-12040 Cushion, Separator Door Stiffener, NO.1
2010-12 → 2011-12 ended
ZRE142 JPP —
67927-12050 Cushion, Separator Door Stiffener, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP —
67928C — Cushion, Separator Door Stiffener, NO.2
67928-12020 Cushion, Separator Door Stiffener, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
67928-12040 Cushion, Separator Door Stiffener, NO.2
2010-12 → 2011-12 ended
ZRE142 JPP —
67928-12050 Cushion, Separator Door Stiffener, NO.2
2011-12 → 2013-08 ended
ZRE142 JPP —
68103 — Glass Sub-assy, Rear Door, RH
68113-12770 note Glass Sub-assy, Rear Door, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
68113-12770 note Glass Sub-assy, Rear Door, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
68104 — Glass Sub-assy, Rear Door, LH
68114-12770 note Glass Sub-assy, Rear Door, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
68114-12770 note Glass Sub-assy, Rear Door, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
68123B — Glass, Rear Door Quarter Window, RH
68123-12800 note Glass, Rear Door Quarter Window, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
68123-12800 note Glass, Rear Door Quarter Window, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
68124B — Glass, Rear Door Quarter Window, LH
68124-12800 note Glass, Rear Door Quarter Window, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
68124-12800 note Glass, Rear Door Quarter Window, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
68142C — Run, Rear Door Glass, RH
68142-12290 Run, Rear Door Glass, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
68142-12290 Run, Rear Door Glass, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
68152C — Run, Rear Door Glass, LH
68152-12200 Run, Rear Door Glass, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
68152-12200 Run, Rear Door Glass, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
68188 — Weatherstrip, Rear Door Quarter Window, RH
68188-12330 Weatherstrip, Rear Door Quarter Window, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
68188-12330 Weatherstrip, Rear Door Quarter Window, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
68189 — Weatherstrip, Rear Door Quarter Window, LH
68189-12330 Weatherstrip, Rear Door Quarter Window, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
68189-12330 Weatherstrip, Rear Door Quarter Window, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
68630D — Check Assy, Rear Door, RH
68630-12130 Check Assy, Rear Door, RH
2007-12 → 2010-04 ended
ZRE142 JPP —
68630-12131 Check Assy, Rear Door, RH
2010-04 → 2010-12 ended
ZRE142 JPP —
68630-12131 Check Assy, Rear Door, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
68640A — Check Assy, Rear Door, LH
68630-12130 Check Assy, Rear Door, LH
2007-12 → 2010-04 ended
ZRE142 JPP —
68630-12131 Check Assy, Rear Door, LH
2010-04 → 2010-12 ended
ZRE142 JPP —
68630-12131 Check Assy, Rear Door, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
75923 — Tape, Black Out, NO.2 RH
75923-12060 note Tape, Black Out, NO.2 RH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
75923-12060 note Tape, Black Out, NO.2 RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
75924 — Tape, Black Out, NO.2 LH
75924-12060 note Tape, Black Out, NO.2 LH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
75924-12060 note Tape, Black Out, NO.2 LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
