Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

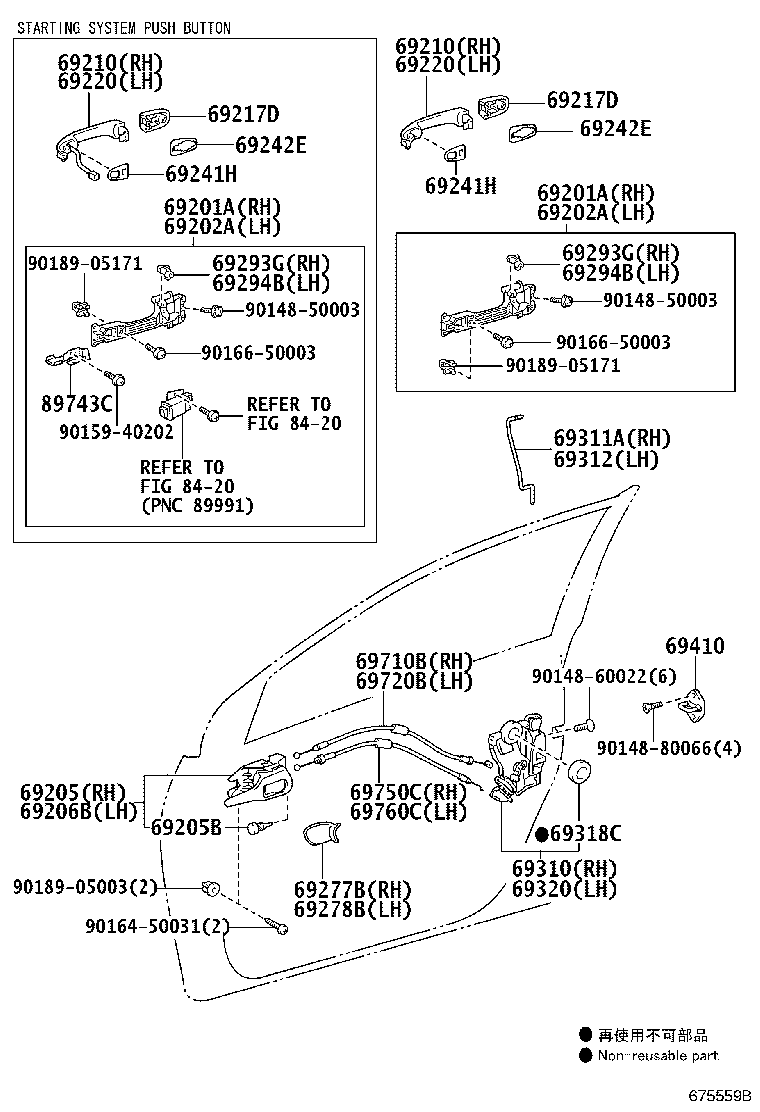

Exploded illustration 675559B 69205 — HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH (7 parts) 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (54 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (54 parts) 69241H — PAD, FRONT DOOR OUTSIDE HANDLE, FRONT (2 parts) 69242E — PAD, FRONT DOOR OUTSIDE HANDLE, REAR (2 parts) 69217D — COVER, FRONT DOOR OUTSIDE HANDLE (91 parts) 69277B — BEZEL, FRONT DOOR INSIDE HANDLE, RH (4 parts) 69278B — BEZEL, FRONT DOOR INSIDE HANDLE, LH (4 parts) 69310 — LOCK ASSY, FRONT DOOR, RH (8 parts) 69311A — ROD, FRONT DOOR LOCK OPEN, RH (2 parts) 69312 — ROD, FRONT DOOR LOCK OPEN, LH (2 parts) 69320 — LOCK ASSY, FRONT DOOR, LH (8 parts) 69410 — PLATE ASSY, FRONT DOOR LOCK STRIKER (2 parts) 69710B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH (2 parts) 69720B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH (2 parts) 69750C — CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH (2 parts) 69760C — CABLE ASSY, FRONT DOOR INSIDE LOCKING LH (2 parts) 9014860022 — not listed in this catalogue 9014880066 — not listed in this catalogue 9016450031 — not listed in this catalogue 9018905003 — not listed in this catalogue 69205B — CUSHION(FOR FRONT DOOR INSIDE HANDLE) (2 parts) 69206B — HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH (7 parts) 69318C — SEAL, DOOR LOCK WIRING HARNESS (6 parts) 69201A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH (3 parts) 69202A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH (3 parts) 69293G — SNAP, FRONT DOOR OUTSIDE HANDLE, RH (2 parts) 69294B — SNAP, FRONT DOOR OUTSIDE HANDLE, LH (2 parts) 9014850003 — not listed in this catalogue 9016650003 — not listed in this catalogue 9018905171 — not listed in this catalogue 69201A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH (3 parts) 69202A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH (3 parts) 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (54 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (54 parts) 69241H — PAD, FRONT DOOR OUTSIDE HANDLE, FRONT (2 parts) 69242E — PAD, FRONT DOOR OUTSIDE HANDLE, REAR (2 parts) 69217D — COVER, FRONT DOOR OUTSIDE HANDLE (91 parts) 89743C — BRACKET, ELECTRICAL KEY WIRE HARNESS (2 parts) 9014850003 — not listed in this catalogue 9016650003 — not listed in this catalogue 9015940202 — not listed in this catalogue 9018905171 — not listed in this catalogue 8420 — not listed in this catalogue 69293G — SNAP, FRONT DOOR OUTSIDE HANDLE, RH (2 parts) 69294B — SNAP, FRONT DOOR OUTSIDE HANDLE, LH (2 parts) 8420 — not listed in this catalogue
675559B · 34 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
275 parts on this figure
Part number Description Fitment Price
69201A — Frame Sub-assy, Front Door Outside Handle, RH
69201-52040 Frame Sub-assy, Front Door Outside Handle, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
69201-52060 note Frame Sub-assy, Front Door Outside Handle, RH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69201-52040 Frame Sub-assy, Front Door Outside Handle, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
69202A — Frame Sub-assy, Front Door Outside Handle, LH
69202-52020 Frame Sub-assy, Front Door Outside Handle, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
69202-52040 note Frame Sub-assy, Front Door Outside Handle, LH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69202-52020 Frame Sub-assy, Front Door Outside Handle, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
69205 — Handle Sub-assy, Front Door Inside, RH
69205-12220-B4 note Handle Sub-assy, Front Door Inside, RH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69205-12220-B4 note Handle Sub-assy, Front Door Inside, RH
2009-01 → 2010-12 ended
ZRE142 JPP STD —
69205-12230-B1 note Handle Sub-assy, Front Door Inside, RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69205-12230-E0 note Handle Sub-assy, Front Door Inside, RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69205-12220-B4 note Handle Sub-assy, Front Door Inside, RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69205-12230-B1 note Handle Sub-assy, Front Door Inside, RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69205-12230-E0 note Handle Sub-assy, Front Door Inside, RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69205B — Cushion(FOR FRONT DOOR INSIDE HANDLE)
90541-04027 Cushion(FOR FRONT DOOR INSIDE HANDLE)
2007-12 → 2010-12 ended
ZRE142 JPP —
90541-04027 Cushion(FOR FRONT DOOR INSIDE HANDLE)
2010-12 → 2013-08 ended
ZRE142 JPP —
69206B — Handle Sub-assy, Front Door Inside, LH
69206-12220-B4 note Handle Sub-assy, Front Door Inside, LH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69206-12220-B4 note Handle Sub-assy, Front Door Inside, LH
2009-01 → 2010-12 ended
ZRE142 JPP STD —
69206-12230-B1 note Handle Sub-assy, Front Door Inside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69206-12230-E0 note Handle Sub-assy, Front Door Inside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69206-12220-B4 note Handle Sub-assy, Front Door Inside, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69206-12230-B1 note Handle Sub-assy, Front Door Inside, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69206-12230-E0 note Handle Sub-assy, Front Door Inside, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69210 — Handle Assy, Front Door, Outside RH
69210-12320-A0 note Handle Assy, Front Door, Outside RH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69210-12320-B6 note Handle Assy, Front Door, Outside RH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69210-12320-B7 note Handle Assy, Front Door, Outside RH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69210-12320-C0 note Handle Assy, Front Door, Outside RH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69210-12320-D6 note Handle Assy, Front Door, Outside RH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69210-12320-H2 note Handle Assy, Front Door, Outside RH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69210-12320-R6 note Handle Assy, Front Door, Outside RH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69211-12220-A0 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-A0 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-A0 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-12220-C2 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-12220-C2 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-C2 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-H5 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-12220-H5 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-H5 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-P5 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-12220-P5 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-P5 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-P6 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-P6 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-P6 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-12220-V2 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-12220-V2 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-V2 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-X4 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-12220-X4 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-X4 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-42010 note Handle Assy, Front Door, Outside RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-A0 note Handle Assy, Front Door, Outside RH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-A0 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-12220-A0 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-C2 note Handle Assy, Front Door, Outside RH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-C2 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-C2 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-12220-L9 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-12220-L9 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-L9 note Handle Assy, Front Door, Outside RH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-P5 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-12220-P5 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-P5 note Handle Assy, Front Door, Outside RH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-P6 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-12220-P6 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-P6 note Handle Assy, Front Door, Outside RH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-R8 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-12220-R8 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-R8 note Handle Assy, Front Door, Outside RH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-V4 note Handle Assy, Front Door, Outside RH
2011-07 → 2011-11 ended
ZRE142 JPP STD —
69211-12220-V4 note Handle Assy, Front Door, Outside RH
2010-12 → 2011-11 ended
ZRE142 JPP STD —
69211-12220-V4 note Handle Assy, Front Door, Outside RH
2010-12 → 2011-11 ended
ZRE142 JPP LE —
69211-12220-X4 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-X4 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-12220-X4 note Handle Assy, Front Door, Outside RH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-42010 note Handle Assy, Front Door, Outside RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69217D — Cover, Front Door Outside Handle
69217-12040-A0 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-12040-A0 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-12040-A0 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-12040-C2 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-12040-C2 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-12040-C2 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-12040-D9 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-12040-D9 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-12040-D9 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-12040-H4 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-12040-H4 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-12040-H4 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-12040-P0 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-12040-P0 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-12040-P0 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-12040-P1 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-12040-P1 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-12040-P1 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-12040-V1 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-12040-V1 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-12040-V1 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-42010 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-A3 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-A3 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-A3 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-42020-A3 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-42020-C2 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-42020-C2 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-42020-C2 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-C2 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-H5 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-42020-H5 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-H5 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-42020-H5 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-P5 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-42020-P5 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-P5 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-P5 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-42020-P6 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-42020-P6 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-P6 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-P6 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-42020-V4 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-42020-V4 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-V4 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-V4 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-42020-X4 note Cover, Front Door Outside Handle
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69217-42020-X4 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69217-42020-X4 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-42020-X4 note Cover, Front Door Outside Handle
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69217-12040-A0 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-12040-A0 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69217-12040-C2 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69217-12040-C2 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-12040-D9 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-12040-D9 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69217-12040-L5 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-12040-L5 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69217-12040-P0 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-12040-P0 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69217-12040-P1 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-12040-P1 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69217-12040-R5 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69217-12040-R5 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-12040-V5 note Cover, Front Door Outside Handle
2010-12 → 2011-11 ended
ZRE142 JPP LE —
69217-12040-V5 note Cover, Front Door Outside Handle
2011-07 → 2011-11 ended
ZRE142 JPP STD —
69217-42010 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-A3 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-A3 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69217-42020-A3 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-C2 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-C2 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-C2 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69217-42020-M1 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-M1 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69217-42020-M1 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-P5 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-P5 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69217-42020-P5 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-P6 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69217-42020-P6 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-P6 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-R9 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69217-42020-R9 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-R9 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-V7 note Cover, Front Door Outside Handle
2010-12 → 2011-11 ended
ZRE142 JPP LE —
69217-42020-V7 note Cover, Front Door Outside Handle
2010-12 → 2011-11 ended
ZRE142 JPP STD —
69217-42020-V7 note Cover, Front Door Outside Handle
2011-07 → 2011-11 ended
ZRE142 JPP STD —
69217-42020-X4 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-X4 note Cover, Front Door Outside Handle
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69217-42020-X4 note Cover, Front Door Outside Handle
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69220 — Handle Assy, Front Door Outside, LH
69210-12320-A0 note Handle Assy, Front Door Outside, LH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69210-12320-B6 note Handle Assy, Front Door Outside, LH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69210-12320-B7 note Handle Assy, Front Door Outside, LH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69210-12320-C0 note Handle Assy, Front Door Outside, LH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69210-12320-D6 note Handle Assy, Front Door Outside, LH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69210-12320-H2 note Handle Assy, Front Door Outside, LH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69210-12320-R6 note Handle Assy, Front Door Outside, LH
2007-12 → 2009-01 ended
ZRE142 JPP LE —
69211-12220-A0 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-A0 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-A0 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-12220-C2 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-12220-C2 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-C2 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-H5 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-12220-H5 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-H5 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-P5 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-P5 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-P5 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-12220-P6 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-12220-P6 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-P6 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-V2 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-12220-V2 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-V2 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-X4 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-X4 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-X4 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69211-42010 note Handle Assy, Front Door Outside, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69211-12220-A0 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-12220-A0 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-A0 note Handle Assy, Front Door Outside, LH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-C2 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-12220-C2 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-C2 note Handle Assy, Front Door Outside, LH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-L9 note Handle Assy, Front Door Outside, LH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-L9 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-12220-L9 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-P5 note Handle Assy, Front Door Outside, LH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-P5 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-12220-P5 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-P6 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-12220-P6 note Handle Assy, Front Door Outside, LH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-P6 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-R8 note Handle Assy, Front Door Outside, LH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-R8 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-R8 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-12220-V4 note Handle Assy, Front Door Outside, LH
2011-07 → 2011-11 ended
ZRE142 JPP STD —
69211-12220-V4 note Handle Assy, Front Door Outside, LH
2010-12 → 2011-11 ended
ZRE142 JPP STD —
69211-12220-V4 note Handle Assy, Front Door Outside, LH
2010-12 → 2011-11 ended
ZRE142 JPP LE —
69211-12220-X4 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-X4 note Handle Assy, Front Door Outside, LH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69211-12220-X4 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69211-42010 note Handle Assy, Front Door Outside, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69241H — Pad, Front Door Outside Handle, Front
69241-42020 Pad, Front Door Outside Handle, Front
2007-12 → 2010-12 ended
ZRE142 JPP —
69241-42020 Pad, Front Door Outside Handle, Front
2010-12 → 2013-08 ended
ZRE142 JPP —
69242E — Pad, Front Door Outside Handle, Rear
69242-52020 Pad, Front Door Outside Handle, Rear
2007-12 → 2010-12 ended
ZRE142 JPP —
69242-52020 Pad, Front Door Outside Handle, Rear
2010-12 → 2013-08 ended
ZRE142 JPP —
69277B — Bezel, Front Door Inside Handle, RH
69277-12140-B1 note Bezel, Front Door Inside Handle, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
69277-12140-E0 note Bezel, Front Door Inside Handle, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
69277-12140-B1 note Bezel, Front Door Inside Handle, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
69277-12140-E0 note Bezel, Front Door Inside Handle, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
69278B — Bezel, Front Door Inside Handle, LH
69278-12140-B1 note Bezel, Front Door Inside Handle, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
69278-12140-E0 note Bezel, Front Door Inside Handle, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
69278-12140-B1 note Bezel, Front Door Inside Handle, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
69278-12140-E0 note Bezel, Front Door Inside Handle, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
69293G — Snap, Front Door Outside Handle, RH
69293-12030 Snap, Front Door Outside Handle, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
69293-12030 Snap, Front Door Outside Handle, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
69294B — Snap, Front Door Outside Handle, LH
69293-12040 Snap, Front Door Outside Handle, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
69293-12040 Snap, Front Door Outside Handle, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
69310 — Lock Assy, Front Door, RH
69030-33280 note Lock Assy, Front Door, RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69030-42230 Lock Assy, Front Door, RH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69030-42230 note Lock Assy, Front Door, RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69310-12470 Lock Assy, Front Door, RH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69030-33280 note Lock Assy, Front Door, RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69030-42230 Lock Assy, Front Door, RH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69030-42230 note Lock Assy, Front Door, RH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69310-12470 Lock Assy, Front Door, RH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69311A — Rod, Front Door Lock Open, RH
69311-12160 Rod, Front Door Lock Open, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
69311-12160 Rod, Front Door Lock Open, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
69312 — Rod, Front Door Lock Open, LH
69312-12160 Rod, Front Door Lock Open, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
69312-12160 Rod, Front Door Lock Open, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
69318C — Seal, Door Lock Wiring Harness
69318-51010 Seal, Door Lock Wiring Harness
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69318-51010 note Seal, Door Lock Wiring Harness
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69318-51010 note Seal, Door Lock Wiring Harness
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69318-51010 Seal, Door Lock Wiring Harness
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69318-51010 note Seal, Door Lock Wiring Harness
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69318-51010 note Seal, Door Lock Wiring Harness
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69320 — Lock Assy, Front Door, LH
69040-42250 Lock Assy, Front Door, LH
2007-12 → 2010-12 ended
ZRE142 JPP LE —
69040-42250 note Lock Assy, Front Door, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69040-42250 note Lock Assy, Front Door, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69320-12480 Lock Assy, Front Door, LH
2007-12 → 2010-12 ended
ZRE142 JPP STD —
69040-42250 Lock Assy, Front Door, LH
2010-12 → 2013-08 ended
ZRE142 JPP LE —
69040-42250 note Lock Assy, Front Door, LH
2011-07 → 2013-08 ended
ZRE142 JPP STD —
69040-42250 note Lock Assy, Front Door, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69320-12480 Lock Assy, Front Door, LH
2010-12 → 2013-08 ended
ZRE142 JPP STD —
69410 — Plate Assy, Front Door Lock Striker
69410-33010 Plate Assy, Front Door Lock Striker
2007-12 → 2010-12 ended
ZRE142 JPP —
69410-33010 Plate Assy, Front Door Lock Striker
2010-12 → 2013-08 ended
ZRE142 JPP —
69710B — Cable Assy, Front Door Lock Remote Control, RH
69710-12120 Cable Assy, Front Door Lock Remote Control, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
69710-12120 Cable Assy, Front Door Lock Remote Control, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
69720B — Cable Assy, Front Door Lock Remote Control, LH
69710-12120 Cable Assy, Front Door Lock Remote Control, LH
2007-12 → 2010-12 ended
ZRE142 JPP —
69710-12120 Cable Assy, Front Door Lock Remote Control, LH
2010-12 → 2013-08 ended
ZRE142 JPP —
69750C — Cable Assy, Front Door Inside Locking, RH
69750-12150 Cable Assy, Front Door Inside Locking, RH
2007-12 → 2010-12 ended
ZRE142 JPP —
69750-12150 Cable Assy, Front Door Inside Locking, RH
2010-12 → 2013-08 ended
ZRE142 JPP —
69760C — Cable Assy, Front Door Inside Locking LH
69750-12150 Cable Assy, Front Door Inside Locking LH
2007-12 → 2010-12 ended
ZRE142 JPP —
69750-12150 Cable Assy, Front Door Inside Locking LH
2010-12 → 2013-08 ended
ZRE142 JPP —
89743C — Bracket, Electrical Key Wire Harness
89743-47010 note Bracket, Electrical Key Wire Harness
2007-12 → 2009-01 ended
ZRE142 JPP LE —
89743-47020 note Bracket, Electrical Key Wire Harness
2007-12 → 2009-01 ended
ZRE142 JPP LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
