Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

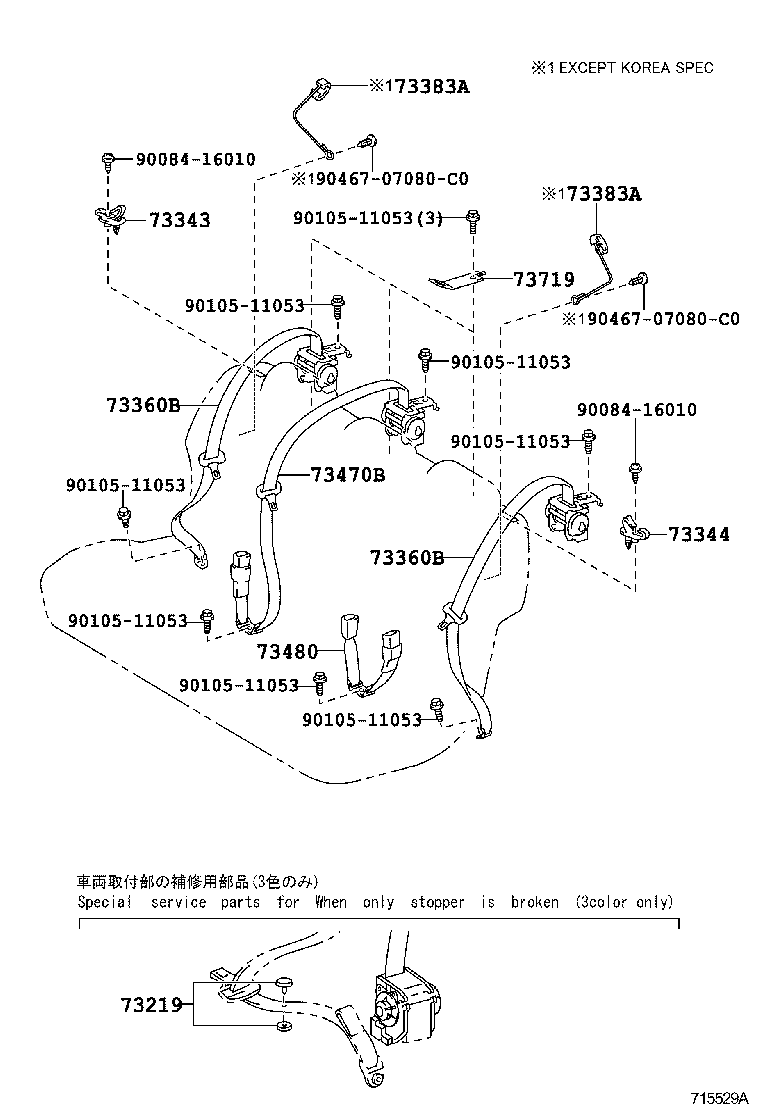

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73219 — Stopper, Tongue Plate | ||||
| 73219-33010 note |
Stopper, Tongue Plate
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73343 — Guide, Rear Seat Shoulder Belt, RH | ||||
| 73343-12030-B1 note |
Guide, Rear Seat Shoulder Belt, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73343-12030-E1 note |
Guide, Rear Seat Shoulder Belt, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73343-12030-B1 note |
Guide, Rear Seat Shoulder Belt, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73343-12030-E1 note |
Guide, Rear Seat Shoulder Belt, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73344 — Guide, Rear Seat Shoulder Belt, LH | ||||
| 73343-12030-B1 note |
Guide, Rear Seat Shoulder Belt, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73343-12030-E1 note |
Guide, Rear Seat Shoulder Belt, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73343-12030-B1 note |
Guide, Rear Seat Shoulder Belt, LH
2010-12 → 2012-10
ended
|
ZRE142 JPP LE | — | |
| 73343-12030-B1 note |
Guide, Rear Seat Shoulder Belt, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 73343-12030-B1 note |
Guide, Rear Seat Shoulder Belt, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73343-12030-E1 note |
Guide, Rear Seat Shoulder Belt, LH
2010-12 → 2012-10
ended
|
ZRE142 JPP LE | — | |
| 73343-12030-E1 note |
Guide, Rear Seat Shoulder Belt, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73360B — Belt Assy, Rear Seat, Outer | ||||
| 73360-12830-B1 note |
Belt Assy, Rear Seat, Outer
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73360-12830-E0 note |
Belt Assy, Rear Seat, Outer
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73360-12830-B1 note |
Belt Assy, Rear Seat, Outer
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73360-12830-E0 note |
Belt Assy, Rear Seat, Outer
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73383A — Hook, RR Seat Belt | ||||
| 73383-06020 |
Hook, RR Seat Belt
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73383-06020 |
Hook, RR Seat Belt
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73470B — Belt Assy, Rear Seat Inner W/Center, RH | ||||
| 73470-12210-B1 note |
Belt Assy, Rear Seat Inner W/Center, RH
2007-12 → 2008-04
ended
|
ZRE142 JPP | — | |
| 73470-12210-E0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2007-12 → 2008-04
ended
|
ZRE142 JPP | — | |
| 73470-12211-B1 note |
Belt Assy, Rear Seat Inner W/Center, RH
2008-05 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73470-12211-E0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2008-05 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73470-12211-B1 note |
Belt Assy, Rear Seat Inner W/Center, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73470-12211-E0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73480 — Belt Assy, Rear Seat Inner W/Center, LH | ||||
| 73480-12260-B1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73480-12260-E0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73480-12260-B1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73480-12260-E0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 73719 — Bracket, Child Restraint Seat Tether Anchor | ||||
| 73719-12020 |
Bracket, Child Restraint Seat Tether Anchor
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 73719-12020 |
Bracket, Child Restraint Seat Tether Anchor
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
