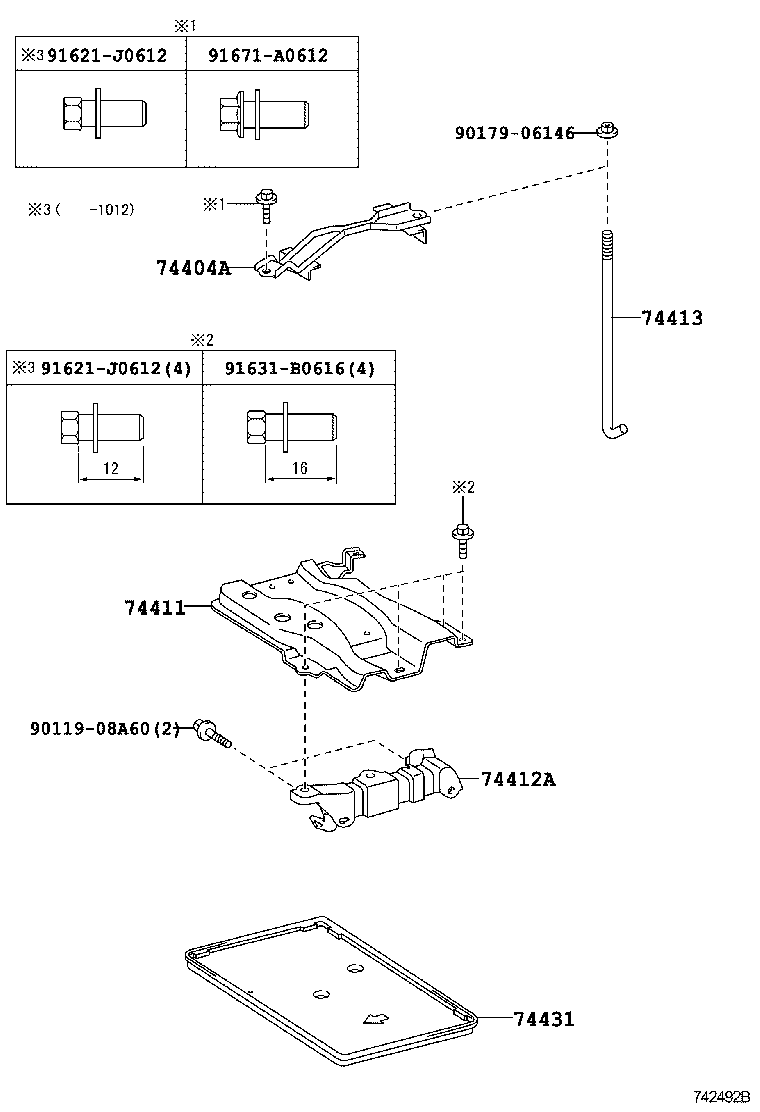

Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74404A — Clamp Sub-assy, Battery | ||||
| 74404-12500 |
Clamp Sub-assy, Battery
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 74404-12500 |
Clamp Sub-assy, Battery
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 74411 — Carrier, Battery | ||||
| 74401-12020 |
Carrier, Battery
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 74401-12020 |
Carrier, Battery
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 74412A — Carrier, Battery, NO.2 | ||||
| 74410-12040 |
Carrier, Battery, NO.2
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 74410-12040 |
Carrier, Battery, NO.2
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 74413 — Bolt, Battery Clamp | ||||
| 74451-58011 |
Bolt, Battery Clamp
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 74451-58011 |
Bolt, Battery Clamp
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 74431 — Tray, Battery | ||||
| 74431-12090 |
Tray, Battery
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 74431-12090 |
Tray, Battery
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
