Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

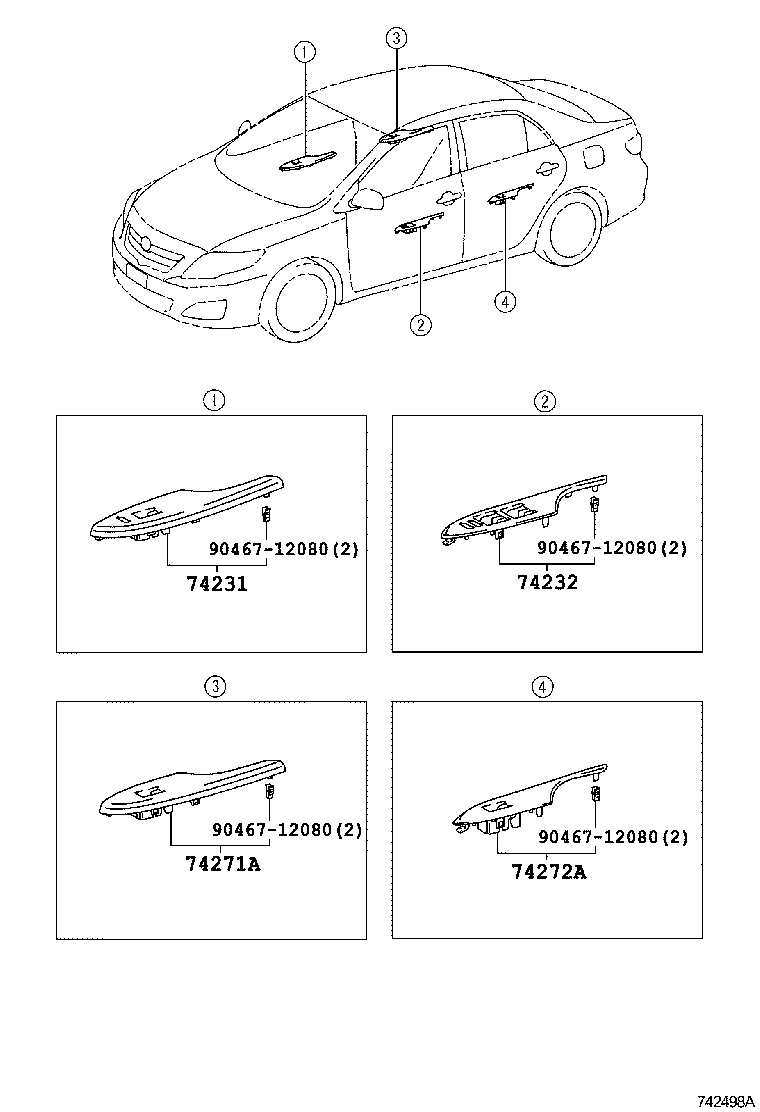

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74231 — Panel, Front Armrest Base, Upper RH | ||||
| 74231-12880-B0 note |
Panel, Front Armrest Base, Upper RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74231-12880-E0 note |
Panel, Front Armrest Base, Upper RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74231-12890-E0 note |
Panel, Front Armrest Base, Upper RH
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 74231-12A40-B0 note |
Panel, Front Armrest Base, Upper RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74231-12A40-E0 note |
Panel, Front Armrest Base, Upper RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74231-12B40-B0 note |
Panel, Front Armrest Base, Upper RH
2009-01 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74231-12880-B0 note |
Panel, Front Armrest Base, Upper RH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74231-12880-E0 note |
Panel, Front Armrest Base, Upper RH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74231-12A40-B0 note |
Panel, Front Armrest Base, Upper RH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74231-12A40-E0 note |
Panel, Front Armrest Base, Upper RH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74231-12B40-B0 note |
Panel, Front Armrest Base, Upper RH
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 74231-12C20-E1 note |
Panel, Front Armrest Base, Upper RH
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 74232 — Panel, Front Armrest Base, Upper LH | ||||
| 74232-12620-B0 note |
Panel, Front Armrest Base, Upper LH
2009-01 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74232-12690-E0 note |
Panel, Front Armrest Base, Upper LH
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 74232-12700-B1 note |
Panel, Front Armrest Base, Upper LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74232-12700-E0 note |
Panel, Front Armrest Base, Upper LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74232-12730-B0 note |
Panel, Front Armrest Base, Upper LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74232-12730-E0 note |
Panel, Front Armrest Base, Upper LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74232-12620-B0 note |
Panel, Front Armrest Base, Upper LH
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 74232-12700-B1 note |
Panel, Front Armrest Base, Upper LH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74232-12700-E0 note |
Panel, Front Armrest Base, Upper LH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74232-12730-B0 note |
Panel, Front Armrest Base, Upper LH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74232-12730-E0 note |
Panel, Front Armrest Base, Upper LH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74232-12A00-E2 note |
Panel, Front Armrest Base, Upper LH
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 74271A — Panel, Rear Door Armrest Base, Upper RH | ||||
| 74271-12230-B0 note |
Panel, Rear Door Armrest Base, Upper RH
2009-01 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74271-12280-E0 note |
Panel, Rear Door Armrest Base, Upper RH
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 74271-12290-B1 note |
Panel, Rear Door Armrest Base, Upper RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74271-12290-E0 note |
Panel, Rear Door Armrest Base, Upper RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74271-12300-B1 note |
Panel, Rear Door Armrest Base, Upper RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74271-12300-E0 note |
Panel, Rear Door Armrest Base, Upper RH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74271-12230-B0 note |
Panel, Rear Door Armrest Base, Upper RH
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 74271-12290-B1 note |
Panel, Rear Door Armrest Base, Upper RH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74271-12290-E0 note |
Panel, Rear Door Armrest Base, Upper RH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74271-12300-B1 note |
Panel, Rear Door Armrest Base, Upper RH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74271-12300-E0 note |
Panel, Rear Door Armrest Base, Upper RH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74271-12430-E1 note |
Panel, Rear Door Armrest Base, Upper RH
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 74272A — Panel, Rear Door Armrest Base, Upper LH | ||||
| 74272-12230-B0 note |
Panel, Rear Door Armrest Base, Upper LH
2009-01 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74272-12280-E0 note |
Panel, Rear Door Armrest Base, Upper LH
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 74272-12290-B1 note |
Panel, Rear Door Armrest Base, Upper LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74272-12290-E0 note |
Panel, Rear Door Armrest Base, Upper LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74272-12300-B1 note |
Panel, Rear Door Armrest Base, Upper LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74272-12300-E0 note |
Panel, Rear Door Armrest Base, Upper LH
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 74272-12230-B0 note |
Panel, Rear Door Armrest Base, Upper LH
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 74272-12290-B1 note |
Panel, Rear Door Armrest Base, Upper LH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74272-12290-E0 note |
Panel, Rear Door Armrest Base, Upper LH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74272-12300-B1 note |
Panel, Rear Door Armrest Base, Upper LH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74272-12300-E0 note |
Panel, Rear Door Armrest Base, Upper LH
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 74272-12440-E1 note |
Panel, Rear Door Armrest Base, Upper LH
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
