Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

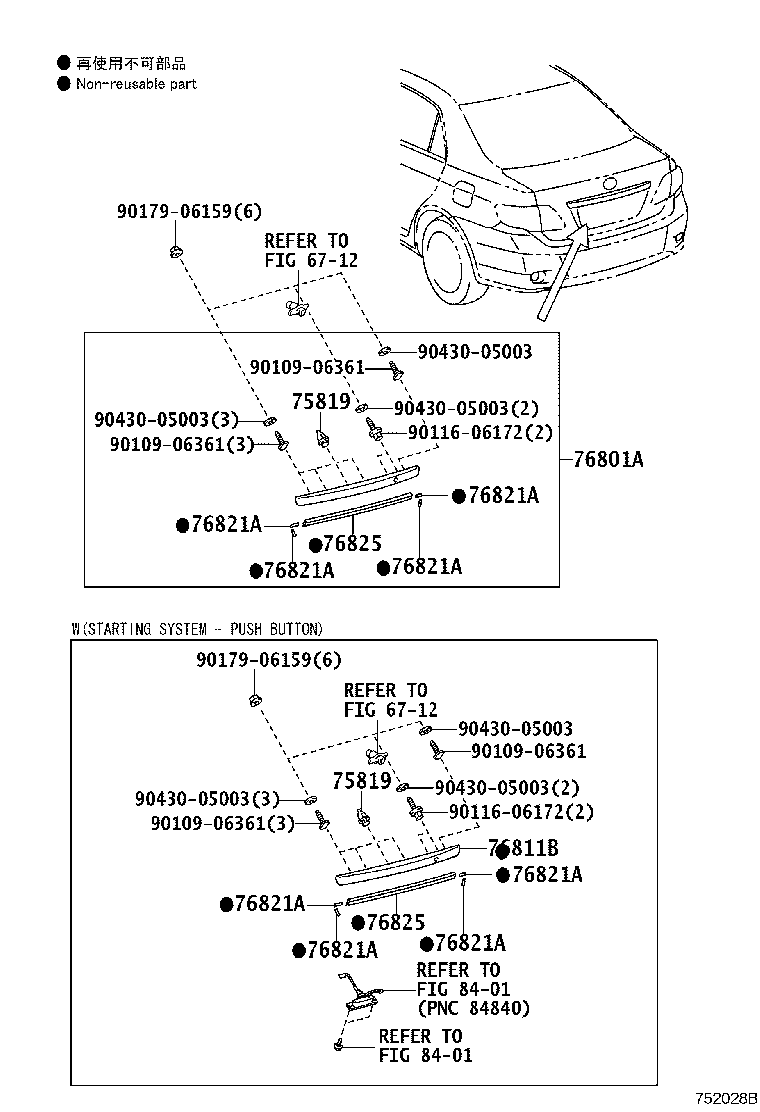

Exploded illustration 752028B 76801A — GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE (8 parts) 76821A — PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH (1 parts) 76821A — PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH (1 parts) 76821A — PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH (1 parts) 76821A — PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH (1 parts) 76825 — PROTECTOR, BACK DOOR OUTSIDE GARNISH (2 parts) 9010906361 — not listed in this catalogue 9010906361 — not listed in this catalogue 9011606172 — not listed in this catalogue 9017906159 — not listed in this catalogue 9043005003 — not listed in this catalogue 9043005003 — not listed in this catalogue 9043005003 — not listed in this catalogue 6712 — not listed in this catalogue 75819 — CLIP, LUGGAGE COMPARTMENT DOOR MOULDING (2 parts) 76811B — GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE (7 parts) 9010906361 — not listed in this catalogue 9010906361 — not listed in this catalogue 9017906159 — not listed in this catalogue 9043005003 — not listed in this catalogue 9043005003 — not listed in this catalogue 6712 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 76821A — PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH (1 parts) 76821A — PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH (1 parts) 76821A — PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH (1 parts) 76821A — PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH (1 parts) 76825 — PROTECTOR, BACK DOOR OUTSIDE GARNISH (2 parts) 9011606172 — not listed in this catalogue 9043005003 — not listed in this catalogue 75819 — CLIP, LUGGAGE COMPARTMENT DOOR MOULDING (2 parts)
752028B · 14 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
20 parts on this figure
Part number Description Fitment Price
75819 — Clip, Luggage Compartment Door Moulding
75819-33010 Clip, Luggage Compartment Door Moulding
2007-12 → 2010-12 ended
ZRE142 JPP —
75819-33010 Clip, Luggage Compartment Door Moulding
2010-12 → 2013-08 ended
ZRE142 JPP —
76801A — Garnish Sub-assy, Luggage Compartment Door, Outside
76801-12820-A0 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12820-B0 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12820-B1 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12820-C0 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12820-D0 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12820-H0 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12820-J3 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12B90 note Garnish Sub-assy, Luggage Compartment Door, Outside
2010-12 → 2013-08 ended
ZRE142 JPP —
76811B — Garnish, Luggage Compartment Door, Outside
76811-12860-A0 note Garnish, Luggage Compartment Door, Outside
2007-12 → 2009-01 ended
ZRE142 JPP LE —
76811-12860-B0 note Garnish, Luggage Compartment Door, Outside
2007-12 → 2009-01 ended
ZRE142 JPP LE —
76811-12860-B1 note Garnish, Luggage Compartment Door, Outside
2007-12 → 2009-01 ended
ZRE142 JPP LE —
76811-12860-C0 note Garnish, Luggage Compartment Door, Outside
2007-12 → 2009-01 ended
ZRE142 JPP LE —
76811-12860-D1 note Garnish, Luggage Compartment Door, Outside
2007-12 → 2009-01 ended
ZRE142 JPP LE —
76811-12860-H0 note Garnish, Luggage Compartment Door, Outside
2007-12 → 2009-01 ended
ZRE142 JPP LE —
76811-12860-J3 note Garnish, Luggage Compartment Door, Outside
2007-12 → 2009-01 ended
ZRE142 JPP LE —
76821A — Protector, Luggage Compartment Door Outside Garnish
76821-12210 Protector, Luggage Compartment Door Outside Garnish
2007-12 → 2010-12 ended
ZRE142 JPP —
76825 — Protector, Back Door Outside Garnish
76825-12050 Protector, Back Door Outside Garnish
2007-12 → 2010-12 ended
ZRE142 JPP —
76825-12120 Protector, Back Door Outside Garnish
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
