Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

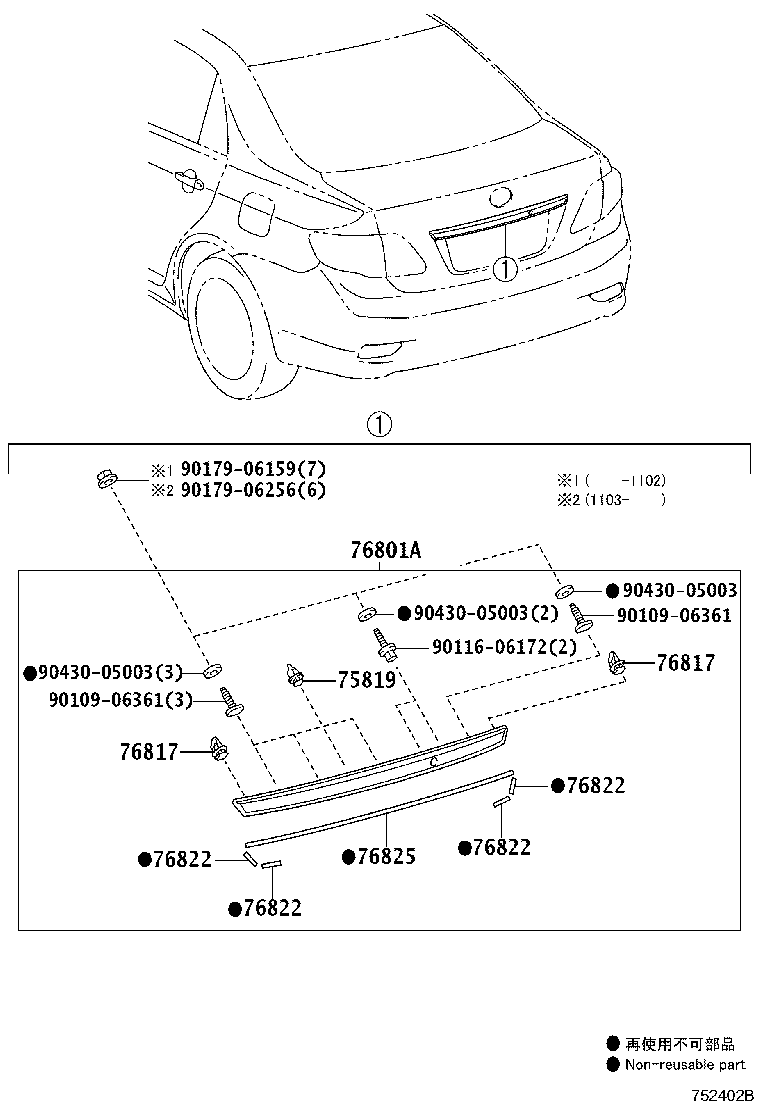

Exploded illustration 752402B 9017906256 — not listed in this catalogue 75819 — CLIP, LUGGAGE COMPARTMENT DOOR MOULDING (2 parts) 76817 — CLIP, BACK DOOR OUTSIDE GARNISH (1 parts) 76817 — CLIP, BACK DOOR OUTSIDE GARNISH (1 parts) 76822 — PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER (1 parts) 76822 — PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER (1 parts) 76822 — PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER (1 parts) 76825 — PROTECTOR, BACK DOOR OUTSIDE GARNISH (2 parts) 76822 — PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER (1 parts) 76801A — GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE (8 parts) 9010906361 — not listed in this catalogue 9010906361 — not listed in this catalogue 9011606172 — not listed in this catalogue 9043005003 — not listed in this catalogue 9043005003 — not listed in this catalogue 9043005003 — not listed in this catalogue 9017906159 — not listed in this catalogue
752402B · 9 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
14 parts on this figure
Part number Description Fitment Price
75819 — Clip, Luggage Compartment Door Moulding
75819-33010 Clip, Luggage Compartment Door Moulding
2007-12 → 2010-12 ended
ZRE142 JPP —
75819-33010 Clip, Luggage Compartment Door Moulding
2010-12 → 2013-08 ended
ZRE142 JPP —
76801A — Garnish Sub-assy, Luggage Compartment Door, Outside
76801-12820-A0 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12820-B0 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12820-B1 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12820-C0 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12820-D0 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12820-H0 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12820-J3 note Garnish Sub-assy, Luggage Compartment Door, Outside
2007-12 → 2010-12 ended
ZRE142 JPP —
76801-12B90 note Garnish Sub-assy, Luggage Compartment Door, Outside
2010-12 → 2013-08 ended
ZRE142 JPP —
76817 — Clip, Back Door Outside Garnish
76817-12090 Clip, Back Door Outside Garnish
2010-12 → 2013-08 ended
ZRE142 JPP —
76822 — Protector, Back Door Garnish Moulding, Lower
76822-12130 Protector, Back Door Garnish Moulding, Lower
2010-12 → 2013-08 ended
ZRE142 JPP —
76825 — Protector, Back Door Outside Garnish
76825-12050 Protector, Back Door Outside Garnish
2007-12 → 2010-12 ended
ZRE142 JPP —
76825-12120 Protector, Back Door Outside Garnish
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
